Motion Warping

Overview

Motion Warping allows the animation's Root Motion to be procedurally adjusted to fit different start positions and rotations to reuse the Root Motion animation assets in different scenes.

Automatically corrects the movement and rotation values of the animation based on the position and orientation of the target object. For example, allow the player to jump over barriers with a jumping motion at different positions.

Animation Sequences

By creating Motion Warping State Notifies in the animation sequence to specify the Motion Warping area, and adjusting the Root Bone displacement as needed, you can create a variety of animation effects even with limited animation assets.

Creating State Notifies

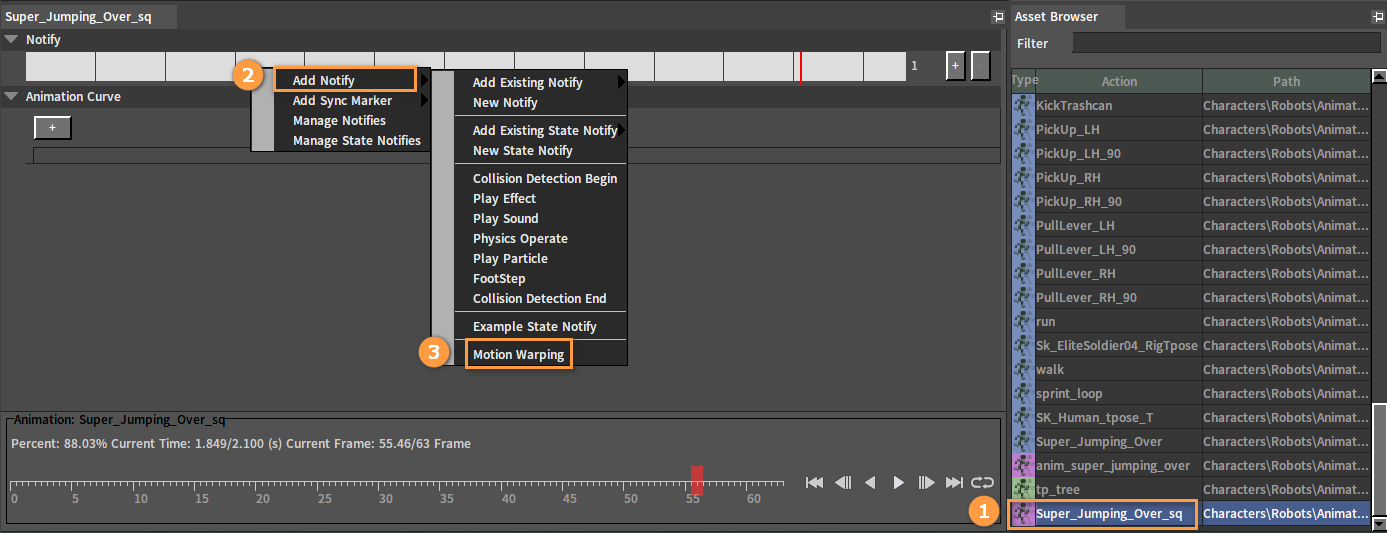

Open the needed animation sequence asset in the Animation Editor. Right-click the Notify track and select Add Notify -> Motion Warping.

After adding a Motion Warping State Notify, you can drag the Notify tab left or right on the track to adjust its start and end time to specify the warping area.

Properties

After selecting a Motion Warping State Notify on the track, you can edit its related properties in the Details Panel.

Property	Description
Type	Specify the type of the applied algorithm.
Target Name	Specify the tag name of the target in the scene.
Warp Translation	Specify whether to enable the adjustment of the displacement.
Warp Rotation	Specify whether to eanble the adjustment of the rotation.
Rotation Warping Type	Specify the method used to adjust the rotation. Align To Target: Keep the orientation consistent with the target during the process. Look At Target: Always face the target during the process.

Animation Trees

Animations can be controlled and managed by adding nodes in the Animation Tree, and animations that will use Motion Warping can be placed into slots in the Animation Tree.

Example

The following is an example of the character using the Motion Warping feature to jump over a target barrier.

Assembling Actors

Refer to Assembling Actors to create an Actor containing skinned mesh and skeleton assets.

Setting Animation Sequences

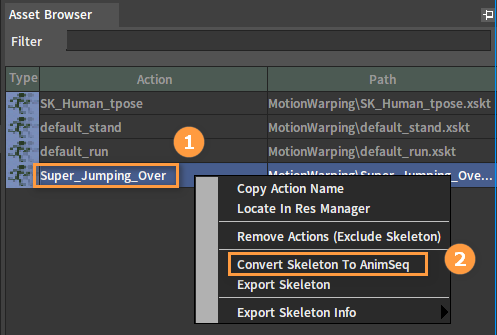

Convert the jumping skeleton asset to an animation sequence asset. Select the skeleton asset in the Asset Browser window of the Animation Editor, then right-click and select Convert Skeleton To AnimSeq.

Name the animation sequence asset in the pop-up window, and click the OK button to finish the conversion.

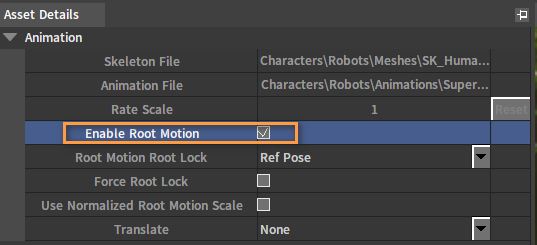

Enable Root Motion. Check Enable Root Motion in the Asset Details panel of the animation sequence asset.

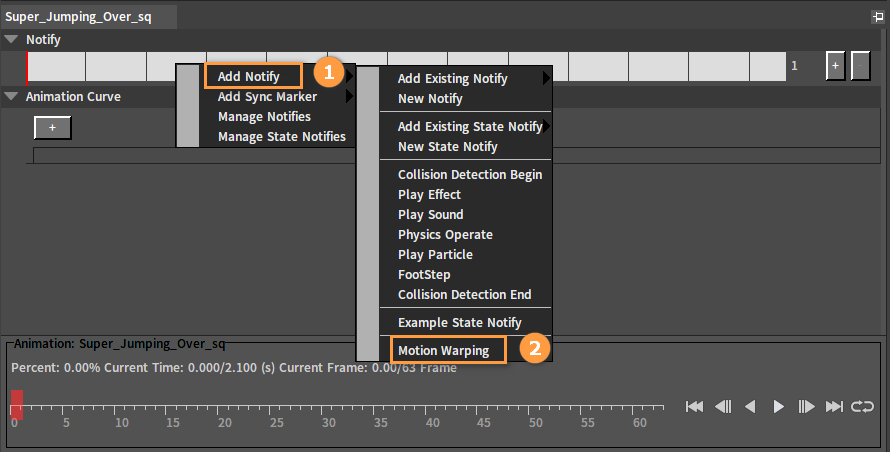

Add a Motion Warping State Notify to the track in the editing panel of the asset. Right-click the track and then click Add Notify -> Motion Warping.

Enter the name of the State Notify in the pop-up New Notify window, and click the OK button to finish adding.

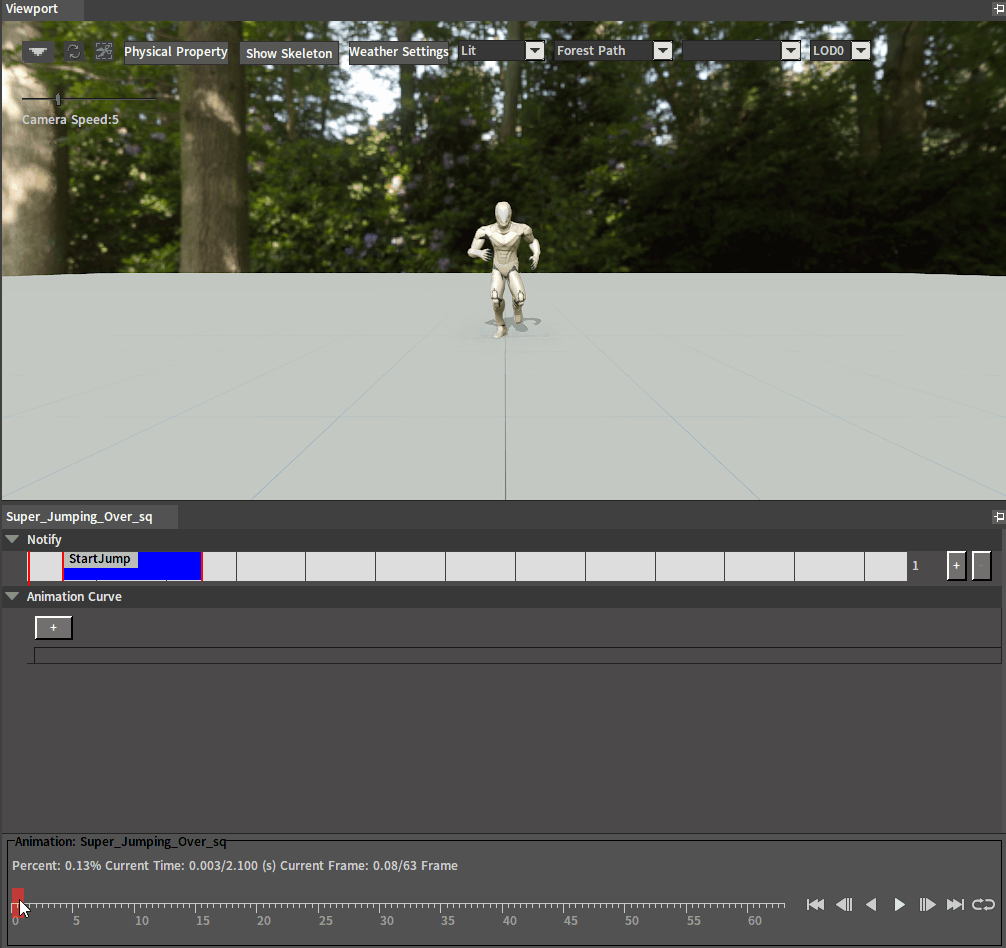

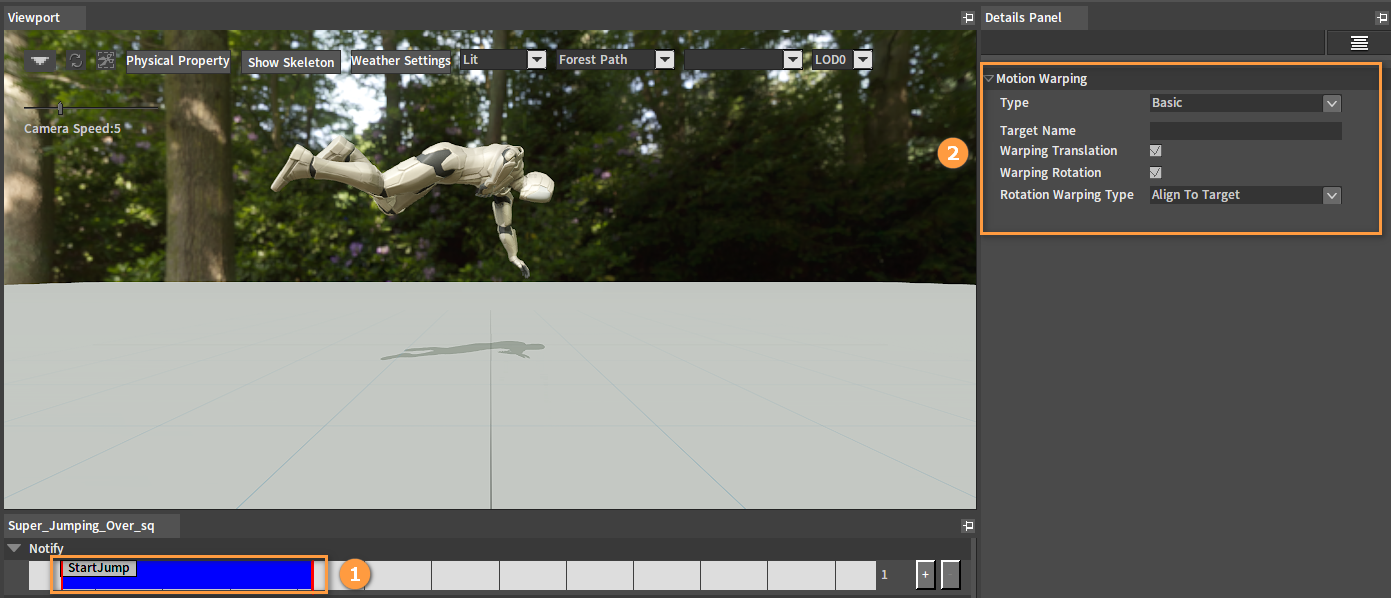

Adjust the position and duration of the Motion Warping State Notify according to the animations to be warped. For basic operations on State Notify, please refer to Animation Notify.

Select the Motion Warping State Notify and modify its properties in the Details Panel. Enter the name VaultPoint in Target Name to mark the warping.

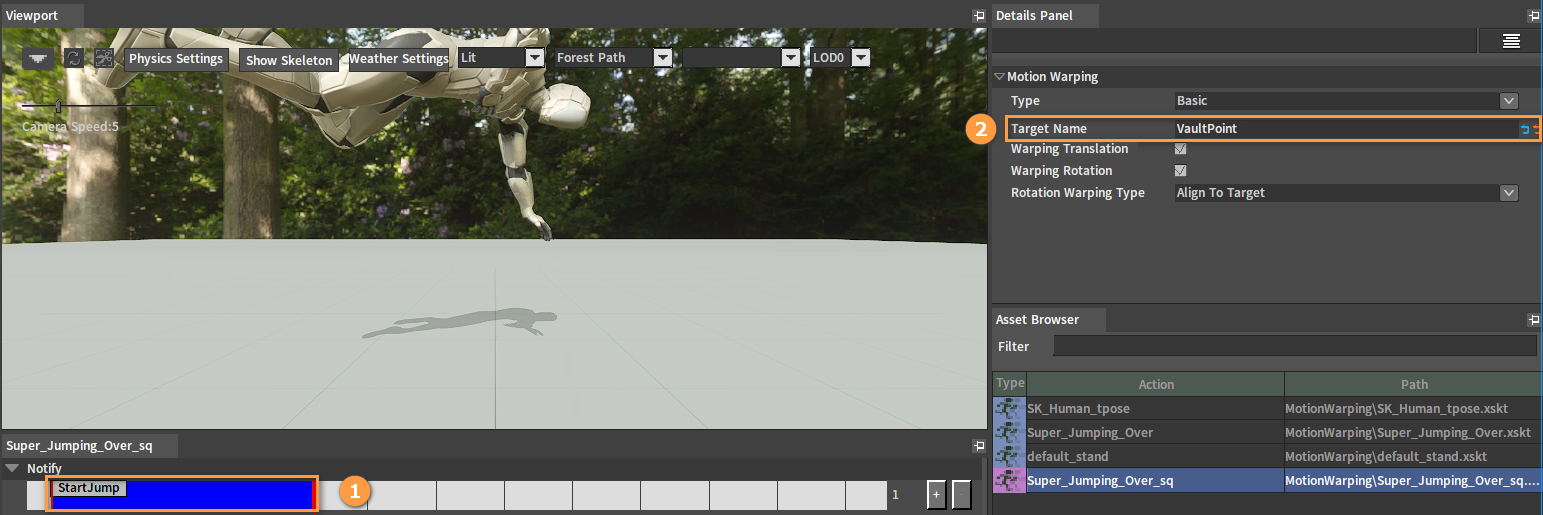

Continue adding State Notifies as described above, and specify Target Names for these warpings.

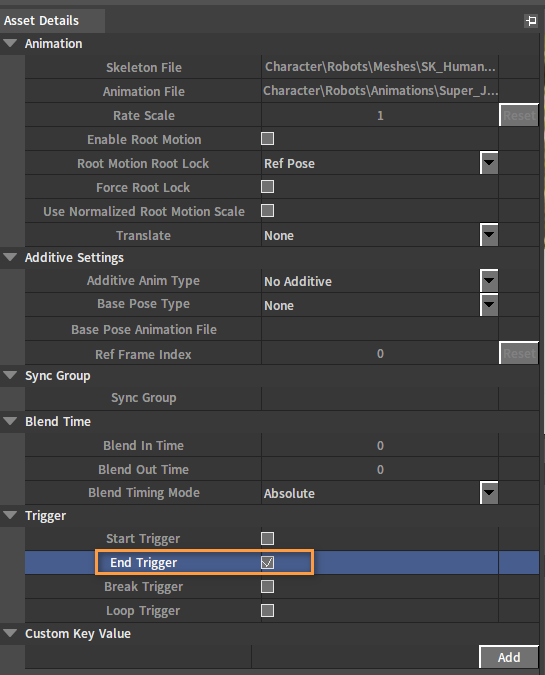

Check End Trigger in the Asset Details panel to trigger a Notify when the animation finishes playing.

Configuring Animation Trees

Character animations can be managed by adding nodes in Animation Trees.

In the Animation Editor, click File (Menu Bar) -> Create, then click the drop-down box in the pop-up window, select AnimTree, name it and select the path to create it.

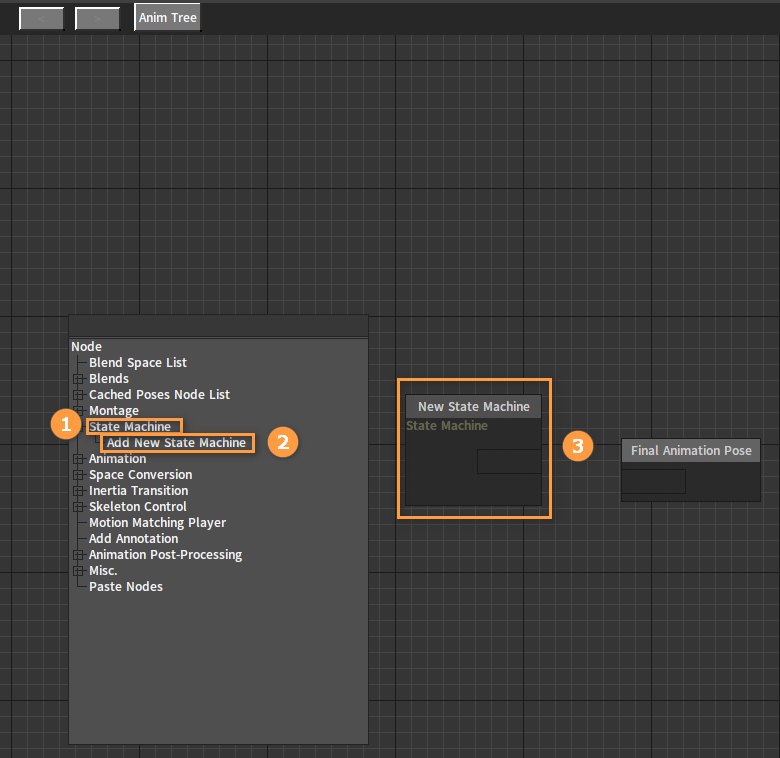

Right-click in the created Animation Tree to open the Node Selection panel, and then click State Machine -> Add New State Machine to add a State Machine node.

Double-click the State Machine node to enter the state graph editing interface, where you can create states and organize structures. Create the transition between the two states idle and run by referring to Character Quick Start -> Adding State Machine Nodes.

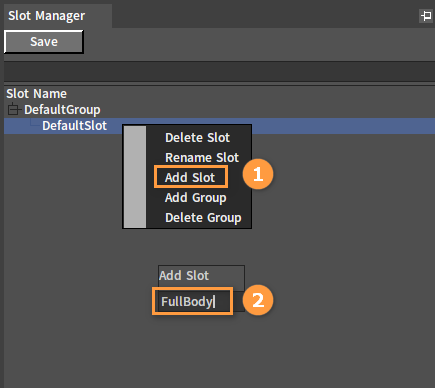

Create a slot FullBody in the Slot Manager window of the Anim Tree Editor. First, right-click Slot Name in Slot Manager, and then click Add Default Group And Slot in the pop-up Shortcut Menu.

Right-click DefaultSlot to open the Shortcut Menu, select Add Slot to add a new one, enter the slot name in the pop-up window and press the Enter key to finish adding.

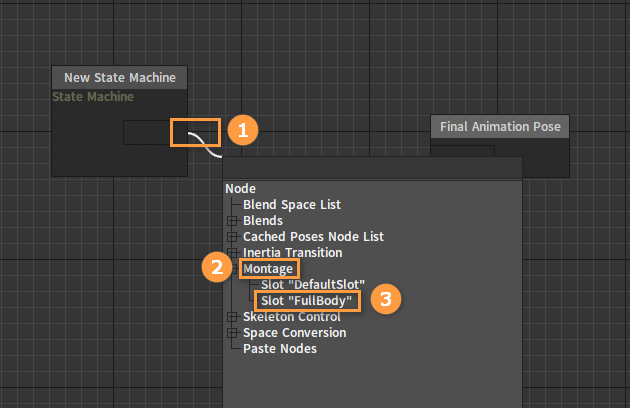

Drag from the State Machine node pin to open the Node Selection panel, expand the Montage category and select Slot"FullBody".

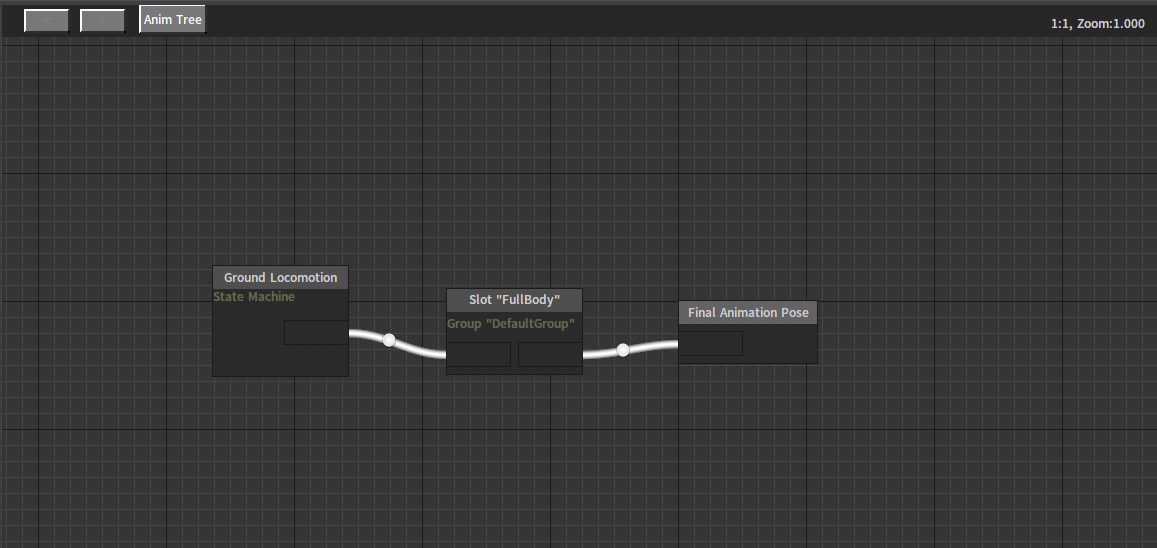

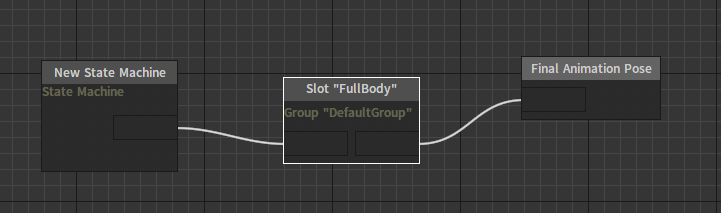

Connect the Slot "Fullbody" node to the Final Animation Pose node.

Last, click File -> Save in the Anim Tree Editor.

Configuring Actors

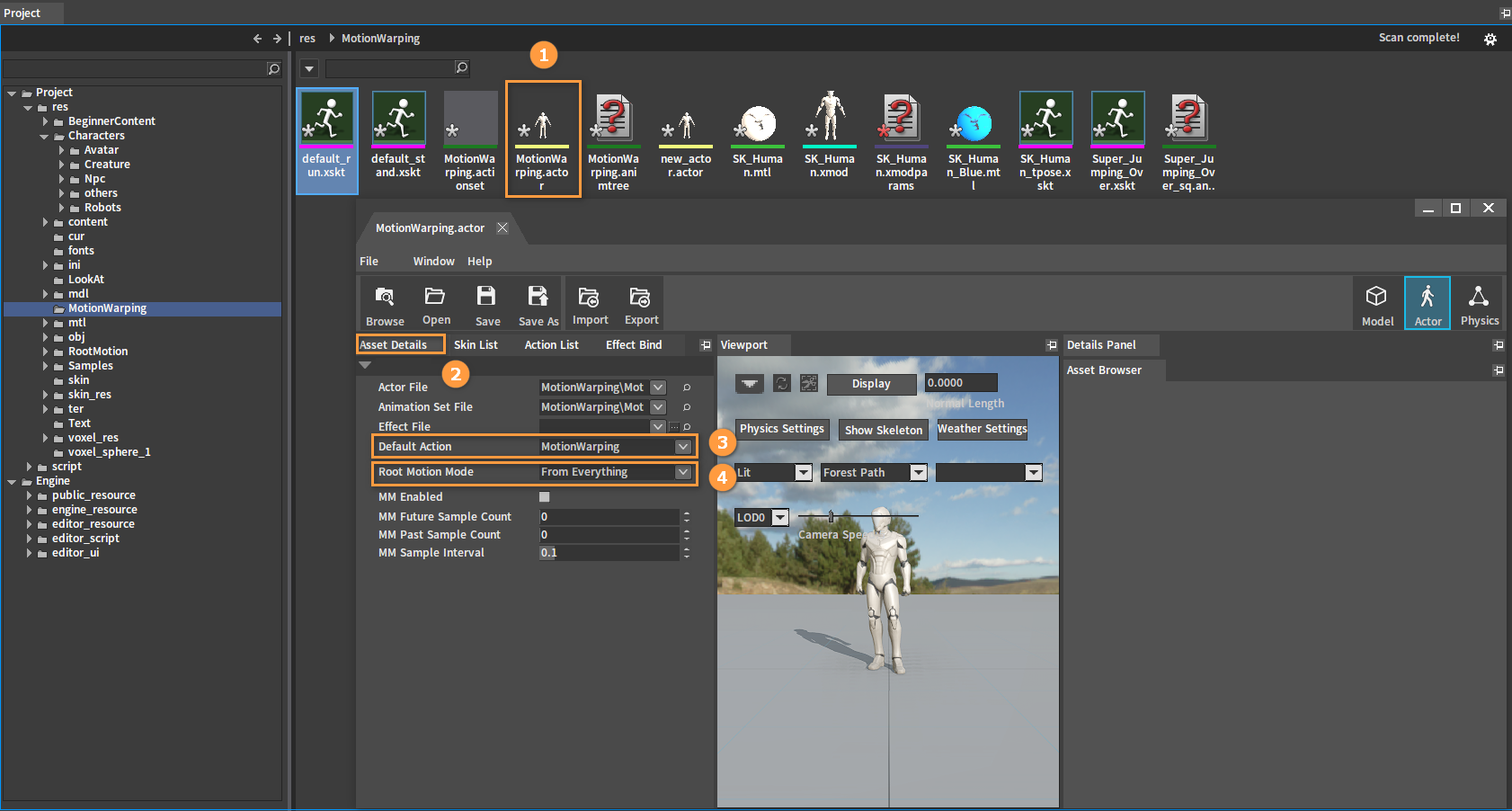

Double-click the created Actor file in the Resource Preview window to open it, then click Asset Details in the Actor Editor, set Default Action to the Animation Tree you just created, and set Root Motion Mode to From Everything.

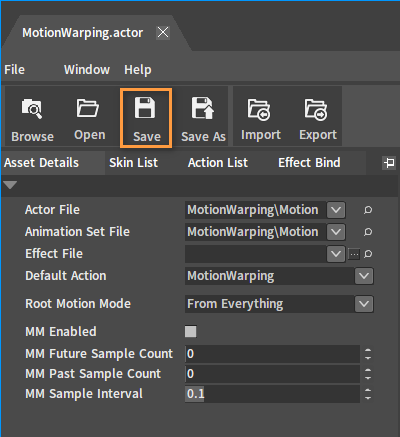

After modification, click Save in the Actor Editor.

Creating Characters

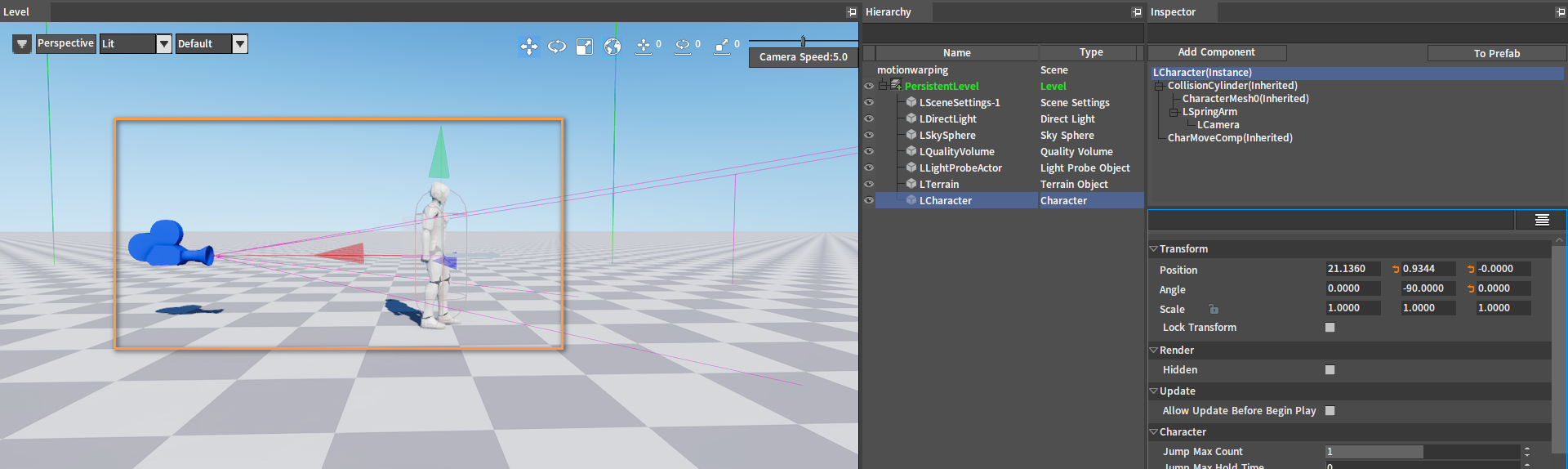

Create a Level in the Component Editor. Add a Character in the Level and set its properties. The Skeletal Mesh Config File for the character is the Actor you just created. Refer to Character Quick Start -> Character Settings for details.

Input Settings

Refer to Character Quick Start -> Editing Input Settings for details.

Creating Targets

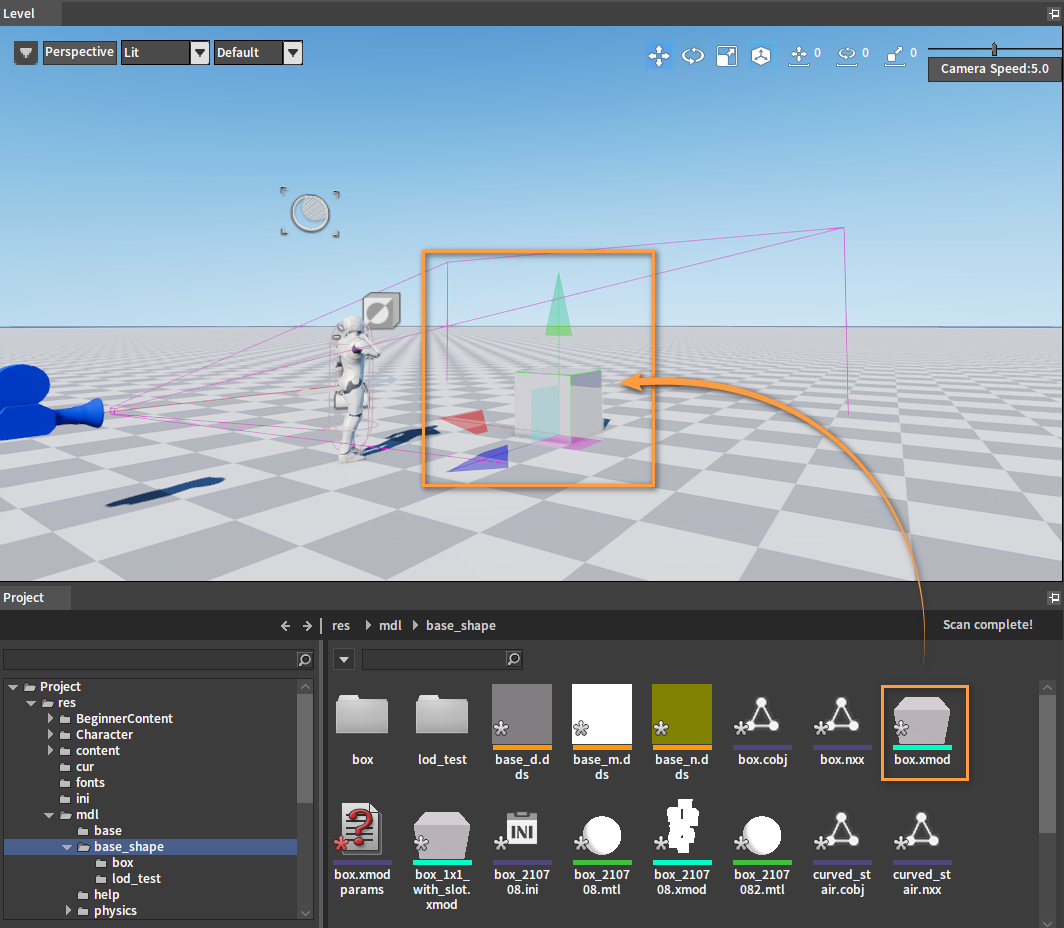

Drag three models from the Resource Preview window into the Level and adjust their sizes. Use the three static meshes as targets to be avoided by the character warping (The orientation of the three static meshes needs to be consistent with the character).

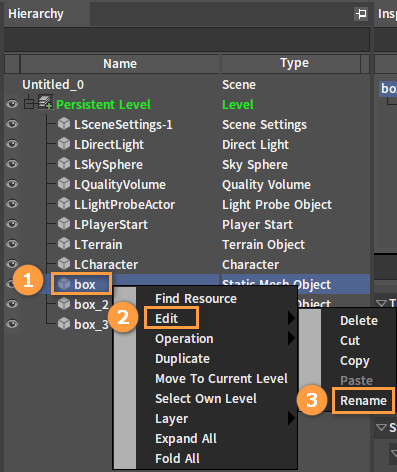

In the Hierarchy panel, right-click the static mesh object to open the Shortcut Menu, and click Edit -> Rename to rename it.

After renaming:

Select the static mesh you just created in the Hierarchy panel and enter the name in the String Tag property under the Inspector panel. The name here should be consistent with the Target Name of the Motion Warping State Notify in the animation sequence.

Set String Tags as FlyEndPoint and LandingPoint for the remaining two static meshes as described above.

Binding Scripts to Characters

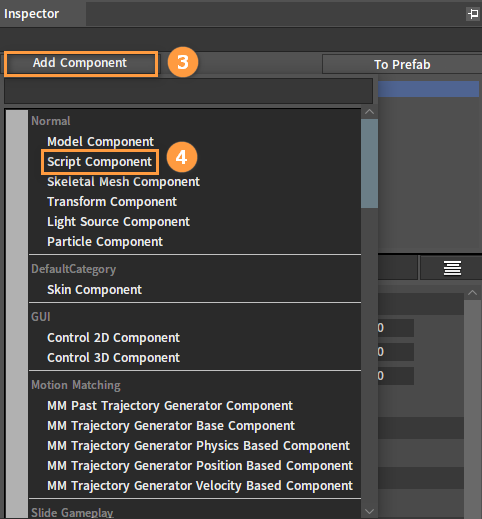

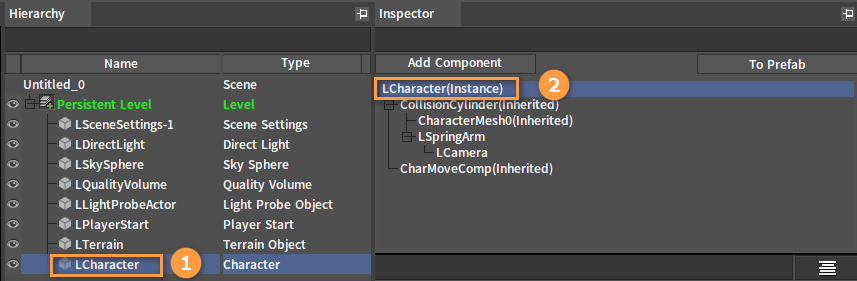

Bind a script to the character. Select LCharacter in the Hierarchy panel, select LCharacter(Instance) in the Inspector panel, then click the Add Component button and select the Script Component.

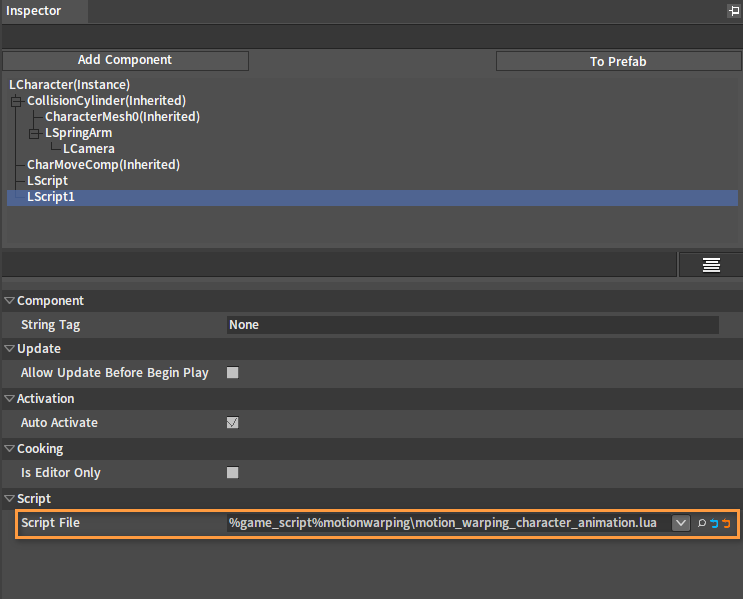

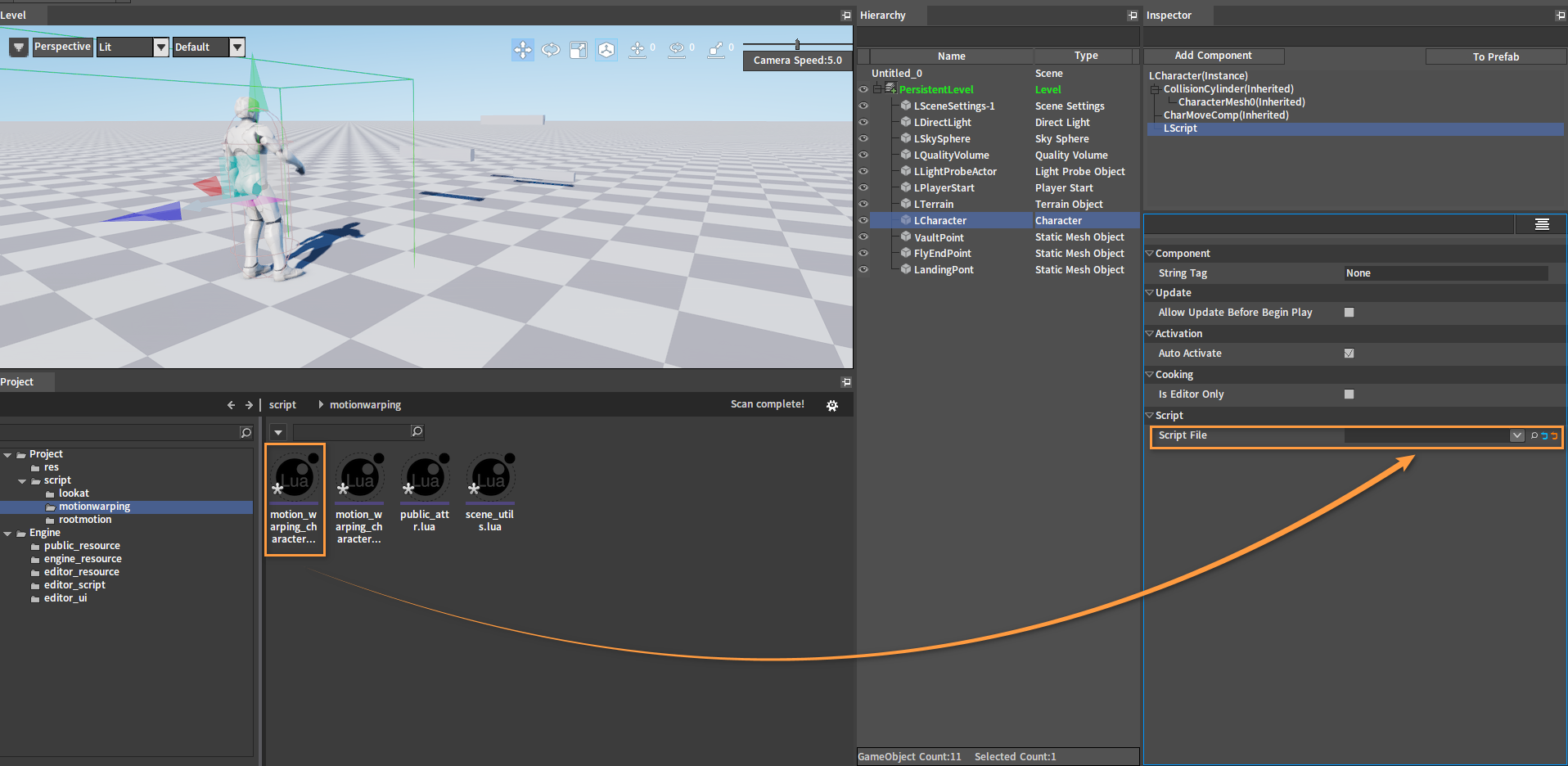

Configure the script file in the Property panel of the Script Component. Drag Script from the Resource Preview window into the Script File slot of the character script component.

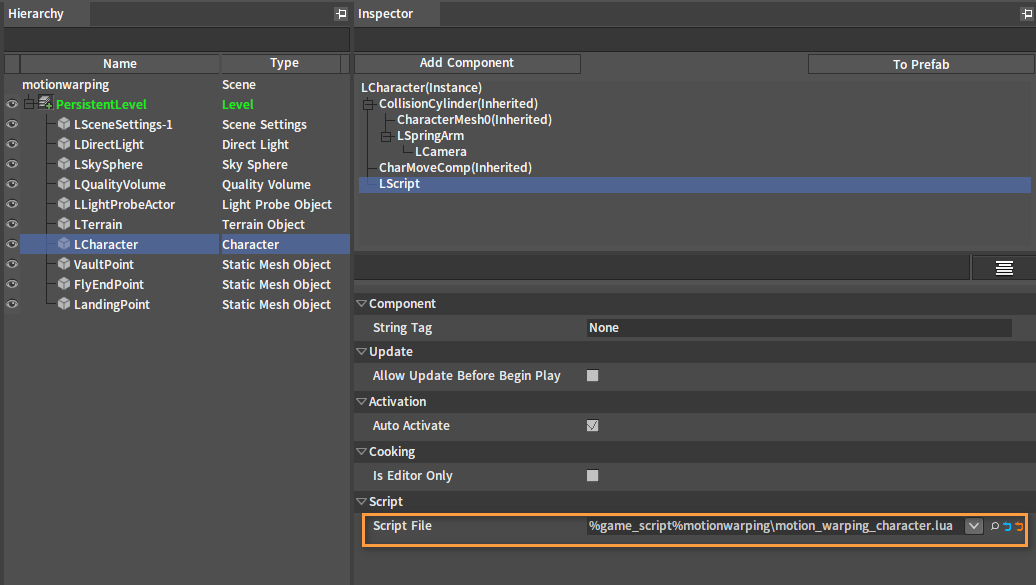

After dragging:

Script One

Reference script:

motion_warping_character.lua

--Script template

require("public_attr")

local IE_Pressed        = 0     --Press the key
local IE_Released       = 1     --Release the key
local IE_Repeat         = 2
local IE_DoubleClick    = 3
local IE_Axis           = 4
local IE_MAX            = 5

local CAMERA_DISTANCE_CHANGE_SPEED = 0.5
local CAMERA_DISTANCE_MIN = -1
local CAMERA_DISTANCE_MAX = 50

--------------------------
--Local utility function--
--------------------------

---------------------
--Default callbacks--
---------------------

--Use this for initialization
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local input_comp = owner.InputComponent

        if nx_is_valid(input_comp) then
            nx_bind_script(owner, nx_current())

            input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
            input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
            input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
            input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")
            input_comp:AddAxisBinding("AdjustCameraDis", true, false, true, "InputAxisEvent_AdjustCameraDis")

            input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true, "InputActionEvent_Jump_Pressed")
            input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true, "InputActionEvent_Jump_Released")
            input_comp:AddCombinationBinding("Dash", IE_Pressed, true, false, true, "InputActionEvent_Dash_Pressed")
            input_comp:AddCombinationBinding("EnableLookAt", IE_Pressed, true, false, true, "InputActionEvent_EnableLookAt_Pressed")
            input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true, "InputActionEvent_LeftClick_Pressed")

            input_comp:AddCombinationKeyBinding("R", false, false, false, false, 0, false, false, true, "r_key_pressed")

            nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
            nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
            nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
            nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")
            nx_callback(owner, "InputAxisEvent_AdjustCameraDis", "on_adjust_camera_dis")

            nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
            nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")
            nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick_pressed")

            nx_callback(owner, "InputActionEvent_Dash_Pressed", "on_dash_pressed")
            nx_callback(owner, "InputActionEvent_EnableLookAt_Pressed", "on_enable_look_at_pressed")

            nx_callback(owner, "on_velocity_changed", "on_velocity_changed")
            nx_callback(owner, "r_key_pressed", "toggle_ragdoll")

        end

        -- Query MotionWarping TargetPoint
        local mw_target_name1 = "VaultPoint"
        local mw_target_name2 = "FlyEndPoint"
        local mw_target_name3 = "LandingPoint"

        local scene = owner.Scene
        local actor = character_get_actor(owner)

        local vault_point_objs = scene:QueryObjectListByTag(mw_target_name1, "fx_component.LGameObject")
        if #vault_point_objs > 0 then
            local vault_point_actor = vault_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name1, vault_point_actor.PositionX, vault_point_actor.PositionY, vault_point_actor.PositionZ, vault_point_actor.AngleX, vault_point_actor.AngleY, vault_point_actor.AngleZ)
        end

        local fly_end_point_objs = scene:QueryObjectListByTag(mw_target_name2, "fx_component.LGameObject")
        if #fly_end_point_objs > 0 then
            local fly_end_point_actor = fly_end_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name2, fly_end_point_actor.PositionX, fly_end_point_actor.PositionY, fly_end_point_actor.PositionZ, fly_end_point_actor.AngleX, fly_end_point_actor.AngleY, fly_end_point_actor.AngleZ)
        end

        local landing_point_objs = scene:QueryObjectListByTag(mw_target_name3, "fx_component.LGameObject")
        if #landing_point_objs > 0 then
            local landing_point_actor = landing_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name3, landing_point_actor.PositionX, landing_point_actor.PositionY, landing_point_actor.PositionZ, landing_point_actor.AngleX, landing_point_actor.AngleY, landing_point_actor.AngleZ)
        end
    end

    nx_callback(component, "on_tick", "tick")
end

--Use this for release
function on_end_play(component)
end

--Get actor
function character_get_actor(character)
    if nx_is_valid(character) then
        local mesh_component = character.MeshComponent

        if nx_is_valid(mesh_component) then
            local vis_base = mesh_component.VisBase

            if nx_is_valid(vis_base) and nx_is_kind(vis_base, "Actor") then
                return vis_base
            end
        end
    end

    return nx_null()
end

--Get spring_arm
function character_get_spring_arm(character)
    if nx_is_valid(character) then
        local spring_arm_component = character:FindComponentByClassName("LSpringArmComponent")

        return spring_arm_component
    end

    return nx_null()
end

--Move forward callback
function on_moveforward(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller Y-axis angle
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get forward direction
        local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

        --Add movement

        owner:AddMovementInput(x, y, z, axis_value)
    end

    return 1
end

--Move right callback
function on_moveright(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller Y-axis angle
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get right direction
        local x, y, z = nx_function("ext_angle_get_right_vector", 0.0, yaw, 0.0)

        --Add movement
        owner:AddMovementInput(x, y, z, axis_value)
    end
    return 1
end

--Rotate left and right (around Y-axis) callback
function on_turn(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerYawInput(axis_value)

    return 1
end

--Rotate up and down (around X-axis) callback
function on_lookup(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerPitchInput(-axis_value)

    return 1
end

--Mouse wheel callback
function on_adjust_camera_dis(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    local spring_arm_component = character_get_spring_arm(owner)

    if nx_is_valid(spring_arm_component) then
        local delta = axis_value * CAMERA_DISTANCE_CHANGE_SPEED

        local cur_value = spring_arm_component.TargetArmLength
        local new_value =  cur_value + delta

        if delta > 0 then
            if new_value > CAMERA_DISTANCE_MAX then
                new_value = CAMERA_DISTANCE_MAX
            end

            spring_arm_component.TargetArmLength = new_value
        else
            if new_value < CAMERA_DISTANCE_MIN then
                new_value = CAMERA_DISTANCE_MIN
            end
            spring_arm_component.TargetArmLength = new_value
        end
    end

    return 1
end

--Press jump key callback
function on_jump_pressed(owner)
    if nx_find_custom(owner, "JumpAgainLock") and owner.JumpAgainLock then
        return 1
    end

    --Character jumping
    owner:Jump()

    return 1
end

--Dash
function on_dash_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    local movement_comp = owner.CharacterMovement
    --local mode = movement_comp.MovementMode
    local new_mode = nx_enum("MOVEMENT_MODE::Flying")
    movement_comp:SetMovementModeWithCustom(new_mode, 0)
    actor:BlendAction("Super_Jumping_Over_sq", false, false, true, 1.0, true, "FullBody", true)
end

--lookat
function on_enable_look_at_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    local action_name = actor:GetBlendActionName(0)
    local action_type = actor:GetActionType(action_name)
    local action_index = actor:GetActionIndex(action_name)
    if action_type == AT_ANIMTREE then
        if actor:GetAnimTreeValue(action_index, "LookAtIndex") == 0 then
            actor:SetAnimTreeValue(action_index, "LookAtIndex", 1)
        else
            actor:SetAnimTreeValue(action_index, "LookAtIndex", 0)
        end
    end
end

--Release jump key callback
function on_jump_released(owner)
    --Character stops jumping
    owner:StopJumping()

    return 1
end

function on_leftclick_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    --actor:BlendAction("PrimaryMelee_D_Slow_sq", false, false, true, 1.0, true, "myslot", true)
    --actor:BlendAction("PrimaryMelee_C_Slow2_MSA_Anim", false, false, true, 1.0, true, "myslot", true)
    actor:BlendAction("PrimaryMelee_C_Slow_MSA_sq", false, false, true, 1.0, true, "myslot", true)
    --actor:SetBlendActionPause("PrimaryMelee_C_Slow_MSA_sq", true)

    --[[
    local cur_percent = 0
    while cur_percent < 100 do
        actor:SetCurrentPercent("PrimaryMelee_C_Slow_MSA_sq", cur_percent)
        nx_pause(0.016)
        cur_percent = cur_percent + 0.016
    end]]

    --actor:SetBlendActionPause("PrimaryMelee_C_Slow_MSA_sq", true)

end

--Velocity changes callback
function on_velocity_changed(owner, component_id, new_x, new_y, new_z, old_x, old_y, old_z)
    local actor = character_get_actor(owner)

    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_type = actor:GetActionType(action_name)
            local action_index = actor:GetActionIndex(action_name)

            if action_type == AT_ANIMTREE then
                local speed = math.sqrt(new_x * new_x + new_y * new_y + new_z * new_z)
                actor:SetAnimTreeValue(action_index, "Speed", speed)

                nx_set_custom(actor,"CurSpeed",speed);
            end
        end
    end

    return 1
end

function on_rhand_ik_open(self, bOpen)
    nx_set_custom(self, "rhand_ik", bOpen)
    --[[local actor = self.Actor
    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_type = actor:GetActionType(action_name)
            local action_index = actor:GetActionIndex(action_name)

            if action_type == AT_ANIMTREE then
                actor:SetAnimTreeValue(action_index, "bRhand", bOpen)
            end
        end
    end--]]
end

function set_tree_state(actor, state_name, enable)
    if not nx_is_valid(actor) then
        return
    end

    -- Set state machine variables
    if actor:GetBlendActionCount() > 0 then
        local action_name = actor:GetBlendActionName(0)
        local action_type = actor:GetActionType(action_name)
        local action_index = actor:GetActionIndex(action_name)
        if action_type == AT_ANIMTREE then
            actor:SetAnimTreeValue(action_index, state_name, enable)
        end
    end
end

-- Toggle ragdoll
function toggle_ragdoll(owner, key_name)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    nx_set_value("default_actor", actor)

    local mesh_component = owner.MeshComponent
    if not nx_is_valid(mesh_component) then
        return
    end

    -- Record mesh_component
    actor.mesh_component = mesh_component

    local enable_ragdoll = not mesh_component.SimulatePhysics

    if (enable_ragdoll) then
        mesh_component.SimulatePhysics = enable_ragdoll
        set_tree_state(actor, "IsDead", true)
    else
        local capsule = owner.CapsuleComponent
        if nx_is_valid(capsule) then
            -- Record capsule
            actor.capsule = capsule
        end

        -- Save snapshot
        actor:SavePoseSnapshot("finalpose")

        mesh_component.SimulatePhysics = enable_ragdoll

        -- Notify blend snapshot
        set_tree_state(actor, "IsStopped", true)

        -- Play get up action
        actor:BlendAction("GetUp_Back_montage", false, false, true, 1.0)

        set_tree_state(actor, "IsDead", false)

        -- Pause two frames
        nx_pause(0)
        nx_pause(0)

        -- Notify stop blend snapshot
        set_tree_state(actor, "IsStopped", false)
    end
end

function tick(component, delta_time)
    update_capsule_location()
end

-- Update capsule location in the ragdoll state
function update_capsule_location()
    local actor = nx_value("default_actor")
    if not nx_is_valid(actor) then
        return
    end

    if not nx_find_custom(actor, "mesh_component") then
        return
    end

    local mesh_component = actor.mesh_component
    if not nx_is_valid(mesh_component) then
        return
    end

    if mesh_component.SimulatePhysics then
        if not nx_find_custom(actor, "capsule") then
            return
        end

        local capsule = actor.capsule
        if not nx_is_valid(capsule) then
            return
        end

        local x, y, z = actor:GetNodeWorldPosition("pelvis")
        capsule:SetPosition(x, capsule.PositionY, z)
    end
end

public_attr.lua

--Explorer: global variables

MODEL_PATH = "mdl\\"
MODEL_PATH_DX9 = ""
ACTOR_PATH = "ini\\actor\\"
ACTOR_PATH_DX9 = "ini\\actor\\"
LIGHT_PATH = "ini\\light\\"
LIGHT_PATH_DX9 = "ini\\light\\"
EFFECT_PATH = "ini\\effect\\"
PARTICLE_PATH = "ini\\particle\\"
SOUND_PATH = "snd\\"
REVERB_PATH = "reverb\\"
TRIGGER_PATH = "ini\\trigger\\"
PROBE_PATH = "ini\\light_probe\\"
VOLUME_FOG_PATH = "ini\\volume_fog\\"
MATERIAL_PATH = ""

--Resource type definitions
TYPE_MODEL = "model"
TYPE_ACTOR = "actor"
TYPE_LIGHT = "light"
TYPE_EFFECT = "effect"
TYPE_PARTICLE = "particle"
TYPE_SOUND = "sound"
TYPE_REVERB = "reverb"
TYPE_TRIGGER = "trigger"
TYPE_PROBE = "light_probe"
TYPE_VOLUME_FOG = "volume_fog"
TYPE_DECAL = "decal"
TYPE_GROUP = "group"
TYPE_RIPPLE = "ripple"
TYPE_SNOW = "snow"
TYPE_RAIN = "rainlayer"
TYPE_UI3D = "ui3d"

--Animation resource types
AT_UNKNOWN = 0
AT_SKELETON = 1
AT_SKELETON_AS_ANIMSEQUENCE = 2
AT_ANIMSEQUENCE = 3
AT_MONTAGE = 4
AT_BLENDSPACE = 5
AT_BLENDSPACE1D = 6
AT_AIMOFFSETBLENDSPACE = 7
AT_ANIMTREE = 8

TYPE_LIST = {
    "model",
    "actor",
    "light",
    "effect",
    "particle",
    "decal",
    "sound",
    "reverb",
    "trigger",
    "light_probe",
    "volume_fog",
    "ripple",
    "snow",
    "rainlayer",
}

FORM_TREE_BROWSER = "common_form\\form_tree_browser"
SEARCH_PATH = "ini\\common_form\\form_tree_browser\\"
SEARCH_CONFIG = SEARCH_PATH .. "form_put_visual.ini"
SEARCH_CONFIG_TEMP = "cache\\common_form\\form_tree_browser\\form_put_visual_temp.ini"
GROUP_CONFIG = "ter\\visual_group.ini"

--Get visual_put file
function get_search_file()
    local ini = nx_create("IniDocument")

    ini.FileName = nx_resource_path() .. SEARCH_CONFIG

    if not ini:LoadFromFile() then
        nx_destroy(ini)
        return 0
    end

    local file = ini:ReadString("SEARCH_CONFIG", "search_file", "form_put_visual.ini")

    nx_destroy(ini)

    return nx_resource_path() .. SEARCH_PATH .. file, file
end

Bind another Motion Warping Animation Script for the character as described above.

Script Two

Reference script:

motion_warping_character_animation.lua

--Script template

--------------------------
--Local utility function--
--------------------------

require("public_attr")
require("scene_utils")

local function get_terrain(pawn)
    if nx_is_valid(pawn) then
        local lscene = pawn.Scene

        if nx_is_valid(lscene) then
            return scene_get_engine_terrain(lscene)
        end
    end

    return nx_null()
end

local function get_movement_component(pawn)
    if nx_is_valid(pawn) then
        return pawn:GetMovementComponentID()
    end

    return nx_null()
end

local function is_moving(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            local speed = nx_function("ext_vector_length", pawn.VelocityX, pawn.VelocityY, pawn.VelocityZ)
            if speed > 0.0 and movement:IsMovingOnGround() then
                return true
            end
        end
    end

    return false
end

local function get_speed(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            local speed = nx_function("ext_vector_length", pawn.VelocityX, pawn.VelocityY, pawn.VelocityZ)
            return speed
        end
    end

    return 0.0
end

local function get_current_jump_count(pawn)
    if nx_is_valid(pawn) then
        return pawn.JumpCurrentCount
    end

    return 0
end

local function is_jumping(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if movement:IsFalling() then
                return true
            end
        end
    end

    return false
end

local function is_accelerating(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if math.abs(movement.CurrentAccelerationX) > 0.0
                or math.abs(movement.CurrentAccelerationY) > 0.0
                or math.abs(movement.CurrentAccelerationZ) > 0.0 then
                return true
            end
        end
    end

    return false
end

local function get_anim_tree_index(role)
    if role:GetBlendActionCount() > 0 then
        local action_name = role:GetBlendActionName(0)
        local action_type = role:GetActionType(action_name)
        if action_type == AT_ANIMTREE then
            return role:GetActionIndex(action_name)
        end
    end

    return -1
end

local function get_foot_ik_weight(role)
    local foot_ik_weight = -1.0

    local foot_ik_id = role:GetCurveIDByNameInSkeleton("foot_ik")

    if foot_ik_id >= 0 then
        foot_ik_weight = role:GetCurveValue(foot_ik_id)
    end

    return foot_ik_weight
end

function transition_callback_IdleToJogStart(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) and not is_jumping(pawn) and is_moving(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStartToJogStop(pawn, role, action_index, machine_index, prev_state, next_state)
    if get_speed(pawn) < 1.0 then
        return true
    else
        return false
    end
end

function transition_callback_IdleToRun(pawn, role, action_index, machine_index, prev_state, next_state)
    if get_speed(pawn) > 50.0 then
        return true
    else
        return false
    end
end

function transition_callback_RunToJogStop(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStopToIdle(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStopToJogStart(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_IdleOrJogsToJumps(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpsToJumpLand(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpsToIdleOrJogs(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpToSecondJump(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) and get_current_jump_count(pawn) > 1 then
        return true
    else
        return false
    end
end

function transition_callback_SecondJumpToThirdJump(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) and get_current_jump_count(pawn) > 2 then
        return true
    else
        return false
    end
end

function transition_callback_IdleToMultiDiectionMove(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_moving(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_MultiDiectionMoveToIdle(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_moving(pawn) then
        return true
    else
        return false
    end
end

transition_event_callback =
{
    ["IdleToJogStart"] = transition_callback_IdleToJogStart,
    ["JogStartToJogStop"] = transition_callback_JogStartToJogStop,
    ["IdleToRun"] = transition_callback_IdleToRun,
    ["RunToJogStop"] = transition_callback_RunToJogStop,
    ["JogStopToIdle"] = transition_callback_JogStopToIdle,
    ["JogStopToJogStart"] = transition_callback_JogStopToJogStart,
    ["IdleOrJogsToJumps"] = transition_callback_IdleOrJogsToJumps,
    ["JumpsToJumpLand"] = transition_callback_JumpsToJumpLand,
    ["JumpsToIdleOrJogs"] = transition_callback_JumpsToIdleOrJogs,
    ["JumpToSecondJump"] = transition_callback_JumpToSecondJump,
    ["SecondJumpToThirdJump"] = transition_callback_SecondJumpToThirdJump,

    ["IdleToMultiDiectionMove"] = transition_callback_IdleToMultiDiectionMove,
    ["MultiDiectionMoveToIdle"] = transition_callback_MultiDiectionMoveToIdle,

}

function on_transition_event(mesh_comp, action_index, machine_index, prev_state, next_state, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = transition_event_callback[callback_name]
    if callback then
        return callback(pawn, role, action_index, machine_index, prev_state, next_state)
    end

    return false
end

function state_machine_state_callback_EnterState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_EnterState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

function state_machine_state_callback_LeaveState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_LeaveState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

function state_machine_state_callback_FullyBlendState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_FullyBlendState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

state_machine_state_event_callback =
{
    ["start_state"] = state_machine_state_callback_EnterState,
    ["end_state"] = state_machine_state_callback_LeaveState,
    ["fully_blend_state"] = state_machine_state_callback_FullyBlendState,
}

function on_state_machine_state_event(mesh_comp, action_index, machine_index, state_index, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = state_machine_state_event_callback[callback_name]
    if callback then
        return callback(pawn, role, action_index, machine_index, state_index)
    end

    return
end

function has_fullbody_action(pawn)
    return false
end

function animtree_callback_ShouldUseLayerBlend(pawn, role)
    if not has_fullbody_action(pawn) and is_moving(pawn) then
        return true
    end

    return false
end

function animtree_callback_CalcLeanAngle(pawn, role)
    return 0.0
end

function animtree_callback_CalcSlopeAngle(pawn, role)
    return 0.0
end

function animtree_callback_ShouldUseRHand(pawn, role)
    if nx_is_valid(pawn) then
        return nx_custom(pawn, "rhand_ik")
    end

    return false
end

function animtree_callback_GetPlayerWeaponState(pawn, role)

    return 0
end

function animtree_callback_GetPlayerFightState(pawn, role)

    return 0
end

function animtree_callback_IsPlayerMoving(pawn, role)
    if is_moving(pawn) then
        return true
    end

    return false
end

--Animation tree right foot IK node callback
function animtree_callback_RRootIK(pawn, role)
    local terrain = get_terrain(pawn)

    if not nx_is_valid(terrain) then
        return false
    end

    local foot_ik_weight = get_foot_ik_weight(role)

    if foot_ik_weight < 0.0 then
        --Foot IK weight less than 0.0, close Foot IK
        return false
    end

    --Right foot node position in model space
    local obj_pos_x, obj_pos_y, obj_pos_z = role:GetNodeObjectPosition("foot_r")
    local foot_rel_height = obj_pos_y

    --Right foot node position in world space
    local position_x = 0.0
    local position_y = 0.0
    local position_z = 0.0
    position_x, position_y, position_z = role:GetNodeWorldPosition("foot_r")

    --Ground height in world space
    local groundheight = terrain:GetGroundHeight(position_x,position_z)

    --Right foot node adjust to the ground in world space
    local strnewpos = nx_string(position_x) .. "," .. nx_string(groundheight+foot_rel_height) .. "," .. nx_string(position_z)

    if (position_y-foot_rel_height) < groundheight or ((position_y-foot_rel_height)-groundheight) > 0.05 then
        --Right foot node lower than the ground or 0.05 meter above the ground, set right foot IK parameters
        local action_index = get_anim_tree_index(role)

        if action_index >= 0 then
            role:SetAnimTreeValue(action_index, "footrpos", strnewpos)
            role:SetAnimTreeValue(action_index, "foot_ik_weight", foot_ik_weight)
            return true
        end

        return false
    else
        return false
    end
end

function animtree_callback_LRootIK(pawn, role)
    local terrain = get_terrain(pawn)

    if not nx_is_valid(terrain) then
        return false
    end

    local foot_ik_weight = get_foot_ik_weight(role)

    if foot_ik_weight < 0.0 then
        return false
    end

    local obj_pos_x, obj_pos_y, obj_pos_z = role:GetNodeObjectPosition("foot_l")
    local foot_rel_height = obj_pos_y

    local position_x = 0.0
    local position_y = 0.0
    local position_z = 0.0
    position_x, position_y, position_z = role:GetNodeWorldPosition("foot_l")

    local groundheight = terrain:GetGroundHeight(position_x,position_z)
    local strnewpos = nx_string(position_x) .. "," .. nx_string(groundheight+foot_rel_height) .. "," .. nx_string(position_z)

    if (position_y-foot_rel_height) < groundheight or ((position_y-foot_rel_height)-groundheight) > 0.05 then
        local action_index = get_anim_tree_index(role)

        if action_index >= 0 then
            role:SetAnimTreeValue(action_index, "footlpos", strnewpos)
            role:SetAnimTreeValue(action_index, "foot_ik_weight", foot_ik_weight)
            return true
        end

        return false
    else
        return false

    end
end

animtree_event_callback =
{
    ["ShouldUseLayerBlend"] = animtree_callback_ShouldUseLayerBlend,
    ["CalcLeanAngle"] = animtree_callback_CalcLeanAngle,
    ["CalcSlopeAngle"] = animtree_callback_CalcSlopeAngle,
    ["ShouldUseRHand"] = animtree_callback_ShouldUseRHand,
    ["RRootIK"] = animtree_callback_RRootIK,
    ["LRootIK"] = animtree_callback_LRootIK,
    ["GetPlayerWeaponState"] = animtree_callback_GetPlayerWeaponState,
    ["GetPlayerFightState"] = animtree_callback_GetPlayerFightState,
    ["IsPlayerMovingHorizontal"] = animtree_callback_IsPlayerMoving,
}

function on_animtree_event(mesh_comp, action_index, callback_name)
    local callback = animtree_event_callback[callback_name]

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = transition_event_callback[callback_name]
    if callback then
        return callback(pawn, role)
    end

    return false
end

local function get_current_time_scale(role)
    local curve_id = role:GetCurveIDByNameInSkeleton("slowmo_time_scale")
    --local curve_id = nx_custom(role, "slowmo_time_scale")
    if curve_id < 0 then
        --nx_log("invalid test_curve_id: " .. curve_id)
        return
    end

    local curve_value = role:GetCurveValue(curve_id)
    return curve_value
end

local function begin_bullut_time(pawn)
    if nx_is_valid(pawn) then
        local time_scale = 0.05

        local world = nx_value("world")
        world.GlobalTimeSpeed = time_scale
        pawn.camera_rotated = true
    end
end

local function end_bullut_time(pawn)
    if nx_is_valid(pawn) then
        local world = nx_value("world")
        world.GlobalTimeSpeed = 1
        pawn.camera_rotated = false
    end
end

function on_action_event(mesh_comp, action_name, event_name, frame, info)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    if event_name == "JumpOver" then

        pawn.JumpAgainLock = true

    elseif event_name == "JumpLand" then

        pawn.JumpAgainLock = false

    elseif event_name == "AttackHit" then
        local terrain = nx_value("terrain")
        local npc_story = nx_value("npc_story")

        if nx_is_valid(terrain) then
            local visual_table = terrain:GetRangeVisualList(role.PositionX, role.PositionZ, 2.0)
            for k,v in pairs(visual_table) do
                if nx_string(npc_story) == nx_string(v) then
                    npc_story.be_hurted = true
                end
            end
        end
    elseif event_name == "Melee_Start" then

        begin_bullut_time(pawn)

    elseif event_name == "Melee_End" then

        end_bullut_time(pawn)

    else
        --nx_log("event_name = " .. event_name)
    end

    if event_name == "TRIGGER_ACTION_END" then
        local movement_comp = pawn.CharacterMovement
        --if movement_comp.MovementMode == nx_enum("MOVEMENT_MODE::Flying") then
            local movement_mode = nx_enum("MOVEMENT_MODE::Walking")
            movement_comp:SetMovementModeWithCustom(movement_mode, 0)
        --end
    end
end

function anim_callee_init(mesh_comp)
    nx_callback(mesh_comp, "on_transition_event", "on_transition_event")
    nx_callback(mesh_comp, "on_animtree_event", "on_animtree_event")
    nx_callback(mesh_comp, "on_action_event", "on_action_event")
    nx_callback(mesh_comp, "on_state_machine_state_event", "on_state_machine_state_event")
end

---------------------
--Default callbacks--
---------------------

--Use this for initialization
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local mesh_comp = owner.MeshComponent

        if nx_is_valid(mesh_comp) then
            mesh_comp.ActorCalleeType = "CComponentActorCalleeScript"
            nx_bind_script(mesh_comp, nx_current(), "anim_callee_init")
        end
    end
end

--Use this for release
function on_end_play(component)
end

scene_utils.lua

--scene utils script

function scene_get_engine_terrain(lscene)
    local level = lscene.PersistentLevel

    if nx_is_valid(level) then
        local lterrain = level:GetGameObjectByType("fx_component_terrain.LTerrain")

        if nx_is_valid(lterrain) then
            return lterrain.EngineTerrain
        end
    end

    return nx_null()
end

PIE

Click the Play In Editor button to view the effect.
