Multilayer 3D UI

Overview​

Combine multiple 3D UI components to generate a prefab, and adjust the position and angle of each 3D UI component to the final desired look according to functional requirements.

Creating Game Objects​

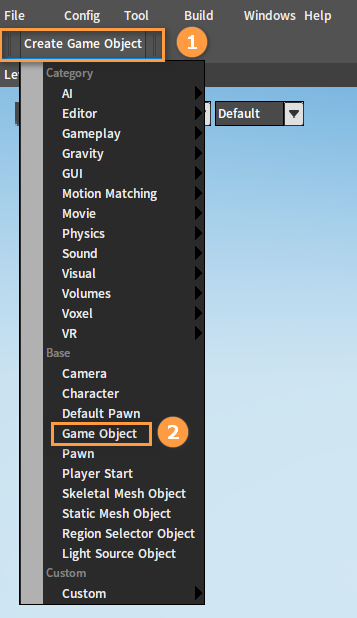

Click Create Game Object -> Game Object to create a game object.

image-20230721131446873

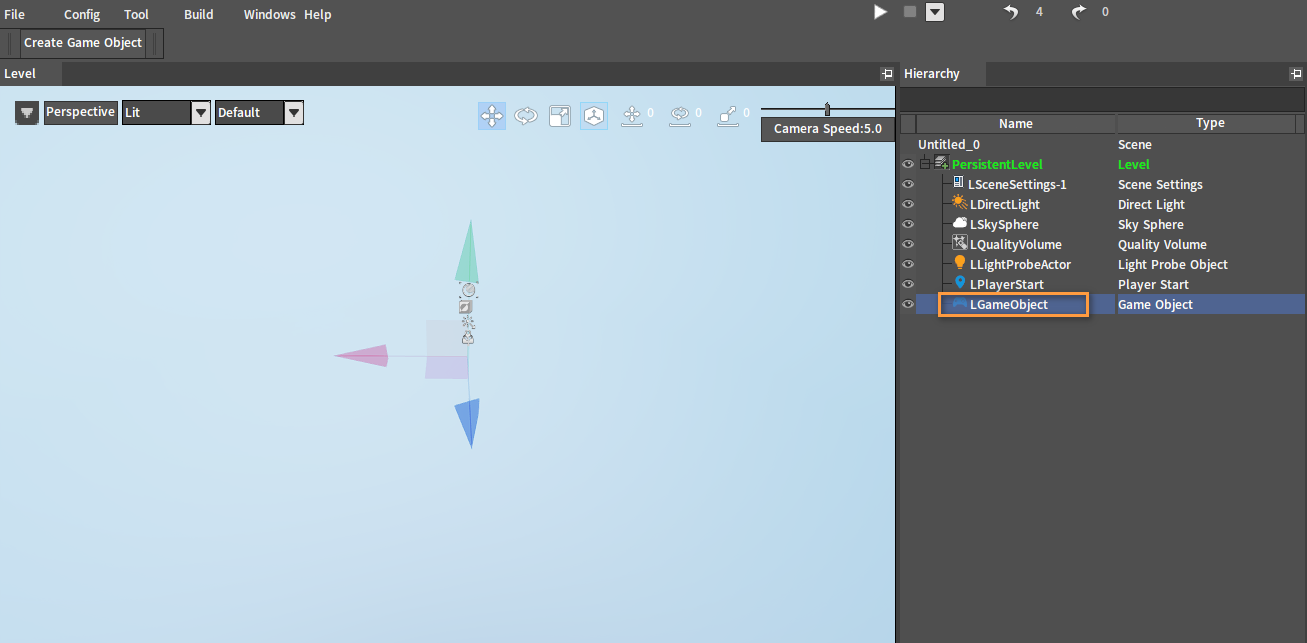

After creation:

image-20230721131625051

Creating Multilayer 3D UI​

Adding Back Layer 3D UI​

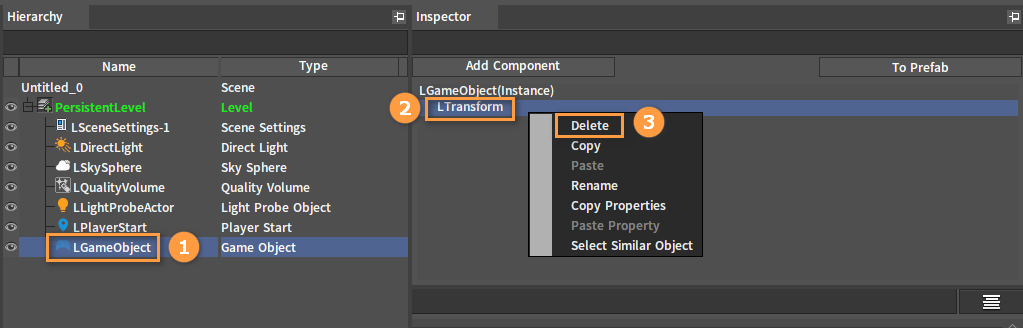

Select the created Game Object (LGameObject) in the Hierarchy panel, then right-click the LTransform component in the Inspector panel and select Delete to delete it.

image-20230721132055037

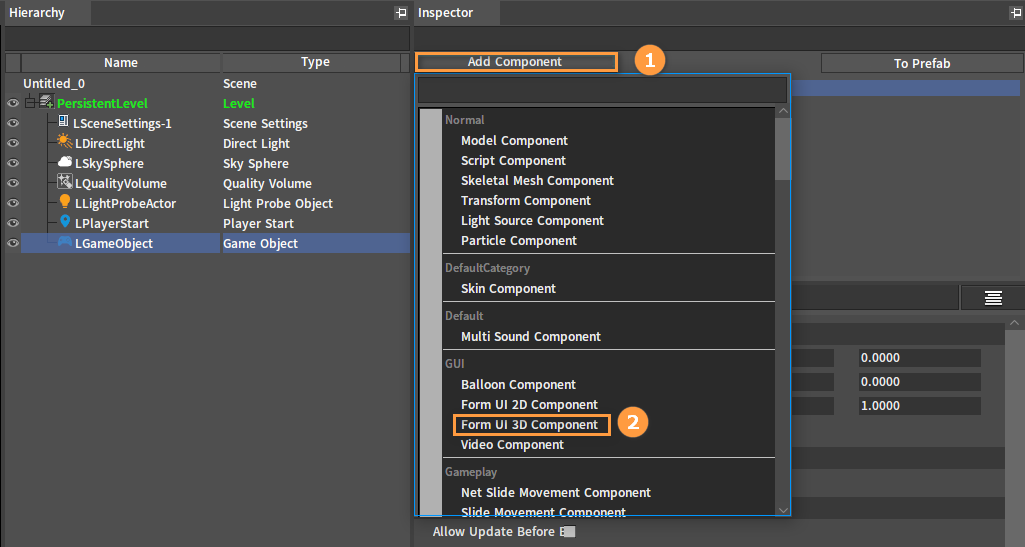

Then in the Inspector panel, click the Add Component button and select Form UI 3D Component to add a Form 3D UI Component to the created Game Object and make it the root component.

image-20230721132614414

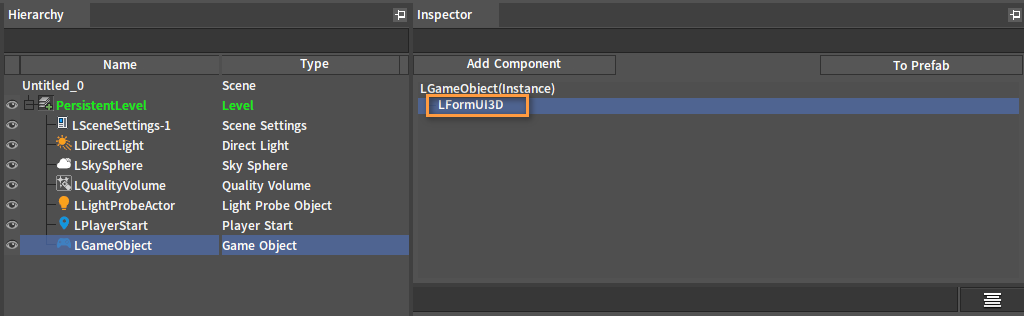

After adding:

image-20230721132649192

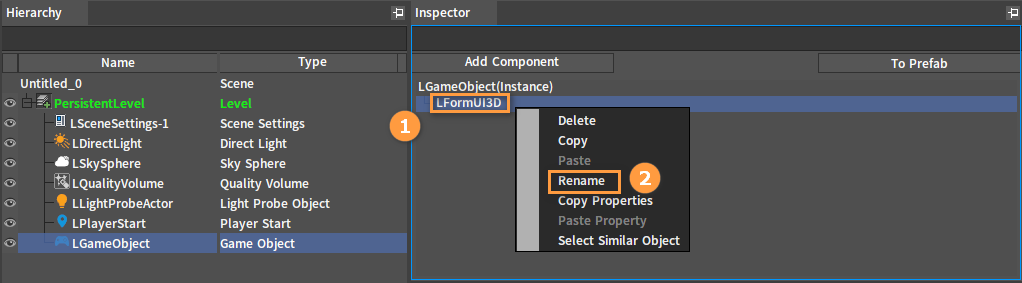

Rename the added Form UI 3D Component. Right-click LFormUI3D in the Inspector panel and select Rename to rename the component to LFormUI3D_Back.

image-20230721133029084

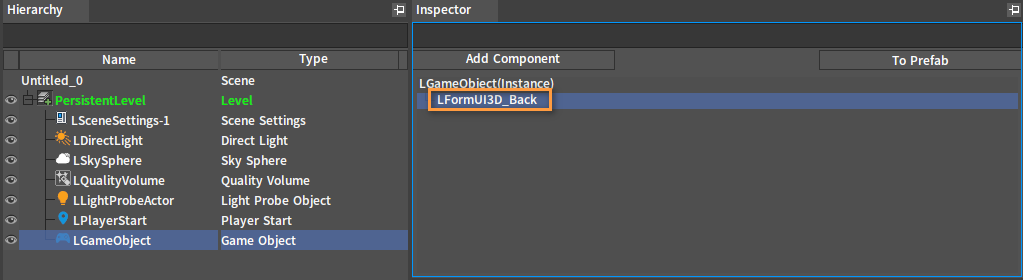

After renaming:

image-20230721133108411

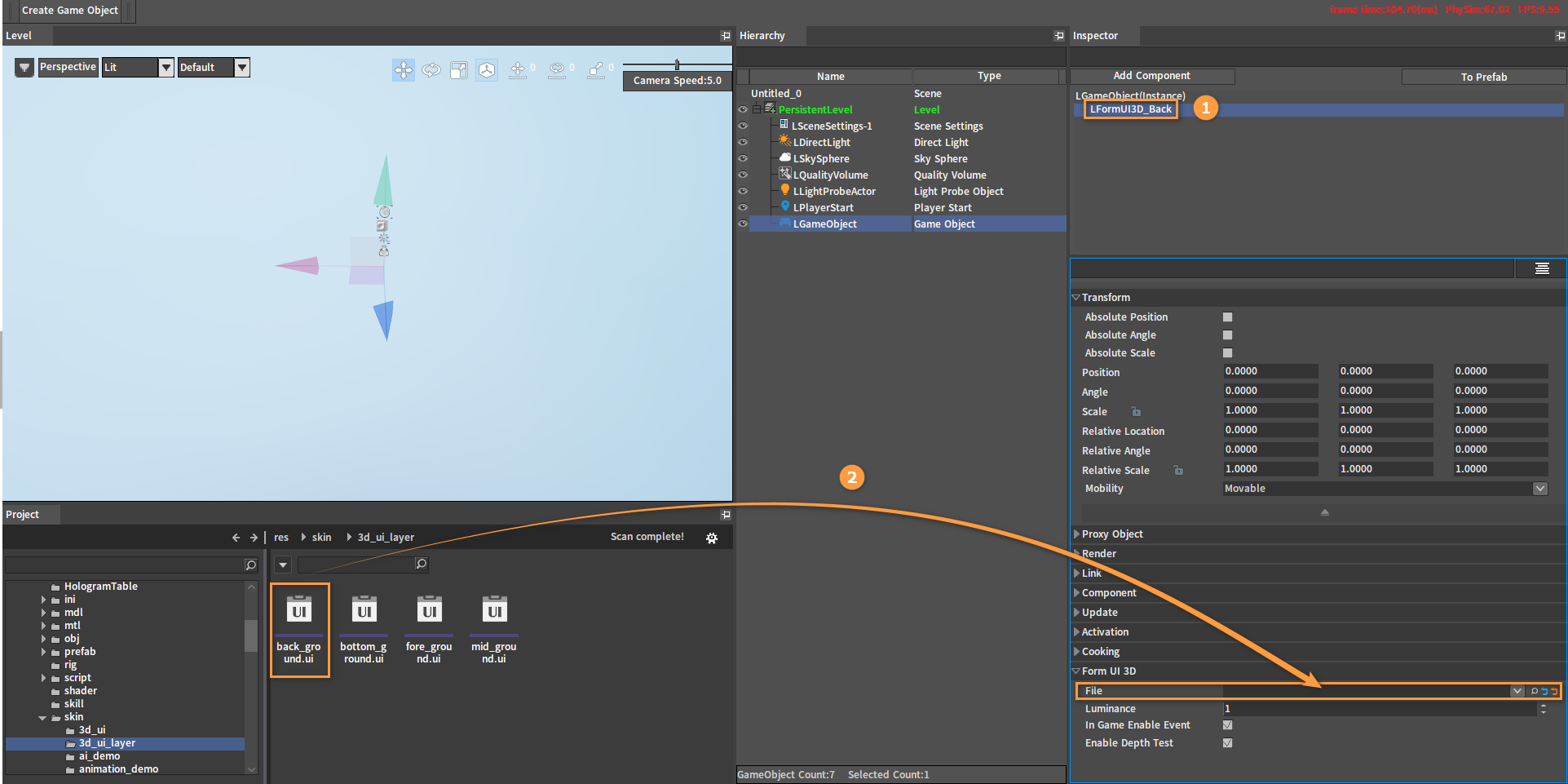

Select the LFormUI3D_Back component and drag the created UI file (back_ground.ui) from the Project panel to Form UI 3D -> File.

image-20230721133721672

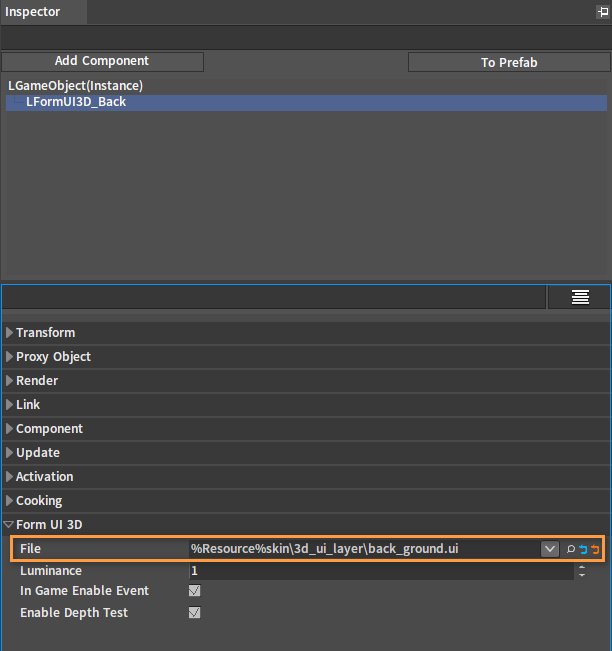

After dragging:

image-20230721133804306

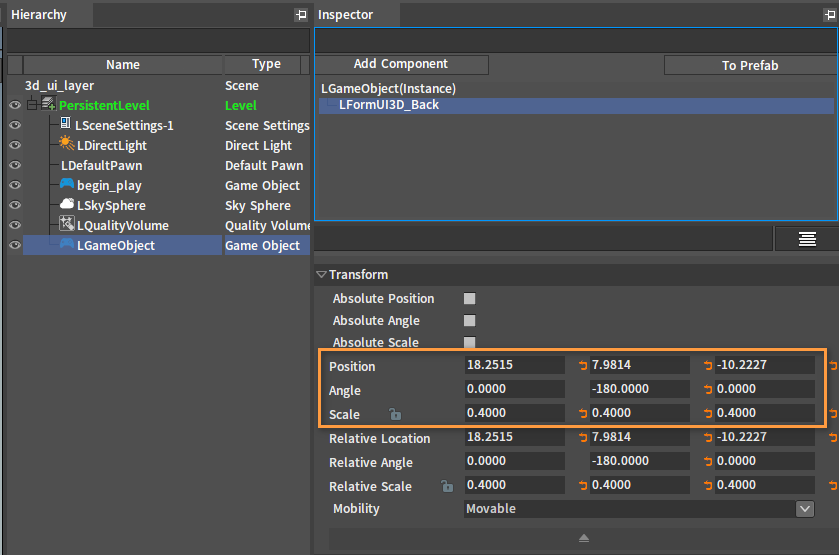

In the Transform property of the LFormUI3D_Back component, modify its Position, Angle, and Scale to the appropriate values.

133344150829201738

Adding Middle/Fore/Bottom Layer 3D UI​

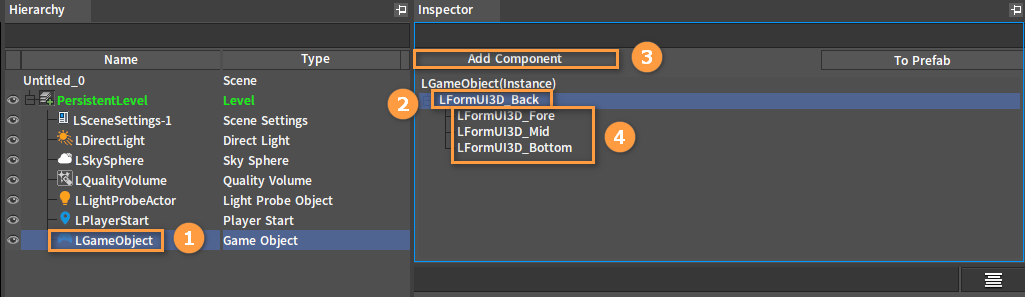

Select the created LGame Object in the Hierarchy panel, then select the LFormUI3D_Back component in the Inspector panel, and click the Add Component button to add the three Form UI 3D Components (LFormUI3D_Fore, LFormUI3D_Mid, LFormUI3D_Bottom) as its child components.

133344096386251757

According to the way of adding UI files to the LFormUI3D_Back component, add corresponding UI files (fore_ground.ui, mid_ground.ui, bottom_ground.ui) to components LFormUI3D_Fore, LFormUI3D_Mid and LFormUI3D_Bottom respectively, then modify their Position, Angle, Scale properties to the appropriate values. Finally, the whole multilayer 3D UI is displayed in the scene.

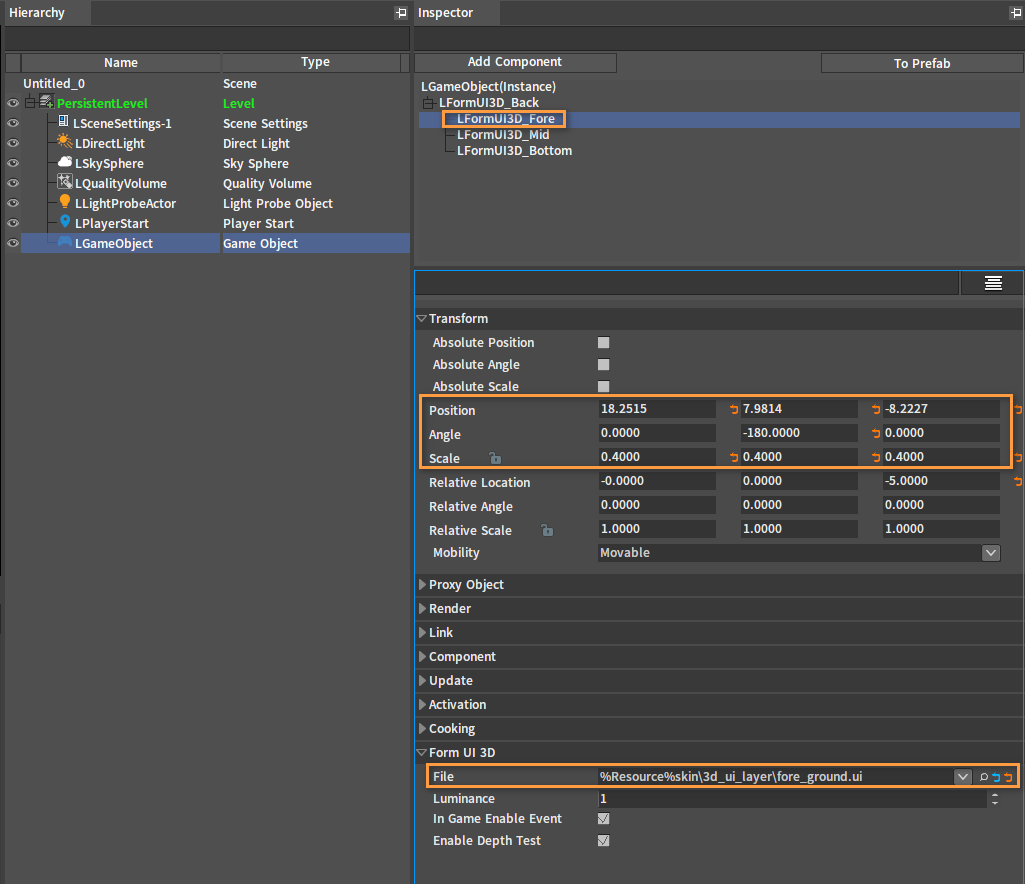

LFormUI3D_Fore:

133344104337464823

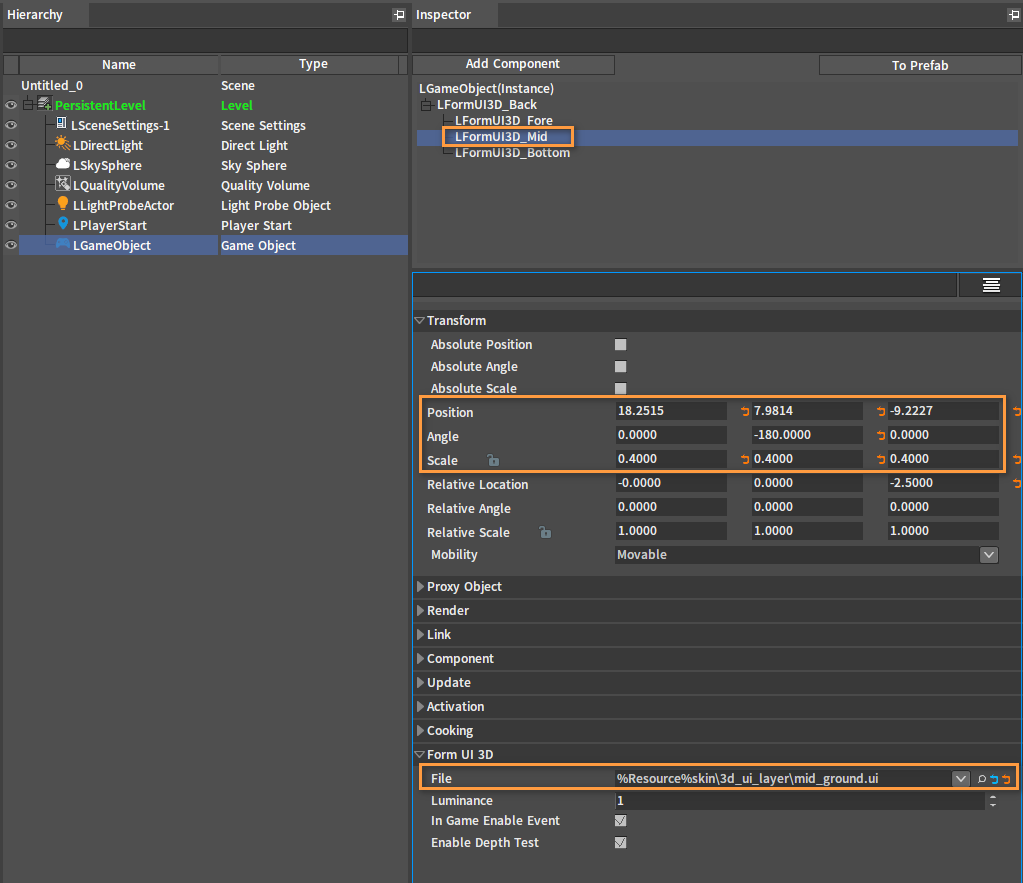

LFormUI3D_Mid:

133344104396179094

LFormUI3D_Bottom:

133344104449278709

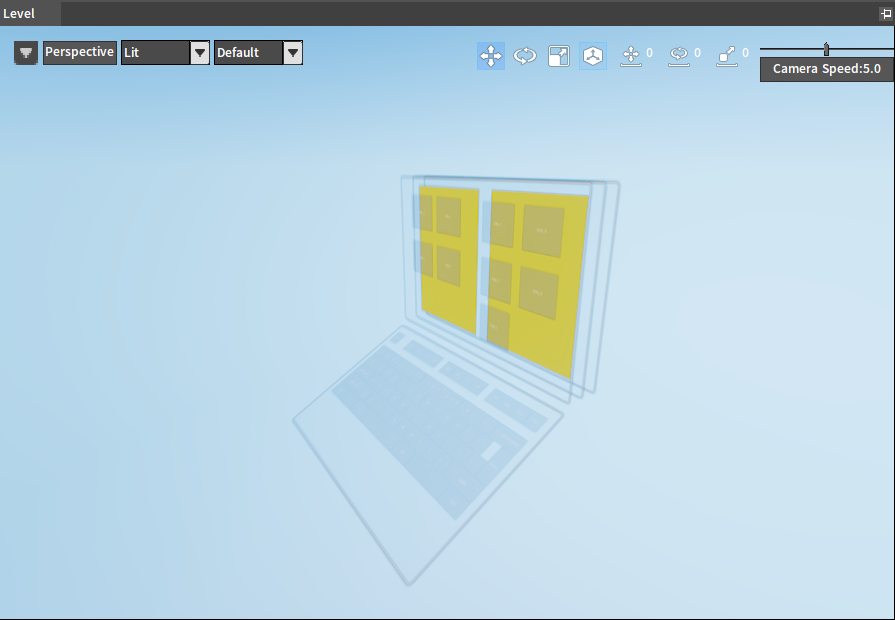

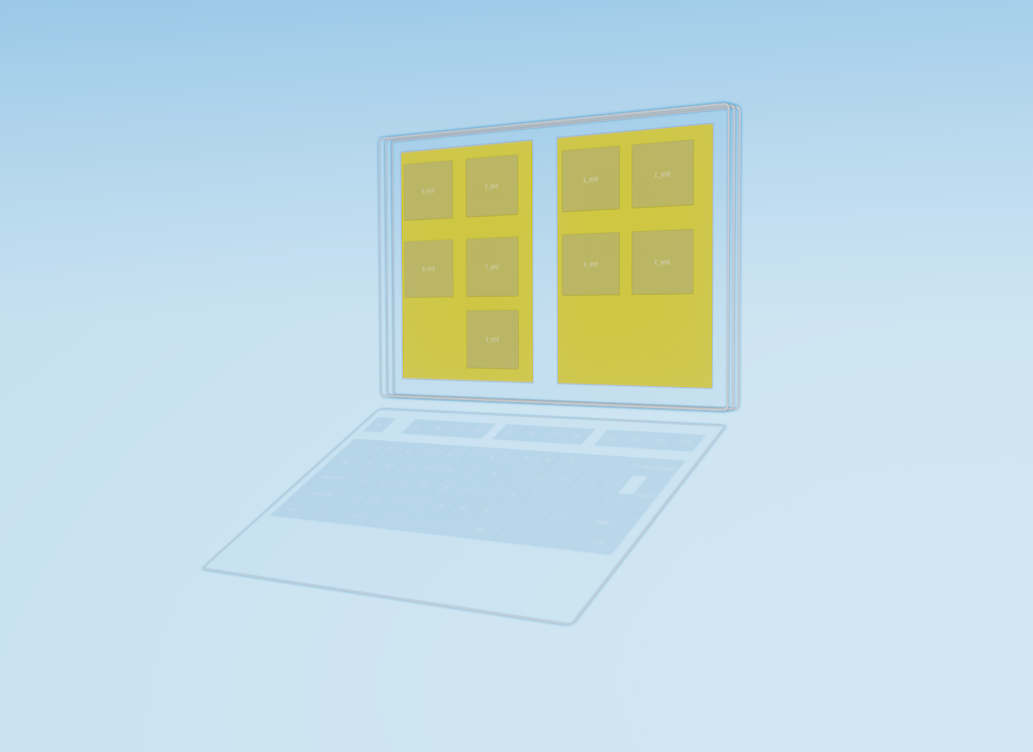

The whole multilayer 3D UI:

133344107123673607

Editing Multilayer 3D UI​

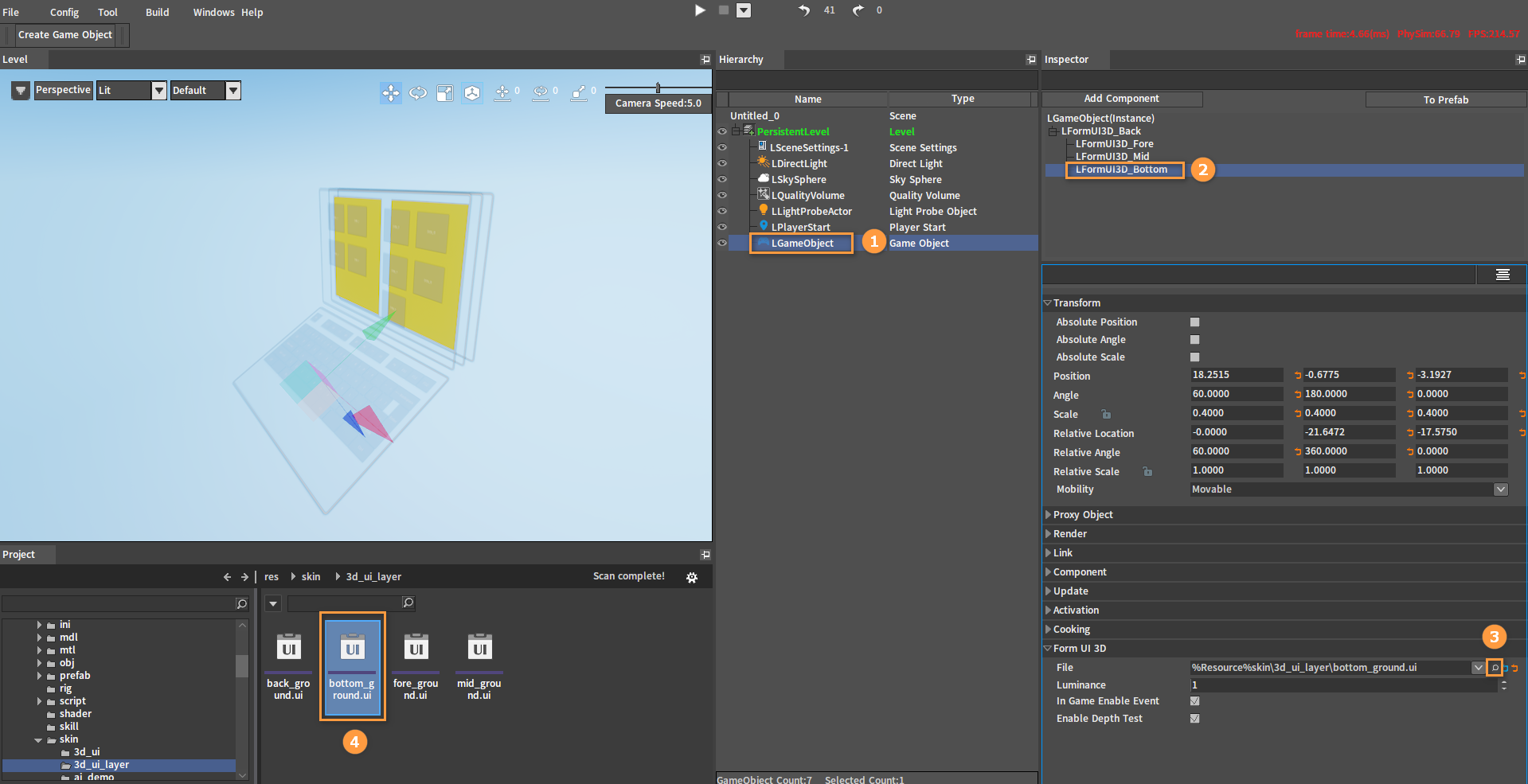

Select the 3D UI to be edited, click the image-20230721204215503 button next to Form UI 3D -> File, and the UI file it is using will be automatically located in the Resource Preview window.

image-20230721204246697

Real-time Synchronizing​

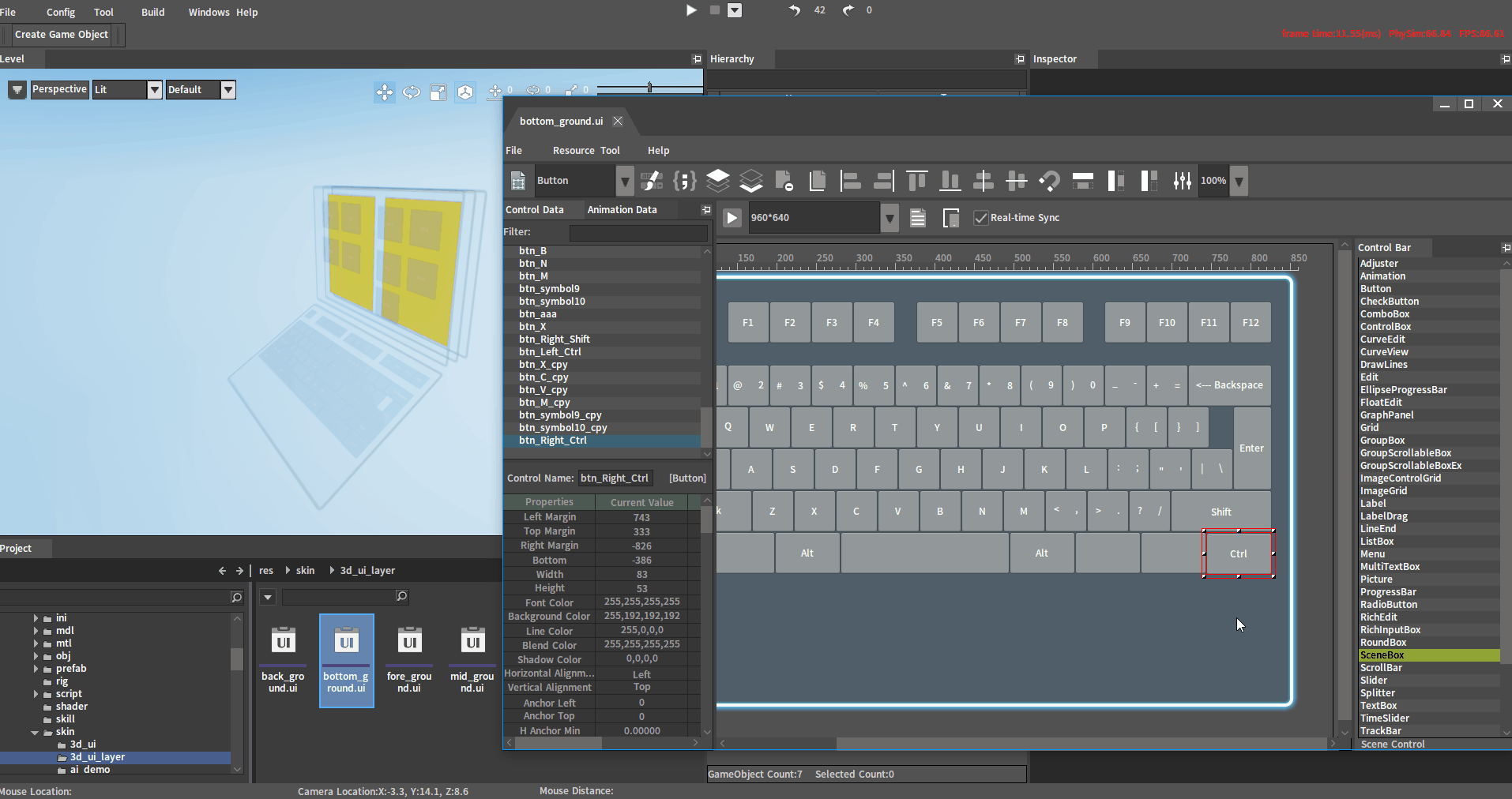

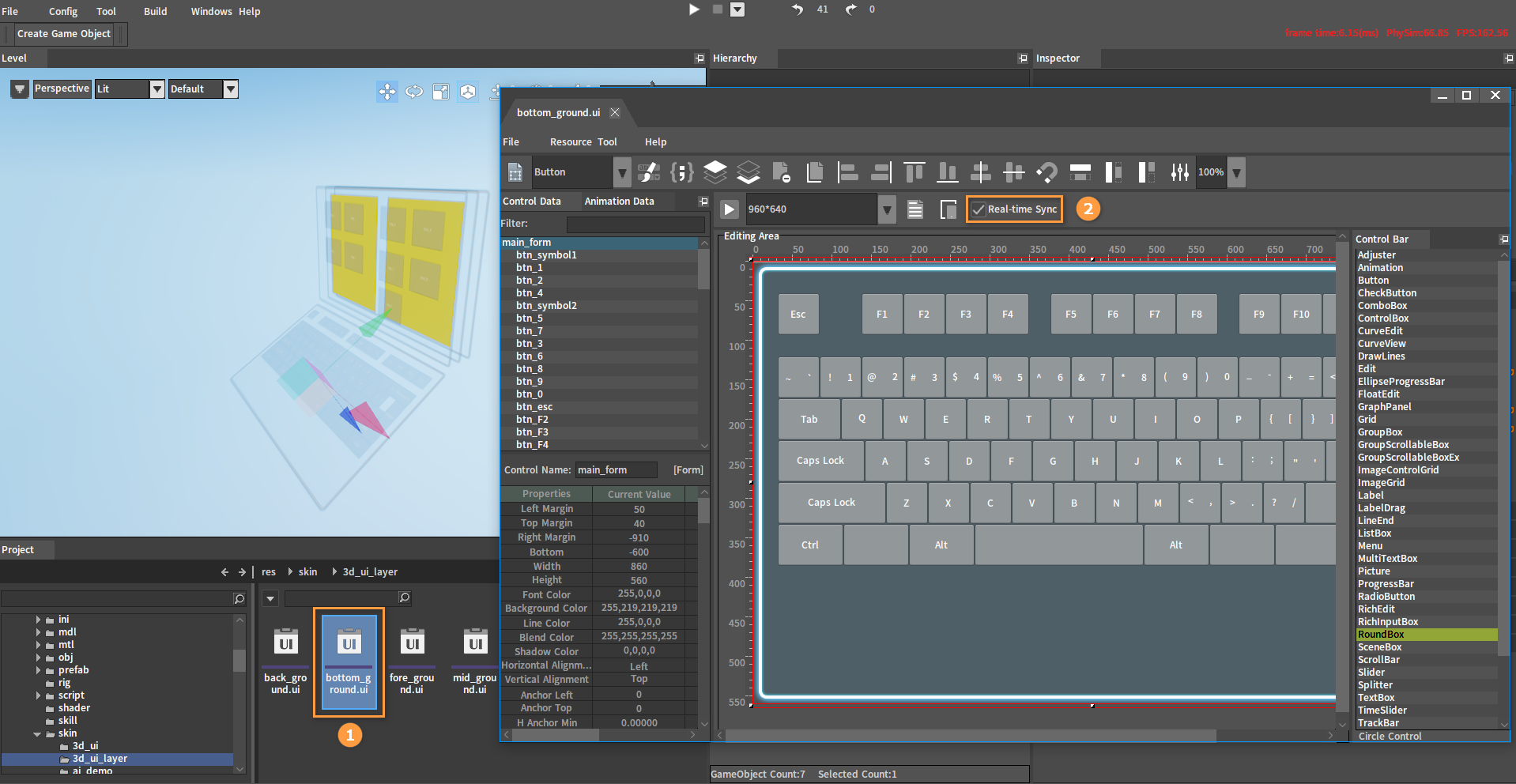

Double-click the UI file to enter its editing interface, and check Real-time Sync to enable the real-time synchronization feature.image-20230721204259403

The editing effect can be viewed in the scene in real-time by editing UI controls.

Real-timeSync

Saving Manually​

When Real-time Sync is not checked, after editing the 3D UI file, you need to click File（Menu Bar） -> Save Form in the UI editing interface to save it, and then the editing effect can be viewed in the scene.

image-20230721202721941

Converting Multilayer 3D UI to Prefabs​

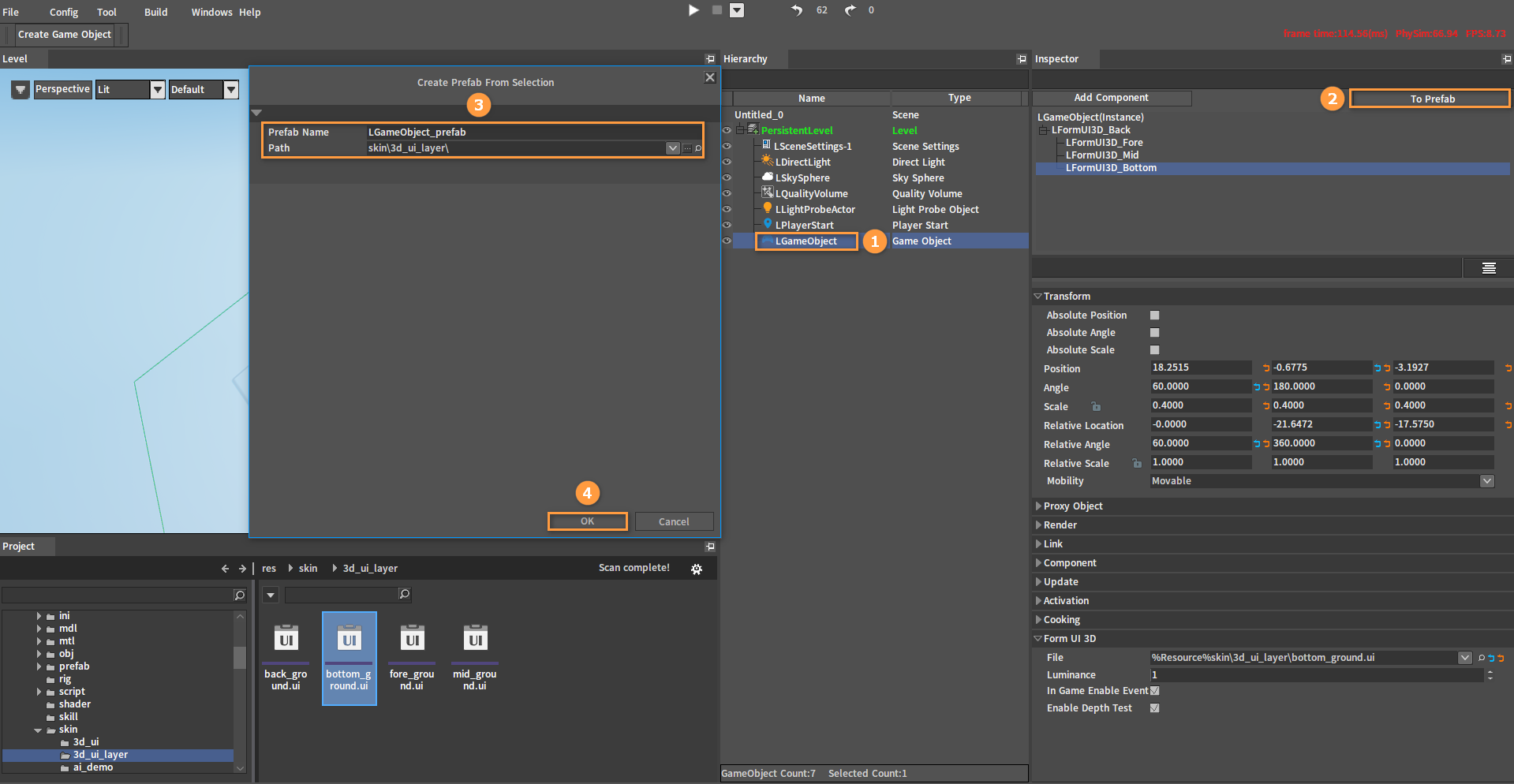

Select the created LGameObject in the Hierarchy panel, then click the To Prefab button in the Inspector panel, edit the Prefab Name and Path in the pop-up window, and click the OK button to complete the conversion.

image-20230721200100274

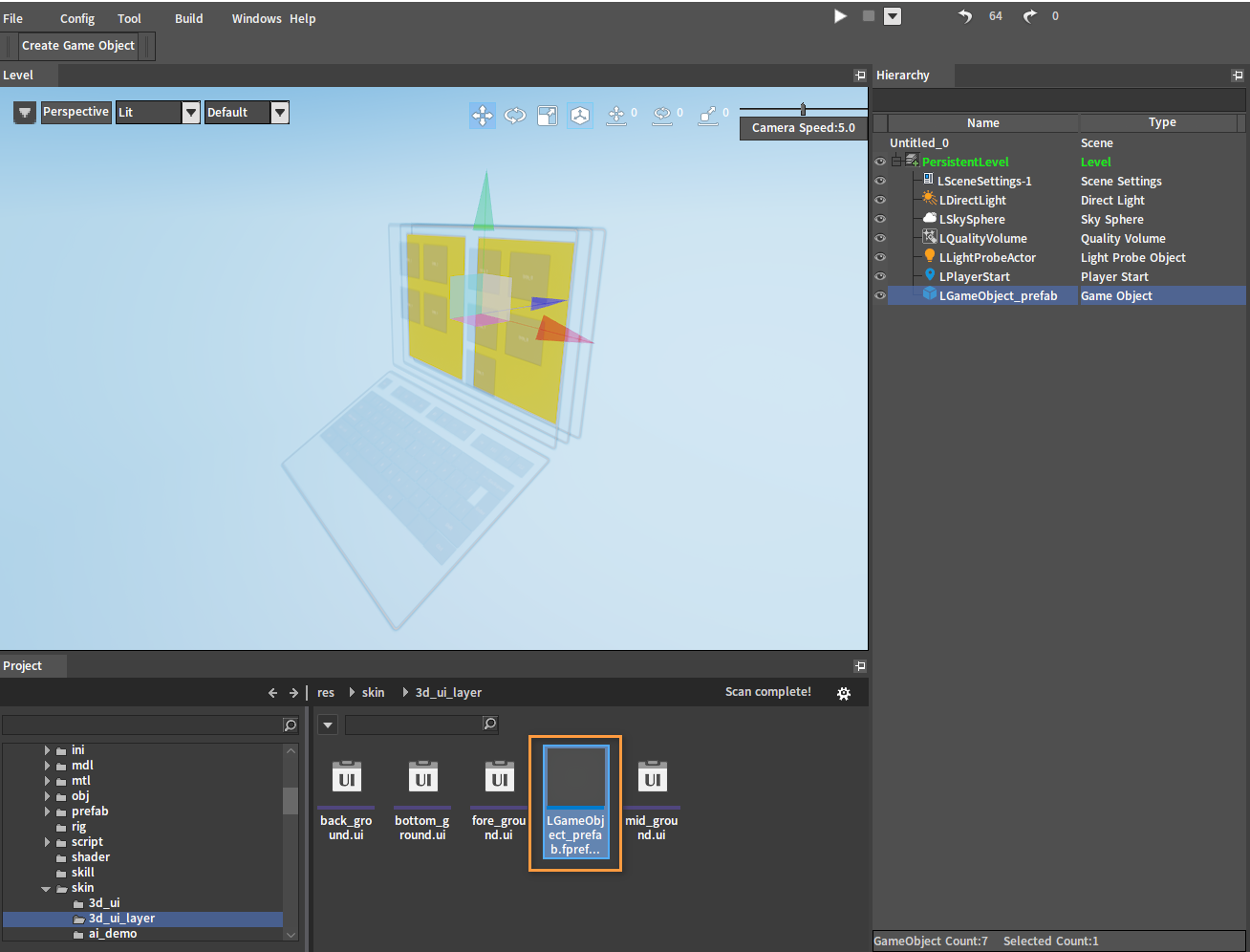

The converted prefabs will be displayed in the Project panel.

image-20230721200258982

Adding Multilayer 3D UI to the Scene​

Drag the created multilayer 3D UI prefab from the Project panel into the scene to display it. This prefab can be reused multiple times.

image-20230721200633833
