Rich Edits

Last Updated Time: 09/26/2023

See \02_demo\test_project\res\content\maps\ui_demo.fmap for details on the example in this documentation.

Overview

The Rich Edit is used to receive user input and supports multi-line editing and part of HTML syntax.

Click Rich Edit to get the focus (a cursor will flash in the editing bar at this time), and Rich Edit will not get user input until it gets the focus. Click the area outside Rich Edit will make it lose the focus and thus fail to get user input.

HTML Text Format-font

font Property	Description
face	Specify the font style.
color	Specify the font color.
size	Specify the font size.
bold	Bold font.
italic	Italic font.
underline	Add underlines to fonts.

font-face Font Style

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font face=\"Default30I\">RichEdit</font>
")

Note

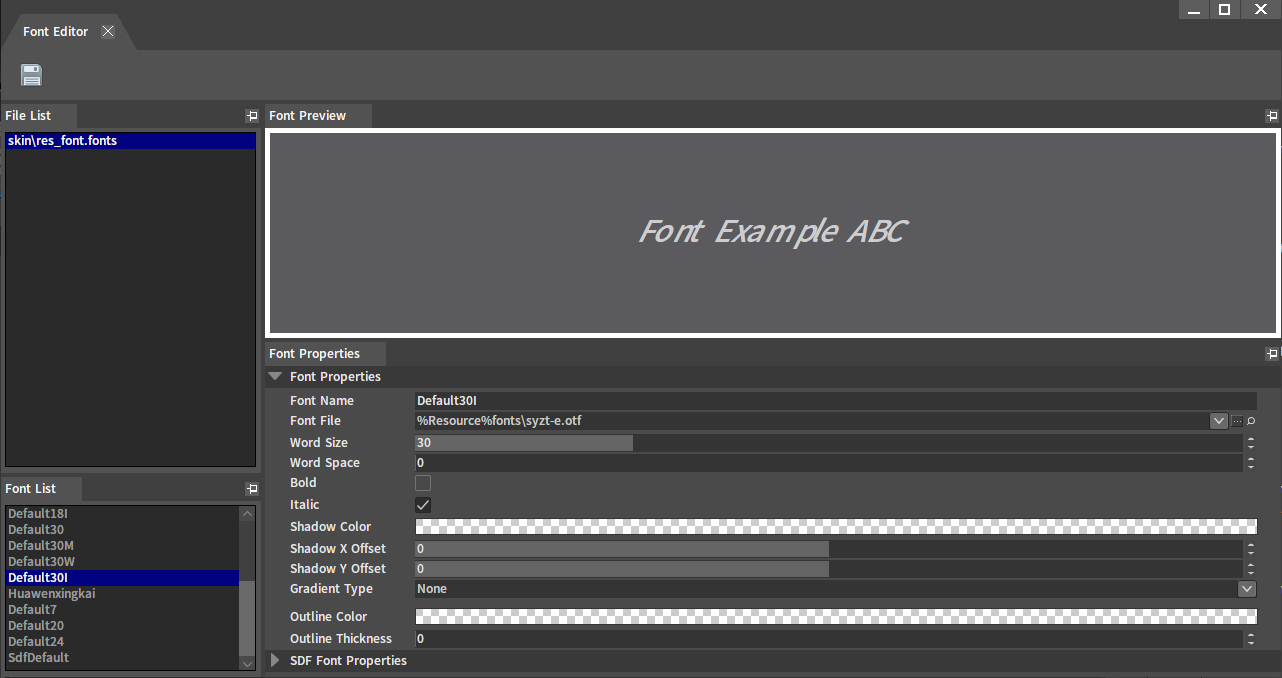

The configuration of the font style Default30I is as follows (See Font for details):

font-color Font Color

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font color=\"#8431bb\">RichEdit</font>
")

font-size Font Size

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font size=\"35\">RichEdit</font>
")

font-bold Bold Font

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font bold=\"true\">RichEdit</font>
")

font-italic Italic Font

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font italic=\"true\">RichEdit</font>
")

font-underline Adding Underlines to Fonts

RichEdit_Left.Text = nx_widestr("
<font>RichEdit</font>
")

RichEdit_Right.Text = nx_widestr("
<font underline=\"true\">RichEdit</font>
")

font-Example

RichEdit_Left.Text = nx_widestr("
<font>RichEdit_1 RichEdit_2</font><br/>
<font>RichEdit_3 RichEdit_4</font><br/>
<font>RichEdit_5 RichEdit_6</font>
")

RichEdit_Right.Text = nx_widestr("
<font face=\"Default15W\">RichEdit_1</font> <font face=\"Default15W\" color=\"#8431bb\">RichEdit_2</font><br/>
<font size=\"20\" bold=\"true\">RichEdit_3</font><br/>
<font italic=\"true\">RichEdit_4/<font><br/>
<font underline=\"true\">RichEdit_5 RichEdit_6</font>
<font face=\"Default15W\" color=\"#8431bb\" size=\"20\" bold=\"true\" italic=\"true\" underline=\"true\">RichEdit_7</font>
")

Rich Edit Properties

Property	Description
Text	Content displayed in the current Rich Edit.
Font Color	Used to display the font color of the control.
Floating Hint Text	Prompt text displayed when the mouse is hovering over the control.
HTML Tag Format Text	Whether the control supports parsing HTML.

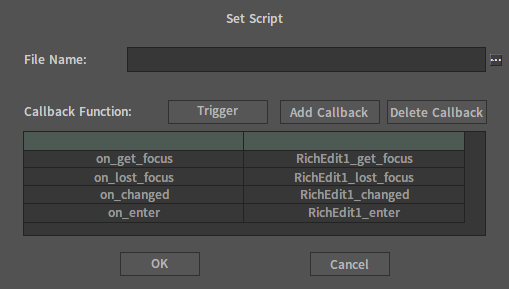

Rich Edit Events

Callback Name	Callback Function
on_get_focus	The callback when getting the focus by clicking.
on_lost_focus	The callback when losing the focus by clicking.
on_changed	The callback when the input content changes.
on_enter	The callback when pressing the Enter key.

Lua Script Example

self.Text = "Edit"
self.AlwaysVScroll = true

function on_rich_edit_enter(self)
    local str=nx_string(self.Text)
    nx_msgbox(str)
end
