Filter
Overview
Filter which has the feature of toning can be used to adjust the color. It can render different scene atmospheres and improve the screen effects. Colors are mainly used to distinguish objects easily, which has been better reflected in games too. The elements in the game screen will naturally form important basic layers, and the color can visually distinguish these layers.
Using the Filter

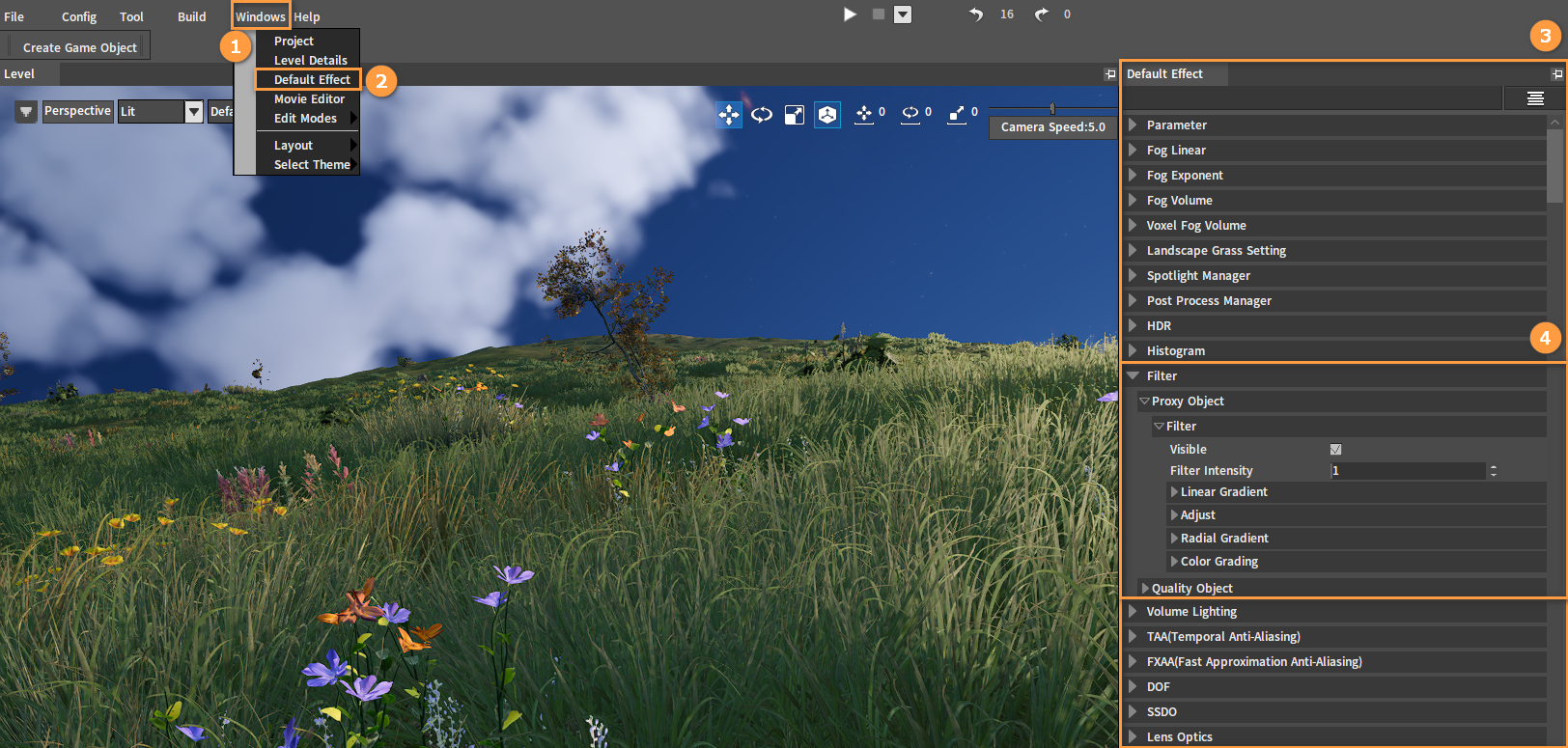

Use the Filter effect in the global effects. Click Window (Menu Bar) -> Default Effect to open the Default Effect window, where Filter is the filter.
| Property | Description |
|---|---|
| Visible | Visible or not. |
| Filter Intensity | Filter adjustment intensity. |
| Linear Gradient | Vertical color gradient effects. |
| Adjust | Color adjustment effects. |
| Radial Gradient | Center color gradient effects. |
| Color Grading | Color grading effects. |
Filter Enable
| Property | Description |
|---|---|
| Visible | Whether to enable the filter. |
| Filter Intensity | Adjust the intensity of the filter effect, range: 0.0 ~ 100.0. |
Linear Gradient
Achieve the color gradient effect from top to bottom.
The related properties below needed to be adjusted to use the Linear Gradient effect.
| Property | Description |
|---|---|
| Linear Gradient Enable | Whether to enable the vertical color gradient effects. |
| Linear Start | Adjust the start position of the color linear gradient. |
| Linear End | Adjust the end position of the color linear gradient. |
| Scale | A transition exponential coefficient from the start to the end of the gradient. |
| Color | Adjust gradient colors. |
Linear Gradient Enable
It is used to enable the vertical color gradient effect.
Linear Start
Linear Start is used to adjust the start position of the color gradient, range: -1.0 ~ 0.0.
Adjust the Linear Start position with the Linear End as 1 and the Scale as 2 respectively.

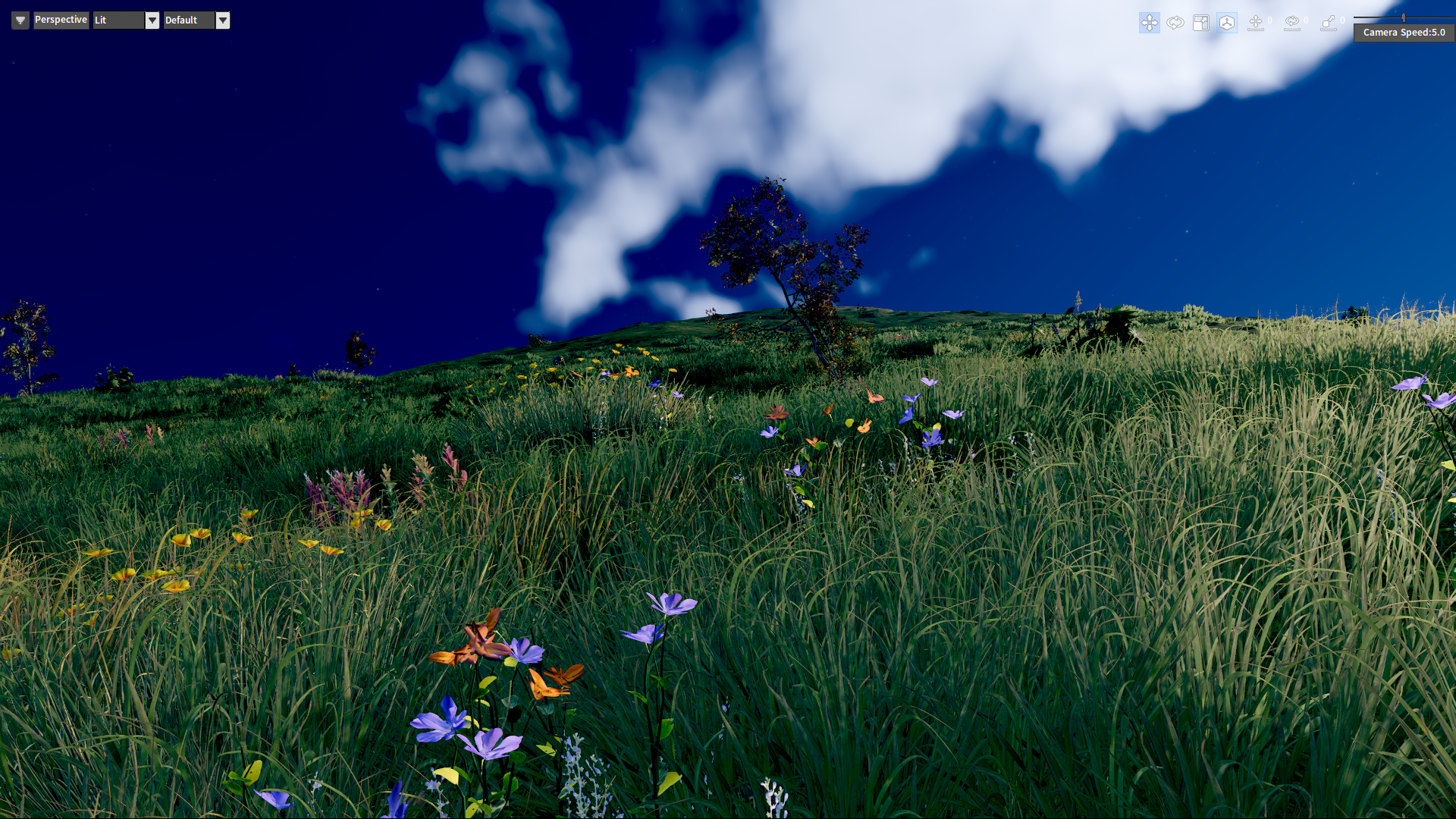

Linear End
Linear End is used to adjust the end position of the color gradient, range: 0.01 ~ 1.0.
Adjust the Linear End position with the Linear Start as -0.5 and the Scale as 2 respectively.
Scale
Scale is used to adjust the color attenuation coefficient, range: -2.0 ~ 2.0.

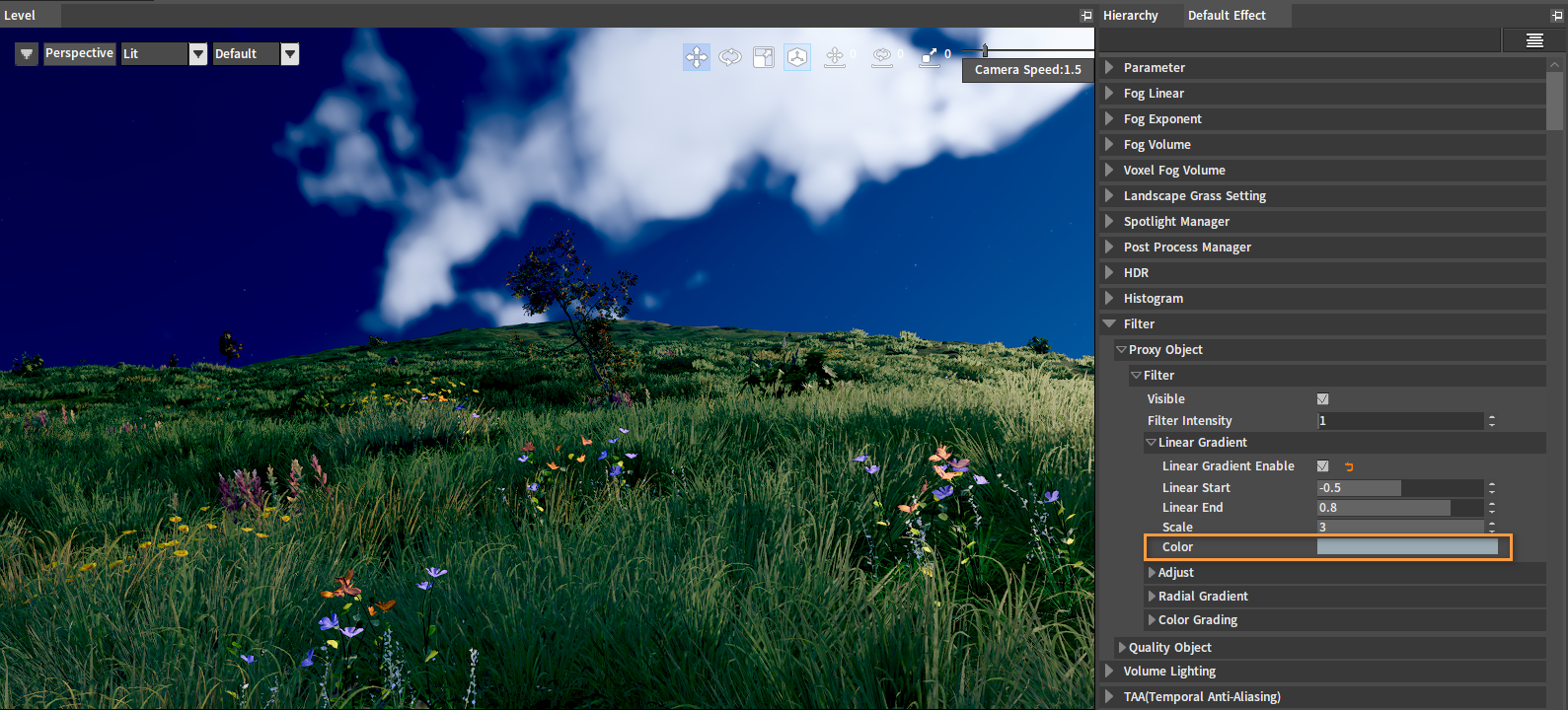

Color
Color is used to adjust the gradient colors.

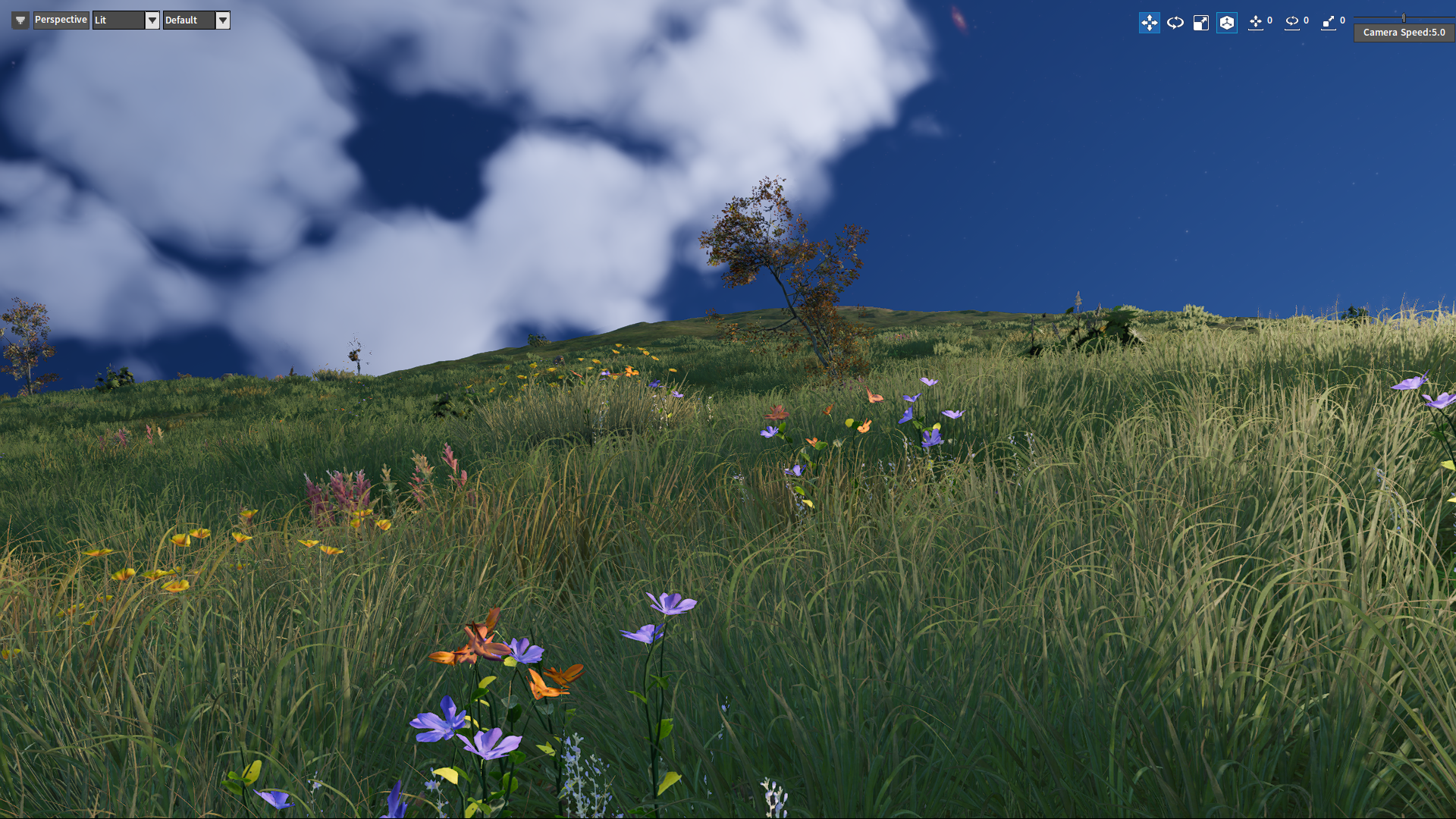

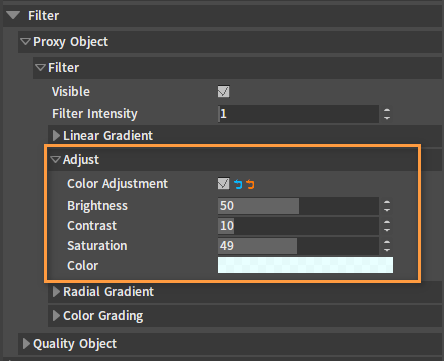

Adjust
It is used to adjust the overall scene color.
The related properties below needed to be adjusted to use the Adjust effect.
| Property | Description |
|---|---|
| Color Adjustment | Whether to enable the color adjustment. |
| Brightness | Adjust the brightness of the color. |
| Contrast | Adjust the contrast of the color. |
| Saturation | Adjust the saturation of the color. |
| Color | Adjust colors. |
Color Adjustment
It is used to enable the color adjustment.
Brightness
Brightness is used to adjust the brightness of the colors, range: 0.0 ~ 100.0.

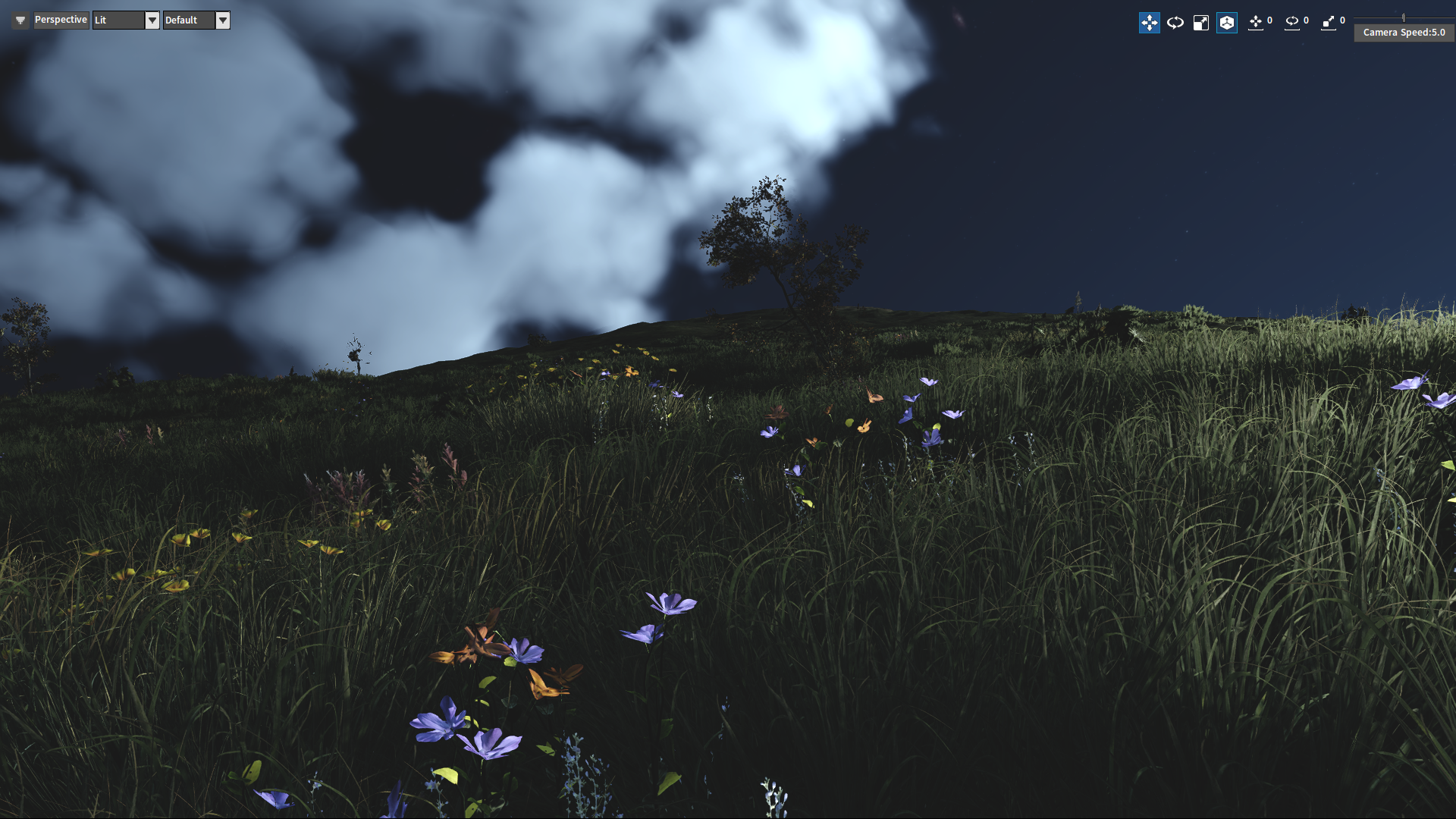

Contrast
Contrast is used to adjust the contrast of the colors, range: 0.0 ~ 100.0.
Saturation
Saturation is used to adjust the saturation of the colors, range: 0.0 ~ 100.0.

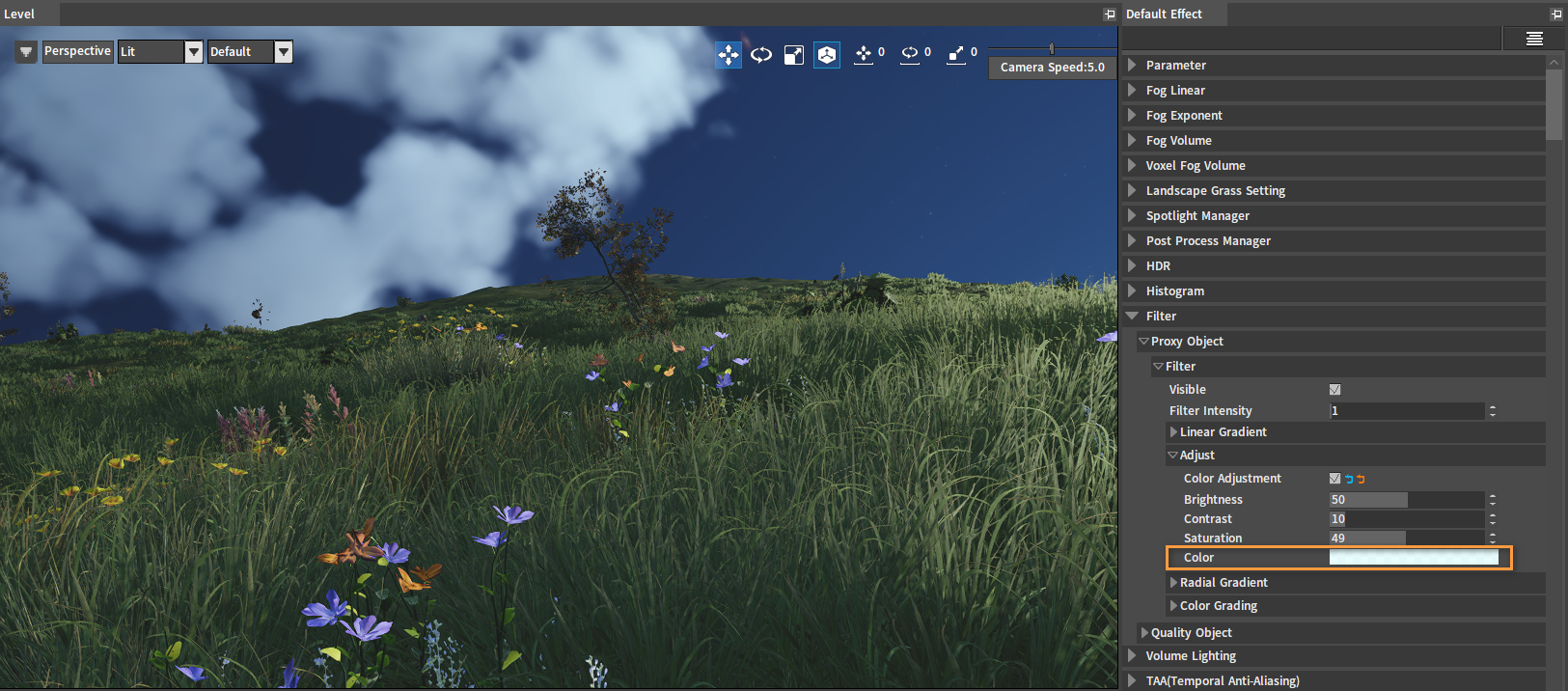

Color
Color is used to adjust the colors.

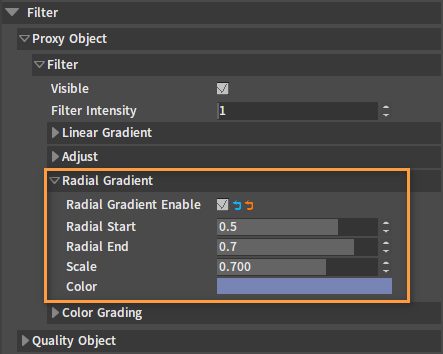

Radial Gradient
Achieve a color gradient effect from the center to the perimeter.
The related properties below needed to be adjusted to use the Radial Gradient effect.
| Property | Description |
|---|---|
| Radial Gradient Enable | Whether to enable the radial gradient. |
| Radial Start | Adjust the start position of the color radial gradient. |
| Radial End | Adjust the end position of the color radial gradient. |
| Scale | A transition exponential coefficient from the start to the end of the gradient. |
| Color | Adjust gradient colors. |
Radial Gradient Enable
It is used to enable the center color gradient effect.

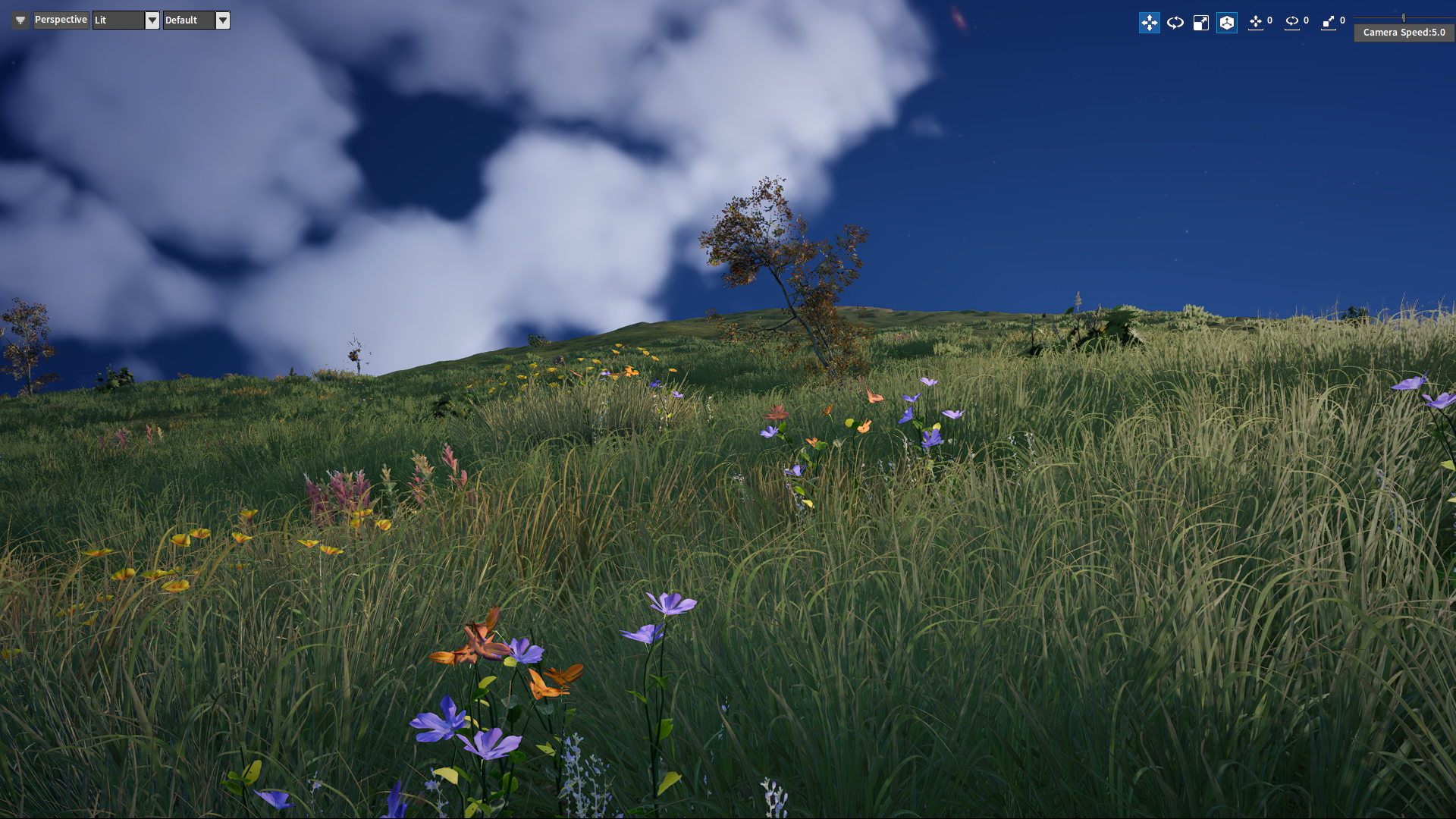

Radial Start
Radial Start is used to adjust the start position of the color gradient, range: -1.0 ~ 1.0.
Adjust the Radial Start position with the Radial End as 1 and the Scale as 2 respectively.

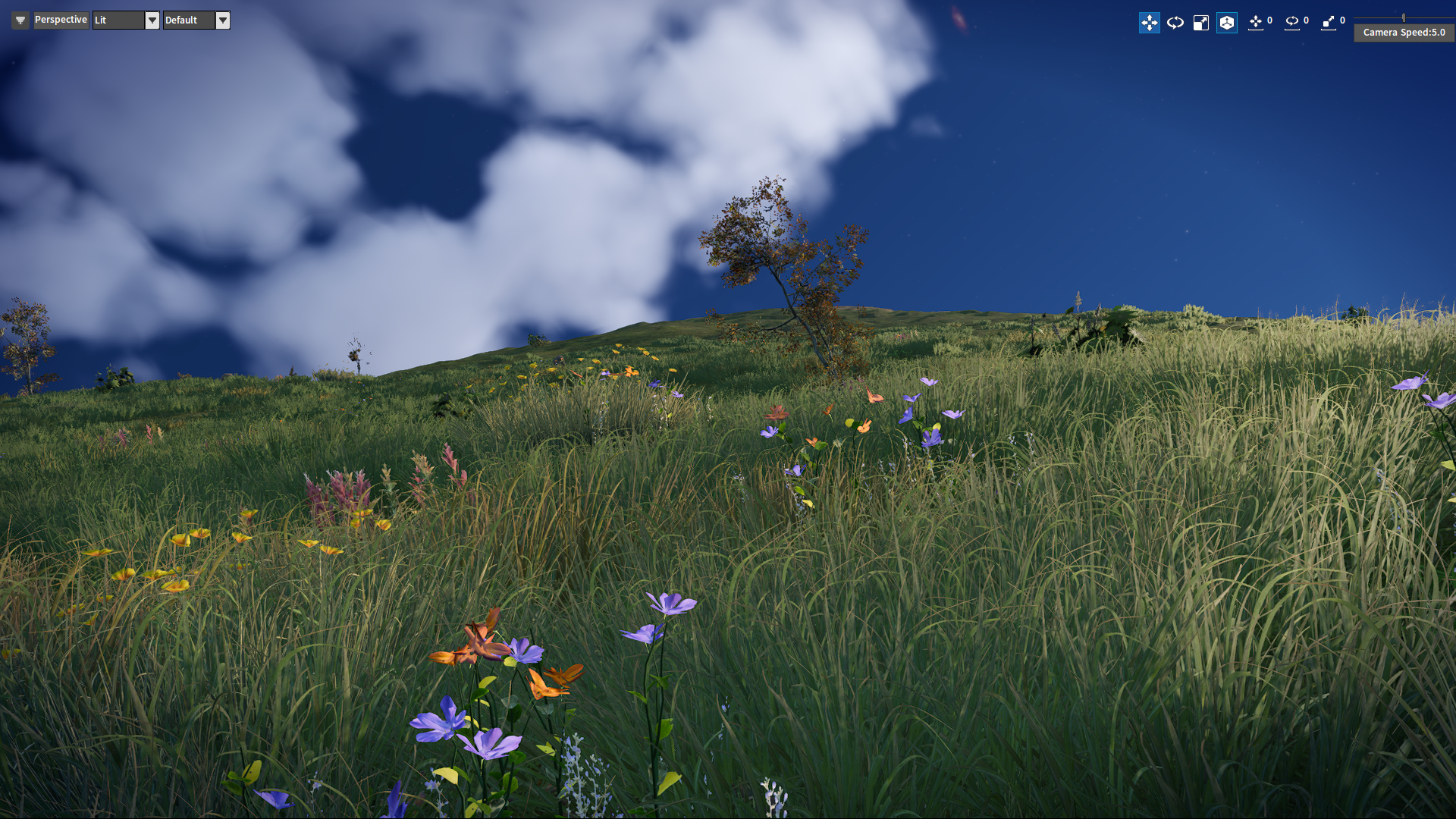

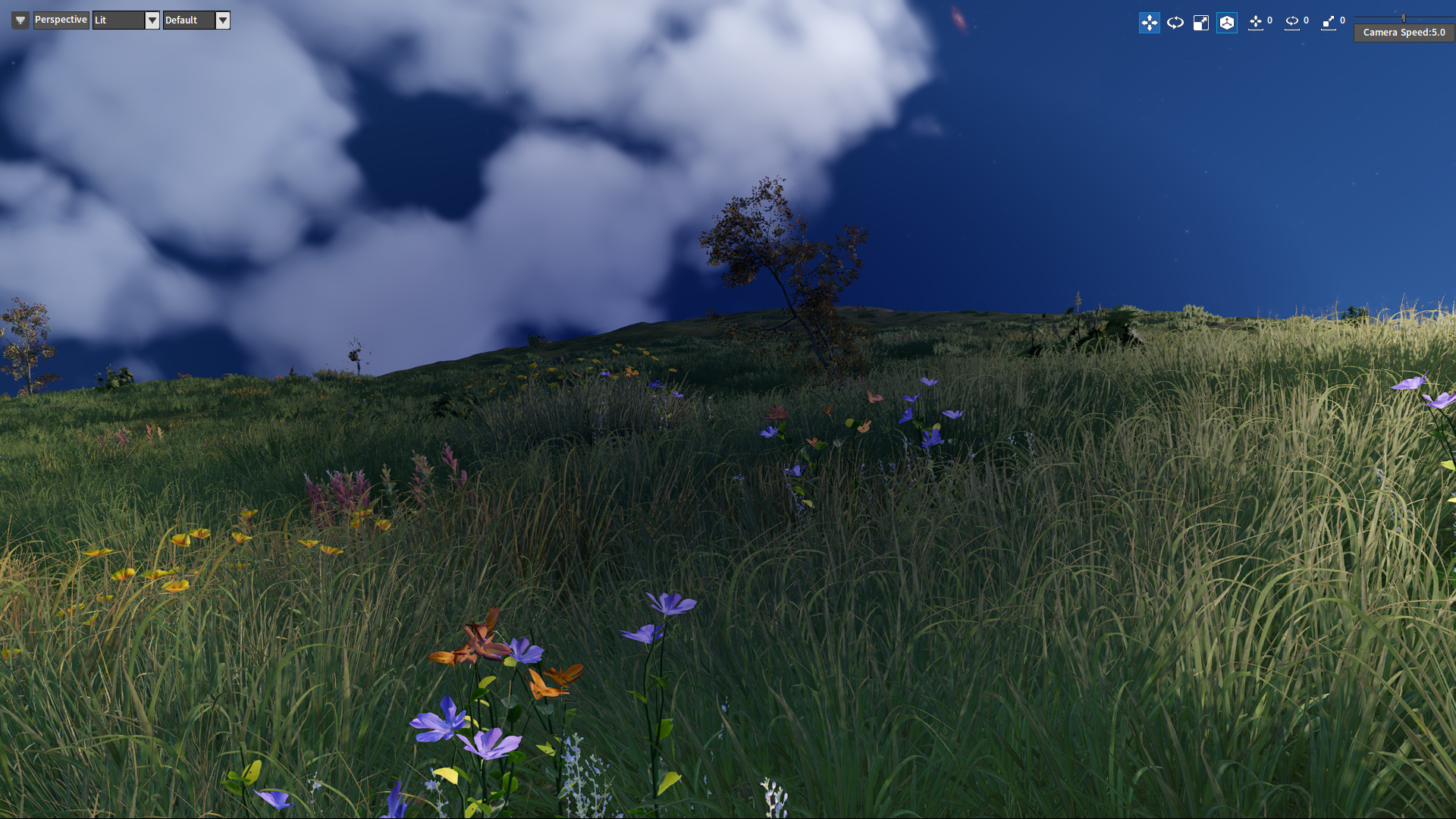

Radial End
Radial End is used to adjust the end position of the color gradient, range: -1.0 ~ 1.0.
Adjust the Radial End position with the Radial Start as 0.45 and the Scale as 2 respectively.
Scale
Scale is used to adjust the transition exponential coefficient from the start to the end of the gradient, range: -2.0 ~ 2.0.

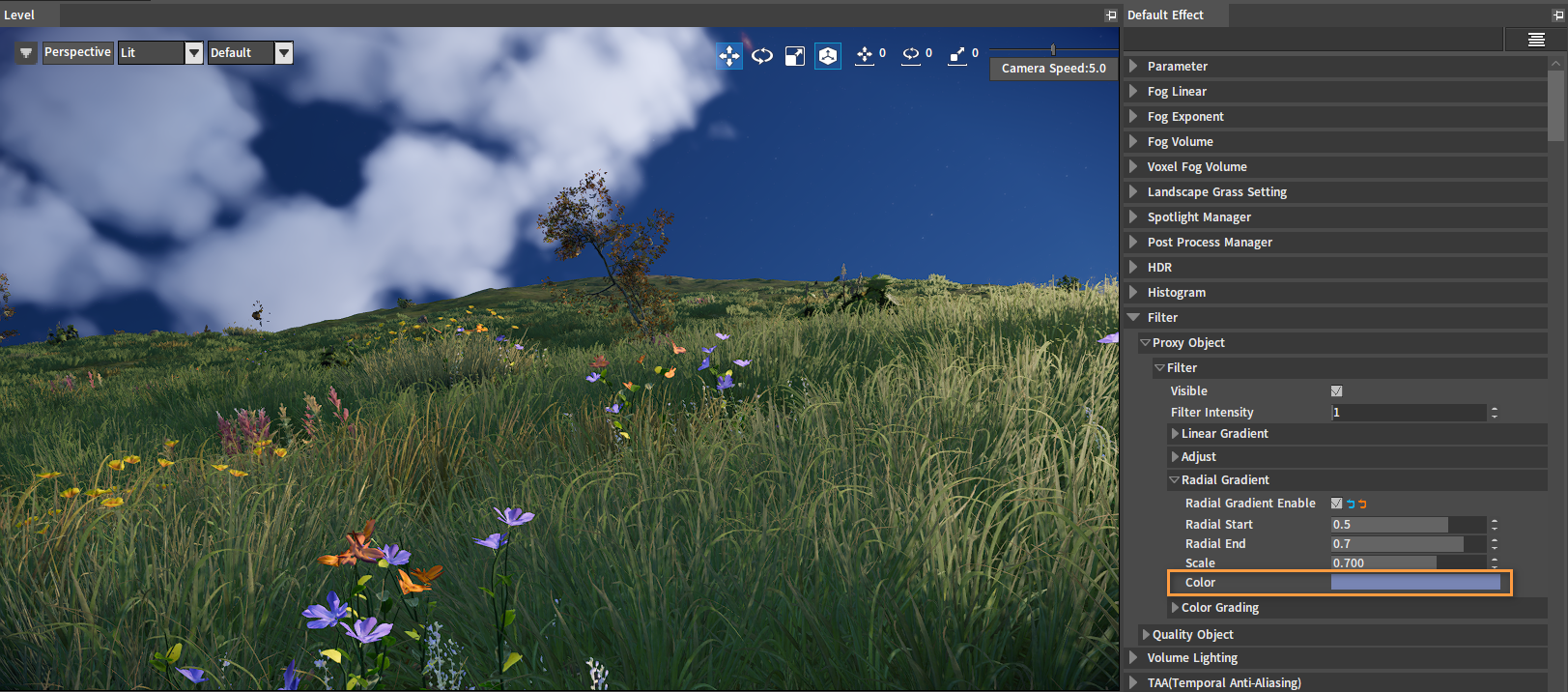

Color
Color is used to adjust gradient colors.

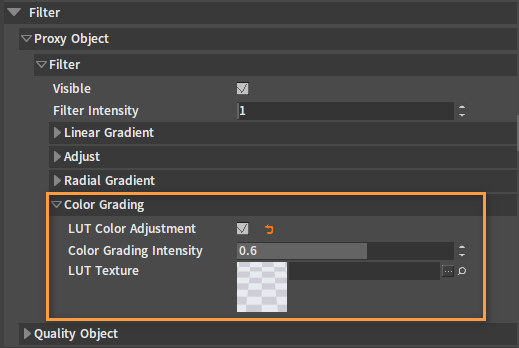

Color Grading
Color correction using post-processing volume is achieved through LUTs to provide finer color transformations.
The related properties below needed to be adjusted to use the Color Grading effect.
| Property | Description |
|---|---|
| LUT Color Adjustment | Whether to enable LUT color adjustment. |
| Color Grading Intensity | Adjust the intensity of the color grading. |
| LUT Texture | Set LUT textures. |
LUT Color Adjustment
It is used to enable color adjustment.
Color Grading Intensity
It is used to adjust the intensity of the color grading, range: 0.0 ~ 1.0.
LUT Texture
It is used to set LUT textures.
