TwoBoneIK

Last Updated Time: 09/08/2023

Overview

Use TwoBoneIK to control two bones to complete the specified action through Inverse Kinematic, which is used to realize the interaction between the character's actions and the environment.

Using Nodes

Right-click the blank space of an Animation Tree to open the Node selection panel, then expand the Animation Post-processing category and select Add TwoBoneIK.

After adding the node successfully:

The pose that needs to be solved by TwoBoneIK can be connected to the input pin of the TwoBoneIK node.

Properties

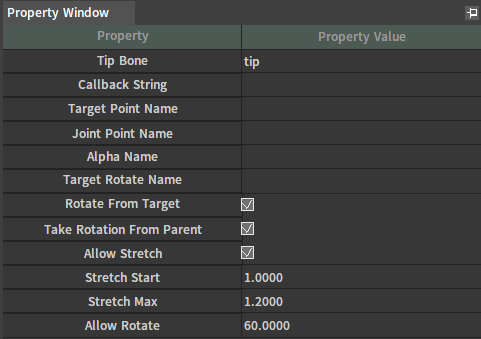

After selecting a node, you can see properties of the node in the Property Window.

Property	Description
Tip Bone	The marked IK tip bone.
Callback String	Execute the callback string. When the callback string returns false, the node function will not be executed.
Target Point Name	Mark the target point position of the bone.
Joint Point Name	The joint point position.
Alpha Name	Specify the name of the animation's float parameter, and use the parameter value as the blend weight.
Target Rotate Name	Specify the animation parameter name (string or vector type), and use the parameter value as the rotation of the target point. The string type needs to separate the rotation components with commas.
Rotate From Target	Whether to rotate based on the target point.
Take Rotation From Parent	Whether to rotate based on the parent bone.
Allow Stretch	Whether the bone allows stretching.
Stretch Start	Stretch start ratio.
Stretch Max	Maximum stretch ratio.
Allow Rotate	Maximum rotation angle of the target bone.

Example

The example implements IK for the character’s left and right feet in static state, allowing the character’s feet to stick close to the ground on different slopes.

When the capsule is on a slope, it will be in a suspended state. By adding TwoBoneIK nodes to the character’s Animation Tree and using the Animation Tree callback function, the character's feet can be kept close to the ground when it is on a slope. In the picture below, the character is standing at the same position. With TwoBoneIK nodes, the feet can be kept close to the ground by controlling the direction of knee bending and by bending the knees to an unfixed degree based on the height of the feet from the ground.

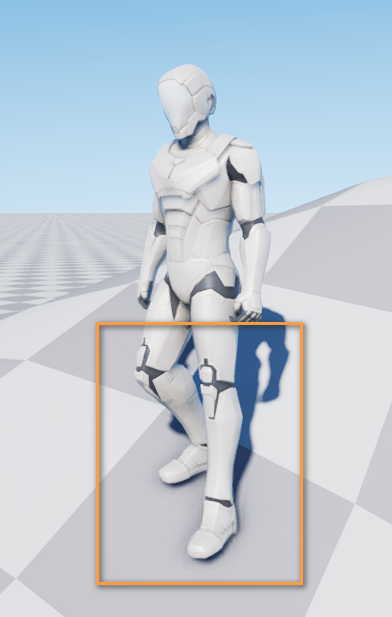

With TwoBoneIK Nodes

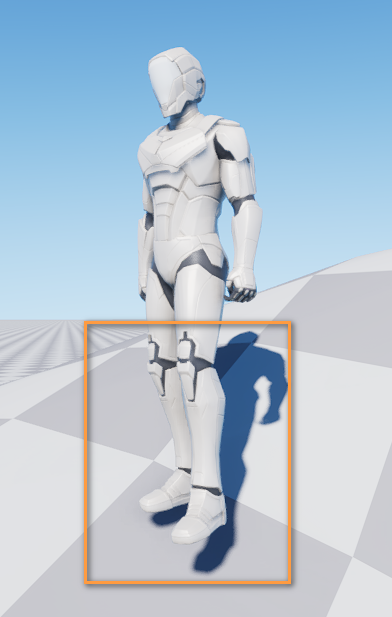

Without TwoBoneIK Nodes

This example adds IK to the character's feet based on the example of [*Animation State Machine*](/Character-and-Skinned-Animation/Examples/Logic-Related/Animation-State-Machine/#example), and the corresponding functions need to be added during steps Creating Animation Trees and Binding Scripts.

Animation Trees

Add two TwoBoneIK nodes to an Animation Tree for the IK of the left foot and right foot, and connect the nodes together as shown below.

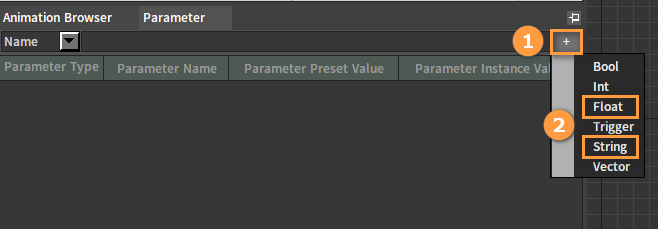

In the Animation Parameter window, click the button, then select String and Float to create 4 String parameters footlpos, footljpos, footrpos, footrjpos, and 1 Float parameter foot_ik_weight for the properties Target Point Name, Joint Point Name and Alpha Name of the 2 nodes respectively.

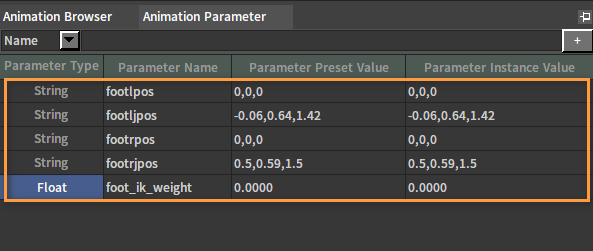

After creating the parameters:

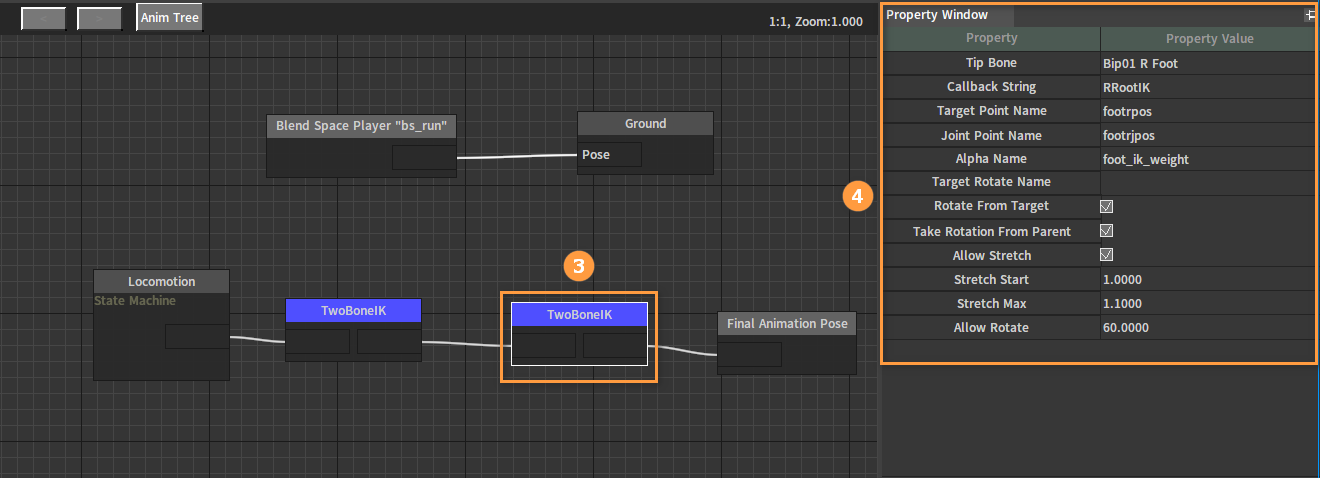

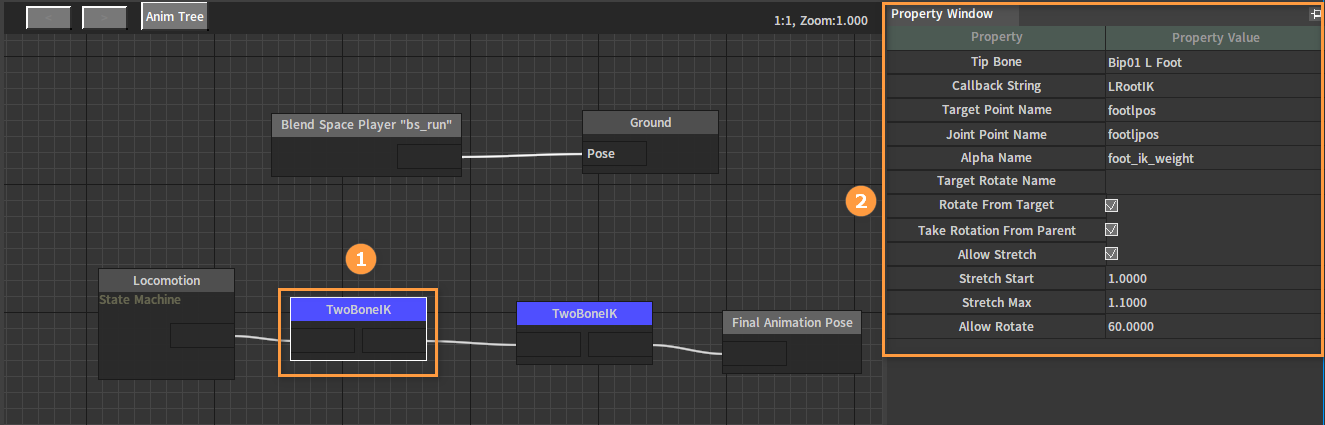

Select the two TwoBoneIK nodes separately and set the node properties in the Property Window.

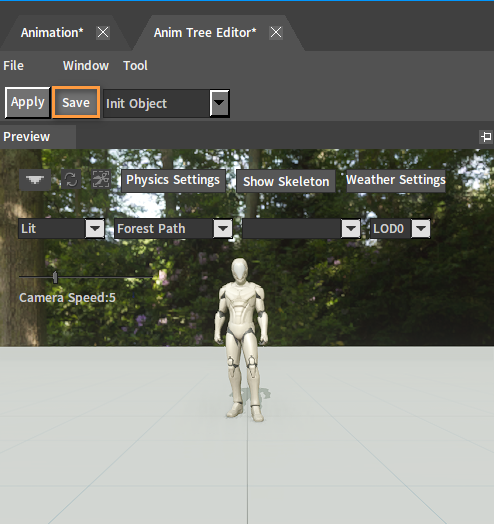

Click the Save button after editing the Animation Tree.

Creating the Terrain

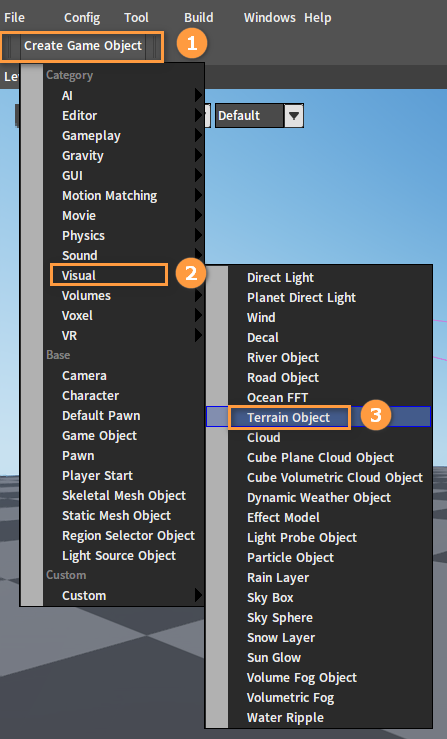

Click Create Game Object -> Visual -> Terrain Object in the Component Editor.

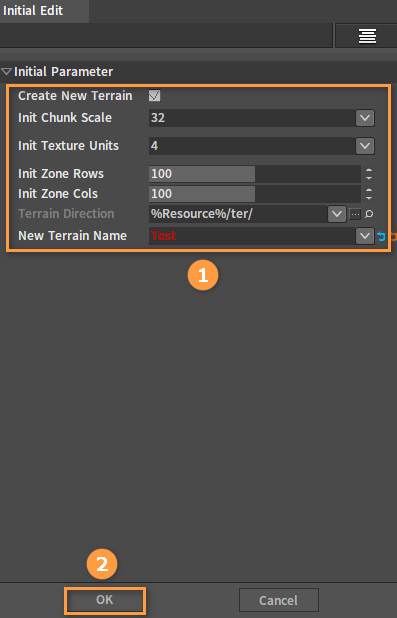

Set the properties of the created terrain in the pop-up Initial Edit window and click OK to complete the creation.

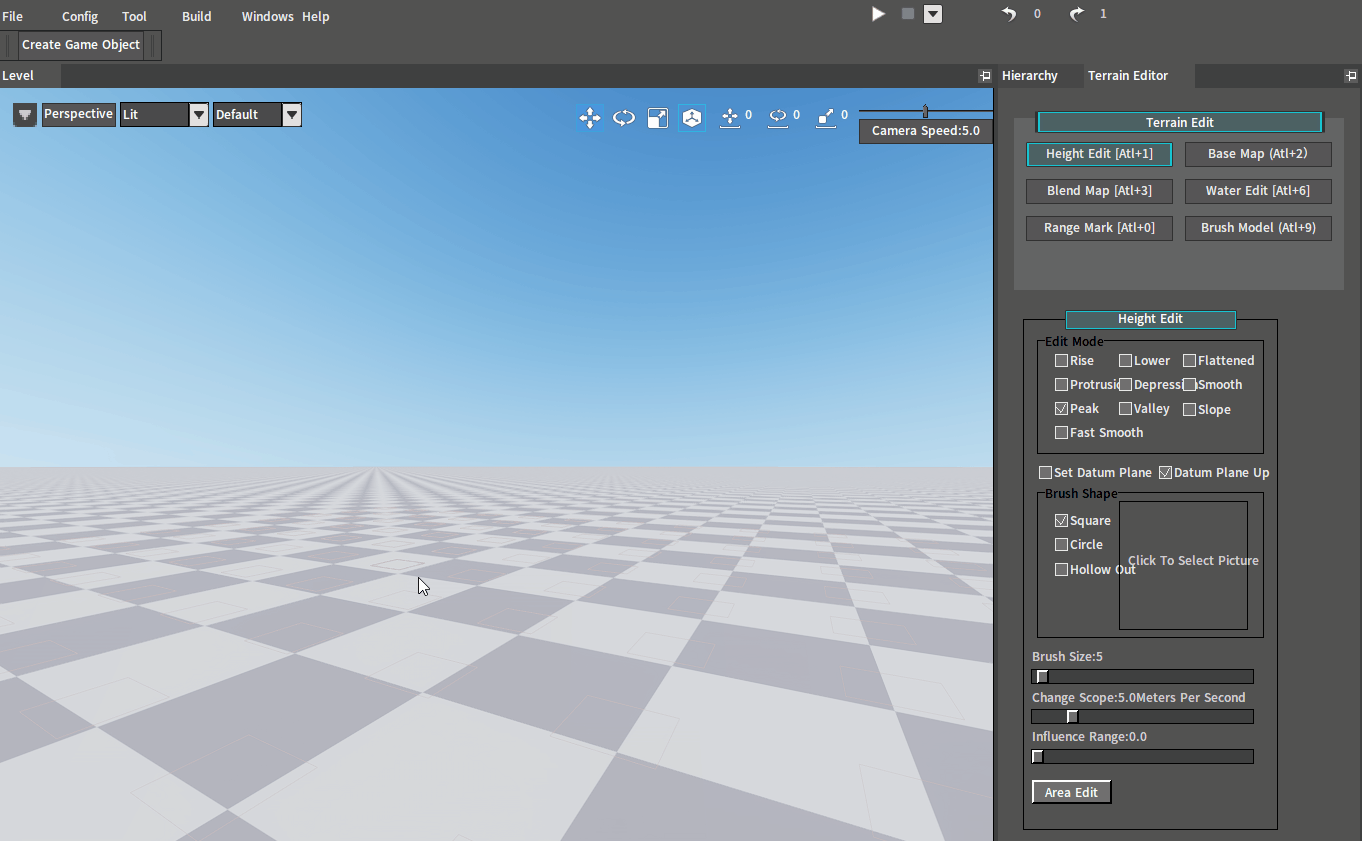

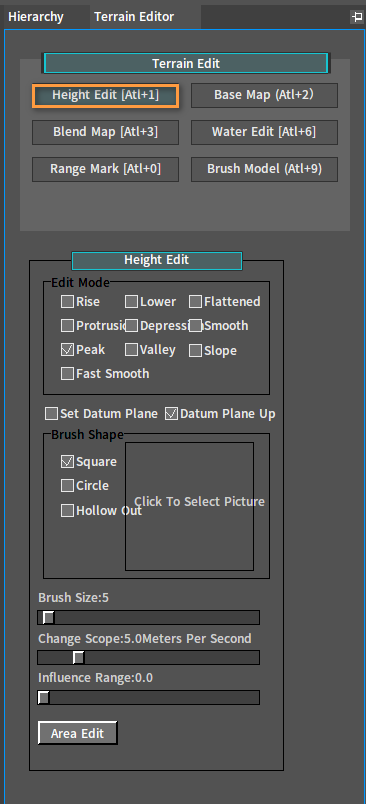

Create a slope. Click Windows -> Edit Mode -> Terrain Mode, then select Height Edit [Alt+1] in the opened Terrain Editor.

Then in the Level panel, left-click the ground to raise the ground.

Binding Scripts

Bind two scripts robot_character.lua and robot_character_animation.lua to the character, just like the binding scripts in the Animation State Machine example.

Call animtree_callback_LRootIK and animtree_callback_RRootIK via the Animation Tree callback function.

1. First, when the terrain object does not exist in the scene，or the character's speed is over 1, return directly without creating IK.
2. Get the offsets of the left foot and the right foot from the ground respectively.

Get the world space coordinates and model space coordinates of the foot bones, and the Terrain Object gets the height of the ground under feet by the XZ coordinates in world space. World space height minus model space height minus ground height is the desired offset for the foot bones.

local obj_pos_lx, obj_pos_ly, obj_pos_lz = role:GetNodeObjectPosition("Bip01 L Foot")
local position_lx, position_ly, position_lz = role:GetNodeWorldPosition("Bip01 L Foot")
local lgroundheight = terrain:GetGroundHeight(position_lx,position_lz)
local left_offset = position_ly - obj_pos_ly - lgroundheight

After the desired offsets of the feet are calculated, use the maximum value to move the skeletal mesh component to move the character downward, so that the foot highest from the ground sticks close to the ground. 0.1 is the interpolation coefficient to prevent jumps when the character moves downward.

local y_offset = math.max(left_offset, right_offset) - 0.02
if y_offset > 0 then
    pawn.MeshComponent.PositionY = pawn.MeshComponent.PositionY - y_offset * 0.1
end

Recalculate the desired displacement of the foot bones and set the foot target position (footpos) parameter and weight (foot_ik_weight) of the Animation Tree.

The blend weight is inversely proportional to the character's speed. When the character's speed is 1, the blend weight is 0, and when the speed is 0, the blend weight is 1. Same for the other foot but without calculating the maximum desired displacement and moving the skeletal mesh component.

local strnewpos = nx_string(position_lx) .. "," .. nx_string(lgroundheight + foot_rel_height) .. "," .. nx_string(position_lz)
role:SetAnimTreeValue(action_index, "footlpos", strnewpos)
role:SetAnimTreeValue(action_index, "foot_ik_weight", 1 - get_speed(pawn))

Since the mesh component was moved, the relative position of the mesh component needs to be restored when the character is moved again.

In the callback of the Blend Space node of the Animation Tree, set the character's custom property bool_foot_ik to false.

function animtree_callback_bs_x_direction(pawn, role)
    pawn.bool_foot_ik = false
    return pawn.direction
end

Set bool_foot_ik to true in the callback of the IK node.

role:SetAnimTreeValue(action_index, "footlpos", strnewpos)
role:SetAnimTreeValue(action_index, "foot_ik_weight", 1 - get_speed(pawn))
pawn.bool_foot_ik = true

Record the relative displacement of the mesh component in the on_begin_play function.

owner.meshcomp_init_relative_posy = owner.MeshComponent.RelativePositionY

Determine and restore the relative displacement of the mesh component in the tick function.

if nx_find_custom(owner, "bool_foot_ik") and owner.bool_foot_ik == false then
    owner.MeshComponent.RelativePositionY = owner.meshcomp_init_relative_posy
end

The following are reference scripts:

robot_character.lua

--script template

local IE_Pressed        = 0     --Key pressed
local IE_Released       = 1     --Key released
local IE_Repeat         = 2
local IE_DoubleClick    = 3
local IE_Axis           = 4
local IE_MAX            = 5

local CAMERA_DISTANCE_CHANGE_SPEED = 0.5
local CAMERA_DISTANCE_MIN = -1
local CAMERA_DISTANCE_MAX = 50

--Get the actor
function character_get_actor(character)
    if nx_is_valid(character) then
        local mesh_component = character.MeshComponent

        if nx_is_valid(mesh_component) then
            local vis_base = mesh_component.VisBase

            if nx_is_valid(vis_base) and nx_is_kind(vis_base, "Actor") then
                return vis_base
            end
        end
    end

    return nx_null()
end

--Moving forward callback
function on_moveforward(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller angle Y
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get forward vector
        local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

        --Add movement input

        owner:AddMovementInput(x, y, z, axis_value)
    end

    return 1
end

--Moving right callback
function on_moveright(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller angle Y
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get right vector
        local x, y, z = nx_function("ext_angle_get_right_vector", 0.0, yaw, 0.0)

        --Add movement input
        owner:AddMovementInput(x, y, z, axis_value)
    end
    return 1
end

--Left and right rotation (rotation around the Y-axis) callback
function on_turn(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerYawInput(axis_value)

    return 1
end

--Up and down rotation (rotation around X-axis) callback
function on_lookup(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerPitchInput(-axis_value)

    return 1
end

--Jump key pressed callback
function on_jump_pressed(owner)
    if nx_find_custom(owner, "JumpAgainLock") and owner.JumpAgainLock then
        return 1
    end

    --Character jumps
    owner:Jump()

    return 1
end


function input_comp_init_bind(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local input_comp = owner.InputComponent

        if nx_is_valid(input_comp) then
            nx_bind_script(owner, nx_current())

            input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
            input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
            input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
            input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

            input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true, "InputActionEvent_Jump_Pressed")

            nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
            nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
            nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
            nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

            nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
        end
    end
end

--use this for initialization
function on_begin_play(component)
    input_comp_init_bind(component)
    nx_callback(component, "on_tick", "tick")
end

robot_character_animation.lua

--script template

--------------------------
--local utility function--
--------------------------

require("public_attr")
require("scene_utils")

local radian = 57.2958
local foot_rel_height = 0.14

local function get_terrain(pawn)
    if nx_is_valid(pawn) then
        local lscene = pawn.Scene

        if nx_is_valid(lscene) then
            return scene_get_engine_terrain(lscene)
        end
    end

    return nx_null()
end

local function get_movement_component(pawn)
    if nx_is_valid(pawn) then
        return pawn:GetMovementComponentID()
    end

    return nx_null()
end

local function get_speed(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            local speed = nx_function("ext_vector_length", pawn.VelocityX, pawn.VelocityY, pawn.VelocityZ)
            return speed
        end
    end

    return 0.0
end

local function is_jumping(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if movement:IsFalling() then
                return true
            end
        end
    end

    return false
end

local function is_flying(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if movement:IsFlying() then
                return true
            end
        end
    end

    return false
end

function transition_callback_jump_start(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_jump_end(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_jumping(pawn) then
        return true
    else
        return false
    end
end

transition_event_callback =
{
    ["jump_start"] = transition_callback_jump_start,
    ["jump_end"] = transition_callback_jump_end,
}

function on_transition_event(mesh_comp, action_index, machine_index, prev_state, next_state, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = transition_event_callback[callback_name]
    if callback then
        return callback(pawn, role, action_index, machine_index, prev_state, next_state)
    end

    return false
end

function state_machine_state_callback_EnterState(pawn, role, action_index, machine_index, state_index)
    -- do something
    nx_log("state machine state enter jump")
end

function state_machine_state_callback_LeaveState(pawn, role, action_index, machine_index, state_index)
    -- do something
    nx_log("state machine state leave jump")
end

function state_machine_state_callback_FullyBlendState(pawn, role, action_index, machine_index, state_index)
    -- do something
    nx_log("state machine state fully blend jump")
end

state_machine_state_event_callback =
{
    ["start_state"] = state_machine_state_callback_EnterState,
    ["end_state"] = state_machine_state_callback_LeaveState,
    ["fully_blend_state"] = state_machine_state_callback_FullyBlendState,
}

function on_state_machine_state_event(mesh_comp, action_index, machine_index, state_index, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return
    end

    local callback = state_machine_state_event_callback[callback_name]
    if callback then
        callback(pawn, role, action_index, machine_index, state_index)
    end
end

function animtree_callback_bs_x_direction(pawn, role)
    pawn.bool_foot_ik = false

    if nx_find_custom(pawn, "direction") then
        return pawn.direction
    end

    return 0
end

function animtree_callback_bs_y_speed(pawn, role)
    return get_speed(pawn)
end

local function get_anim_tree_index(role)
    if role:GetBlendActionCount() > 0 then
        local action_name = role:GetBlendActionName(0)
        local action_type = role:GetActionType(action_name)
        if action_type == AT_ANIMTREE then
            return role:GetActionIndex(action_name)
        end
    end

    return -1
end

function animtree_callback_LRootIK(pawn, role)
    local terrain = get_terrain(pawn)
    if not nx_is_valid(terrain) or is_jumping(pawn) or get_speed(pawn) > 1  or
        nx_string(pawn.CharacterMovement.MovementMode) == "MOVEMENT_MODE::Flying" then
        return false
    end

    --calculate left foot offset
    local obj_pos_lx, obj_pos_ly, obj_pos_lz = role:GetNodeObjectPosition("Bip01 L Foot")
    local position_lx, position_ly, position_lz = role:GetNodeWorldPosition("Bip01 L Foot")
    local lgroundheight = terrain:GetGroundHeight(position_lx,position_lz)
    local left_offset = position_ly - obj_pos_ly - lgroundheight

    --calculate right foot offset
    local obj_pos_rx, obj_pos_ry, obj_pos_rz = role:GetNodeObjectPosition("Bip01 R Foot")
    local position_rx, position_ry, position_rz = role:GetNodeWorldPosition("Bip01 R Foot")
    local rgroundheight = terrain:GetGroundHeight(position_rx,position_rz)
    local right_offset = position_ry - obj_pos_ry - rgroundheight

    --move mesh component
    local y_offset = math.max(left_offset, right_offset) - 0.02
    if y_offset > 0 then
        pawn.MeshComponent.PositionY = pawn.MeshComponent.PositionY - y_offset * 0.1 --interpolation y_offset
    end

    local strnewpos = nx_string(position_lx) .. "," .. nx_string(lgroundheight + foot_rel_height) .. "," .. nx_string(position_lz)
    local action_index = get_anim_tree_index(role)
    if action_index >= 0 then
        role:SetAnimTreeValue(action_index, "footlpos", strnewpos)
        role:SetAnimTreeValue(action_index, "foot_ik_weight", 1 - get_speed(pawn))
        pawn.bool_foot_ik = true
        return true
    end

    return false
end

--Animation tree right foot IK node callback
function animtree_callback_RRootIK(pawn, role)
    local terrain = get_terrain(pawn)
    if not nx_is_valid(terrain) or is_jumping(pawn) or get_speed(pawn) > 1  or
        nx_string(pawn.CharacterMovement.MovementMode) == "MOVEMENT_MODE::Flying" then
        return false
    end

    local position_x, position_y, position_z = role:GetNodeWorldPosition("Bip01 R Foot")
    local groundheight = terrain:GetGroundHeight(position_x, position_z)
    local strnewpos = nx_string(position_x) .. "," .. nx_string(groundheight + foot_rel_height) .. "," .. nx_string(position_z)
    local action_index = get_anim_tree_index(role)

    if action_index >= 0 then
        role:SetAnimTreeValue(action_index, "footrpos", strnewpos)
        role:SetAnimTreeValue(action_index, "foot_ik_weight", 1 - get_speed(pawn))
        return true
    end

    return false
end

animtree_event_callback =
{
    ["bs_x_direction"] = animtree_callback_bs_x_direction,
    ["bs_y_speed"] = animtree_callback_bs_y_speed,
    ["LRootIK"] = animtree_callback_LRootIK,
    ["RRootIK"] = animtree_callback_RRootIK,
}

function on_animtree_event(mesh_comp, action_index, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return
    end

    local callback = animtree_event_callback[callback_name]
    if callback then
        return callback(pawn, role)
    end

    return false
end


function anim_callee_init(mesh_comp)
    nx_callback(mesh_comp, "on_transition_event", "on_transition_event")
    nx_callback(mesh_comp, "on_animtree_event", "on_animtree_event")
    nx_callback(mesh_comp, "on_action_event", "on_action_event")
    nx_callback(mesh_comp, "on_state_machine_state_event", "on_state_machine_state_event")
    nx_callback(mesh_comp, "on_state_action_event_begin", "on_state_action_event_begin")
    nx_callback(mesh_comp, "on_state_action_event_update", "on_state_action_event_update")
    nx_callback(mesh_comp, "on_state_action_event_end", "on_state_action_event_end")
end

--use this for initialization
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local mesh_comp = owner.MeshComponent

        if nx_is_valid(mesh_comp) then

            owner.meshcomp_init_relative_posy = owner.MeshComponent.RelativePositionY
            mesh_comp.ActorCalleeType = "CComponentActorCalleeScript"
            nx_bind_script(mesh_comp, nx_current(), "anim_callee_init")
        end
    end
    nx_callback(component, "on_tick", "tick")
end

function tick(component, delta_time)
    local owner = component.GameObjectOwner

    local move_comp = get_movement_component(owner)
    local speedx = move_comp.VelocityX
    local speedz = move_comp.VelocityZ
    local rate = speedx / speedz
    local tan = math.atan(rate)
    local velocity_angle = radian * tan

    if speedx == 0 and speedz == 0 then
        velocity_angle = 0
    elseif speedx > 0 and speedz == 0 then
        velocity_angle = 90
    elseif speedx == 0 and speedz < 0 then
        velocity_angle = 180
    elseif speedx < 0 and speedz == 0 then
        velocity_angle = 270
    elseif speedx > 0 and speedz < 0 then
        velocity_angle = 180 - math.abs(velocity_angle)
    elseif speedx <= 0 and speedz < 0 then
        velocity_angle = velocity_angle + 180
    elseif speedx < 0 and speedz > 0 then
        velocity_angle = 360 - math.abs(velocity_angle)
    end

    local cap_comp = owner.CapsuleComponent
    local foward_angle = cap_comp.AngleY * radian
    local relative_angle = velocity_angle - foward_angle

    if relative_angle > 180 then
        relative_angle = relative_angle - 360
    elseif relative_angle < -180 then
        relative_angle = relative_angle + 360
    end
    owner.direction = relative_angle

    if nx_find_custom(owner, "bool_foot_ik") and owner.bool_foot_ik == false then
        owner.MeshComponent.RelativePositionY = owner.meshcomp_init_relative_posy
    end
end

public_attr.lua

--Explorer: Global Variables

MODEL_PATH = "mdl\\"
MODEL_PATH_DX9 = ""
ACTOR_PATH = "ini\\actor\\"
ACTOR_PATH_DX9 = "ini\\actor\\"
LIGHT_PATH = "ini\\light\\"
LIGHT_PATH_DX9 = "ini\\light\\"
EFFECT_PATH = "ini\\effect\\"
PARTICLE_PATH = "ini\\particle\\"
SOUND_PATH = "snd\\"
REVERB_PATH = "reverb\\"
TRIGGER_PATH = "ini\\trigger\\"
PROBE_PATH = "ini\\light_probe\\"
VOLUME_FOG_PATH = "ini\\volume_fog\\"
MATERIAL_PATH = ""

--Resource Type Definitions
TYPE_MODEL = "model"
TYPE_ACTOR = "actor"
TYPE_LIGHT = "light"
TYPE_EFFECT = "effect"
TYPE_PARTICLE = "particle"
TYPE_SOUND = "sound"
TYPE_REVERB = "reverb"
TYPE_TRIGGER = "trigger"
TYPE_PROBE = "light_probe"
TYPE_VOLUME_FOG = "volume_fog"
TYPE_DECAL = "decal"
TYPE_GROUP = "group"
TYPE_RIPPLE = "ripple"
TYPE_SNOW = "snow"
TYPE_RAIN = "rainlayer"
TYPE_UI3D = "ui3d"

--Animation Resource Types
AT_UNKNOWN = 0
AT_SKELETON = 1
AT_SKELETON_AS_ANIMSEQUENCE = 2
AT_ANIMSEQUENCE = 3
AT_MONTAGE = 4
AT_BLENDSPACE = 5
AT_BLENDSPACE1D = 6
AT_AIMOFFSETBLENDSPACE = 7
AT_ANIMTREE = 8

TYPE_LIST = {
    "model",
    "actor",
    "light",
    "effect",
    "particle",
    "decal",
    "sound",
    "reverb",
    "trigger",
    "light_probe",
    "volume_fog",
    "ripple",
    "snow",
    "rainlayer",
}

FORM_TREE_BROWSER = "common_form\\form_tree_browser"
SEARCH_PATH = "ini\\common_form\\form_tree_browser\\"
SEARCH_CONFIG = SEARCH_PATH .. "form_put_visual.ini"
SEARCH_CONFIG_TEMP = "cache\\common_form\\form_tree_browser\\form_put_visual_temp.ini"
GROUP_CONFIG = "ter\\visual_group.ini"

--Get the visual_put file
function get_search_file()
    local ini = nx_create("IniDocument")

    ini.FileName = nx_resource_path() .. SEARCH_CONFIG

    if not ini:LoadFromFile() then
        nx_destroy(ini)
        return 0
    end

    local file = ini:ReadString("SEARCH_CONFIG", "search_file", "form_put_visual.ini")

    nx_destroy(ini)

    return nx_resource_path() .. SEARCH_PATH .. file, file
end

scene_utils.lua

--scene utils script

function scene_get_engine_terrain(lscene)
    local level = lscene.PersistentLevel

    if nx_is_valid(level) then
        local lterrain = level:GetGameObjectByType("fx_component_terrain.LTerrain")

        if nx_is_valid(lterrain) then
            return lterrain.EngineTerrain
        end
    end

    return nx_null()
end

Final Result

Click the PIE button to see the effect. When the character walks up the slope, the soles of its feet are always close to the ground.
