项目设置

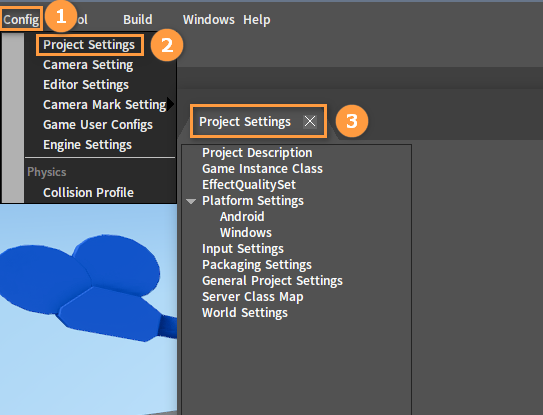

依次点击配置（Config）-> 项目设置（Project Settings），打开项目设置窗口。

项目设置界面会罗列所有继承自LProjectSettingsBase的类型。

C++加载方法：LWorld::GetProjectSettings

Lua加载方法：LWorld::GetProjectSetting

编辑页面关闭后，相关配置会存放在[project_path]/res/content/config/[module_name]/[class_name].setting文件中。配置类如果标记了"Preload"的meta，会在启动编辑器或者游戏时预加载。

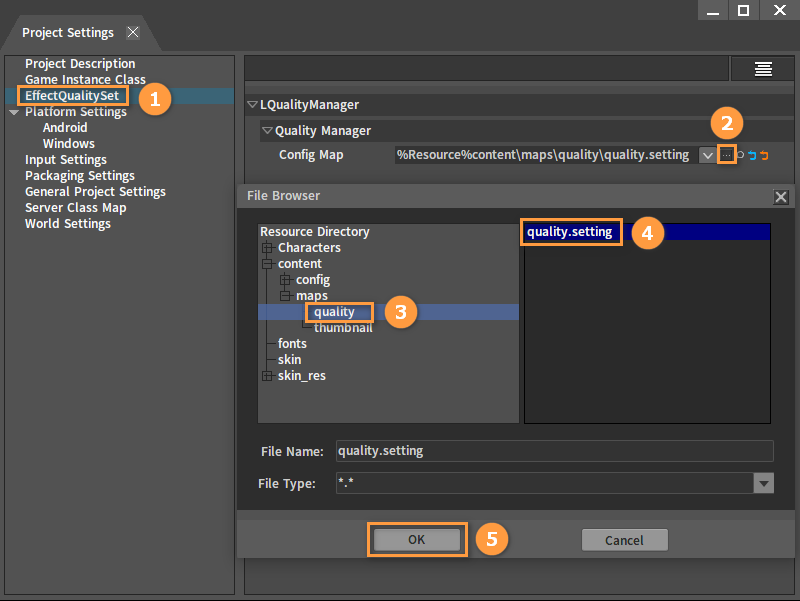

效果质量配置文件

①选择效果质量设置页签

②选择质量配置文件后面的浏览按钮

③在打开的文件浏览窗口中选择需要查找的文件

④⑤选择目标配置文件

⑥点击确认，完成配置

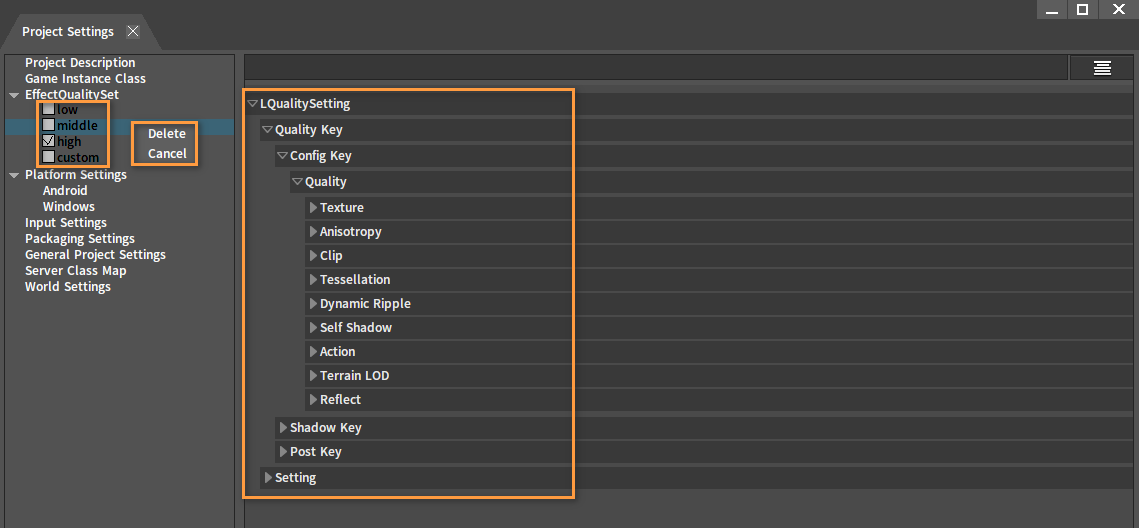

多效果配置预设

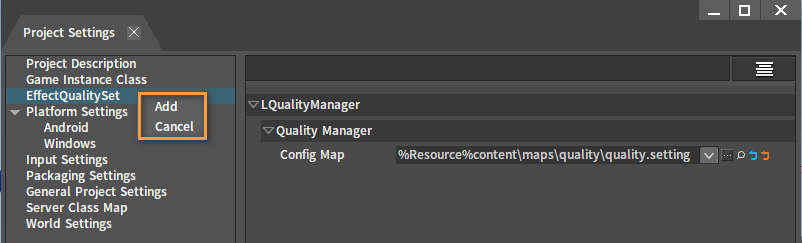

在效果质量设置页签上右键可新增配置或取消当前选择的预设效果。

在配置名称上右键可删除配置或者取消当前选择的预设效果。

通过点击选择不同的配置名称进行查看对应配置详情。

通过双击勾选不同的配置名称，应用对应的预设效果。

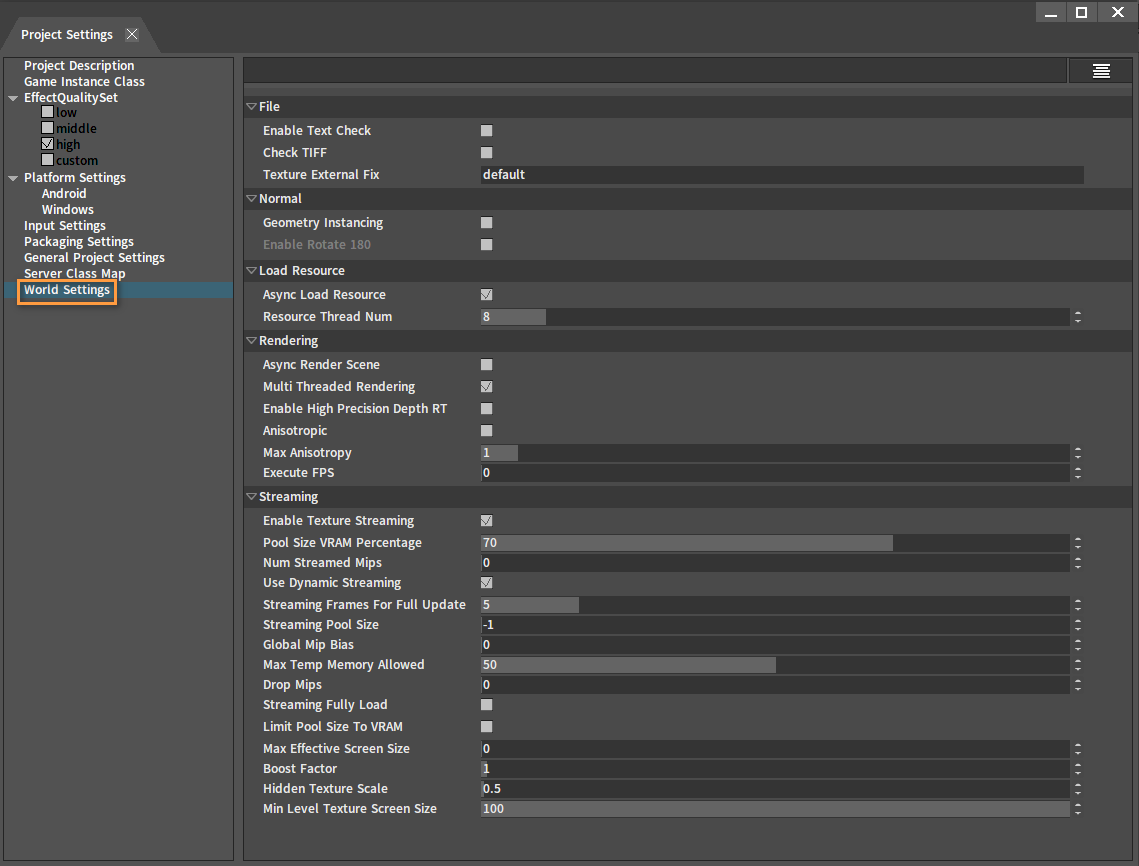

世界设置

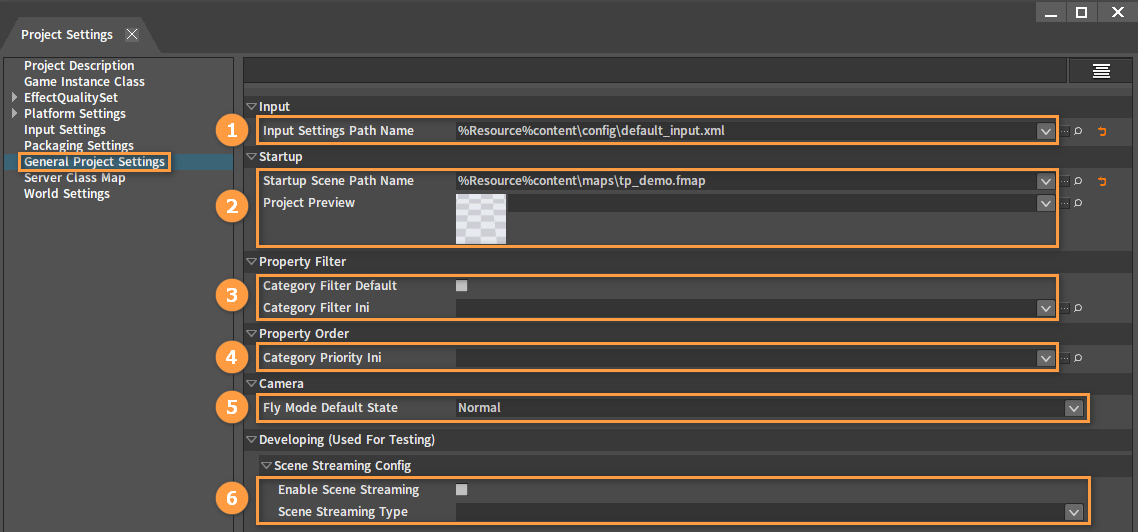

通用项目设置

①用户输入配置文件

②默认启动关卡配置

③属性大类隐藏配置文件

④属性排序配置文件

⑤默认相机模式（飞行模式默认状态）

⑥场景流送类型配置

输入配置

1. 启用鼠标平滑开关：控制鼠标平滑
2. 启用视场（FOV）缩放开关：开启后使用摄像机管理器视场（FOV）缩放鼠标输入
3. 是否启动时捕获鼠标
4. 视场（FOV）缩放值：视场（FOV）缩放系数
5. 双击时间：两次按键输入间隔时间小于该值时认为是双击
6. 默认鼠标捕获模式
7. 默认鼠标锁定模式
8. 轴属性映射列表：轴逻辑名称与轴属性的映射表（例如：轴的缩放系数、是否取反）
9. 组合键映射列表：组合逻辑名称与按键组合的映射表（例如：“跳跃”-“SpaceBar”）
10. 轴映射列表：轴逻辑名称与按键的映射表（例如：“向前移动”-“W”）

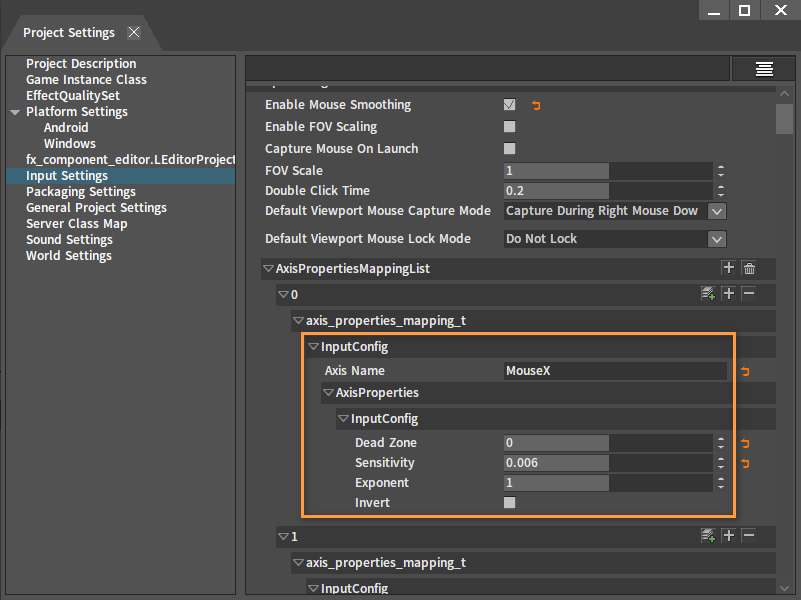

添加/删除/编辑轴属性

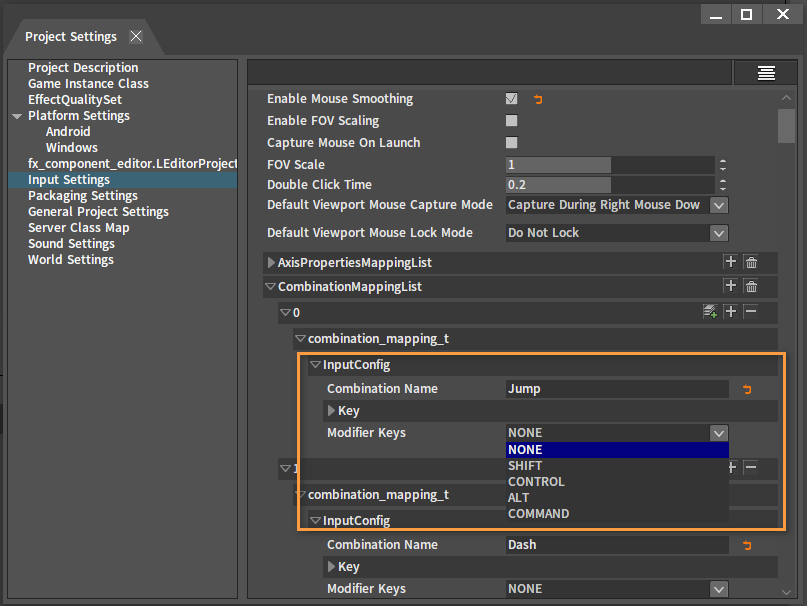

添加/删除/编辑组合键映射

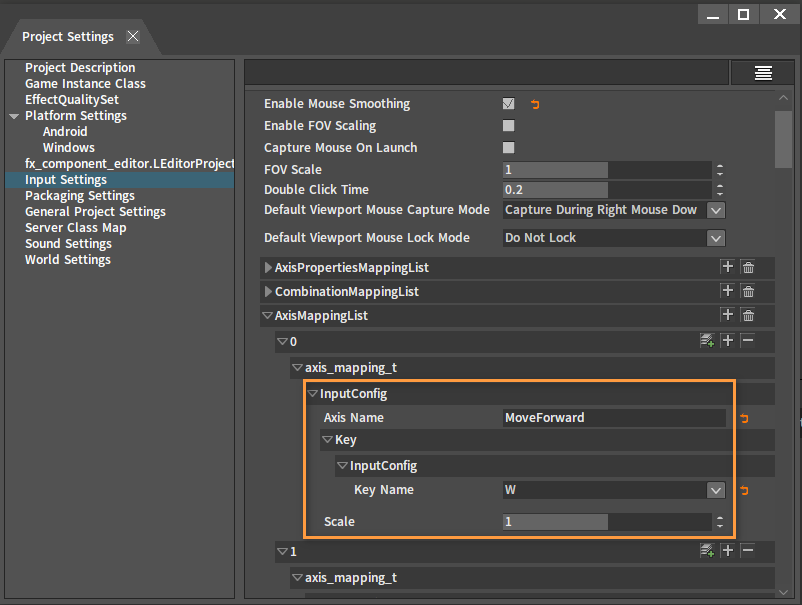

添加/删除/编辑轴映射

跳跃示例

1. 玩家输入：按键输入SpaceBar键

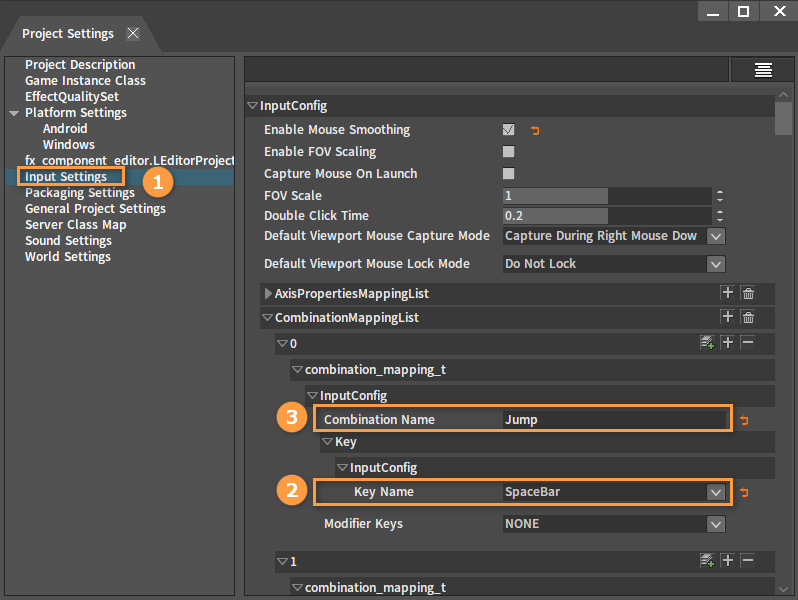

2. 输入配置：组合映射将SpaceBar键映射到“跳跃（Jump）”



3. 输入组件：绑定组合映射回调

   C++：

   input_character_demo.cpp

   void LInputCharacterDemo::SetupPlayerInputComponent(LInputComponent* pIC)
   {
       Assert(pIC);

        { ... }

       {
           // 添加组合回调
           CCombinationCallback& cJumpPressedCC = pIC->TAddCombinationCallback(
               "Jump", INPUT_EVENT_ENUM::Pressed,
               this, &LInputCharacterDemo::OnJumpPressed);
           cJumpPressedCC.bConsumeInput = true;

           CCombinationCallback& cJumpReleasedCC = pIC->TAddCombinationCallback(
               "Jump", INPUT_EVENT_ENUM::Released,
               this, &LInputCharacterDemo::OnJumpReleased);
           cJumpReleasedCC.bConsumeInput = true;
       }
   }

   Lua：

   script_input_character.lua

   --用此函数进行初始化
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --绑定轴映射回调
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --绑定组合映射回调
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --轴映射回调
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --组合映射回调
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

               --鼠标左击打开帮助文档
               input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true,
               "InputActionEvent_LeftClick_Pressed")
               input_comp:AddCombinationBinding("LeftClick", IE_Released, true, false, true,
               "InputActionEvent_LeftClick_Released")

               nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick")
               nx_callback(owner, "InputActionEvent_LeftClick_Released", "on_leftclick_up")
           end
       end

       nx_callback(component, "on_tick", "tick")
   end

4. 游戏逻辑：绑定的回调函数的处理

   C++：

   input_character_demo.cpp

   void LInputCharacterDemo::OnJumpPressed()
   {
       Jump();
   }

   void LInputCharacterDemo::OnJumpReleased()
   {
       StopJumping();
   }

   Lua：

   script_input_character.lua

   --用此函数进行初始化
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --绑定轴映射回调
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --绑定组合映射回调
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --轴映射回调
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --组合映射回调
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

               --鼠标左击打开帮助文档
               input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true,
               "InputActionEvent_LeftClick_Pressed")
               input_comp:AddCombinationBinding("LeftClick", IE_Released, true, false, true,
               "InputActionEvent_LeftClick_Released")

               nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick")
               nx_callback(owner, "InputActionEvent_LeftClick_Released", "on_leftclick_up")
           end
       end

       nx_callback(component, "on_tick", "tick")
   end

   --跳跃键按下回调
   function on_jump_pressed(owner)
       if nx_find_custom(owner, "JumpAgainLock") and owner.JumpAgainLock then
           return 1
       end

       --角色跳跃
       owner:Jump()

       return 1
   end

向前移动示例

1. 玩家输入：按键输入W键

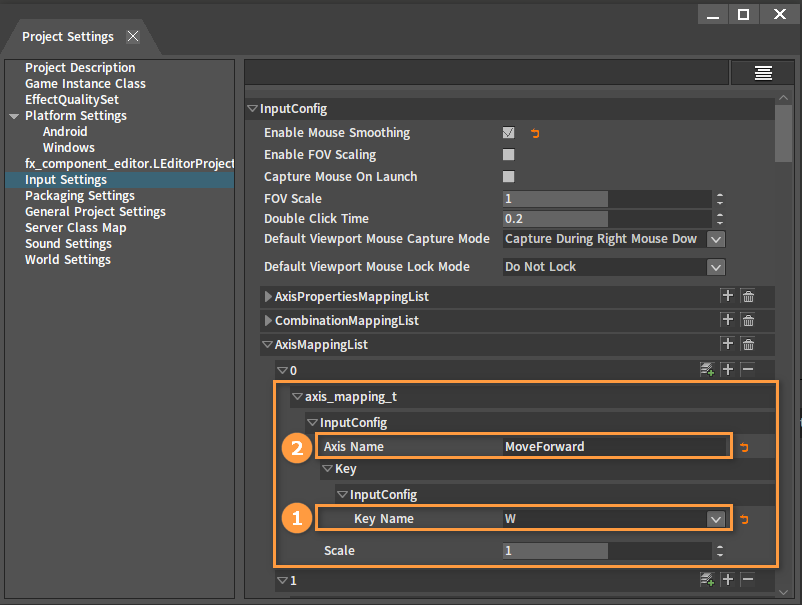

2. 输入配置：轴映射将W键映射到“向前移动（MoveForward）”



3. 输入组件：绑定轴映射回调

   C++：

   input_character_demo.cpp

   void LInputCharacterDemo::SetupPlayerInputComponent(LInputComponent* pIC)
   {
       Assert(pIC);

       {
           // 添加轴回调
           CAxisCallback& cMoveForwardAC = pIC->TAddAxisCallback("MoveForward",
               this, &LInputCharacterDemo::OnMoveForward);
           cMoveForwardAC.bConsumeInput = true;

           CAxisCallback& cMoveRightAC = pIC->TAddAxisCallback("MoveRight",
               this, &LInputCharacterDemo::OnMoveRight);
           cMoveRightAC.bConsumeInput = true;

           CAxisCallback& cTurnAC = pIC->TAddAxisCallback("Turn",
               this, &LInputCharacterDemo::OnTurn);
           cTurnAC.bConsumeInput = true;

           CAxisCallback& cLookUpAC = pIC->TAddAxisCallback("LookUp",
               this, &LInputCharacterDemo::OnLookUp);
           cLookUpAC.bConsumeInput = true;
       }

        { ... }
   }

   Lua：

   script_input_character.lua

   local IE_MAX            = 5

   ---------------------
   --默认回调--
   ---------------------

   --用此函数进行初始化
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --绑定轴映射回调
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --绑定组合映射回调
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --轴映射回调
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --组合映射回调
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

4. 游戏逻辑：绑定的回调函数的处理

   C++：

   input_character_demo.cpp

   void LInputCharacterDemo::OnMoveForward(float val)
   {
       LController* pController = GetController();

       if (pController != NULL)
       {
           CXMVECTOR vAngle = pController->GetAngle();

           AddMovementInput(FXMath::AngleGetForward(vAngle), val);
       }
   }

   Lua：

   script_input_character.lua

   --用此函数进行初始化
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --绑定轴映射回调
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --绑定组合映射回调
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --轴映射回调
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --组合映射回调
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

   --向前移动回调
   function on_moveforward(owner, axis_value)
       if not nx_is_valid(owner) then
           return 0
       end

       --获得控制器Y轴角度
       local controller = owner.Controller

       if nx_is_valid(controller) then
           local yaw = controller.AngleY
           --获得向前方向
           local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

           --增加移动量

           owner:AddMovementInput(x, y, z, axis_value)
       end

       return 1
   end
