多人游戏编程快速入门指南

开发多人游戏的游戏进程需要在游戏的GameObject中实现复制。 还必须设计特定于服务器（充当游戏会话的主机）和客户端（代表连接到会话的玩家）的功能。

本示例包括以下内容：

  • 如何向基本GameObject添加复制。
  • 如何向变量添加复制及变量被修改后的回调函数。
  • 如何在C++环境下使用远程过程调用（RPC）。
  • 如何区分GameObject在服务器或者在客户端。

最终形成第三人称多人游戏， 玩家可以向对方发射投射物， 并造成伤害。

基本设置​

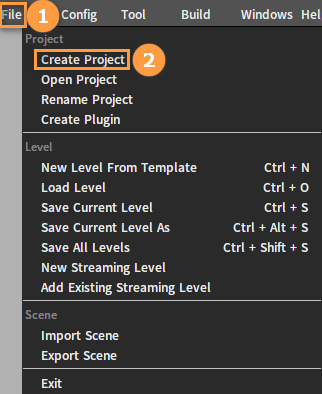

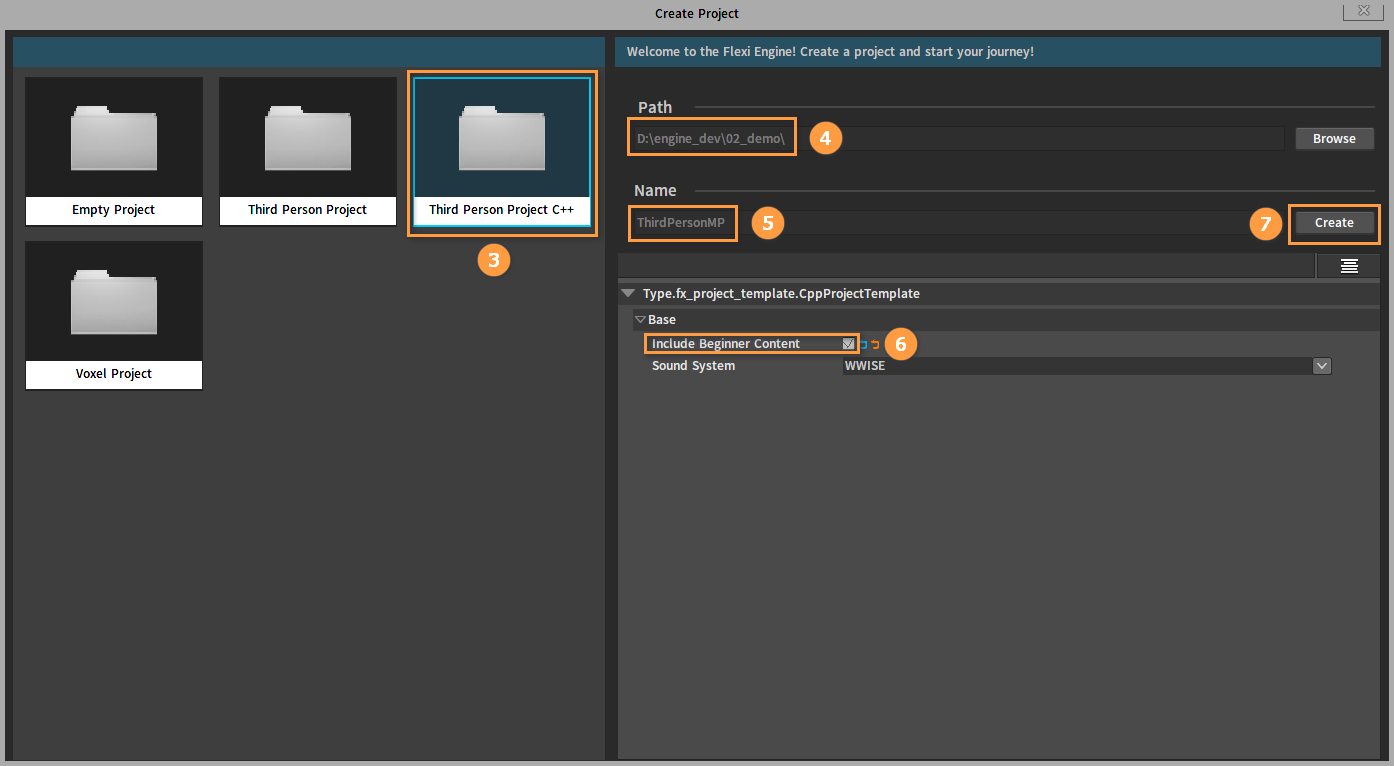

在编辑器中依次点击文件（File） -> 创建项目（Create Project），在弹出的创建项目（Create Project）窗口选择Third Person Project C++，然后在路径（Path）和名称（Name）下分别填写项目路径及名称，勾选包含初学者内容包（Include Beginner Content），最后点击创建（Create）按钮来创建一个新项目。

image-20230217141911822

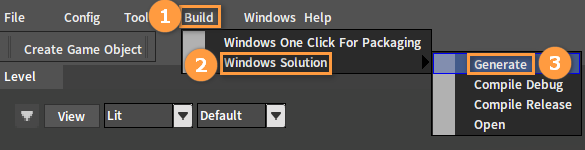

新项目创建后， 依次点击构建（Build）-> Windows解决方案（Windows Solution）-> 生成（Generate）来生成新项目。

generate

启动游戏​

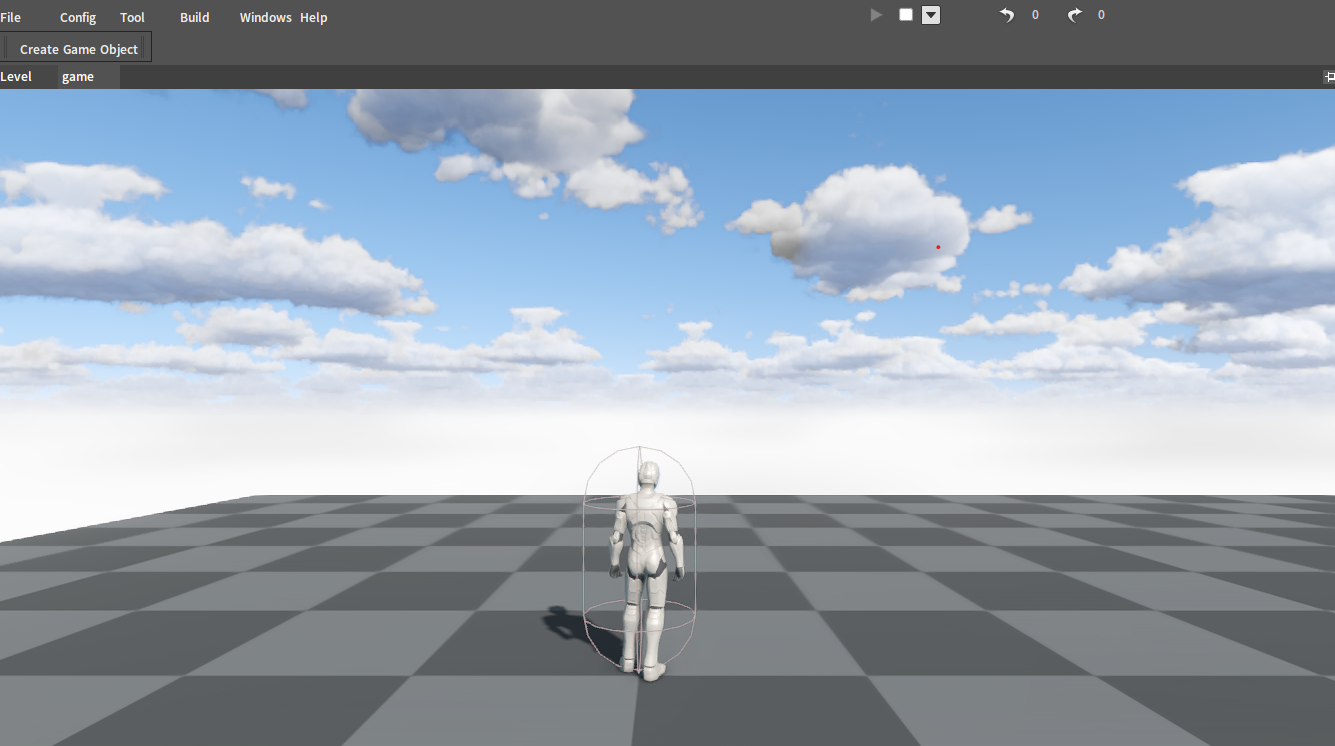

效果如下： standalong

只需要改变部分设置即可实现简易多人游戏， 网络配置说明如下：

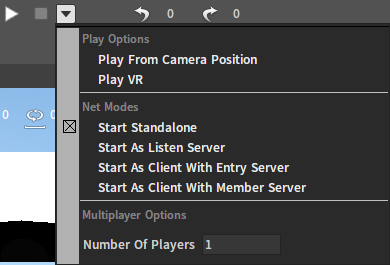

启动选项说明​

launchOp

属性说明
以单机模式运行（Start Standalone）编辑器以单机模式启动游戏。
以Listen服务器模式运行（Start As Listen Server）编辑器做为监听服务器启动，如果配置的玩家数量（Number of Players）大于1，则额外启动玩家数量减1个客户端连接服务器。
以客户端模式运行并启动Entry服务器（Start As Client With Entry Server）编辑器做为客户端启动，同时创建Entry服务器和Member服务器，编辑器做为客户端连接Entry服务器，如果配置的玩家数量大于1，则额外启动客户端进程实例。
以客户端模式运行并启动Member服务器（Start As Client With Member Server）编辑器做为客户端启动，同时创建Member服务器，编辑器做为客户端连接到Member服务器上，如果配置的玩家数量大于1，则额外启动客户端进程实例。
玩家数量（Number Of Players）联网模式下的玩家数量。

网络连接设置说明​

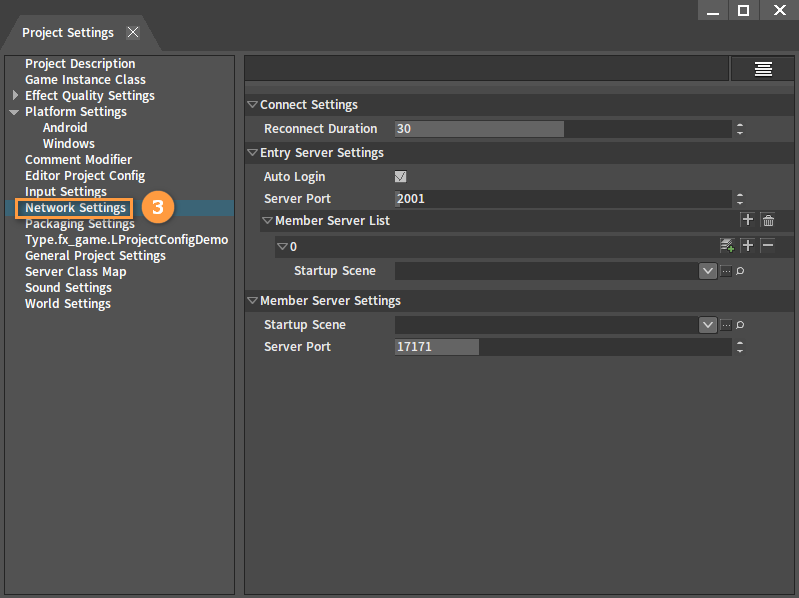

编辑器启动前必须设置网络设置（Network Settings）。依次点击配置（Config） -> 项目设置（Project Settings）-> 网络设置（Network Settings） 打开设置界面。

netmod

属性说明
连接设置（Connect Settings）自动连接超时时长（Reconnect Duration）：客户端重连服务器的超时时长，单位是秒。
Entry服务器设置（Entry Server Settings）自动登录（Auto Login）：是否开启自动登录。
服务器端口（Server Port）：Entry服务器监听的端口号。
Member服务器列表（Member Server List）：要运行的Member服务器列表。
启动场景（Startup Scene）：Member服务器的启动场景路径。
Member服务器设置（Member Server Settings）启动场景（Startup Scene）：Member服务器的启动场景路径，同时也做为编辑器以监听服务器模式启动时的场景路径。
服务器端口（Server Port）：Member服务器监听的端口号，同时也做为编辑器以监听服务器模式启动时的端口号。

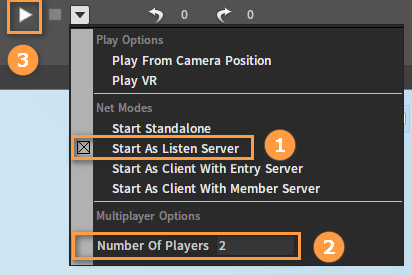

在此项目中， 项目配置如下：

image-20230320152051198

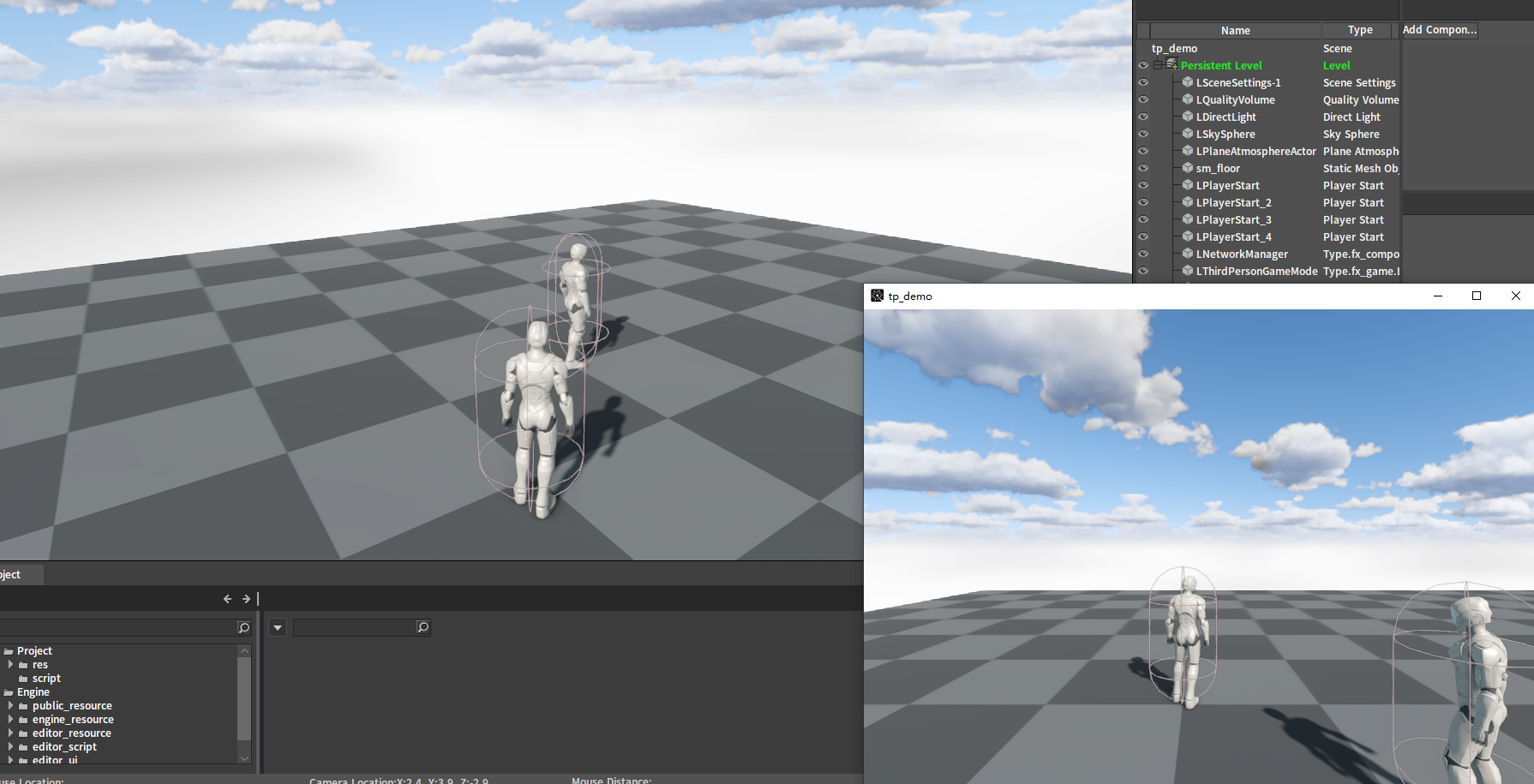

启动游戏之后，效果如下： begin

此时已经是一个功能正常的多人游戏了，但玩家仅可以移动和跳跃。接下来让我们添加一些玩法。

添加血条及显示​

C++项目打开步骤​

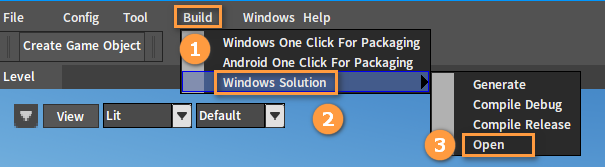

依次点击菜单栏构建（Build） -> Windows解决方案（Windows Solution） -> 打开（Open）。

image-20230316174408568

  1. 在tp_pawn.h中添加复制属性：
protected:
// 最大血量
FX_PROPERTY(Type = float, GetFunc = GetMaxHp, Name = MaxHp, NetProperty)
float m_fMaxHp;

// 当前血量
FX_PROPERTY(Type = float, GetFunc = GetHp, SetFunc = SetHp, Name = CurrentHp, NetProperty)
float m_fCurrentHp;

当前血量会同步给所有客户端， 所以添加NetProperty属性Meta。

另一个属性Meta NetPropertyNotify=OnFunc，表示属性同步后会触发的回调函数。

打开tp_pawn.h， 并将以下代码添加到类定义的public下：

float GetMaxHp() const { return m_fMaxHp; }
void SetHp(float fHp) { m_fCurrentHp = fHp; }
float GetHp() const { return m_fCurrentHp; }

将以下代码添加到tp_pawn.cpp中的构造函数中：

m_fMaxHp = 100.0f;
m_fCurrentHp = m_fMaxHp;

2) 在脚本中添加血条显示：

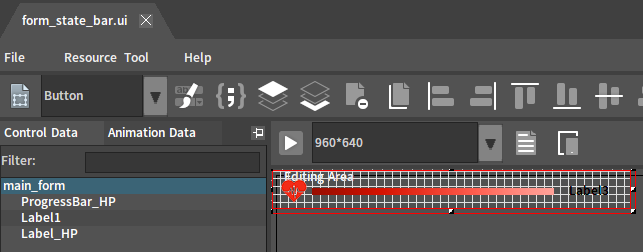

首先创建UI资产 form_state_bar.ui: （具体创建详情请参考进度条）

ui_asset

将资产保存到以下目录:

asset

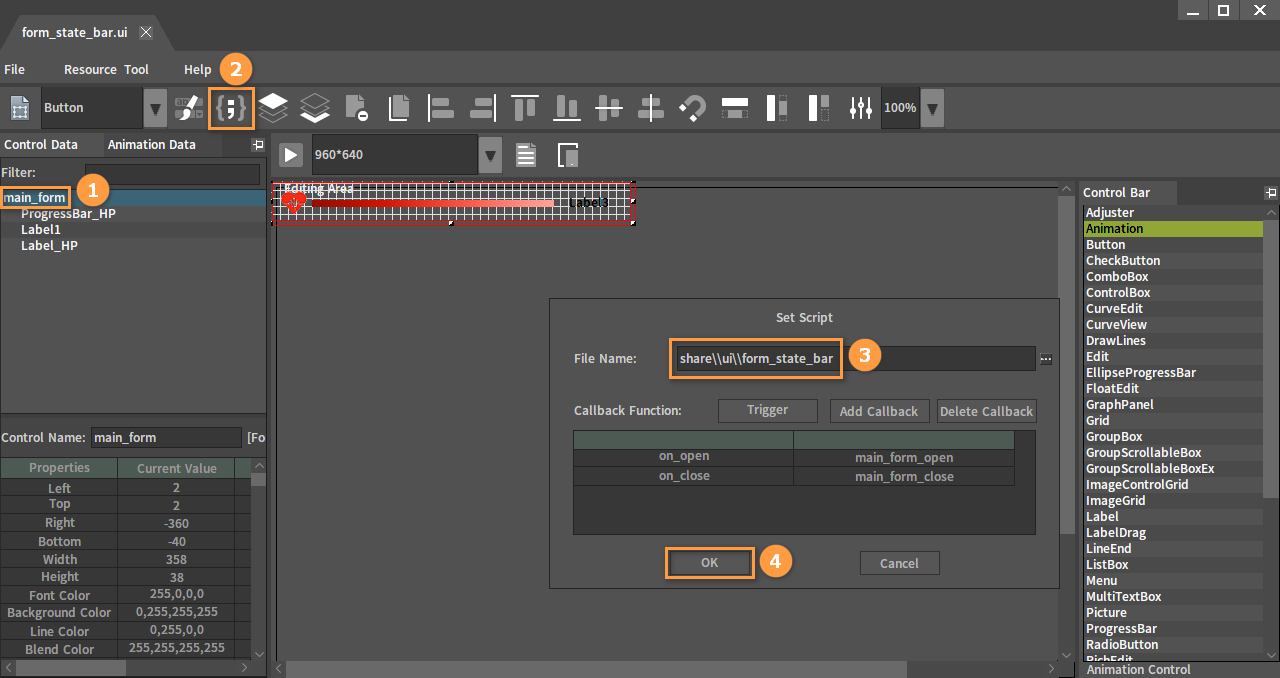

设置对应的脚本名及添加事件回调： asset_script

最终生成的资产form_state_bar.ui的资源代码请参考附录一。

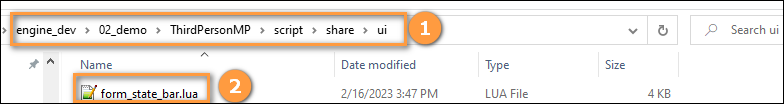

创建脚本文件form_state_bar.lua：

script

在form_state_bar.lua中，添加以下代码：

--人物属性UI
--State Bar  UI

--------------
--local data--
--------------

local THIS_SCRIPT = "share\\ui\\form_state_bar"
local THIS_SKIN = "skin\\ui\\form\\form_state_bar.ui"

------------------
--local function--
------------------
local function get_form()
    return nx_value(THIS_SCRIPT)
end

function get_scene_box()
    local lscene = nx_value("lscene")

    if not nx_is_valid(lscene) then
        return nx_null()
    end

    return lscene.SceneBox
end

function load_form(form_name, form_res, scene_box)
    form_name = nx_string(form_name)

    form_res = nx_string(form_res)

    local form = nx_null()

    local gui = nx_value("gui")

    local path = nx_resource_path()

    if nil == string.find(form_res, ".ui") then
        form_res = form_res.. ".ui"
    end

    form = gui.Loader:LoadForm(path, form_res)

    if not nx_is_valid(form) then
        nx_msgbox("msg_CreateFormFailed - ".. form_res)
        return nx_null()
    end

    form.Name = form_name
    form.Left = 0
    form.Top = 0

    scene_box:Add(form)
    return form
end

local function setup_form(form)
    local scene_box = get_scene_box()

    form.Left = 40
    form.Top = scene_box.Height - form.Height - 30
    form.HAnchor = "Auto"
    form.VAnchor = "Auto"

    form.ProgressBar_HP.Value = 0
    form:AddTopLayer(form.ProgressBar_HP)
end

---------------------
--control callbacks--
---------------------

function main_form_open(self)
    nx_set_value(THIS_SCRIPT, self)
    setup_form(self)

    return 1
end

function main_form_close(self)
    nx_destroy(self)
    return 1
end

--------------------
--public functions--
--------------------
function open_state_bar(character)

    local form = get_form()

    if not nx_is_valid(form) then
        form = load_form("form_state_bar", THIS_SKIN, get_scene_box())
        form:Show()
        form.owner = character
    end
end

function close_state_bar()
    local form = get_form()

    if nx_is_valid(form) then
        form:Close()
    end
end

在脚本文件目录中找到tp_pawn.lua脚本文件， 打开文件，在on_begin_play方法中，在脚本和实体绑定之后添加执行open_state_bar方法。

if nx_is_valid(owner) then
        nx_bind_script(owner, nx_current())
        --添加的代码
        nx_execute("share\\ui\\form_state_bar", "open_state_bar", owner)

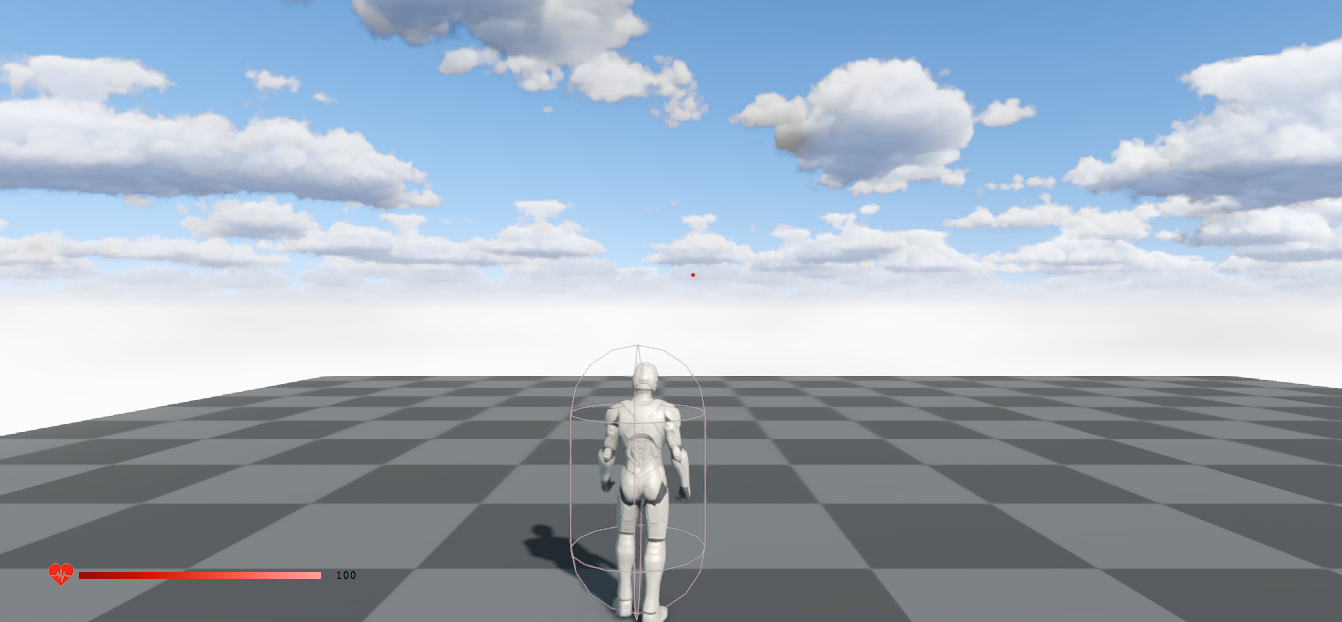

效果如下： show_hp

至此， 打开客户端窗口， 就有血条状态栏出现在屏幕左下角。

添加抛射物类并发射抛射物​

创建抛射物类 LFPSProjectile​

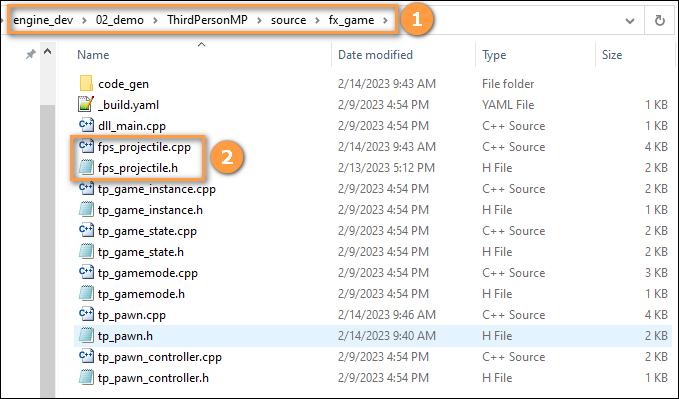

创建文件fps_projectile.h 和 fps_projectile.cpp.

newFile

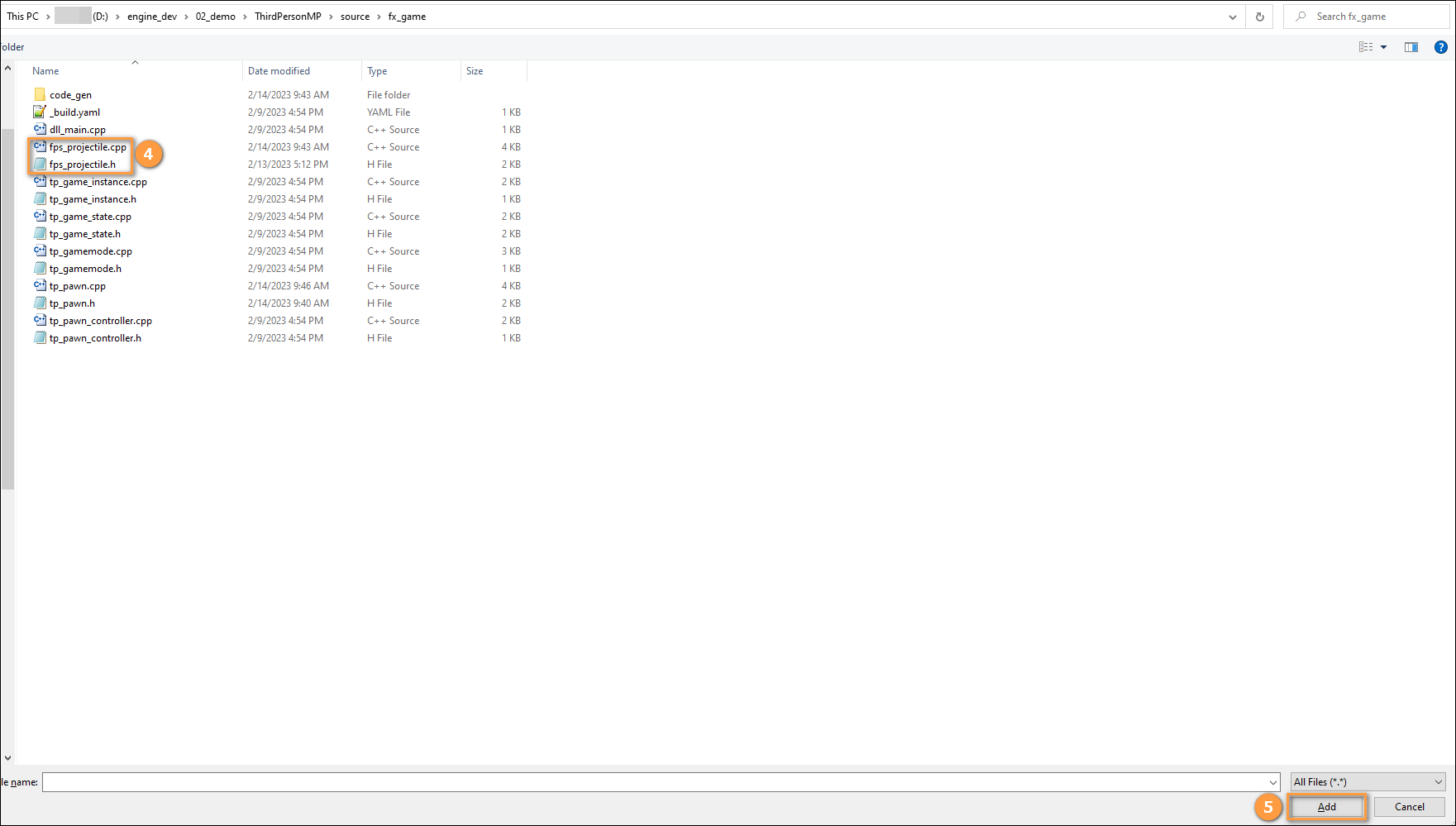

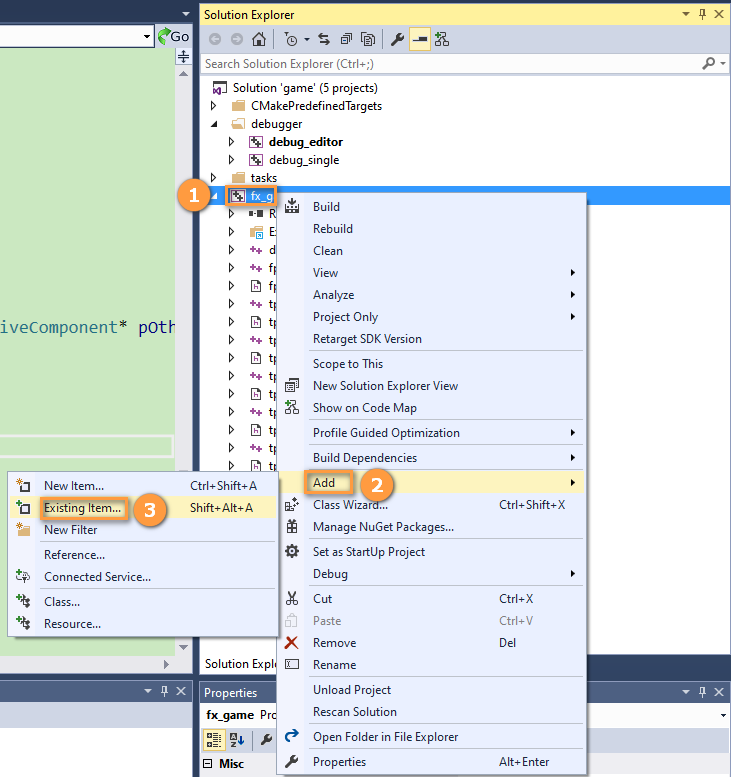

打开项目， 把文件添加到项目中:

addFile

addFile

打开 fps_projectile.h，并将以下代码添加到类定义中的 protected 下：

#ifndef _FPS_PROJECTLE_H_
#define _FPS_PROJECTLE_H_

#include "fx_component/game_object.h"

class LProjectileMovementComponent;
class LSphereComponent;
class LModelComponent;

class LFPSProjectile : public LGameObject
{
    DECLARE_LCLASS(LFPSProjectile, LGameObject, COMPILED_IN_FLAGS(0))

public:
    LFPSProjectile();
    virtual ~LFPSProjectile();

    virtual bool Init(const IVarList& args) override;
    virtual void BeginPlay() override;
    virtual void Update(float seconds) override;

protected:
    // 球体组件， 用于碰撞检测
    LSphereComponent* m_pCollisionComponent;
    // 投射物移动组件， 用于移动投射物。
    LProjectileMovementComponent* m_pProjectileMovement;
    // 静态网格体组件， 作为投射物的视觉呈现。
    LModelComponent* m_pModelComponent;

} FX_ENTITY(Parent = LGameObject, EditorVisible, Category = Game);
#endif // _FPS_PROJECTLE_H_

将以下代码添加到fps_projectile.cpp中：

#include "fps_projectile.h"

#include "tp_pawn.h"
#include "fx_component/scene.h"
#include "flexi/utils/fx_cast.h"
#include "fx_component/sphere_component.h"
#include "fx_component/projectile_movement_component.h"
#include "fx_component/model_component.h"

// Code gen
#include "code_gen/fps_projectile.gen.h"

IMPLEMENT_LCLASS(LFPSProjectile)

LFPSProjectile::LFPSProjectile()
{
    // 可复制对象
    SetAddNetScene(true);
    // 帧循环打开
    m_GameObjectUpdate.bAllowUpdate = true;

    m_pCollisionComponent = nullptr;
    m_pProjectileMovement = nullptr;
    m_pModelComponent = nullptr;

    SetStringTag("FPSProjectile");
}

LFPSProjectile::~LFPSProjectile()
{
}

将以下代码添加到fps_projectile.cpp中的Init函数中：

bool LFPSProjectile::Init(const IVarList& args)
{
    if (!Super::Init(args))
    {
        return false;
    }

    // 设置碰撞体
    if (!m_pCollisionComponent)
    {
        m_pCollisionComponent = NewObject<LSphereComponent>(this);
        m_pCollisionComponent->SetSphereRadius(0.101f);
        m_pCollisionComponent->SetCollisionEnabledAttr(COLLISION_ENABLED::NoCollision);
        m_pCollisionComponent->SetCollisionProfileName("BlockAllDynamic");
        m_pRootComponent = m_pCollisionComponent;
    }

    // 添加mesh
    if (!m_pModelComponent)
    {
        m_pModelComponent = NewObject<LModelComponent>(this);
        m_pModelComponent->SetLinkTarget(m_pCollisionComponent);
        m_pModelComponent->SetScaleVector(XMVectorSet(1.1f, 1.1f, 1.1f, 0.f));
        m_pModelComponent->SetRelativePositionY(-0.05f);
        m_pModelComponent->SetPositionY(-0.1f);
        IVisBase* pVisbase = m_pModelComponent->GetVisBase();
        m_pModelComponent->SetCollisionEnabledAttr(COLLISION_ENABLED::NoCollision);
        IModel* pModel = FX_KIND_CAST(IModel, pVisbase, "fx_world.Model");
        if (pModel)
        {
            pModel->SetModelFile(FXTEXT("BeginnerContent/BaseShape/Box.xmod"));
            g_pCore->SetProperty(pVisbase, "AutoUpdateLOD", CVar(VTYPE_BOOL, false));
        }

        if (GetScene())
        {
            m_pModelComponent->Load();
        }
    }

    // 添加发射物的移动及碰撞
    if (!m_pProjectileMovement)
    {
        m_pProjectileMovement = NewObject<LProjectileMovementComponent>(this);
        m_pProjectileMovement->SetUpdatedComponent(m_pRootComponent);
        m_pProjectileMovement->SetInitialSpeed(10.0f);
        m_pProjectileMovement->SetMaxSpeed(10.0f);
        m_pProjectileMovement->SetShouldBounce(false);
        m_pProjectileMovement->SetRotationFollowsVelocity(false);
        m_pProjectileMovement->SetProjectileGravityScale(0.0f);
    }
    return true;
}

打开 fps_projectile.h，并将以下代码添加到类定义中的 public 下：

public:
    void OnProjectileHit(LPrimitiveComponent* pComponent, LGameObject* pOtherActor,LPrimitiveComponent* pOtherComponent,                CXMVECTOR vImpluse,const hit_result_t& hit);

添加抛射物碰撞回调函数，该方法会注册在抛射物的碰撞组件中。

将以下代码添加到fps_projectile.cpp中：

void LFPSProjectile::BeginPlay()
{
    Super::BeginPlay();
    m_pCollisionComponent->GetComponentHit().add(this, &LFPSProjectile::OnProjectileHit);
}

void LFPSProjectile::OnProjectileHit(LPrimitiveComponent* pComponent, LGameObject* pOtherActor, LPrimitiveComponent*                pOtherComponent, CXMVECTOR vImpluse, const hit_result_t& hit)
{
}

打开 fps_projectile.h，并将以下代码添加到类定义中的 protected 下：

float m_fLifeTime;
float m_fBornTime;

定义有效时间和生成时间， 通过这两个时间来销毁抛射物类，如果抛射物没有和场景中的物体碰撞。

将以下代码添加到fps_projectile.cpp中的构造函数中：

m_fLifeTime = 3.0f;
m_fBornTime = 0.f;

将以下代码添加到fps_projectile.cpp中的Init函数中的末尾，return true; 的上方：

if (GetScene())
{
    m_fBornTime = GetScene()->GetTimeSeconds();
}

在fps_projectile.cpp中添加头文件:

#include "fx_component/network/network_compatible.h"

将以下代码添加到fps_projectile.cpp中的Update函数中:

void LFPSProjectile::Update(float seconds)
{
    Super::Update(seconds);
    // 服务端代码
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        float nowTime = GetScene()->GetTimeSeconds();
        if (m_fBornTime > 0.f && nowTime - m_fBornTime > m_fLifeTime)
        {
            DestroyGameObject();
        }
    }
}

抛射物类可以由服务器复制到客户端， 添加了碰撞回调处理碰撞逻辑， 如果没碰撞， 按时销毁。

发射抛射物​

打开文件tp_pawn.lua， 添加以下代码:

--鼠标左键按下回调
function on_left_click_pressed(owner)
    owner:Fire()
    return 1
end

打开tp_pawn.h， 添加代码到public中:

// RPC Function
FX_METHOD()
void Fire();
FX_METHOD()
void Fire_Server();

这里使用了引擎的RPC功能，客户端按键触发事件Fire()， Fire()会远程过程调用服务端的Fire_Server()， 此时服务端创建抛射物。 由于抛射物是可复制GameObject, 此时每个连接的客户端都会生成对应的抛射物。

打开tp_pawn.cpp, 添加以下代码：

#include "fx_component/network/network_compatible.h"

void LThirdPersonPawn::Fire()
{
    auto* pScene = GetScene();
    if (!pScene)
    {
        return;
    }

    // 服务端
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        // 获取pawn所在位置及朝向
        XMVECTOR projectileRotation = GetTransform().GetAngle();
        XMVECTOR projectileLocation = GetTransform().GetLocation();

        // 将发射位置靠前一点， 防止与自己碰撞
        projectileLocation = XMVectorAdd(projectileLocation,
            GetTransform().TransformVectorNoScale(XMVectorSet(0.f, 0.f, 2.f, 0.f)));

        spawn_parameters_t spawnParams;
        spawnParams.pActorOwner = this;

        TKindOfEntInfo<LGameObject> actorType
            = TypeExtentManager::GetEntInfoByName("LFPSProjectile");

        // 场景中创建发射物
        pScene->SpawnGameObject(actorType, &projectileLocation, &projectileRotation, spawnParams);

        return;
    }

    pScene->ServerRemoteFunction(this, "Fire_Server");
}

// rpc服务端调用
void LThirdPersonPawn::Fire_Server()
{
    auto* pScene = GetScene();
    if (!pScene)
    {
        return;
    }

    // 服务端
    // 获取pawn所在位置及朝向
    XMVECTOR projectileRotation = GetTransform().GetAngle();
    XMVECTOR projectileLocation = GetTransform().GetLocation();

    // 将发射位置靠前一点， 防止与自己碰撞
    projectileLocation = XMVectorAdd(projectileLocation,
        GetTransform().TransformVectorNoScale(XMVectorSet(0.f, 0.f, 1.f, 0.f)));

    spawn_parameters_t spawnParams;
    spawnParams.pActorOwner = this;

    TKindOfEntInfo<LGameObject> actorType
        = TypeExtentManager::GetEntInfoByName("LFPSProjectile");

    // 场景中创建发射物
    pScene->SpawnGameObject(actorType, &projectileLocation, &projectileRotation, spawnParams);
}

玩家造成伤害并同步血条状态​

打开tp_pawn.h, 添加以下代码：

public:
    void SetIsHit(bool bHit) { m_bHit = bHit; }
    bool GetIsHit() const { return m_bHit; }

    void SetIsDead(bool bDead) { m_bDead = bDead; }
    bool GetIsDead() const { return m_bDead; }
protected:
    // 攻击是否命中
    bool m_bHit;
    bool m_bDead;

pawn添加被攻击和死亡状态，以此来更改血量等。

打开tp_pawn.h, 添加以下代码:

// 被攻击时
void OnBeAttacked();

在tp_pawn.cpp的构造函数中初始化m_bHit, m_bDead

m_bHit = false;
m_bDead = false;

打开tp_pawn.cpp, 添加以下代码:

// 服务端代码
void LThirdPersonPawn::OnBeAttacked()
{
    if (m_bHit)
    {
        SetIsHit(false);
        m_fCurrentHp = m_fCurrentHp - 50.0f;
        if (m_fCurrentHp <= 0.0f)
        {
            SetIsDead(true);
        }

        if (GetIsDead())
        {
            DestroyGameObject();
        }
    }
}

void LThirdPersonPawn::Update(float seconds)
{
    Super::Update(seconds);

    // 角色被命中的处理
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        OnBeAttacked();
    }
}

服务端会获取到GameMode， 以此方法来判断当前执行端为服务器或客户端。

打开fps_projectile.cpp, 添加以下代码至OnProjectileHit方法中:

    // 命中不同Actor的处理 服务端代码
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        LThirdPersonPawn *pThridPerson = Cast<LThirdPersonPawn>(pOtherActor);
        if (pThridPerson != NULL)
        {
            pThridPerson->SetIsHit(true);
        }
        DestroyGameObject();
    }

当抛射物与其他pawn发生碰撞时， 被碰撞pawn设置状态被攻击， 并销毁抛射物。 此逻辑发生在服务端。

CurrentHp为网络复制属性， 已连接的客户端会收到目标角色实时血量。 然后在form_state_bar.lua脚本中， 实时监测血量的修改:

function get_global_list(list_name)
    local global_list = nx_value(list_name)

    if not nx_is_valid(global_list) then
        global_list = nx_create("ArrayList", list_name)
        nx_set_value(list_name, global_list)
    end

    return global_list
end

function listen_command(cmd, ident, script, func, ...)
    local command_hooks = get_global_list("command_hooks")

    if not command_hooks:FindChild(cmd) then
        command_hooks:CreateChild(cmd)
    end

    if ident == "" then
        ident = "all"
    end

    local cmd_node = command_hooks:GetChild(cmd)

    if not cmd_node:FindChild(ident) then
        cmd_node:CreateChild(ident)
    end

    local ident_node = cmd_node:GetChild(ident)

    if not ident_node:FindChild(script) then
        ident_node:CreateChild(script)
    end

    local script_node = ident_node:GetChild(script)

    if not script_node:FindChild(func) then
        script_node:CreateChild(func)
    end

    local func_node = script_node:GetChild(func)

    local arg_table = { unpack(arg) }

    for i, t_arg in ipairs(arg_table) do
        local arg_child = func_node:CreateChild(nx_string(i))
        arg_child.value = t_arg
    end
end


function on_tick(seconds)
    local form = get_form()

    if not nx_is_valid(form) then
        return
    end

    local main_player = form.owner

    if nx_is_valid(main_player) then
        local max_hp =  main_player.MaxHp
        local hp = main_player.CurrentHp
        local value_hp = hp / max_hp * 100
        form.ProgressBar_HP.Value = value_hp

        local label_hp = form.Label_HP
        label_hp.Text = nx_widestr(hp)
        nx_pause(0.0)
    end
end

在form_state_bar.lua脚本中注册on_tick函数, 将以下代码添加至函数main_form_open的返回值前：

listen_command("tick", "tp_pawn", THIS_SCRIPT, "on_tick")

在tp_pawn.lua中将玩家tick对外抛出, 在tick函数结尾处添加以下代码:

command("tick", "tp_pawn", delta_time)

在tp_pawn.lua中添加以下函数:

function get_global_list(list_name)
    local global_list = nx_value(list_name)

    if not nx_is_valid(global_list) then
        global_list = nx_create("ArrayList", list_name)

        nx_set_value(list_name, global_list)
    end

    return global_list
end

function command(cmd, ident, ...)
    local command_hooks = get_global_list("command_hooks")

    local cmd_node = command_hooks:GetChild(cmd)

    if not nx_is_valid(cmd_node) then
        return
    end

    local ident_table = { "all" }

    if ident ~= "" and ident ~= "all" then
        ident_table[#ident_table + 1] = ident
    end

    for _, t_ident in pairs(ident_table) do
        local ident_node = cmd_node:GetChild(t_ident)

        if nx_is_valid(ident_node) then
            local script_node_table = ident_node:GetChildList()

            for _, script_node in pairs(script_node_table) do
                local script = script_node.Name

                local func_node_table = script_node:GetChildList()

                for _, func_node in pairs(func_node_table) do
                    local func = func_node.Name

                    --callback parameters: { commander's..., listener's... }
                    local full_arg_table = {}

                    local arg_table = { ... }

                    for _, t_arg in ipairs(arg_table) do
                        full_arg_table[#full_arg_table + 1] = t_arg
                    end

                    local arg_node_talbe = func_node:GetChildList()

                    for i, arg_node in ipairs(arg_node_talbe) do
                        full_arg_table[#full_arg_table + 1] = arg_node.value
                    end

                    nx_execute(script, func, unpack(full_arg_table))
                end
            end
        end
    end
end

至此，简单的多人联网射击游戏已完成。

结果展示​

两个客户端，各自有各自的血量展示。

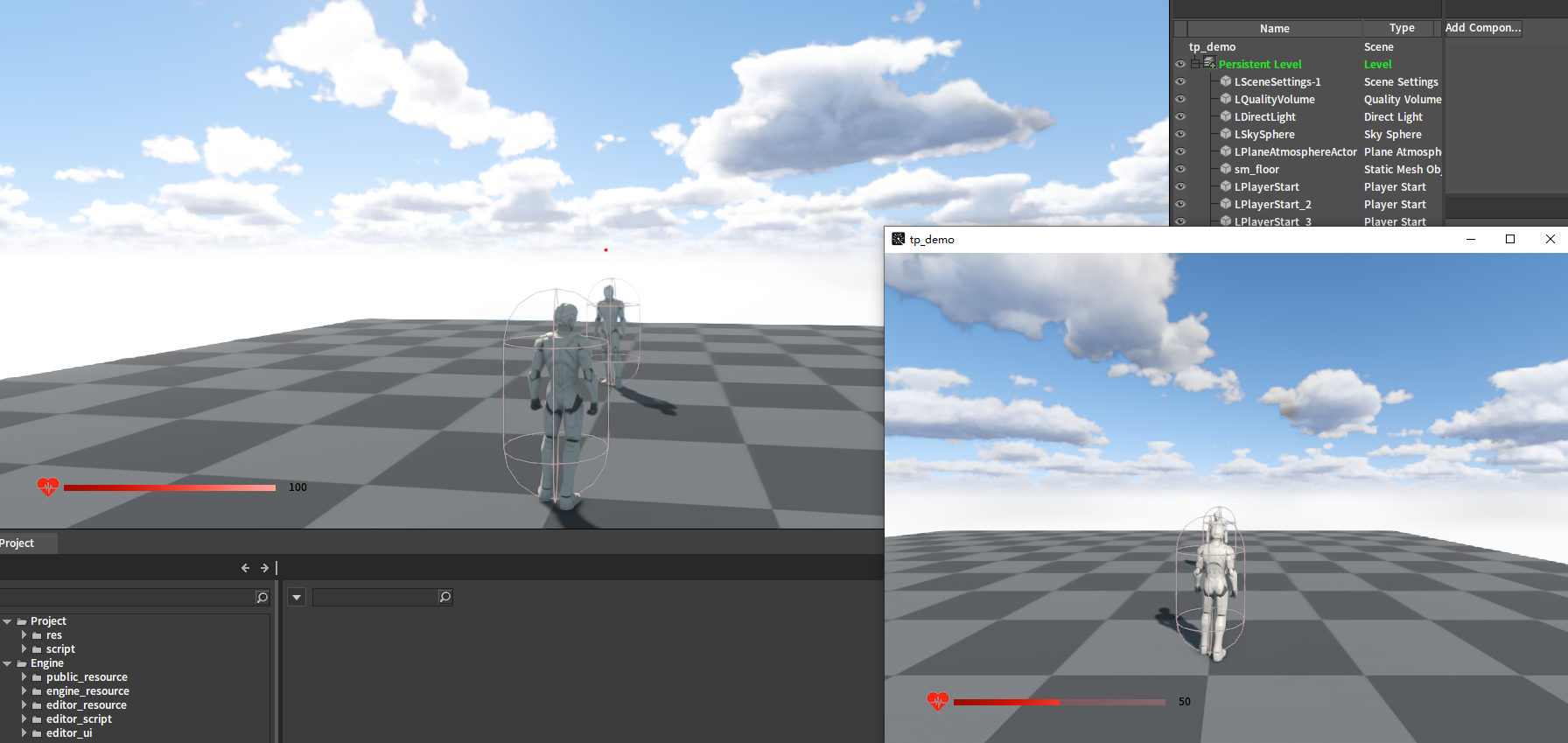

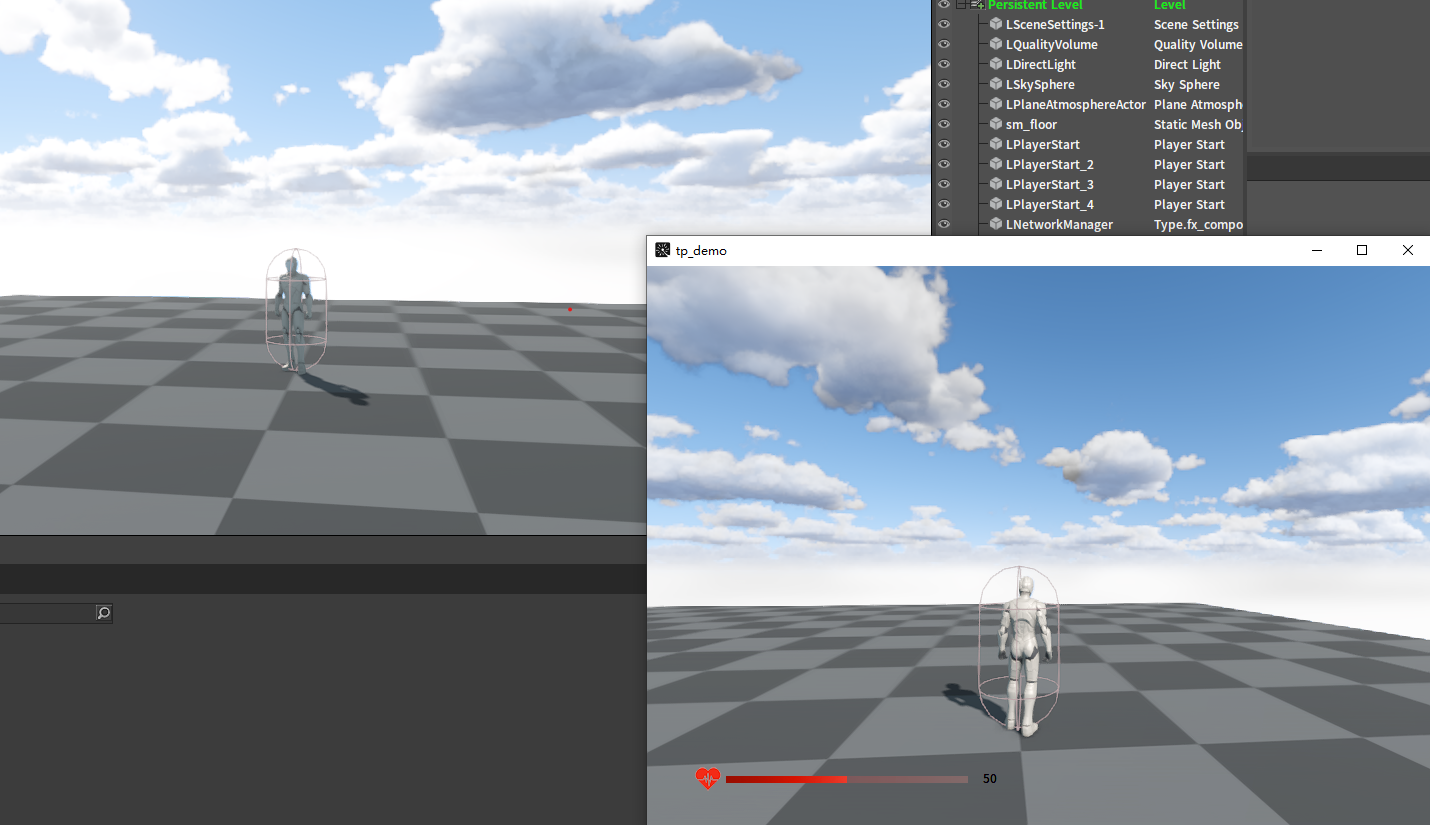

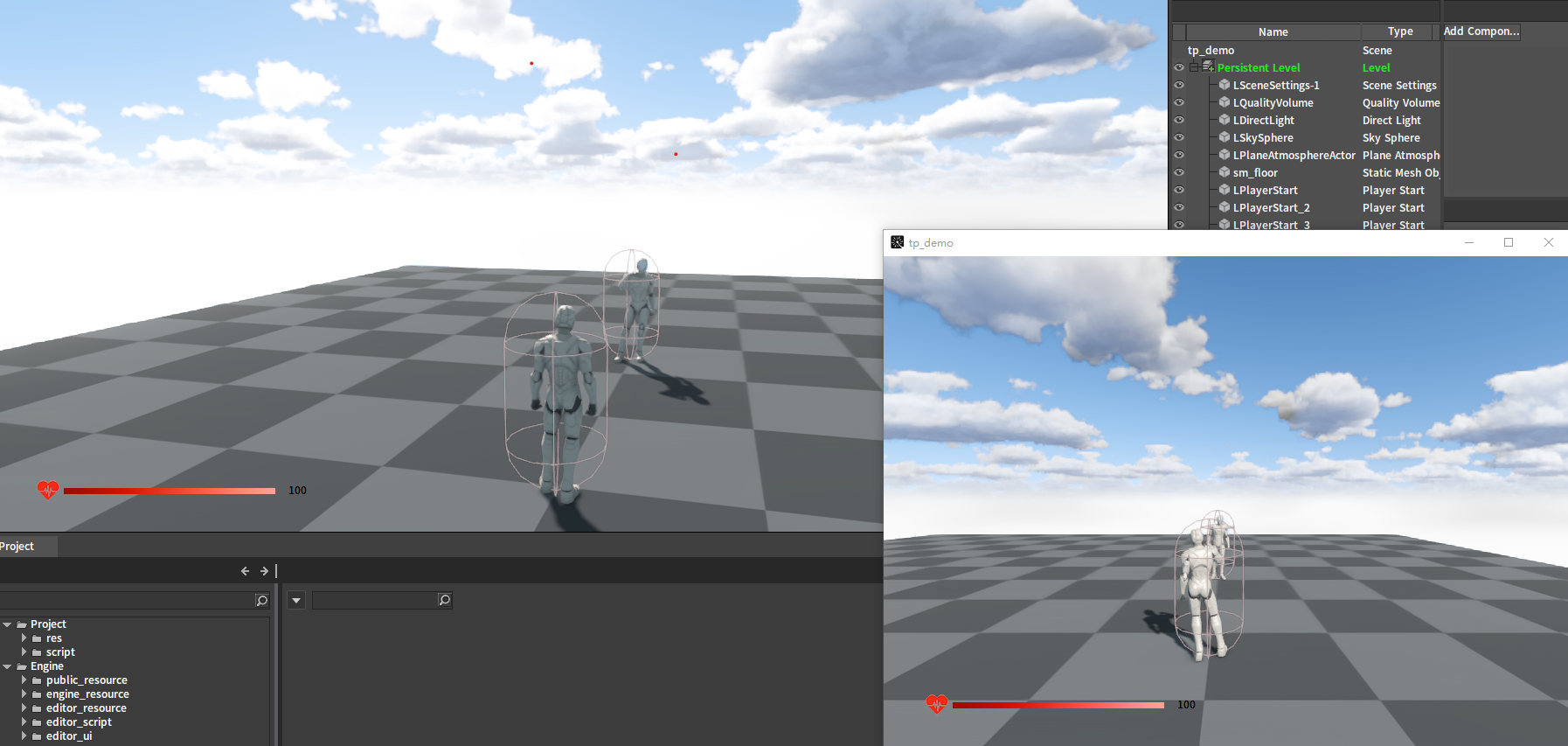

show_fire_before1左边的客户端进行射击之后， 右边的客户端人物血量减少50。show_fire_after2 右边的客户端进行射击之后， 左边的客户端角色被销毁， 左右角色都不显示。 show_die

代码示例​

tp_pawn.h

#ifndef _THIRDPERSON_PAWN_H_
#define _THIRDPERSON_PAWN_H_

#include "fx_component/gameplay/role.h"

// LThirdPersonPawn
class LThirdPersonPawn : public LRole
{
    DECLARE_LCLASS(LThirdPersonPawn, LRole, COMPILED_IN_FLAGS(0))

public:
    LThirdPersonPawn();
    virtual ~LThirdPersonPawn();

    virtual bool Init(const IVarList& args) override;
    virtual void Update(float seconds) override;
    virtual void PostInitializeComponents() override;

    FX_METHOD()
    void OnMouseWheelInput(float fValue);

    float GetMaxHp() const { return m_fMaxHp; }
    void SetHp(float fHp) { m_fCurrentHp = fHp; }
    float GetHp() const { return m_fCurrentHp; }

    //RPC Function
    FX_METHOD()
    void Fire();
    FX_METHOD()
    void Fire_Server();

    void SetIsHit(bool bHit) { m_bHit = bHit; }
    bool GetIsHit() const { return m_bHit; }
    void SetIsDead(bool bDead) { m_bDead = bDead; }
    bool GetIsDead() const { return m_bDead; }
    void OnBeAttacked();

protected:
    // 最大血量
    FX_PROPERTY(Type = float, GetFunc = GetMaxHp, Name = MaxHp, NetProperty)
    float m_fMaxHp;

    // 当前血量
    FX_PROPERTY(Type = float, GetFunc = GetHp, SetFunc = SetHp, Name = CurrentHp, NetProperty)
    float m_fCurrentHp;

    bool m_bHit;
    bool m_bDead;
}FX_ENTITY(Parent = LRole, EditorVisible, Category = Game);
#endif // _THIRDPERSON_PAWN_H_

tp_pawn.cpp

#include "tp_pawn.h"

// Engine
#include "fx_component/scene.h"
#include "fx_component/camera_component.h"
#include "fx_component/capsule_component.h"
#include "fx_component/components/arrow_component.h"
#include "fx_component/gameplay/net_slide_movement_component.h"
#include "fx_component/script_component.h"
#include "fx_component/skeletal_mesh_component.h"
#include "fx_component/spring_arm_component.h"
#include "fx_component/network/network_compatible.h"

// Code gen
#include "code_gen/tp_pawn.gen.h"

IMPLEMENT_LCLASS(LThirdPersonPawn)

// LThirdPersonPawn
LThirdPersonPawn::LThirdPersonPawn()
{
    SetAddNetScene(true);
    m_fMaxHp = 100.0f;
    m_fCurrentHp = m_fMaxHp;
    m_bHit = false;
    m_bDead = false;
}

LThirdPersonPawn::~LThirdPersonPawn()
{
}

bool LThirdPersonPawn::Init(const IVarList& args)
{
    if (!Super::Init(args))
    {
        return false;
    }

    m_bUseControllerAngleYaw = true;
    m_bUseControllerAnglePitch = false;

    m_pCapsuleComponent = NewObject<LCapsuleComponent>(this, "TPPawnCollision");
    if (m_pCapsuleComponent)
    {
        m_pCapsuleComponent->InitCapsuleSize(0.5F, 1.0F);
        m_pCapsuleComponent->SetCollisionProfileName(
            LCollisionProfile::Get()->GetPawnProfileName());
    }
    m_pRootComponent = m_pCapsuleComponent;

    m_pArrowComponent = NewObject<LArrowComponent>(this, FXTEXT("TPPawnArrow"),
        OBJECT_FLAGS::Transient);
    if (m_pArrowComponent)
    {
        m_pArrowComponent->SetIsEditorOnly(true);
        m_pArrowComponent->SetArrowColor(COLOR_ARGB(255, 150, 200, 255));
        m_pArrowComponent->SetLinkTarget(m_pRootComponent);
    }

    m_pMeshComponent = NewObject<LSkeletalMeshComponent>(this, "TPPawnMesh");
    if (m_pMeshComponent)
    {
        m_pMeshComponent->GetComponentUpdate().nUpdateGroup = UPDATE_GROUP_ENUM::PrePhysics;
        m_pMeshComponent->SetLinkTarget(m_pRootComponent);
        m_pMeshComponent->SetCollisionProfileName(
            LCollisionProfile::Get()->GetNoCollisionProfileName());
        m_pMeshComponent->SetRelativePosition(0.0f, -1.0f, 0.0f);
        m_pMeshComponent->SetSkeletalMeshConfigFile(
            FXTEXT("obj/tp_pawn/Meshes/SK_Human.actor"));

        if (GetScene() != NULL)
        {
            m_pMeshComponent->Load();
        }
    }

    m_pScriptComponent = NewObject<LScriptComponent>(this, FXTEXT("TPPawnScript"));
    if (m_pScriptComponent)
    {
        m_pScriptComponent->SetScriptFile("tp_pawn.lua");
    }

    m_pSpringArm = NewObject<LSpringArmComponent>(this, FXTEXT("TPPawnSpringArm"));
    if (m_pSpringArm)
    {
        m_pSpringArm->SetLinkTarget(GetCollisionRoot());
        m_pSpringArm->SetTargetArmLength(5.0F);
        m_pSpringArm->SetRelativePositionY(1.25f);
        m_pSpringArm->SetRelativePositionX(0.25f);
        m_pSpringArm->SetUsePawnControlRotation(true);
    }

    if (m_pSpringArm)
    {
        m_pCamera = NewObject<LCameraComponent>(this, FXTEXT("TPPawnCamera"));
        if (m_pCamera)
        {
            m_pCamera->SetLinkTarget(m_pSpringArm);
        }
    }

    m_pMovementComponent = NewObject<LNetSlideMovementComponent>(this,
        "SlideMovementComp");

    // 设置移动数据同步
    SetNetMovement(true);

    return true;
}

void LThirdPersonPawn::OnBeAttacked()
{
    if (m_bHit)
    {
        SetIsHit(false);
        m_fCurrentHp = m_fCurrentHp - 50.0f;
        if (m_fCurrentHp <= 0.0f)
        {
            SetIsDead(true);
        }

        if (GetIsDead())
        {
            DestroyGameObject();
        }
    }
}


void LThirdPersonPawn::Update(float seconds)
{
    Super::Update(seconds);

    // 角色被命中的处理
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        OnBeAttacked();
    }
}

void LThirdPersonPawn::PostInitializeComponents()
{
    Super::PostInitializeComponents();

    if (m_pMeshComponent)
    {
        // force animation update after movement component updates
        if (m_pMeshComponent->GetComponentUpdate().bAllowUpdate &&
            m_pMovementComponent)
        {
            m_pMeshComponent->GetComponentUpdate().AddDependency(
                m_pMovementComponent, m_pMovementComponent->GetComponentUpdate());
        }

        XMStoreFloat3(&m_vMeshPositionOffset, m_pMeshComponent->GetRelativePosition());
        XMStoreFloat3(&m_vMeshAngleOffset, m_pMeshComponent->GetRelativeAngle());
    }

    // 移动组件的设置更新组件移到这，因为之前的位置场景还没有初始化好
    if (m_pMovementComponent)
    {
        m_pMovementComponent->SetUpdatedComponent(GetCollisionRoot());
    }
}

void LThirdPersonPawn::OnMouseWheelInput(float fValue)
{
    // 伸缩弹簧臂
    if (m_pSpringArm)
    {
        // 滚轮向后为加，向前为减
        float fSpringArmSpeed = 0.2F;
        float fMinArmLength = -2.0F;
        float fCurrentArmLength = m_pSpringArm->GetTargetArmLength();
        m_pSpringArm->SetTargetArmLength(fCurrentArmLength + fValue * fSpringArmSpeed);
    }
}

void LThirdPersonPawn::Fire()
{
    auto* pScene = GetScene();
    if (!pScene)
    {
        return;
    }

    // 服务端
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        // 获取pawn所在位置及朝向
        XMVECTOR projectileRotation = GetTransform().GetAngle();
        XMVECTOR projectileLocation = GetTransform().GetLocation();

        // 将发射位置靠前一点， 防止与自己碰撞
        projectileLocation = XMVectorAdd(projectileLocation,
            GetTransform().TransformVectorNoScale(XMVectorSet(0.f, 0.f, 2.f, 0.f)));

        spawn_parameters_t spawnParams;
        spawnParams.pActorOwner = this;

        TKindOfEntInfo<LGameObject> actorType
            = TypeExtentManager::GetEntInfoByName("LFPSProjectile");

        // 场景中创建发射物
        pScene->SpawnGameObject(actorType, &projectileLocation, &projectileRotation, spawnParams);

        return;
    }

    pScene->ServerRemoteFunction(this, "Fire_Server");
}

void LThirdPersonPawn::Fire_Server()
{
    auto* pScene = GetScene();
    if (!pScene)
    {
        return;
    }

    // 服务端
    // 获取pawn所在位置及朝向
    XMVECTOR projectileRotation = GetTransform().GetAngle();
    XMVECTOR projectileLocation = GetTransform().GetLocation();

    // 将发射位置靠前一点， 防止与自己碰撞
    projectileLocation = XMVectorAdd(projectileLocation,
        GetTransform().TransformVectorNoScale(XMVectorSet(0.f, 0.f, 1.f, 0.f)));

    spawn_parameters_t spawnParams;
    spawnParams.pActorOwner = this;

    TKindOfEntInfo<LGameObject> actorType
        = TypeExtentManager::GetEntInfoByName("LFPSProjectile");

    // 场景中创建发射物
    pScene->SpawnGameObject(actorType, &projectileLocation, &projectileRotation, spawnParams);
}

fps_projectile.h

#ifndef _FPS_PROJECTLE_H_
#define _FPS_PROJECTLE_H_

#include "fx_component/game_object.h"


class LProjectileMovementComponent;
class LSphereComponent;
class LModelComponent;

class LFPSProjectile : public LGameObject
{
    DECLARE_LCLASS(LFPSProjectile, LGameObject, COMPILED_IN_FLAGS(0))

public:
    LFPSProjectile();
    virtual ~LFPSProjectile();

    virtual bool Init(const IVarList& args) override;

    virtual void BeginPlay() override;
    virtual void Update(float seconds) override;

    void OnProjectileHit(LPrimitiveComponent* pComponent, LGameObject* pOtherActor,
        LPrimitiveComponent* pOtherComponent, CXMVECTOR vImpluse,
        const hit_result_t& hit);

protected:
    LSphereComponent* m_pCollisionComponent;
    LProjectileMovementComponent* m_pProjectileMovement;
    LModelComponent* m_pModelComponent;

    float m_fLifeTime;
    float m_fBornTime;

} FX_ENTITY(Parent = LGameObject, EditorVisible, Category = Game);
#endif // _FPS_PROJECTLE_H_

fps_projectile.cpp

#include "fps_projectile.h"

#include "tp_pawn.h"
#include "fx_component/scene.h"
#include "flexi/utils/fx_cast.h"
#include "fx_component/network/network_compatible.h"
#include "fx_component/sphere_component.h"
#include "fx_component/projectile_movement_component.h"
#include "fx_component/model_component.h"

// Code gen
#include "code_gen/fps_projectile.gen.h"

IMPLEMENT_LCLASS(LFPSProjectile)

LFPSProjectile::LFPSProjectile()
{
    // 可复制对象
    SetAddNetScene(true);
    // 帧循环打开
    m_GameObjectUpdate.bAllowUpdate = true;

    m_pCollisionComponent = nullptr;
    m_pProjectileMovement = nullptr;
    m_pModelComponent = nullptr;

    m_fLifeTime = 3.0f;
    m_fBornTime = 0.f;

    SetStringTag("FPSProjectile");
}

LFPSProjectile::~LFPSProjectile()
{

}

bool LFPSProjectile::Init(const IVarList& args)
{
    if (!Super::Init(args))
    {
        return false;
    }

    // 设置碰撞体
    if (!m_pCollisionComponent)
    {
        m_pCollisionComponent = NewObject<LSphereComponent>(this);
        m_pCollisionComponent->SetSphereRadius(0.101f);
        m_pCollisionComponent->SetCollisionEnabledAttr(COLLISION_ENABLED::NoCollision);
        m_pCollisionComponent->SetCollisionProfileName("BlockAllDynamic");
        m_pRootComponent = m_pCollisionComponent;
    }

    // 添加mesh
    if (!m_pModelComponent)
    {
        m_pModelComponent = NewObject<LModelComponent>(this);
        m_pModelComponent->SetLinkTarget(m_pCollisionComponent);
        m_pModelComponent->SetScaleVector(XMVectorSet(1.1f, 1.1f, 1.1f, 0.f));
        m_pModelComponent->SetRelativePositionY(-0.05f);
        m_pModelComponent->SetPositionY(-0.1f);
        IVisBase* pVisbase = m_pModelComponent->GetVisBase();
        m_pModelComponent->SetCollisionEnabledAttr(COLLISION_ENABLED::NoCollision);
        IModel* pModel = FX_KIND_CAST(IModel, pVisbase, "fx_world.Model");
        if (pModel)
        {
            pModel->SetModelFile(FXTEXT("BeginnerContent/BaseShape/Box.xmod"));
            g_pCore->SetProperty(pVisbase, "AutoUpdateLOD", CVar(VTYPE_BOOL, false));
        }

        if (GetScene())
        {
            m_pModelComponent->Load();
        }
    }

    // 添加发射物的移动及碰撞
    if (!m_pProjectileMovement)
    {
        m_pProjectileMovement = NewObject<LProjectileMovementComponent>(this);
        m_pProjectileMovement->SetUpdatedComponent(m_pRootComponent);
        m_pProjectileMovement->SetInitialSpeed(10.0f);
        m_pProjectileMovement->SetMaxSpeed(10.0f);
        m_pProjectileMovement->SetShouldBounce(false);
        m_pProjectileMovement->SetRotationFollowsVelocity(false);
        m_pProjectileMovement->SetProjectileGravityScale(0.0f);
    }

    if (GetScene())
    {
        m_fBornTime = GetScene()->GetTimeSeconds();
    }

    return true;
}

void LFPSProjectile::BeginPlay()
{
    Super::BeginPlay();
    // 添加碰撞事件回调
    m_pCollisionComponent->GetComponentHit().add(this, &LFPSProjectile::OnProjectileHit);
}

void LFPSProjectile::Update(float seconds)
{
    Super::Update(seconds);
    // 服务端代码
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        float nowTime = GetScene()->GetTimeSeconds();
        if (m_fBornTime > 0.f && nowTime - m_fBornTime > m_fLifeTime)
        {
            DestroyGameObject();
        }
    }
}

void LFPSProjectile::OnProjectileHit(LPrimitiveComponent* pComponent, LGameObject* pOtherActor, LPrimitiveComponent* pOtherComponent, CXMVECTOR vImpluse, const hit_result_t& hit)
{
    // 命中不同Actor的处理 服务端代码
    if (Networkcompatible::GetSceneGameMode(GetScene()))
    {
        LThirdPersonPawn *pThridPerson = Cast<LThirdPersonPawn>(pOtherActor);
        if (pThridPerson != NULL)
        {
            pThridPerson->SetIsHit(true);
        }
        DestroyGameObject();
    }
}


form_state_bar.lua

--人物属性UI
--State Bar  UI

--------------
--local data--
--------------

local THIS_SCRIPT = "share\\ui\\" .. "form_state_bar"
local THIS_SKIN = "skin\\ui\\" .. "form\\" .. "form_state_bar.ui"

-------------------
--local functions--
-------------------

local function get_form()
    return nx_value(THIS_SCRIPT)
end

function get_scene_box()
    local lscene = nx_value("lscene")

    if not nx_is_valid(lscene) then
        return nx_null()
    end

    return lscene.SceneBox
end

function load_form(form_name, form_res, scene_box)
    form_name = nx_string(form_name)
    form_res = nx_string(form_res)

    local form = nx_null()

    local gui = nx_value("gui")

    local path = nx_resource_path()
    if nil == string.find(form_res, ".ui") then
        form_res = form_res.. ".ui"
    end

    form = gui.Loader:LoadForm(path, form_res)

    if not nx_is_valid(form) then
        nx_msgbox("msg_CreateFormFailed - ".. form_res)
        return nx_null()
    end

    form.Name = form_name
    form.Left = 0
    form.Top = 0

    scene_box:Add(form)

    return form
end

function get_global_list(list_name)
    local global_list = nx_value(list_name)

    if not nx_is_valid(global_list) then
        global_list = nx_create("ArrayList", list_name)

        nx_set_value(list_name, global_list)
    end

    return global_list
end

function listen_command(cmd, ident, script, func, ...)
    local command_hooks = get_global_list("command_hooks")

    if not command_hooks:FindChild(cmd) then
        command_hooks:CreateChild(cmd)
    end

    if ident == "" then
        ident = "all"
    end

    local cmd_node = command_hooks:GetChild(cmd)

    if not cmd_node:FindChild(ident) then
        cmd_node:CreateChild(ident)
    end

    local ident_node = cmd_node:GetChild(ident)

    if not ident_node:FindChild(script) then
        ident_node:CreateChild(script)
    end

    local script_node = ident_node:GetChild(script)

    if not script_node:FindChild(func) then
        script_node:CreateChild(func)
    end

    local func_node = script_node:GetChild(func)

    local arg_table = { unpack(arg) }

    for i, t_arg in ipairs(arg_table) do
        local arg_child = func_node:CreateChild(nx_string(i))
        arg_child.value = t_arg
    end
end

local function setup_form(form)

    local scene_box = get_scene_box()

    form.Left = 40
    form.Top = scene_box.Height - form.Height - 30
    form.HAnchor = "Auto"
    form.VAnchor = "Auto"

    form.ProgressBar_HP.Value = 0
    form:AddTopLayer(form.ProgressBar_HP)
end

function on_tick(seconds)
    local form = get_form()

    if not nx_is_valid(form) then
        return
    end

    local main_player = form.owner

    if nx_is_valid(main_player) then
        local max_hp =  main_player.MaxHp
        local hp = main_player.CurrentHp
        local value_hp = hp / max_hp * 100
        form.ProgressBar_HP.Value = value_hp

        local label_hp = form.Label_HP
        label_hp.Text = nx_widestr(hp)
        nx_pause(0.0)
    end
end

---------------------
--control callbacks--
---------------------
function main_form_open(self)
    nx_set_value(THIS_SCRIPT, self)
    setup_form(self)
    listen_command("tick", "tp_pawn",
    THIS_SCRIPT, "on_tick")

    return 1
end

function main_form_close(self)
    nx_destroy(self)

    return 1
end

--------------------
--public functions--
--------------------
function open_state_bar(character)

    local form = get_form()

    if not nx_is_valid(form) then

        form = load_form("form_state_bar", THIS_SKIN, get_scene_box())

        form:Show()
        form.owner = character
    end
end

function close_state_bar()
    local form = get_form()

    if nx_is_valid(form) then
        form:Close()
    end
end

tp_pawn.lua

require("public_attr")

local IE_Pressed        = 0     --按键按下
local IE_Released       = 1     --按键抬起
local IE_Repeat         = 2
local IE_DoubleClick    = 3
local IE_Axis           = 4
local IE_MAX            = 5

local AIT_FORWARD       = 0
local AIT_BACKWARD      = 1
local AIT_LEFT          = 2
local AIT_RIGHT         = 3
local AIT_JUMP          = 4
local AIT_ACCELERATE    = 5
local AIT_E             = 6
local AIT_YAW           = 7
local AIT_PITCH         = 8

-------------------
--innerr function--
-------------------
function get_global_list(list_name)
    local global_list = nx_value(list_name)

    if not nx_is_valid(global_list) then
        global_list = nx_create("ArrayList", list_name)

        nx_set_value(list_name, global_list)
    end

    return global_list
end

function command(cmd, ident, ...)
    local command_hooks = get_global_list("command_hooks")

    local cmd_node = command_hooks:GetChild(cmd)

    if not nx_is_valid(cmd_node) then
        return
    end

    local ident_table = { "all" }

    if ident ~= "" and ident ~= "all" then
        ident_table[#ident_table + 1] = ident
    end

    for _, t_ident in pairs(ident_table) do
        local ident_node = cmd_node:GetChild(t_ident)

        if nx_is_valid(ident_node) then
            local script_node_table = ident_node:GetChildList()

            for _, script_node in pairs(script_node_table) do
                local script = script_node.Name

                local func_node_table = script_node:GetChildList()

                for _, func_node in pairs(func_node_table) do
                    local func = func_node.Name

                    --callback parameters: { commander's..., listener's... }
                    local full_arg_table = {}

                    local arg_table = { ... }

                    for _, t_arg in ipairs(arg_table) do
                        full_arg_table[#full_arg_table + 1] = t_arg
                    end

                    local arg_node_talbe = func_node:GetChildList()

                    for i, arg_node in ipairs(arg_node_talbe) do
                        full_arg_table[#full_arg_table + 1] = arg_node.value
                    end

                    nx_execute(script, func, unpack(full_arg_table))
                end
            end
        end
    end
end
-------------------------
----inner function end---
-------------------------

--use this for initialization
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        nx_bind_script(owner, nx_current())

        nx_execute("share\\ui\\form_state_bar", "open_state_bar", owner)
        local input_comp = owner.InputComponent
        if nx_is_valid(input_comp) then
            --鼠标按键绑定
            input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true, "InputActionEvent_LeftClick_Pressed")
            input_comp:AddCombinationBinding("LeftClick", IE_Released, true, false, true, "InputActionEvent_LeftClick_Released")
            input_comp:AddCombinationBinding("RightClick", IE_Pressed, true, false, true, "InputActionEvent_RightClick_Pressed")
            input_comp:AddCombinationBinding("RightClick", IE_Released, true, false, true, "InputActionEvent_RightClick_Released")

            input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
            input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
            input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
            input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")
            input_comp:AddAxisBinding("AdjustCameraDis", true, false, true, "InputAxisEvent_AdjustCameraDis")
            input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true, "InputActionEvent_Jump_Pressed")
            input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true, "InputActionEvent_Jump_Released")

            nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
            nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
            nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
            nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")
            nx_callback(owner, "InputAxisEvent_AdjustCameraDis", "on_adjust_camera_dis")
            nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
            nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

            nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_left_click_pressed")
            nx_callback(owner, "InputActionEvent_LeftClick_Released", "on_left_click_released")
            nx_callback(owner, "InputActionEvent_RightClick_Pressed", "on_right_click_pressed")
            nx_callback(owner, "InputActionEvent_RightClick_Released", "on_right_click_released")
        end
    end

    nx_callback(component, "on_tick", "tick")
end

--use this for release
function on_end_play(component)

end

--向前移动回调
function on_moveforward(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --获得控制器Y轴角度
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --获得向前方向
        local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

        --增加移动量
        owner:AddMovementInput(x, y, z, axis_value)
    end

    return 1
end

--向右移动回调
function on_moveright(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --获得控制器Y轴角度
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --获得向右方向
        local x, y, z = nx_function("ext_angle_get_right_vector", 0.0, yaw, 0.0)

        --增加移动量
        owner:AddMovementInput(x, y, z, axis_value)
    end
    return 1
end

--左右旋转（绕Y轴旋转）回调
function on_turn(owner, axis_value)
    owner:AddControllerYawInput(axis_value)
    return 1
end

--上下旋转（绕X轴旋转）回调
function on_lookup(owner, axis_value)
    owner:AddControllerPitchInput(-axis_value)
    return 1
end

--鼠标滚轮回调
function on_adjust_camera_dis(owner, axis_value)
    owner:OnMouseWheelInput(axis_value)
    return 1
end

function character_get_actor(character)
    if nx_is_valid(character) then
        local mesh_component = character.MeshComponent

        if nx_is_valid(mesh_component) then
            local vis_base = mesh_component.VisBase

            if nx_is_valid(vis_base) and nx_is_kind(vis_base, "Actor") then
                return vis_base
            end
        end
    end

    return nx_null()
end

function tick(self, delta_time)
    --Set Animation Value
    local character = self.GameObjectOwner
    local actor = character_get_actor(character)

    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_index = actor:GetActionIndex(action_name)

            local isInAir = character.InAir
            actor:SetAnimTreeValue(action_index, "IsJumping", isInAir)

            local walkSpeed = character.WalkSpeed
            actor:SetAnimTreeValue(action_index, "Speed", walkSpeed)

            local moveDirection = character.MovementDirection
            actor:SetAnimTreeValue(action_index, "MovementDirection", moveDirection)

            local moveForwardDirection = character.MovementForwardDirection
            actor:SetAnimTreeValue(action_index, "MovementForwardDirection", moveForwardDirection)

            local moveSideDirection = character.MovementSideDirection
            actor:SetAnimTreeValue(action_index, "MovementSideDirection", moveSideDirection)
        end
    end

    command("tick", "tp_pawn", delta_time)
end

--跳跃键按下回调
function on_jump_pressed(owner)
    --角色跳跃
    owner:StartJump()
    return 1
end

--跳跃键抬起回调
function on_jump_released(owner)
    --角色停止跳跃
    owner:StopJump()
    return 1
end

--鼠标左键按下回调
function on_left_click_pressed(owner)
    owner:Fire()
    return 1
end

--鼠标左键抬起回调
function on_left_click_released(owner)
    return 1
end

--鼠标右键按下回调
function on_right_click_pressed(owner)
    return 1
end

--鼠标右键抬起回调
function on_right_click_released(owner)
    return 1
end

附录一​

form_state_bar.ui

<?xml version="1.0" encoding="utf-8"?>
<form>
    <control name="main_form" entity="Form" script="share\\ui\\form_state_bar" init="main_form_init">
        <prop ShowGrid="true" Left="2" Top="2" Right="-360" Bottom="-40" Width="358" Height="38" ScaleX="1.000000" ScaleY="1.000000" BackColor="0,255,255,255" LineColor="0,255,0,0" ShadowColor="0,0,0,0" BlendMode="OpacityBlend"/>
        <event on_open="main_form_open" on_close="main_form_close"/>
        <control name="ProgressBar_HP" entity="ProgressBar" script="" init="">
            <prop Maximum="100" Value="100" WidthGap="2" HeightGap="2" ProgressImage="skin_res\status\prog_hp.png" ProgressMode="LeftToRight" Left="35" Top="15" Right="-285" Bottom="-25" Width="250" Height="10" ScaleX="1.000000" ScaleY="1.000000" BackColor="0,255,255,255" ShadowColor="0,0,0,0" NoFrame="true" DrawMode="FitWindow" BlendMode="OpacityBlend" BackImage="skin_res\status\prog_hp_back.png"/>
        </control>
        <control name="Label1" entity="Label" script="" init="">
            <prop Align="Right" RefCursor="WIN_HELP" Left="6" Top="5" Right="-36" Bottom="-35" Width="30" Height="30" ScaleX="1.000000" ScaleY="1.000000" ShadowColor="0,0,0,0" DrawMode="FitWindow" BlendMode="OpacityBlend" BackImage="skin_res\status\heart.png"/>
        </control>
        <control name="Label_HP" entity="Label" script="" init="">
            <prop RefCursor="WIN_HELP" Left="296" Top="12" Right="-376" Bottom="-28" Width="80" Height="16" ScaleX="1.000000" ScaleY="1.000000" ShadowColor="0,0,0,0" Text="100" DrawMode="FitWindow" BlendMode="OpacityBlend"/>
        </control>
    </control>
</form>

相关图片资源（需放在skin_res\status\下）：

heart prog_hp prog_hp_back
