运动扭曲

概述

运动扭曲（Motion Warping）可以程序化地调整动画的根运动（Root Motion）以适配不同的起始位置和旋转，从而在不同的场景中复用根运动动画资产。

根据目标对象的位置和方向自动校正动画的移动和旋转量。例如，让玩家在不同位置都可通过跳跃动作翻越障碍物。

动画序列

在动画序列中可创建运动扭曲（Motion Warping）状态通知来指定运动扭曲的区域，根据需要调整根骨骼位移，在拥有有限动画资产的情况下，也可以创建出多种多样的动画效果。

创建状态通知

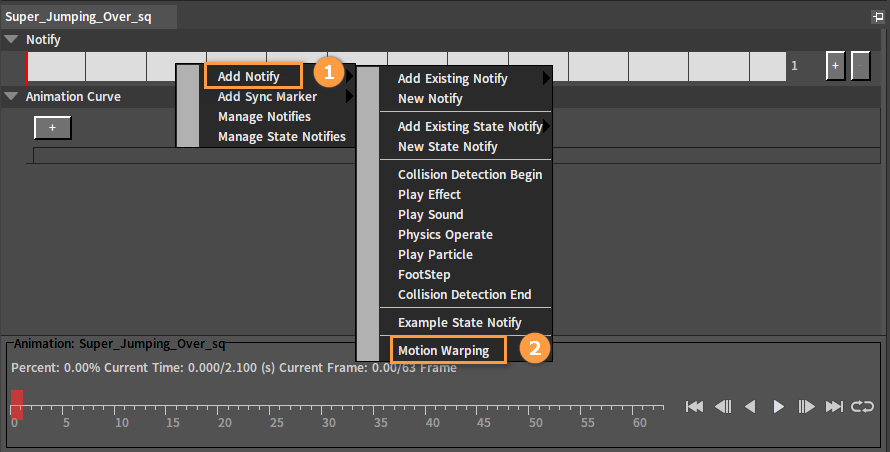

在动画编辑器（Animation Editor）中打开所需编辑的动画序列资产，在通知轨道上右击依次选择添加通知（Add Notify） -> 运动扭曲（Motion Warping）。

添加运动扭曲状态通知（Motion Warping State Notify）后，可在轨道中左右拖拽通知标签来调整其开始和结束的时间，从而指定运用扭曲的区域。

属性

在轨道上选中运动扭曲状态通知后，可在详细面板（Details Panel）中对其相关属性进行编辑。

属性	说明
类型（Type）	该参数指定应用算法的类型。
目标名称（Target Name）	该参数指定场景中目标的标签名称。
扭曲平移（Warp Translation）	该参数指定是否开启位移的调整。
扭曲旋转（Warp Rotation）	该参数指定是否开启旋转的调整。
旋转扭曲类型（Rotation Warping Type）	该参数指定用于调整旋转的方式。 对齐目标（Align To Target）：在过程中与目标保持朝向的一致。 查看目标（Look At Target）：在过程中始终朝向目标。

动画树

在动画树中可通过添加节点来控制管理动画，可将要用到运动扭曲（Motion Warping）的动画放入动画树中的插槽中。

示例

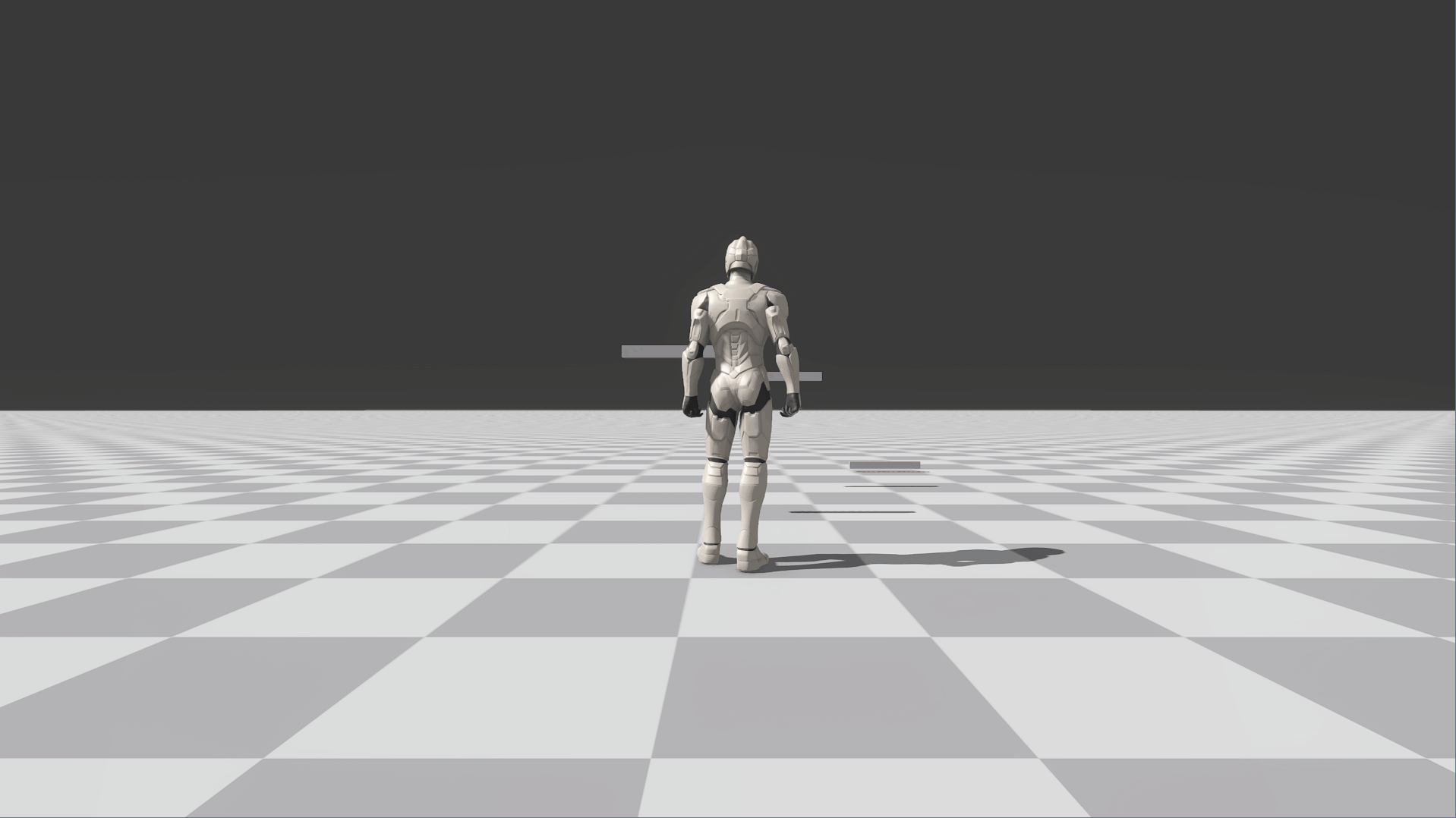

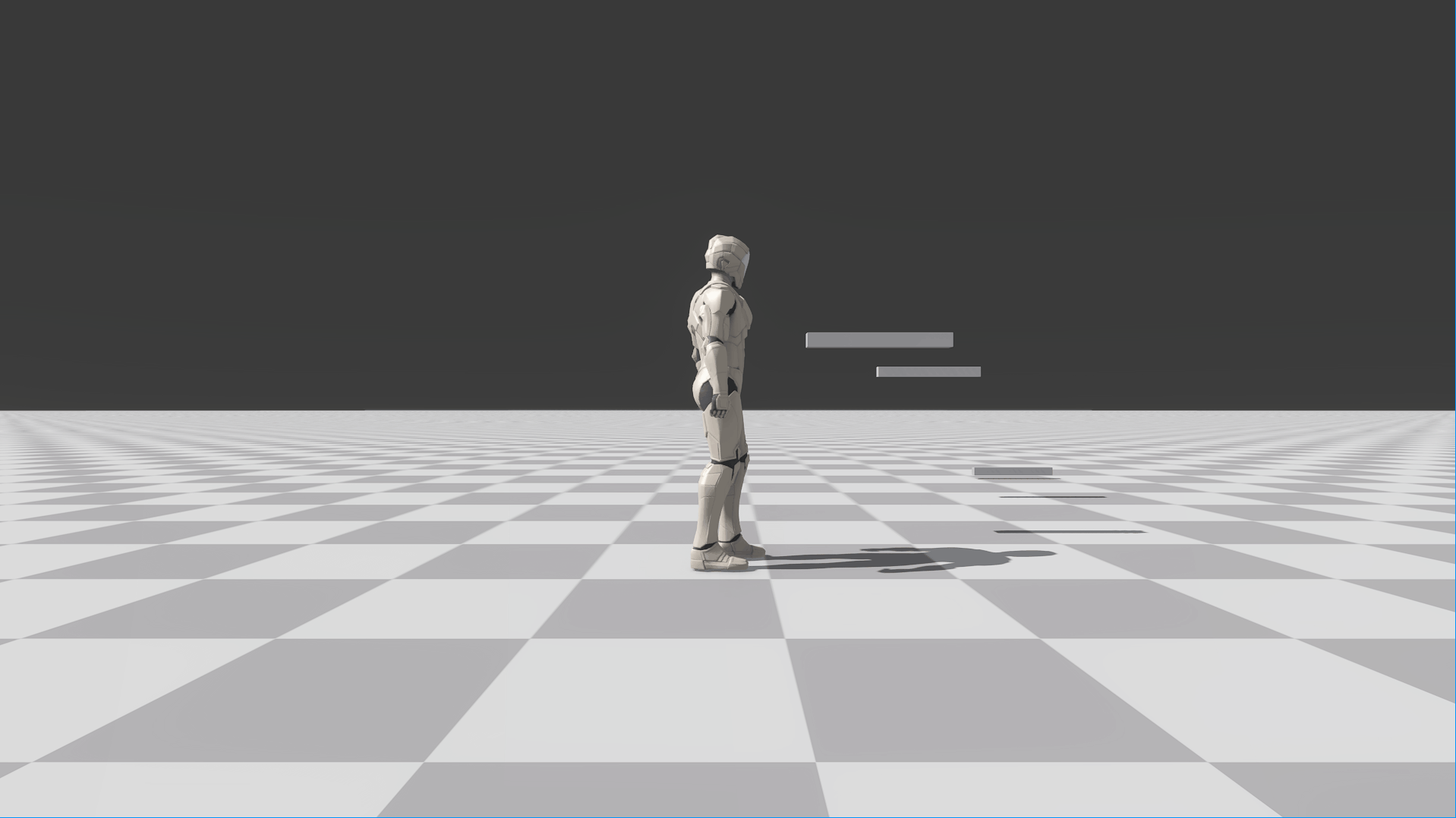

下面是运用运动扭曲功能完成角色翻越目标障碍物的示例。

组合体组装

参照Actor组装，创建一个包含蒙皮和骨架资产的组合体（Actor）。

设置动画序列

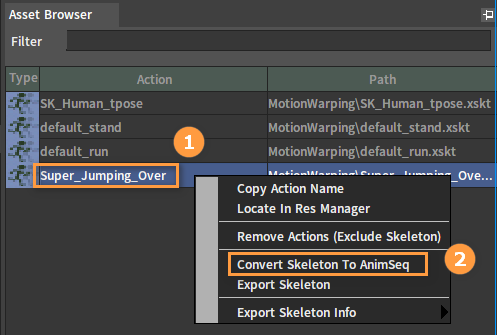

将跳跃的骨架资产转换为动画序列资产。在动画编辑器（Animation Editor）中的资产浏览器（Asset Browser）窗口中选中骨架资产，然后右击选择将骨架资产转为动画序列资产（Convert Skeleton To AnimSeq）。

在弹出的窗口中对动画序列资产进行命名，然后点击确定（OK）按钮完成转换。

启用根运动（Root Motion）。在动画序列资产的资产细项（Asset Details）面板中勾选启用根运动（Enable Root Motion）。

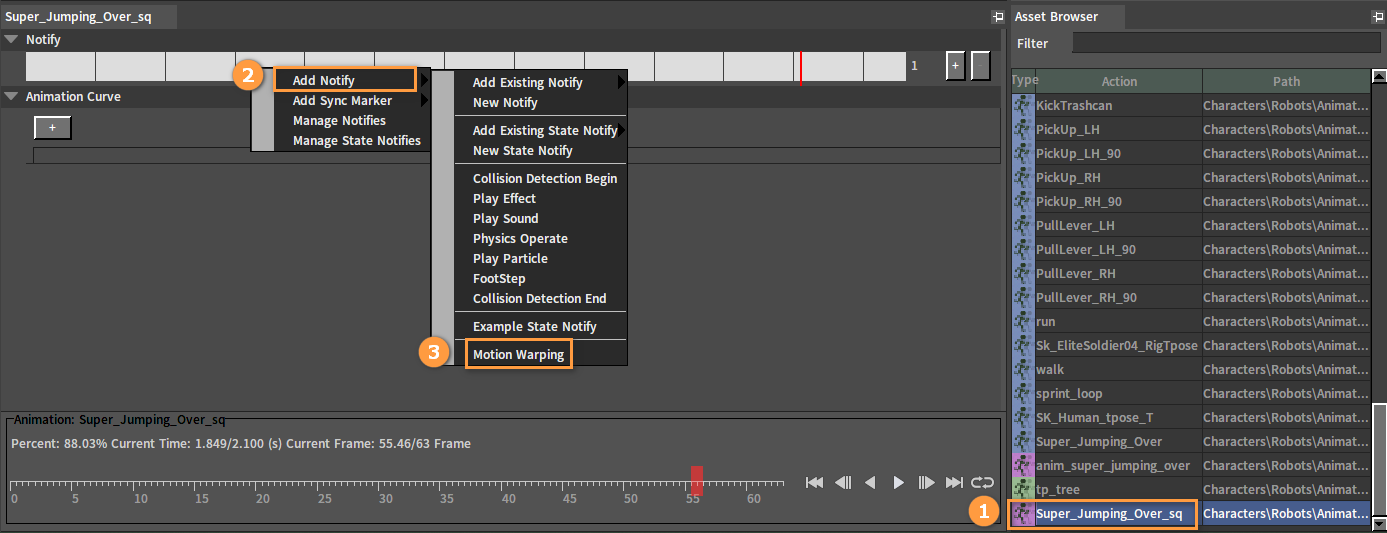

在该资产编辑面板中的轨道上添加运动扭曲状态通知（Motion Warping State Notify），右击轨道然后依次点击添加通知（Add Notify） -> 运动扭曲（Motion Warping）。

在弹出的新通知（New Notify）窗口中输入状态通知的名称，然后点击确定（OK）按钮完成添加。

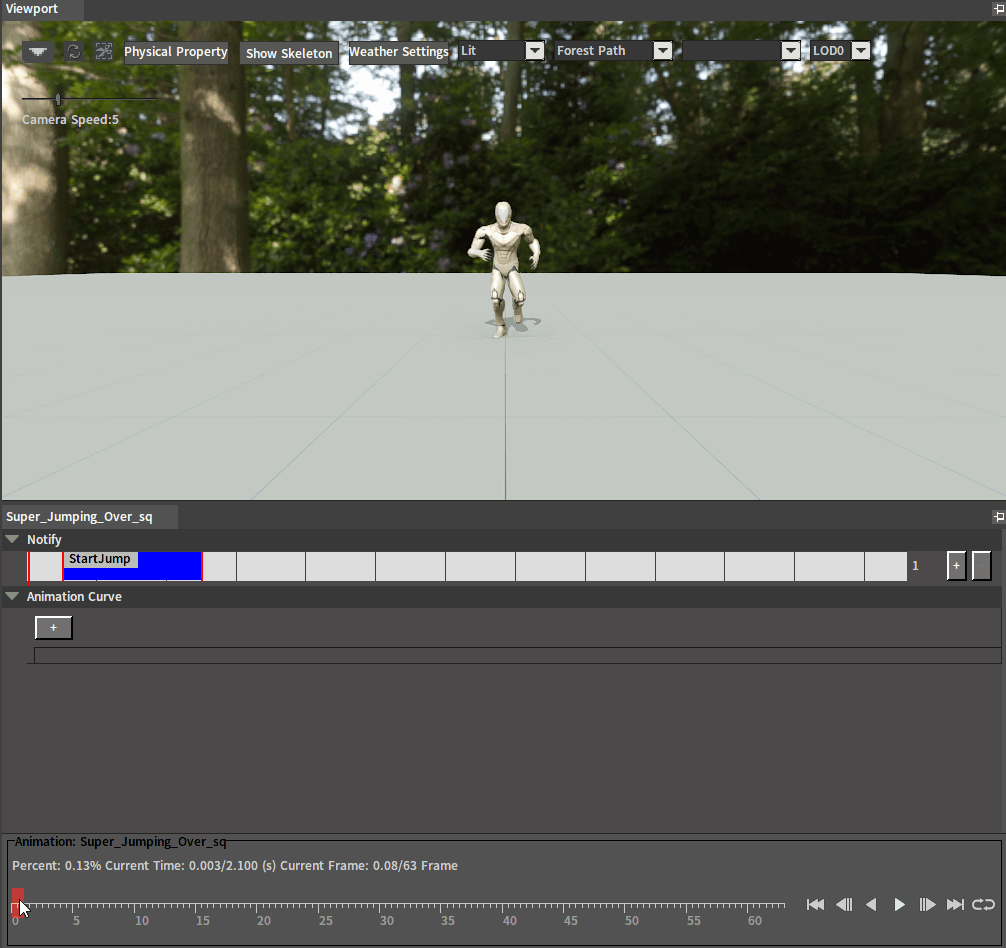

根据所要扭曲的动画部分，调整该运动扭曲状态通知（Motion Warping State Notify）的位置和持续时间。有关状态通知（State Notify）的基本操作可详见动画通知。

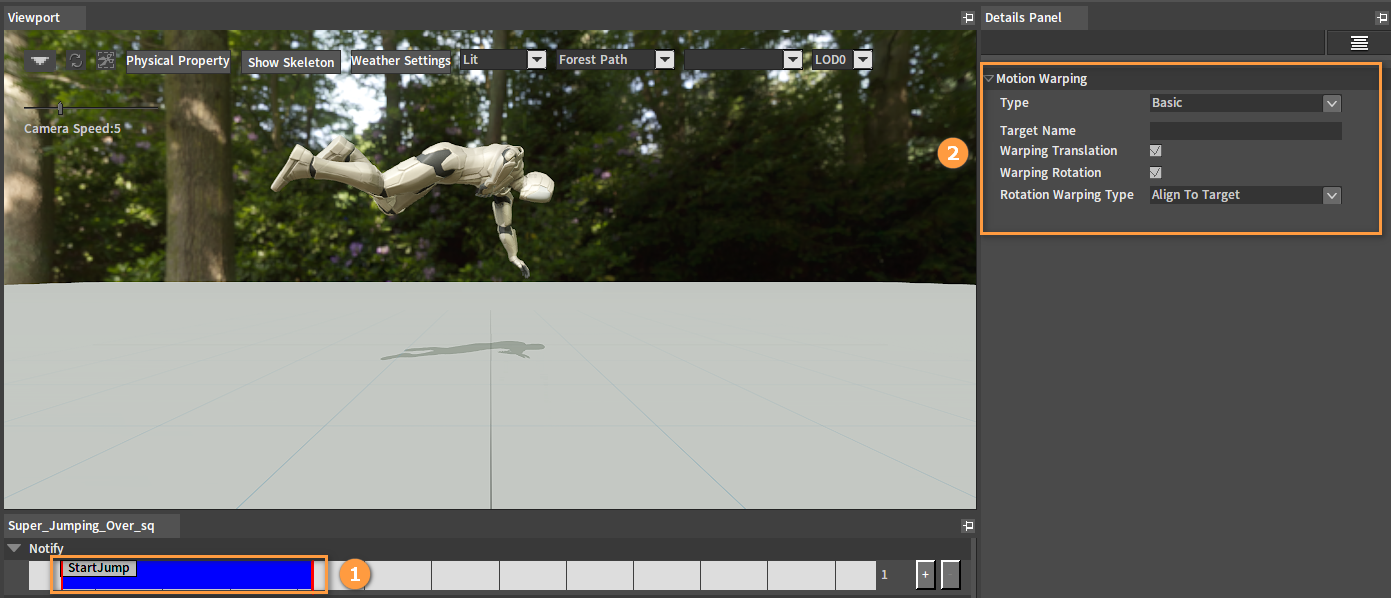

选中运动扭曲状态通知（Motion Warping State Notify），在详细面板（Details Panel）中修改其属性，在目标名称（Target Name）中输入一个名称VaultPoint，用于标识该扭曲。

可按照上述添加运动扭曲状态通知的方法继续添加状态通知（State Notifies），并为这些扭曲指定目标名称（Target Name）。

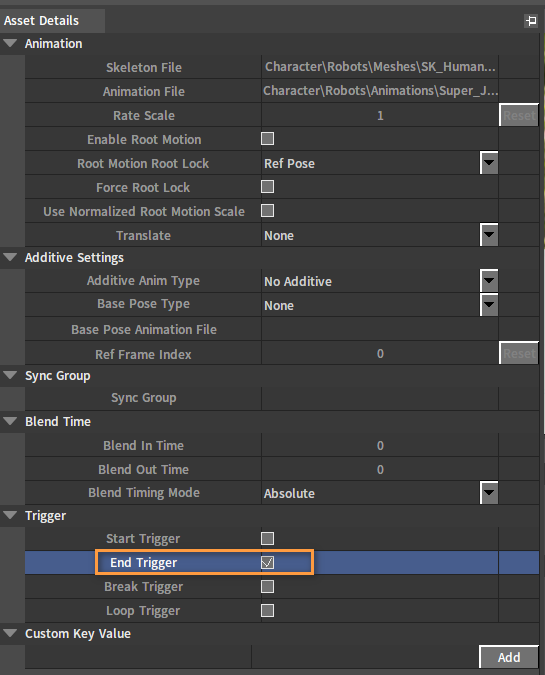

在资产细项（Asset Details）面板中勾选结束触发器（End Trigger），在动画结束播放时触发通知。

配置动画树

在动画树中可通过添加节点对角色动画进行管理。

在动画编辑器中依次点击菜单栏文件（File） -> 创建（Create），点击弹出窗口中的下拉框，选择动画树（AnimTree），为其命名并选择创建的路径。

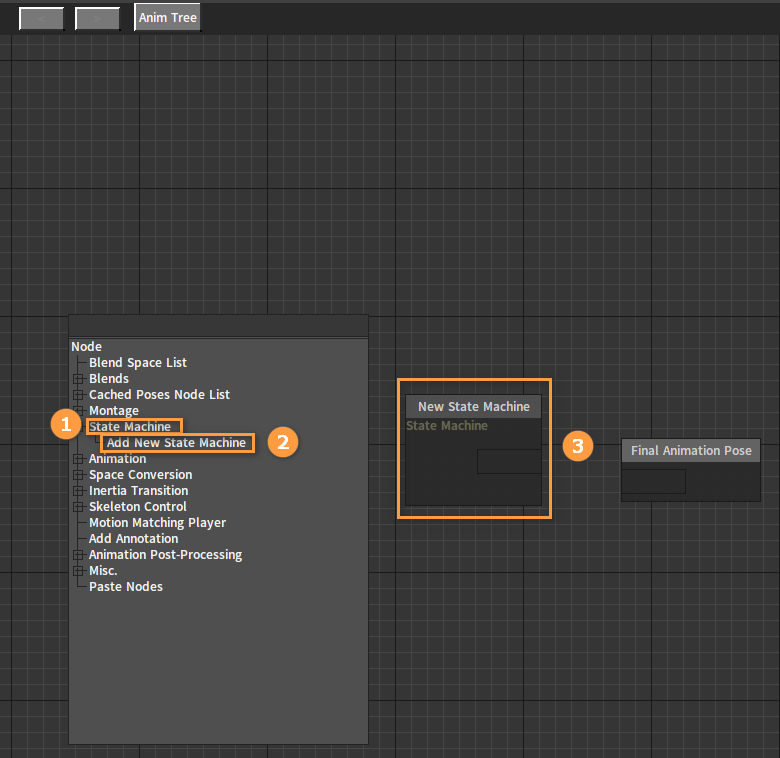

在所创建的动画树中右击打开节点选择面板，然后依次点击状态机（State Machine） -> 添加新的状态机（Add New State Machine）来添加一个状态机节点。

双击该状态机（ State Machine）节点进入状态图编辑界面，在状态图中可以创建状态和组织结构，创建idle和run两个状态间的转换，具体创建流程可参考角色快速入门 -> 添加状态机节点。

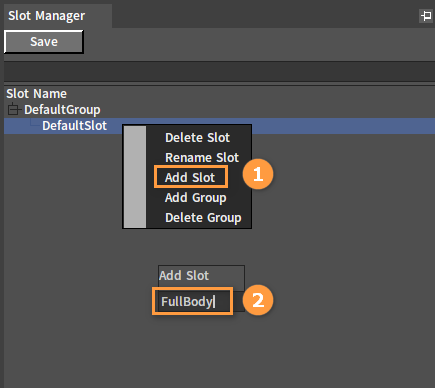

在动画树编辑器（Anim Tree Editor）中的插槽管理器（Slot Manager）窗口中创建一个插槽FullBody 。先在插槽管理器中右击插槽名称（Slot Name），然后在弹出的快捷菜单中点击添加默认组和插槽（Add Default Group And Slot）。

在默认插槽（DefaultSlot）上右击打开快捷菜单，选择添加插槽（Add Slot）来添加一个新的插槽，在弹出的窗口中输入插槽名称后按Enter键完成添加。

从状态机节点引脚处进行拖拽打开节点选择面板，展开蒙太奇（Montage）分类，选择FullBody插槽（Slot"FullBody"）。

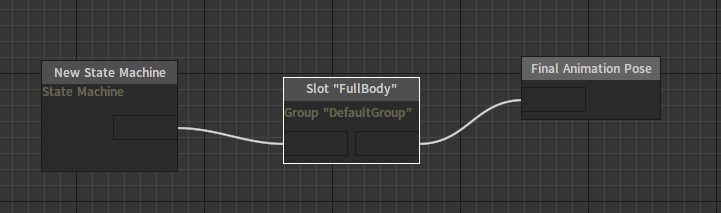

将FullBody插槽节点连接到最终动画姿势（Final Animation Pose）节点上。

最后，在动画树编辑器中依次点击文件（File）-> 保存（Save）。

配置组合体

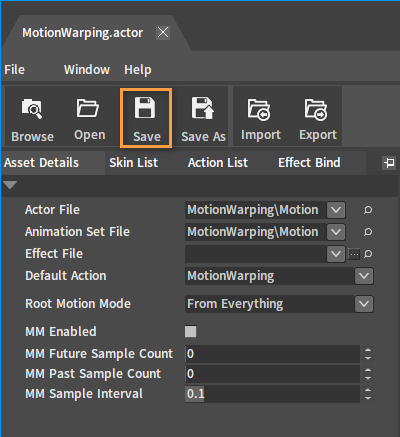

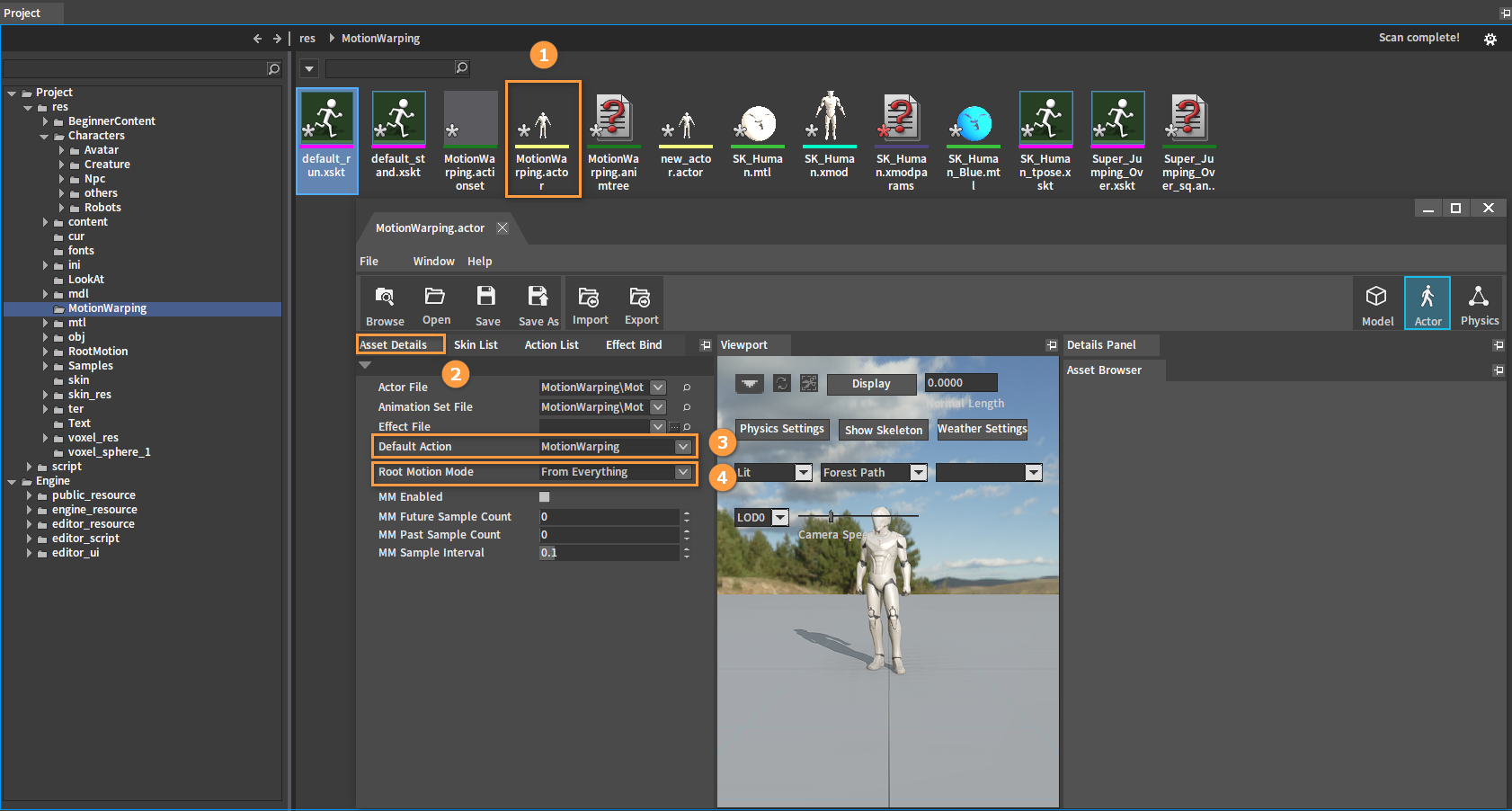

在资源预览窗口中双击打开所创建的组合体文件，然后在组合体编辑器（Actor Editor）中点击资产细项（Asset Details），将默认动作（Default Action）设置为刚才所创建的动画树，并将根运动模式（Root Motion Mode）设置为来自任何动画（From Everything）。

修改完后，在组合体编辑器中点击保存（Save）。

创建角色

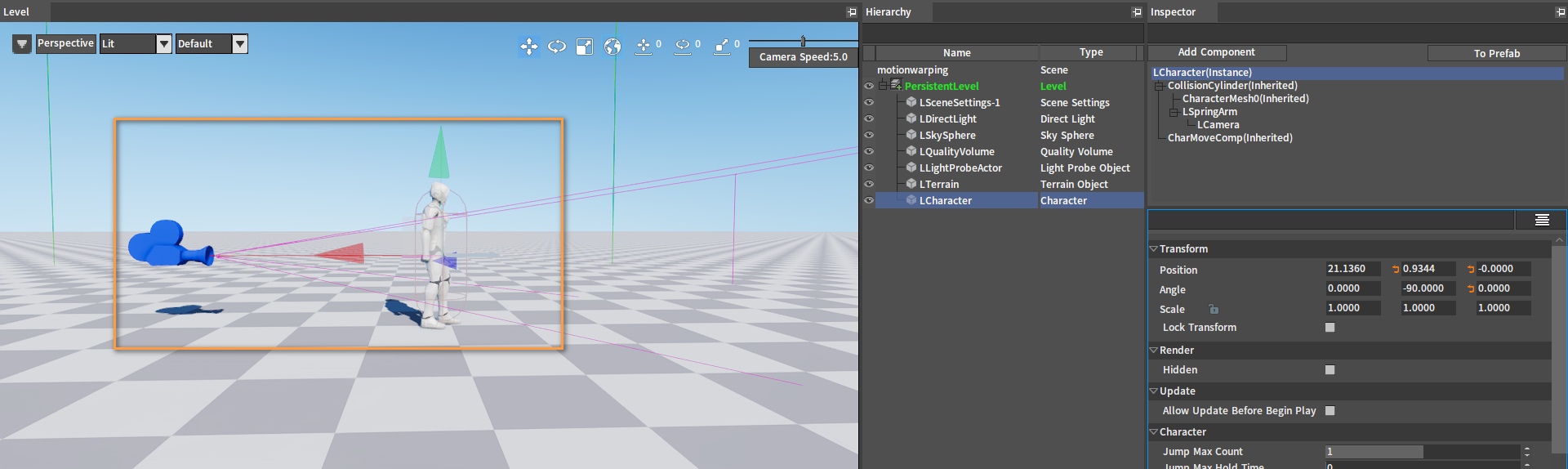

在组件编辑器中创建一个关卡，然后在关卡中添加一个角色（Character）并设置其属性，该角色的骨架网格体配置文件（Skeletal Mesh Config File）为刚才所创建的组合体（Actor）。具体操作步骤可参考角色快速入门的设置角色部分。

输入设置

输入设置参考角色快速入门的输入设定编辑部分。

创建目标

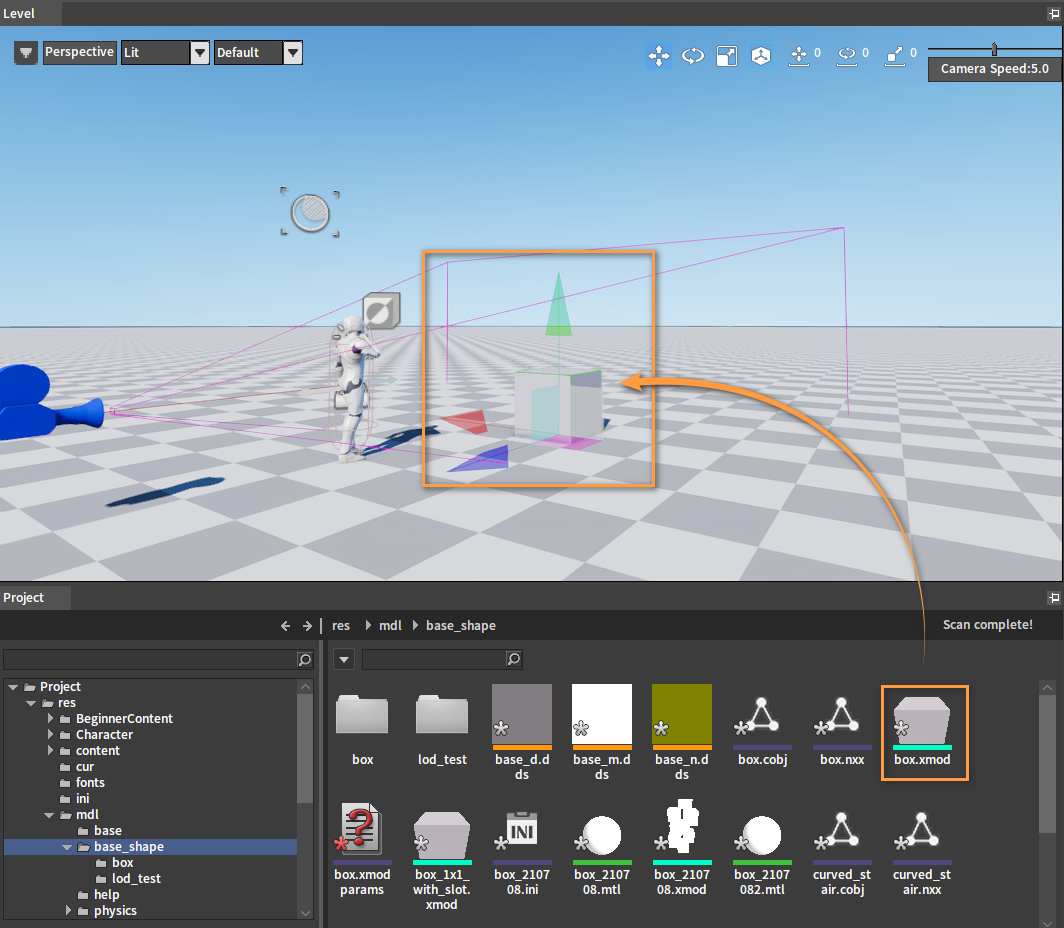

从资源预览窗口中拖拽3个模型到关卡（Level）中，并调整其大小，将这三个静态网格体作为角色扭曲要避开的目标（三个静态网格体朝向需与角色保持一致）。

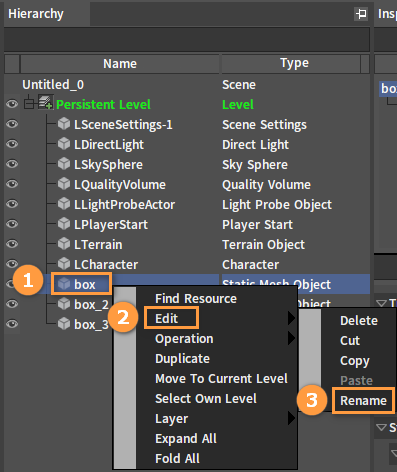

在大纲（Hierarchy）面板中选中静态网格体对象右击打开快捷菜单，依次点击编辑（Edit）-> 重命名（Rename）对其进行重命名。

重命名后：

在大纲（Hierarchy）面板中选中刚才所创建的静态网格体，在观察器（Inspector）面板下方的字符串标签（String Tag）属性中填入名称，此处的名称与动画序列中的运动扭曲状态通知目标名称（Target Name）保持一致。

余下的两个静态网格体也按照上述操作，为其设定字符串标签（String Tag）FlyEndPoint和LandingPoint。

为角色绑定脚本

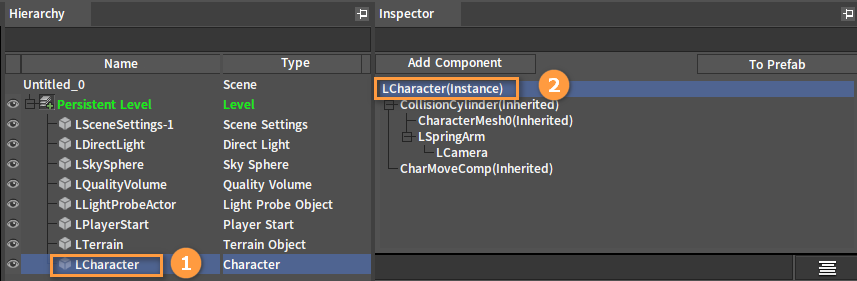

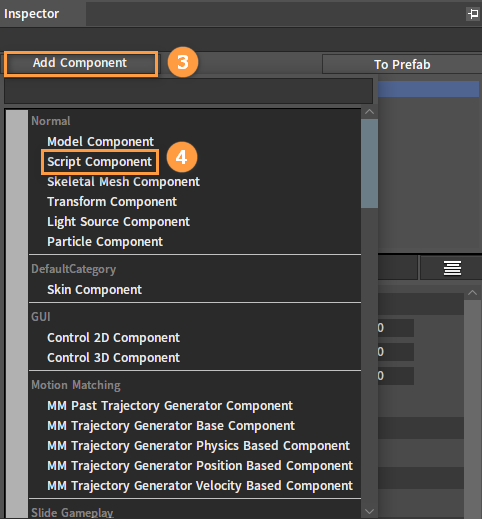

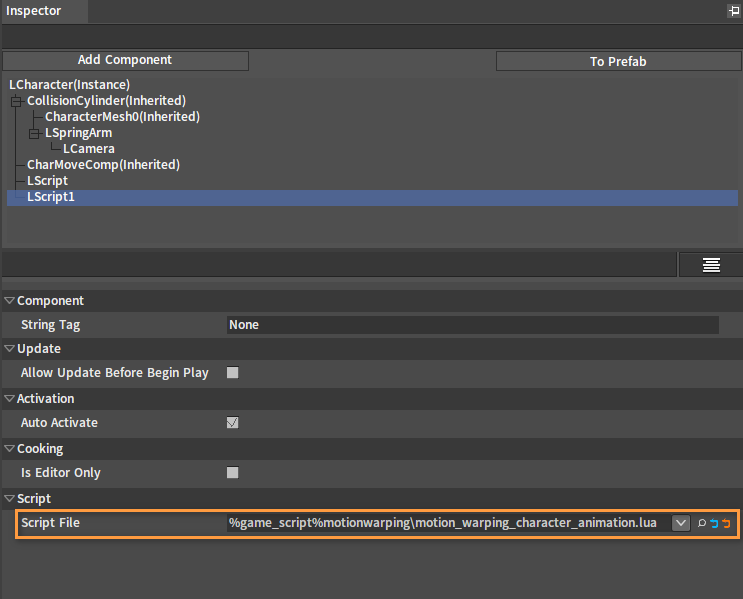

为角色绑定脚本。在大纲（Hierarchy）面板中选中LCharacter，在观察器（Inspector）面板中选中LCharacter(Instance)，点击添加组件（Add Component）按钮，选择脚本组件（Script Component）。

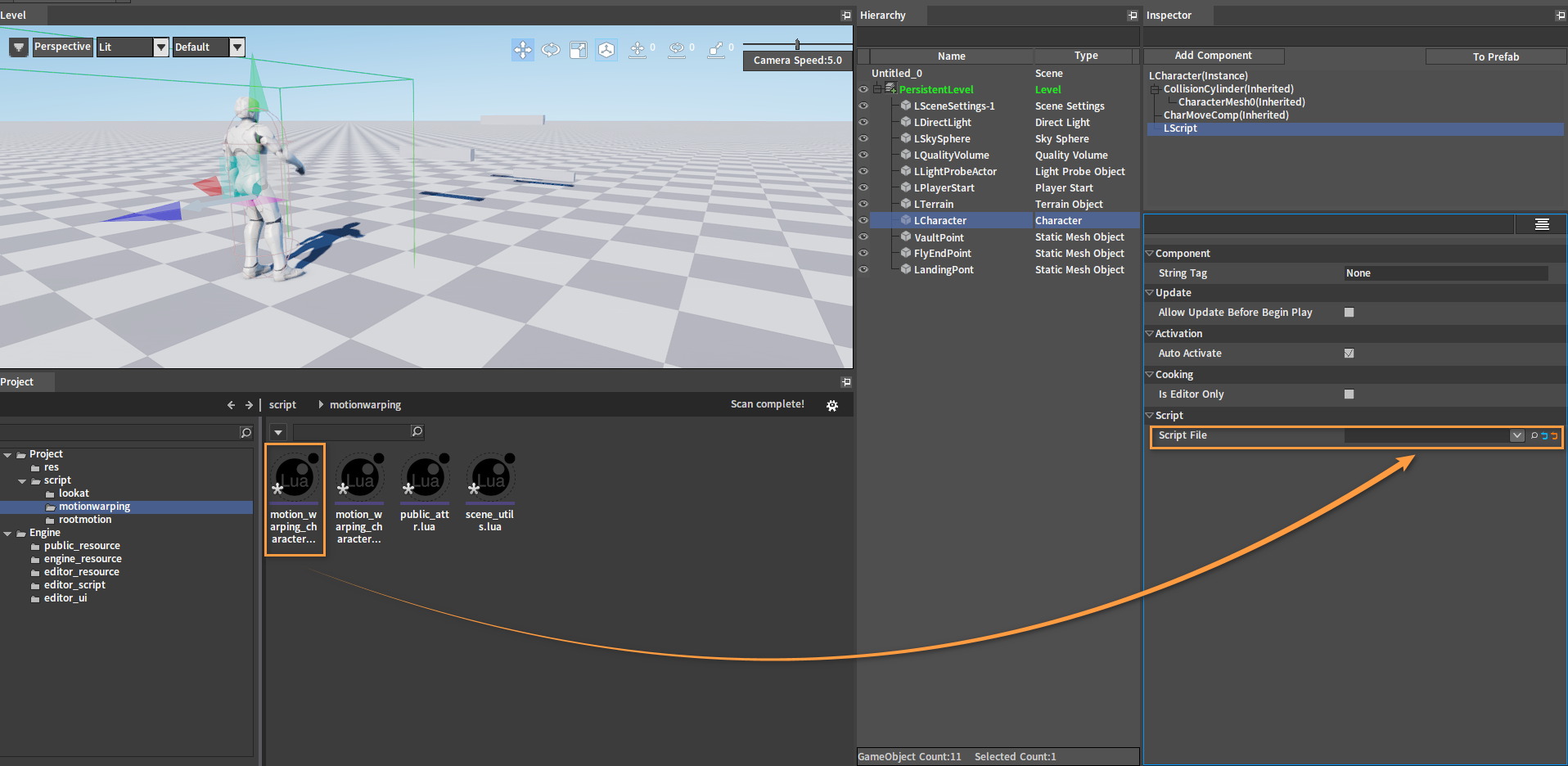

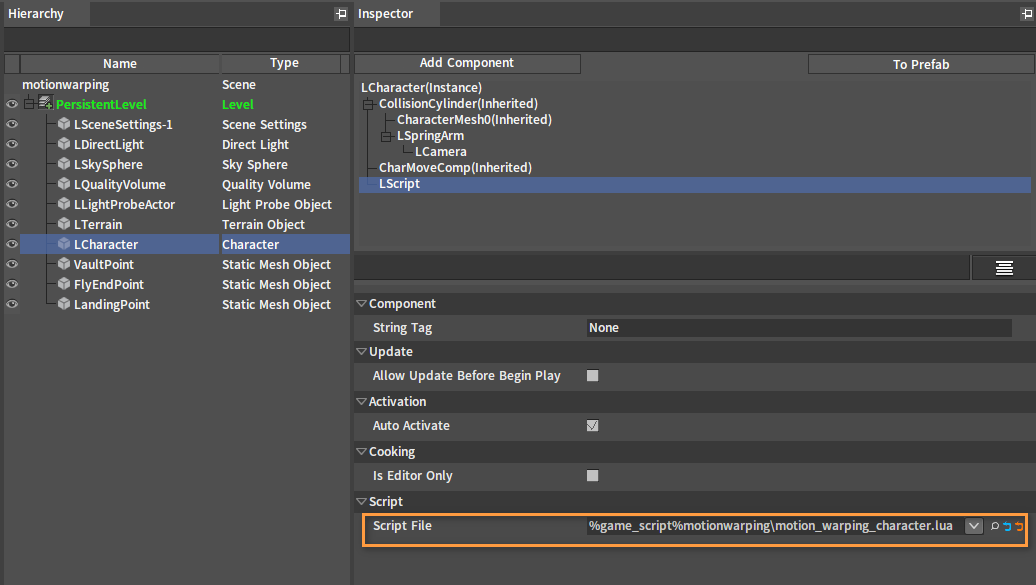

在脚本组件的属性（Property）面板中配置脚本文件，从资源预览窗口将脚本拖入到角色脚本组件的脚本文件（Script File）插槽中。

拖入完成：

脚本一

参考脚本：

motion_warping_character.lua

--脚本模板

require("public_attr")

local IE_Pressed        = 0     --按键按下
local IE_Released       = 1     --按键抬起
local IE_Repeat         = 2
local IE_DoubleClick    = 3
local IE_Axis           = 4
local IE_MAX            = 5

local CAMERA_DISTANCE_CHANGE_SPEED = 0.5
local CAMERA_DISTANCE_MIN = -1
local CAMERA_DISTANCE_MAX = 50

--------------------------
--局部效用函数--
--------------------------

---------------------
--默认回调--
---------------------

--用于初始化
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local input_comp = owner.InputComponent

        if nx_is_valid(input_comp) then
            nx_bind_script(owner, nx_current())

            input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
            input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
            input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
            input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")
            input_comp:AddAxisBinding("AdjustCameraDis", true, false, true, "InputAxisEvent_AdjustCameraDis")

            input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true, "InputActionEvent_Jump_Pressed")
            input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true, "InputActionEvent_Jump_Released")
            input_comp:AddCombinationBinding("Dash", IE_Pressed, true, false, true, "InputActionEvent_Dash_Pressed")
            input_comp:AddCombinationBinding("EnableLookAt", IE_Pressed, true, false, true, "InputActionEvent_EnableLookAt_Pressed")
            input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true, "InputActionEvent_LeftClick_Pressed")

            input_comp:AddCombinationKeyBinding("R", false, false, false, false, 0, false, false, true, "r_key_pressed")

            nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
            nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
            nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
            nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")
            nx_callback(owner, "InputAxisEvent_AdjustCameraDis", "on_adjust_camera_dis")

            nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
            nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")
            nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick_pressed")

            nx_callback(owner, "InputActionEvent_Dash_Pressed", "on_dash_pressed")
            nx_callback(owner, "InputActionEvent_EnableLookAt_Pressed", "on_enable_look_at_pressed")

            nx_callback(owner, "on_velocity_changed", "on_velocity_changed")
            nx_callback(owner, "r_key_pressed", "toggle_ragdoll")

        end

        -- 查询MotionWarping TargetPoint
        local mw_target_name1 = "VaultPoint"
        local mw_target_name2 = "FlyEndPoint"
        local mw_target_name3 = "LandingPoint"

        local scene = owner.Scene
        local actor = character_get_actor(owner)

        local vault_point_objs = scene:QueryObjectListByTag(mw_target_name1, "fx_component.LGameObject")
        if #vault_point_objs > 0 then
            local vault_point_actor = vault_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name1, vault_point_actor.PositionX, vault_point_actor.PositionY, vault_point_actor.PositionZ, vault_point_actor.AngleX, vault_point_actor.AngleY, vault_point_actor.AngleZ)
        end

        local fly_end_point_objs = scene:QueryObjectListByTag(mw_target_name2, "fx_component.LGameObject")
        if #fly_end_point_objs > 0 then
            local fly_end_point_actor = fly_end_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name2, fly_end_point_actor.PositionX, fly_end_point_actor.PositionY, fly_end_point_actor.PositionZ, fly_end_point_actor.AngleX, fly_end_point_actor.AngleY, fly_end_point_actor.AngleZ)
        end

        local landing_point_objs = scene:QueryObjectListByTag(mw_target_name3, "fx_component.LGameObject")
        if #landing_point_objs > 0 then
            local landing_point_actor = landing_point_objs[1]
            actor:AddOrUpdateMotionWarpingTarget(mw_target_name3, landing_point_actor.PositionX, landing_point_actor.PositionY, landing_point_actor.PositionZ, landing_point_actor.AngleX, landing_point_actor.AngleY, landing_point_actor.AngleZ)
        end
    end

    nx_callback(component, "on_tick", "tick")
end

--用于发布
function on_end_play(component)
end

--获取actor
function character_get_actor(character)
    if nx_is_valid(character) then
        local mesh_component = character.MeshComponent

        if nx_is_valid(mesh_component) then
            local vis_base = mesh_component.VisBase

            if nx_is_valid(vis_base) and nx_is_kind(vis_base, "Actor") then
                return vis_base
            end
        end
    end

    return nx_null()
end

--获取弹簧臂
function character_get_spring_arm(character)
    if nx_is_valid(character) then
        local spring_arm_component = character:FindComponentByClassName("LSpringArmComponent")

        return spring_arm_component
    end

    return nx_null()
end

--向前移动回调
function on_moveforward(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --获取控制器Y轴角度
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --获取向前方向
        local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

        --新增移动

        owner:AddMovementInput(x, y, z, axis_value)
    end

    return 1
end

--向右移动回调
function on_moveright(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --获得控制器Y轴角度
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --获取向右方向
        local x, y, z = nx_function("ext_angle_get_right_vector", 0.0, yaw, 0.0)

        --新增移动
        owner:AddMovementInput(x, y, z, axis_value)
    end
    return 1
end

--左右旋转（绕Y轴旋转）回调
function on_turn(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerYawInput(axis_value)

    return 1
end

--上下旋转（绕X轴旋转）回调
function on_lookup(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerPitchInput(-axis_value)

    return 1
end

--鼠标滚轮回调
function on_adjust_camera_dis(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    local spring_arm_component = character_get_spring_arm(owner)

    if nx_is_valid(spring_arm_component) then
        local delta = axis_value * CAMERA_DISTANCE_CHANGE_SPEED

        local cur_value = spring_arm_component.TargetArmLength
        local new_value =  cur_value + delta

        if delta > 0 then
            if new_value > CAMERA_DISTANCE_MAX then
                new_value = CAMERA_DISTANCE_MAX
            end

            spring_arm_component.TargetArmLength = new_value
        else
            if new_value < CAMERA_DISTANCE_MIN then
                new_value = CAMERA_DISTANCE_MIN
            end
            spring_arm_component.TargetArmLength = new_value
        end
    end

    return 1
end

--跳跃键按下回调
function on_jump_pressed(owner)
    if nx_find_custom(owner, "JumpAgainLock") and owner.JumpAgainLock then
        return 1
    end

    --角色跳跃
    owner:Jump()

    return 1
end

--冲刺
function on_dash_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    local movement_comp = owner.CharacterMovement
    --local mode = movement_comp.MovementMode
    local new_mode = nx_enum("MOVEMENT_MODE::Flying")
    movement_comp:SetMovementModeWithCustom(new_mode, 0)
    actor:BlendAction("Super_Jumping_Over_sq", false, false, true, 1.0, true, "FullBody", true)
end

--骨骼朝向
function on_enable_look_at_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    local action_name = actor:GetBlendActionName(0)
    local action_type = actor:GetActionType(action_name)
    local action_index = actor:GetActionIndex(action_name)
    if action_type == AT_ANIMTREE then
        if actor:GetAnimTreeValue(action_index, "LookAtIndex") == 0 then
            actor:SetAnimTreeValue(action_index, "LookAtIndex", 1)
        else
            actor:SetAnimTreeValue(action_index, "LookAtIndex", 0)
        end
    end
end

--跳跃键抬起回调
function on_jump_released(owner)
    --角色停止跳跃
    owner:StopJumping()

    return 1
end

function on_leftclick_pressed(owner)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    --actor:BlendAction("PrimaryMelee_D_Slow_sq", false, false, true, 1.0, true, "myslot", true)
    --actor:BlendAction("PrimaryMelee_C_Slow2_MSA_Anim", false, false, true, 1.0, true, "myslot", true)
    actor:BlendAction("PrimaryMelee_C_Slow_MSA_sq", false, false, true, 1.0, true, "myslot", true)
    --actor:SetBlendActionPause("PrimaryMelee_C_Slow_MSA_sq", true)

    --[[
    local cur_percent = 0
    while cur_percent < 100 do
        actor:SetCurrentPercent("PrimaryMelee_C_Slow_MSA_sq", cur_percent)
        nx_pause(0.016)
        cur_percent = cur_percent + 0.016
    end]]

    --actor:SetBlendActionPause("PrimaryMelee_C_Slow_MSA_sq", true)

end

--速度变化回调
function on_velocity_changed(owner, component_id, new_x, new_y, new_z, old_x, old_y, old_z)
    local actor = character_get_actor(owner)

    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_type = actor:GetActionType(action_name)
            local action_index = actor:GetActionIndex(action_name)

            if action_type == AT_ANIMTREE then
                local speed = math.sqrt(new_x * new_x + new_y * new_y + new_z * new_z)
                actor:SetAnimTreeValue(action_index, "Speed", speed)

                nx_set_custom(actor,"CurSpeed",speed);
            end
        end
    end

    return 1
end

function on_rhand_ik_open(self, bOpen)
    nx_set_custom(self, "rhand_ik", bOpen)
    --[[local actor = self.Actor
    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_type = actor:GetActionType(action_name)
            local action_index = actor:GetActionIndex(action_name)

            if action_type == AT_ANIMTREE then
                actor:SetAnimTreeValue(action_index, "bRhand", bOpen)
            end
        end
    end--]]
end

function set_tree_state(actor, state_name, enable)
    if not nx_is_valid(actor) then
        return
    end

    -- 设置状态机变量
    if actor:GetBlendActionCount() > 0 then
        local action_name = actor:GetBlendActionName(0)
        local action_type = actor:GetActionType(action_name)
        local action_index = actor:GetActionIndex(action_name)
        if action_type == AT_ANIMTREE then
            actor:SetAnimTreeValue(action_index, state_name, enable)
        end
    end
end

-- 开关ragdoll
function toggle_ragdoll(owner, key_name)
    local actor = character_get_actor(owner)
    if not nx_is_valid(actor) then
        return
    end

    nx_set_value("default_actor", actor)

    local mesh_component = owner.MeshComponent
    if not nx_is_valid(mesh_component) then
        return
    end

    -- 记录mesh_component
    actor.mesh_component = mesh_component

    local enable_ragdoll = not mesh_component.SimulatePhysics

    if (enable_ragdoll) then
        mesh_component.SimulatePhysics = enable_ragdoll
        set_tree_state(actor, "IsDead", true)
    else
        local capsule = owner.CapsuleComponent
        if nx_is_valid(capsule) then
            -- 记录capsule
            actor.capsule = capsule
        end

        -- 保存快照
        actor:SavePoseSnapshot("finalpose")

        mesh_component.SimulatePhysics = enable_ragdoll

        -- 通知混合快照
        set_tree_state(actor, "IsStopped", true)

        -- 播放起身动作
        actor:BlendAction("GetUp_Back_montage", false, false, true, 1.0)

        set_tree_state(actor, "IsDead", false)

        -- 暂停两帧
        nx_pause(0)
        nx_pause(0)

        -- 通知不再混合快照
        set_tree_state(actor, "IsStopped", false)
    end
end

function tick(component, delta_time)
    update_capsule_location()
end

-- ragdoll状态下更新胶囊体的位置
function update_capsule_location()
    local actor = nx_value("default_actor")
    if not nx_is_valid(actor) then
        return
    end

    if not nx_find_custom(actor, "mesh_component") then
        return
    end

    local mesh_component = actor.mesh_component
    if not nx_is_valid(mesh_component) then
        return
    end

    if mesh_component.SimulatePhysics then
        if not nx_find_custom(actor, "capsule") then
            return
        end

        local capsule = actor.capsule
        if not nx_is_valid(capsule) then
            return
        end

        local x, y, z = actor:GetNodeWorldPosition("pelvis")
        capsule:SetPosition(x, capsule.PositionY, z)
    end
end

public_attr.lua

--资源管理器：全局变量

MODEL_PATH = "mdl\\"
MODEL_PATH_DX9 = ""
ACTOR_PATH = "ini\\actor\\"
ACTOR_PATH_DX9 = "ini\\actor\\"
LIGHT_PATH = "ini\\light\\"
LIGHT_PATH_DX9 = "ini\\light\\"
EFFECT_PATH = "ini\\effect\\"
PARTICLE_PATH = "ini\\particle\\"
SOUND_PATH = "snd\\"
REVERB_PATH = "reverb\\"
TRIGGER_PATH = "ini\\trigger\\"
PROBE_PATH = "ini\\light_probe\\"
VOLUME_FOG_PATH = "ini\\volume_fog\\"
MATERIAL_PATH = ""

--资源类型定义
TYPE_MODEL = "model"
TYPE_ACTOR = "actor"
TYPE_LIGHT = "light"
TYPE_EFFECT = "effect"
TYPE_PARTICLE = "particle"
TYPE_SOUND = "sound"
TYPE_REVERB = "reverb"
TYPE_TRIGGER = "trigger"
TYPE_PROBE = "light_probe"
TYPE_VOLUME_FOG = "volume_fog"
TYPE_DECAL = "decal"
TYPE_GROUP = "group"
TYPE_RIPPLE = "ripple"
TYPE_SNOW = "snow"
TYPE_RAIN = "rainlayer"
TYPE_UI3D = "ui3d"

--动画资源类型
AT_UNKNOWN = 0
AT_SKELETON = 1
AT_SKELETON_AS_ANIMSEQUENCE = 2
AT_ANIMSEQUENCE = 3
AT_MONTAGE = 4
AT_BLENDSPACE = 5
AT_BLENDSPACE1D = 6
AT_AIMOFFSETBLENDSPACE = 7
AT_ANIMTREE = 8

TYPE_LIST = {
    "model",
    "actor",
    "light",
    "effect",
    "particle",
    "decal",
    "sound",
    "reverb",
    "trigger",
    "light_probe",
    "volume_fog",
    "ripple",
    "snow",
    "rainlayer",
}

FORM_TREE_BROWSER = "common_form\\form_tree_browser"
SEARCH_PATH = "ini\\common_form\\form_tree_browser\\"
SEARCH_CONFIG = SEARCH_PATH .. "form_put_visual.ini"
SEARCH_CONFIG_TEMP = "cache\\common_form\\form_tree_browser\\form_put_visual_temp.ini"
GROUP_CONFIG = "ter\\visual_group.ini"

--获取visual_put文件
function get_search_file()
    local ini = nx_create("IniDocument")

    ini.FileName = nx_resource_path() .. SEARCH_CONFIG

    if not ini:LoadFromFile() then
        nx_destroy(ini)
        return 0
    end

    local file = ini:ReadString("SEARCH_CONFIG", "search_file", "form_put_visual.ini")

    nx_destroy(ini)

    return nx_resource_path() .. SEARCH_PATH .. file, file
end

按照上述方法为该角色再绑定一个运动扭曲动画脚本。

脚本二

参考脚本：

motion_warping_character_animation.lua

--脚本模板

--------------------------
--局部效用函数--
--------------------------

require("public_attr")
require("scene_utils")

local function get_terrain(pawn)
    if nx_is_valid(pawn) then
        local lscene = pawn.Scene

        if nx_is_valid(lscene) then
            return scene_get_engine_terrain(lscene)
        end
    end

    return nx_null()
end

local function get_movement_component(pawn)
    if nx_is_valid(pawn) then
        return pawn:GetMovementComponentID()
    end

    return nx_null()
end

local function is_moving(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            local speed = nx_function("ext_vector_length", pawn.VelocityX, pawn.VelocityY, pawn.VelocityZ)
            if speed > 0.0 and movement:IsMovingOnGround() then
                return true
            end
        end
    end

    return false
end

local function get_speed(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            local speed = nx_function("ext_vector_length", pawn.VelocityX, pawn.VelocityY, pawn.VelocityZ)
            return speed
        end
    end

    return 0.0
end

local function get_current_jump_count(pawn)
    if nx_is_valid(pawn) then
        return pawn.JumpCurrentCount
    end

    return 0
end

local function is_jumping(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if movement:IsFalling() then
                return true
            end
        end
    end

    return false
end

local function is_accelerating(pawn)
    if nx_is_valid(pawn) then
        local movement = get_movement_component(pawn)

        if nx_is_valid(movement) then
            if math.abs(movement.CurrentAccelerationX) > 0.0
                or math.abs(movement.CurrentAccelerationY) > 0.0
                or math.abs(movement.CurrentAccelerationZ) > 0.0 then
                return true
            end
        end
    end

    return false
end

local function get_anim_tree_index(role)
    if role:GetBlendActionCount() > 0 then
        local action_name = role:GetBlendActionName(0)
        local action_type = role:GetActionType(action_name)
        if action_type == AT_ANIMTREE then
            return role:GetActionIndex(action_name)
        end
    end

    return -1
end

local function get_foot_ik_weight(role)
    local foot_ik_weight = -1.0

    local foot_ik_id = role:GetCurveIDByNameInSkeleton("foot_ik")

    if foot_ik_id >= 0 then
        foot_ik_weight = role:GetCurveValue(foot_ik_id)
    end

    return foot_ik_weight
end

function transition_callback_IdleToJogStart(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) and not is_jumping(pawn) and is_moving(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStartToJogStop(pawn, role, action_index, machine_index, prev_state, next_state)
    if get_speed(pawn) < 1.0 then
        return true
    else
        return false
    end
end

function transition_callback_IdleToRun(pawn, role, action_index, machine_index, prev_state, next_state)
    if get_speed(pawn) > 50.0 then
        return true
    else
        return false
    end
end

function transition_callback_RunToJogStop(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStopToIdle(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JogStopToJogStart(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_accelerating(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_IdleOrJogsToJumps(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpsToJumpLand(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpsToIdleOrJogs(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_JumpToSecondJump(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) and get_current_jump_count(pawn) > 1 then
        return true
    else
        return false
    end
end

function transition_callback_SecondJumpToThirdJump(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_jumping(pawn) and get_current_jump_count(pawn) > 2 then
        return true
    else
        return false
    end
end

function transition_callback_IdleToMultiDiectionMove(pawn, role, action_index, machine_index, prev_state, next_state)
    if is_moving(pawn) then
        return true
    else
        return false
    end
end

function transition_callback_MultiDiectionMoveToIdle(pawn, role, action_index, machine_index, prev_state, next_state)
    if not is_moving(pawn) then
        return true
    else
        return false
    end
end

transition_event_callback =
{
    ["IdleToJogStart"] = transition_callback_IdleToJogStart,
    ["JogStartToJogStop"] = transition_callback_JogStartToJogStop,
    ["IdleToRun"] = transition_callback_IdleToRun,
    ["RunToJogStop"] = transition_callback_RunToJogStop,
    ["JogStopToIdle"] = transition_callback_JogStopToIdle,
    ["JogStopToJogStart"] = transition_callback_JogStopToJogStart,
    ["IdleOrJogsToJumps"] = transition_callback_IdleOrJogsToJumps,
    ["JumpsToJumpLand"] = transition_callback_JumpsToJumpLand,
    ["JumpsToIdleOrJogs"] = transition_callback_JumpsToIdleOrJogs,
    ["JumpToSecondJump"] = transition_callback_JumpToSecondJump,
    ["SecondJumpToThirdJump"] = transition_callback_SecondJumpToThirdJump,

    ["IdleToMultiDiectionMove"] = transition_callback_IdleToMultiDiectionMove,
    ["MultiDiectionMoveToIdle"] = transition_callback_MultiDiectionMoveToIdle,

}

function on_transition_event(mesh_comp, action_index, machine_index, prev_state, next_state, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = transition_event_callback[callback_name]
    if callback then
        return callback(pawn, role, action_index, machine_index, prev_state, next_state)
    end

    return false
end

function state_machine_state_callback_EnterState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_EnterState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

function state_machine_state_callback_LeaveState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_LeaveState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

function state_machine_state_callback_FullyBlendState(pawn, role, action_index, machine_index, state_index)
    if nx_is_valid(role) then
        nx_log("state_machine_state_callback_FullyBlendState event, role: " .. nx_string(role) .. " action_name: " .. role:GetActionName(action_index) .. ", machine index: " .. role:GetAnimTreeStateMachineName(action_index, machine_index) .. ", state name: " .. role:GetAnimTreeStateMachineStateName(action_index, machine_index, state_index))
    end
end

state_machine_state_event_callback =
{
    ["start_state"] = state_machine_state_callback_EnterState,
    ["end_state"] = state_machine_state_callback_LeaveState,
    ["fully_blend_state"] = state_machine_state_callback_FullyBlendState,
}

function on_state_machine_state_event(mesh_comp, action_index, machine_index, state_index, callback_name)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = state_machine_state_event_callback[callback_name]
    if callback then
        return callback(pawn, role, action_index, machine_index, state_index)
    end

    return
end

function has_fullbody_action(pawn)
    return false
end

function animtree_callback_ShouldUseLayerBlend(pawn, role)
    if not has_fullbody_action(pawn) and is_moving(pawn) then
        return true
    end

    return false
end

function animtree_callback_CalcLeanAngle(pawn, role)
    return 0.0
end

function animtree_callback_CalcSlopeAngle(pawn, role)
    return 0.0
end

function animtree_callback_ShouldUseRHand(pawn, role)
    if nx_is_valid(pawn) then
        return nx_custom(pawn, "rhand_ik")
    end

    return false
end

function animtree_callback_GetPlayerWeaponState(pawn, role)

    return 0
end

function animtree_callback_GetPlayerFightState(pawn, role)

    return 0
end

function animtree_callback_IsPlayerMoving(pawn, role)
    if is_moving(pawn) then
        return true
    end

    return false
end

--动画树右脚IK节点回调
function animtree_callback_RRootIK(pawn, role)
    local terrain = get_terrain(pawn)

    if not nx_is_valid(terrain) then
        return false
    end

    local foot_ik_weight = get_foot_ik_weight(role)

    if foot_ik_weight < 0.0 then
        --如果脚部IK权重小于0.0，则关闭脚部IK
        return false
    end

    --右脚节点在模型空间中的位置
    local obj_pos_x, obj_pos_y, obj_pos_z = role:GetNodeObjectPosition("foot_r")
    local foot_rel_height = obj_pos_y

    --右脚节点在世界空间中的位置
    local position_x = 0.0
    local position_y = 0.0
    local position_z = 0.0
    position_x, position_y, position_z = role:GetNodeWorldPosition("foot_r")

    --世界空间中的地面高度
    local groundheight = terrain:GetGroundHeight(position_x,position_z)

    --右脚节点在世界空间中调整至地面
    local strnewpos = nx_string(position_x) .. "," .. nx_string(groundheight+foot_rel_height) .. "," .. nx_string(position_z)

    if (position_y-foot_rel_height) < groundheight or ((position_y-foot_rel_height)-groundheight) > 0.05 then
        --右脚节点低于地面或高于地面0.05米，设置右脚IK参数
        local action_index = get_anim_tree_index(role)

        if action_index >= 0 then
            role:SetAnimTreeValue(action_index, "footrpos", strnewpos)
            role:SetAnimTreeValue(action_index, "foot_ik_weight", foot_ik_weight)
            return true
        end

        return false
    else
        return false
    end
end

function animtree_callback_LRootIK(pawn, role)
    local terrain = get_terrain(pawn)

    if not nx_is_valid(terrain) then
        return false
    end

    local foot_ik_weight = get_foot_ik_weight(role)

    if foot_ik_weight < 0.0 then
        return false
    end

    local obj_pos_x, obj_pos_y, obj_pos_z = role:GetNodeObjectPosition("foot_l")
    local foot_rel_height = obj_pos_y

    local position_x = 0.0
    local position_y = 0.0
    local position_z = 0.0
    position_x, position_y, position_z = role:GetNodeWorldPosition("foot_l")

    local groundheight = terrain:GetGroundHeight(position_x,position_z)
    local strnewpos = nx_string(position_x) .. "," .. nx_string(groundheight+foot_rel_height) .. "," .. nx_string(position_z)

    if (position_y-foot_rel_height) < groundheight or ((position_y-foot_rel_height)-groundheight) > 0.05 then
        local action_index = get_anim_tree_index(role)

        if action_index >= 0 then
            role:SetAnimTreeValue(action_index, "footlpos", strnewpos)
            role:SetAnimTreeValue(action_index, "foot_ik_weight", foot_ik_weight)
            return true
        end

        return false
    else
        return false

    end
end

animtree_event_callback =
{
    ["ShouldUseLayerBlend"] = animtree_callback_ShouldUseLayerBlend,
    ["CalcLeanAngle"] = animtree_callback_CalcLeanAngle,
    ["CalcSlopeAngle"] = animtree_callback_CalcSlopeAngle,
    ["ShouldUseRHand"] = animtree_callback_ShouldUseRHand,
    ["RRootIK"] = animtree_callback_RRootIK,
    ["LRootIK"] = animtree_callback_LRootIK,
    ["GetPlayerWeaponState"] = animtree_callback_GetPlayerWeaponState,
    ["GetPlayerFightState"] = animtree_callback_GetPlayerFightState,
    ["IsPlayerMovingHorizontal"] = animtree_callback_IsPlayerMoving,
}

function on_animtree_event(mesh_comp, action_index, callback_name)
    local callback = animtree_event_callback[callback_name]

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    local callback = transition_event_callback[callback_name]
    if callback then
        return callback(pawn, role)
    end

    return false
end

local function get_current_time_scale(role)
    local curve_id = role:GetCurveIDByNameInSkeleton("slowmo_time_scale")
    --local curve_id = nx_custom(role, "slowmo_time_scale")
    if curve_id < 0 then
        --nx_log("invalid test_curve_id: " .. curve_id)
        return
    end

    local curve_value = role:GetCurveValue(curve_id)
    return curve_value
end

local function begin_bullut_time(pawn)
    if nx_is_valid(pawn) then
        local time_scale = 0.05

        local world = nx_value("world")
        world.GlobalTimeSpeed = time_scale
        pawn.camera_rotated = true
    end
end

local function end_bullut_time(pawn)
    if nx_is_valid(pawn) then
        local world = nx_value("world")
        world.GlobalTimeSpeed = 1
        pawn.camera_rotated = false
    end
end

function on_action_event(mesh_comp, action_name, event_name, frame, info)

    local pawn = mesh_comp.GameObjectOwner
    local role = mesh_comp.VisBase

    if not nx_is_valid(pawn) or not nx_is_valid(role) then
        return false
    end

    if event_name == "JumpOver" then

        pawn.JumpAgainLock = true

    elseif event_name == "JumpLand" then

        pawn.JumpAgainLock = false

    elseif event_name == "AttackHit" then
        local terrain = nx_value("terrain")
        local npc_story = nx_value("npc_story")

        if nx_is_valid(terrain) then
            local visual_table = terrain:GetRangeVisualList(role.PositionX, role.PositionZ, 2.0)
            for k,v in pairs(visual_table) do
                if nx_string(npc_story) == nx_string(v) then
                    npc_story.be_hurted = true
                end
            end
        end
    elseif event_name == "Melee_Start" then

        begin_bullut_time(pawn)

    elseif event_name == "Melee_End" then

        end_bullut_time(pawn)

    else
        --nx_log("event_name = " .. event_name)
    end

    if event_name == "TRIGGER_ACTION_END" then
        local movement_comp = pawn.CharacterMovement
        --if movement_comp.MovementMode == nx_enum("MOVEMENT_MODE::Flying") then
            local movement_mode = nx_enum("MOVEMENT_MODE::Walking")
            movement_comp:SetMovementModeWithCustom(movement_mode, 0)
        --end
    end
end

function anim_callee_init(mesh_comp)
    nx_callback(mesh_comp, "on_transition_event", "on_transition_event")
    nx_callback(mesh_comp, "on_animtree_event", "on_animtree_event")
    nx_callback(mesh_comp, "on_action_event", "on_action_event")
    nx_callback(mesh_comp, "on_state_machine_state_event", "on_state_machine_state_event")
end

---------------------
--默认回调--
---------------------

--用于初始化
function on_begin_play(component)
    local owner = component.GameObjectOwner

    if nx_is_valid(owner) then
        local mesh_comp = owner.MeshComponent

        if nx_is_valid(mesh_comp) then
            mesh_comp.ActorCalleeType = "CComponentActorCalleeScript"
            nx_bind_script(mesh_comp, nx_current(), "anim_callee_init")
        end
    end
end

--用于发布
function on_end_play(component)
end

scene_utils.lua

--场景utils脚本

function scene_get_engine_terrain(lscene)
    local level = lscene.PersistentLevel

    if nx_is_valid(level) then
        local lterrain = level:GetGameObjectByType("fx_component_terrain.LTerrain")

        if nx_is_valid(lterrain) then
            return lterrain.EngineTerrain
        end
    end

    return nx_null()
end

运行

点击运行按钮即可查看效果。
