Scene Streaming

Overview

Scene Streaming, also known as Scene Object Streaming, refers to considering a single Game Object as an object, loading and unloading it according to certain rules. Scene Object Streaming can reduce the conflict probability when multiple people develop the same scene, and improve the efficiency of scene development.

The old scene format will save all scene objects. Once a scene object is modified, the entire scene file will be affected for the conflict granularity is all objects in the entire scene. The scene file of the streaming scene will not save the scene object and its loading is determined by the extensible streaming rules. Each streaming object corresponds to a file, reducing the conflict granularity down to the level of a single scene object. Projects can inherit the scene streaming base class to customize scene streaming rules.

Enabling Scene Streaming

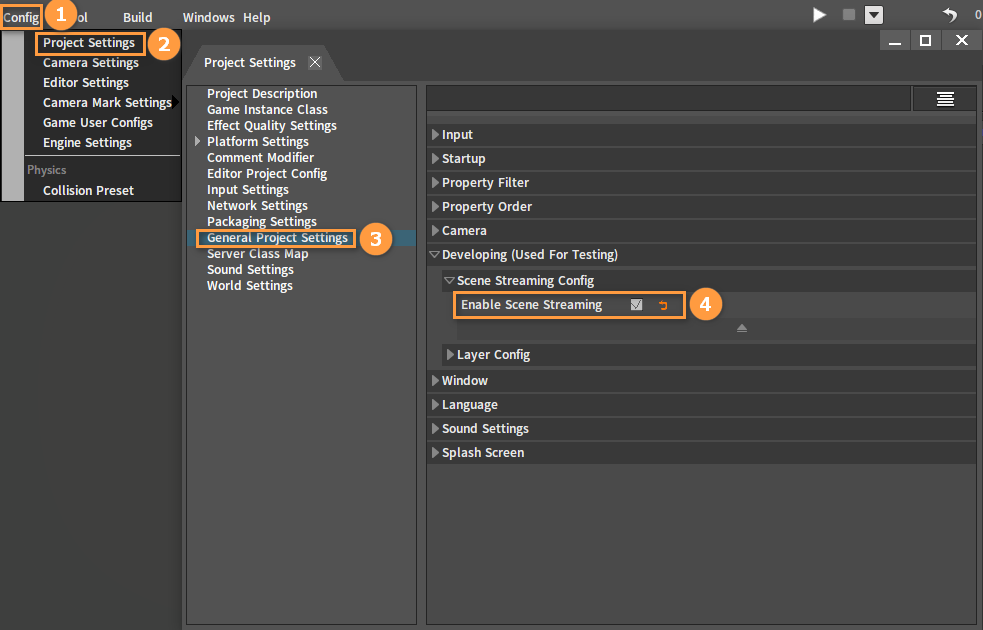

Click Config (Menu Bar) -> Project Settings to open the Project Settings window. Select the General Project Settings tab to display the right panel. Check Enable Scene Streaming under the Scene Streaming Config property.

Creating Empty Levels

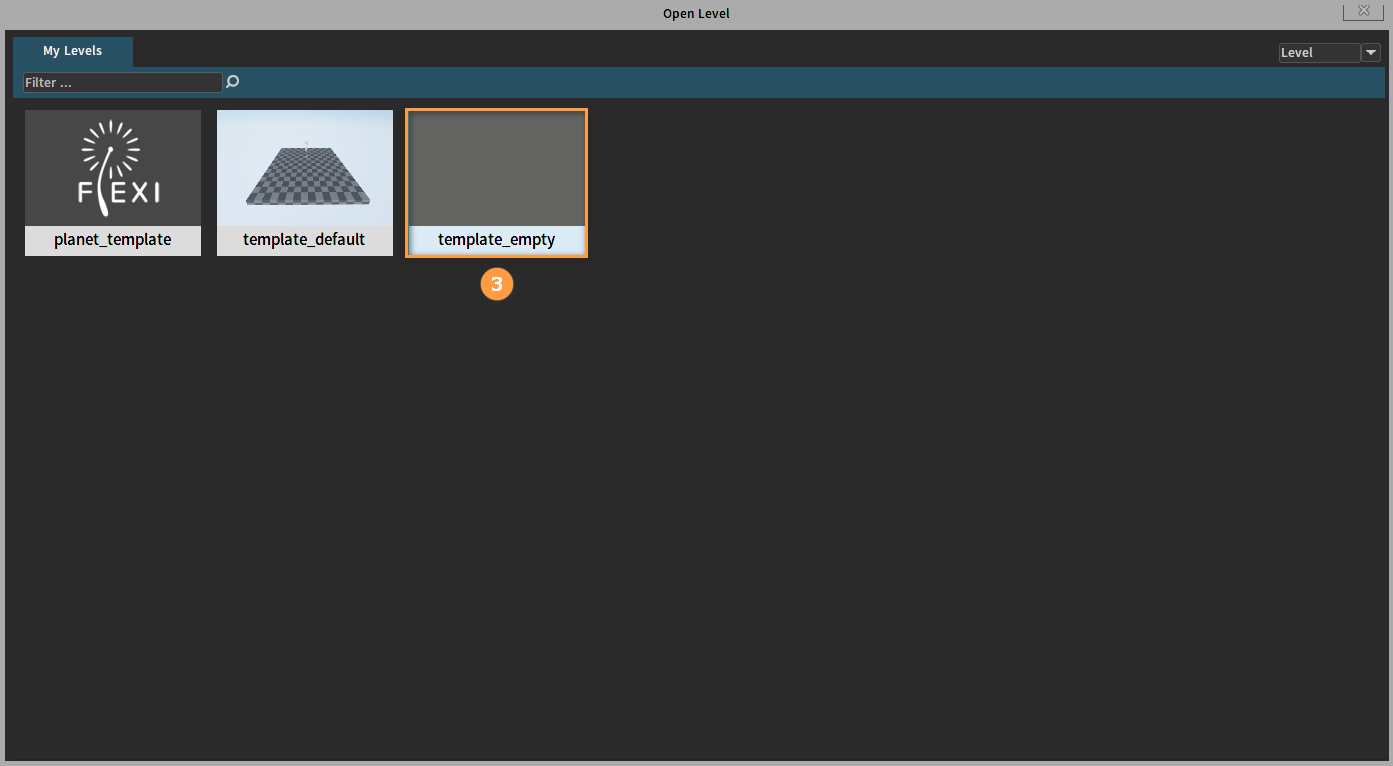

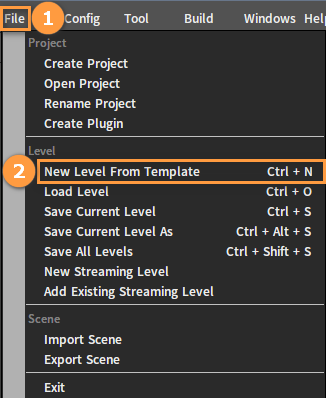

Create an empty level that supports Scene Streaming. Click File (Menu Bar) -> New Level From Template to pop up the Open Level window. Select a template level and double-click to create.

Scene Streaming Configs

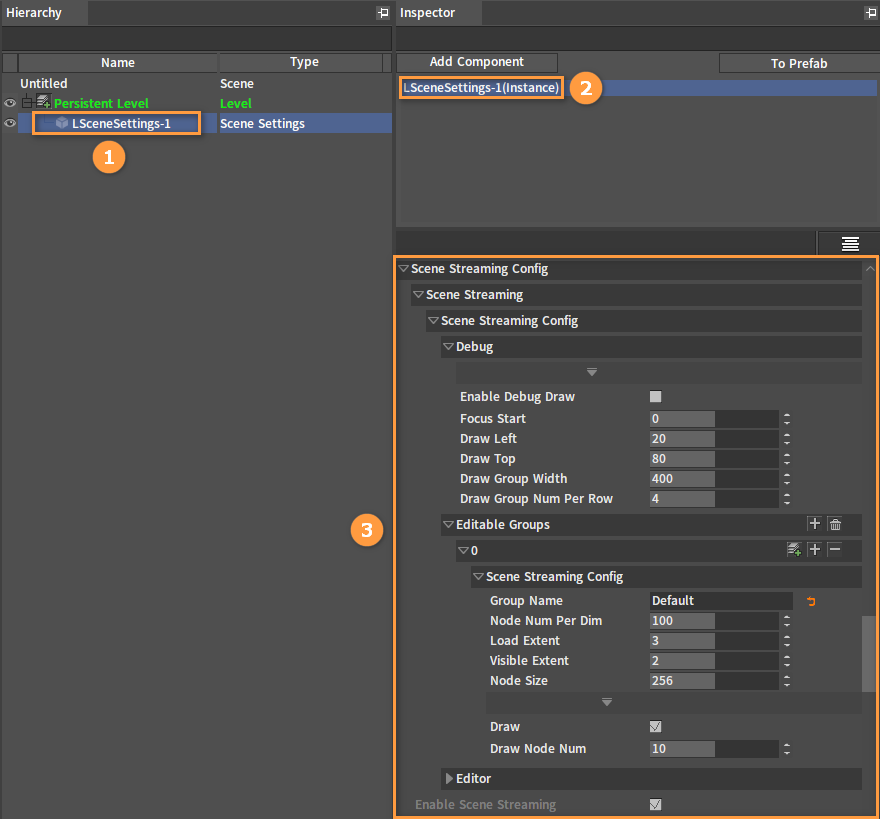

Select LSceneSettings-1 and LSceneSettings-1(Instance) in the Hierarchy panel and Inspector panel respectively. Then the related property parameters can be set under Scene Streaming Config.

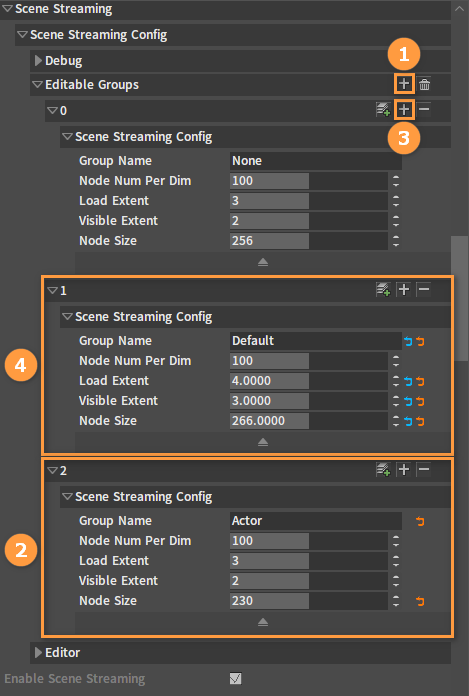

Click the button on the right side of Editable Groups to add a new group at the end of all existing groups. Click the button on the right side of the group number to insert a new group below the corresponding group.

Property	Description
Enable Debug Draw	Whether to draw auxiliary lines for debugging.
Focus Start	Focused streaming source start index.
Draw Left	Auxiliary line left offset in the screen space.
Draw Top	Auxiliary line top offset in the screen space.
Draw Group Width	Auxiliary line group width.
Draw Group Num Per Row	Number of groups per row.
Group Name	Name of the group.
Node Num Per Dim	Number of nodes per dimension.
Load Extent	Load range (LoadNum=2*LoadExtent+1).
Visible Extent	Visible extent (VisibleNum=2*VisibleExtent+1).
Node Size	Size of the node.
Draw	Whether the group needs to be drawn (for debugging).
Draw Node Num	Number of nodes to draw (for debugging).
Enable Scene Streaming	Whether to enable scene streaming.

Scene Object Scene Streaming Configs

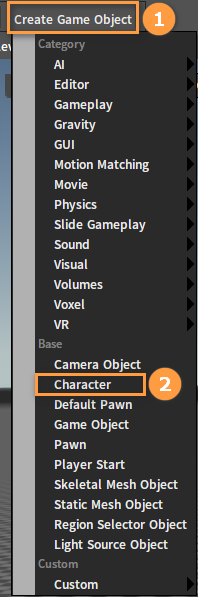

Click Create Game Object -> Character to create scene objects.

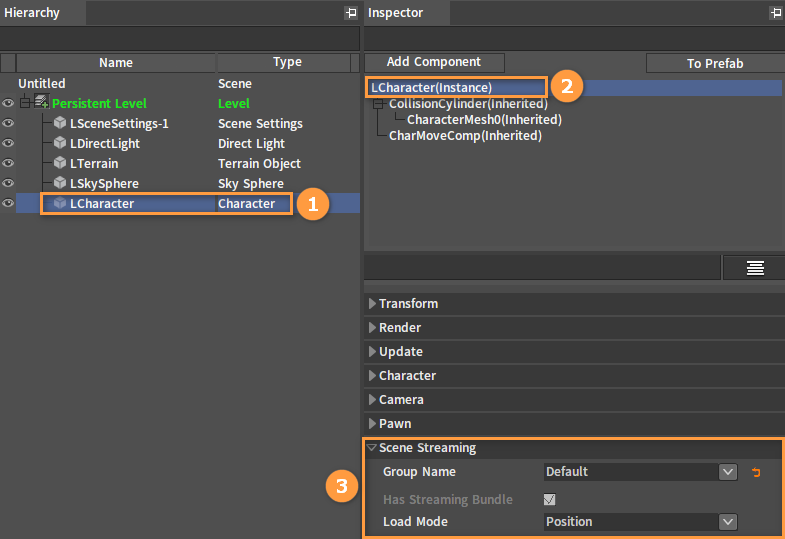

Select LCharacter and LCharacter(Instance) in the Hierarchy panel and Inspector panel respectively. Then the related properties can be set under Scene Streaming.

Property	Description
Group Name	Group name. If there is a matching group name, it will be loaded according to the group strategy.
Has Streaming Bundle	Whether to enable streaming bundle.
Load Mode	Including Position and Always Load modes. The former is affected by the specified group name strategy; the latter is not affected by the streaming group strategy.
