Effect Quality

Overview​

Effects determine the quality of visual effects and lighting in the game. Effect Quality Editing can be used to set the quality of visual effects, so that players can better experience the game atmosphere. However, it should be noted that the higher the quality of the effect set, the lower the performance may be.

Project Preset Config Files​

Effect Quality Config Files​

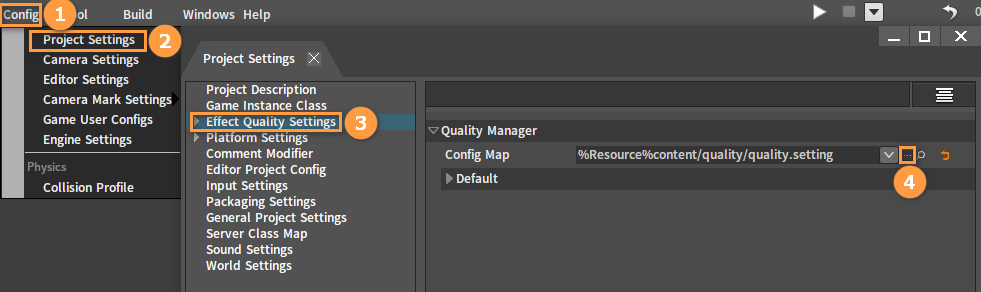

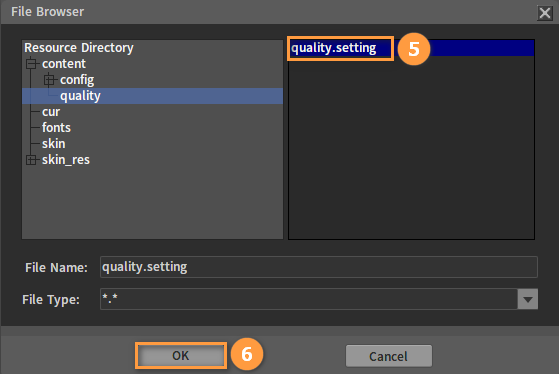

Click Config (Menu Bar) -> Project Settings to open the Project Settings window. Select the Effect Quality Settings tab, and the right panel will be shown. Click the 2023-01-29_104917 button on the right side of the Config Map property to open the File Browser window, select the target config file, and click OK.

2023-01-29_102445

2023-01-29_102937

Multiple Effect Configs​

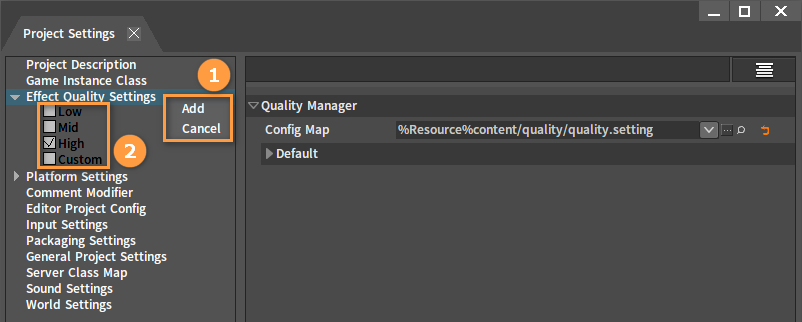

Right-click the Effect Quality Settings tab to add config or cancel the currently selected preset effect in the Project Settings window. Double-click to check different config names to apply the corresponding preset effects.

2023-01-29_114328

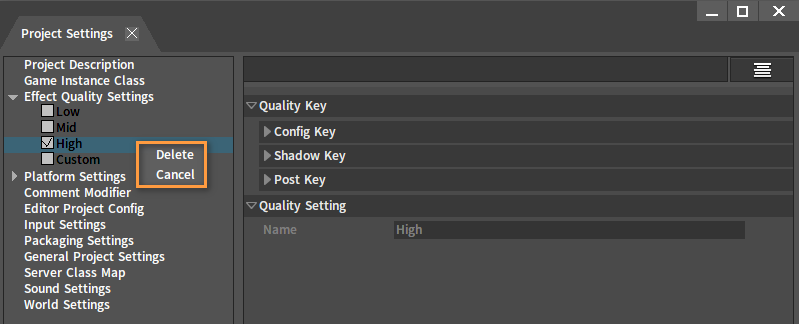

Click different config names to view the corresponding config details. Right-click on the config name to delete the config or cancel the currently selected preset effect.

2023-01-29_114634

Global Default Effect Configs​

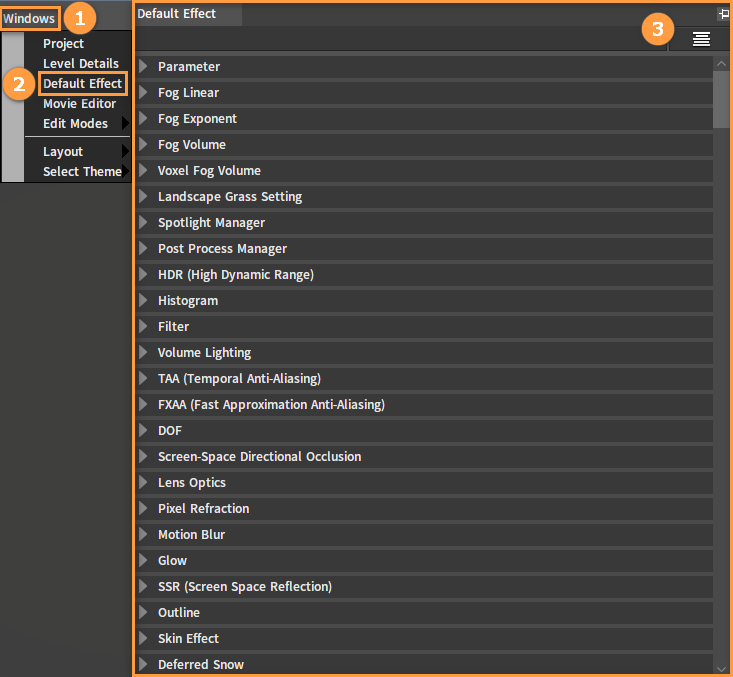

Click Windows -> Default Effect to open the Default Effect window where various global effects can be edited.

2023-01-29_134303

Effect Quality Volume Objects​

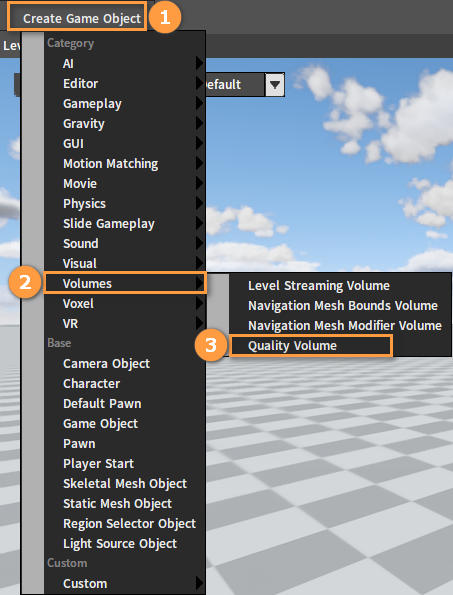

Click Create Game Object -> Volumes -> Quality Volume to open the Select Template window.

2023-02-01_160116

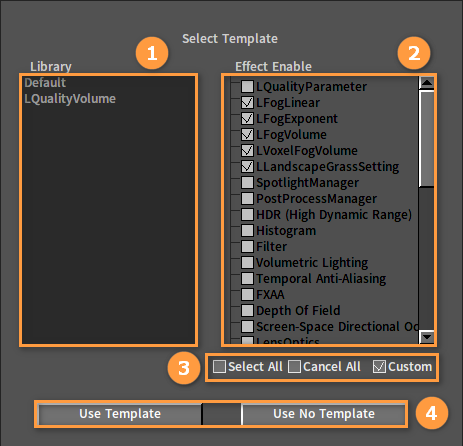

Select a Quality Volume Object template in the Library panel on the left. Click the effect as needed to enable under Enable Effect on the right to customize effects. You can also use the shortcut options Select All and Cancel All below to select and cancel all effects with just one click (Note: Cancel All is selected by default here. When you click to select an effect under Effect Enable, the system will automatically jump to check the Custom option). Finally, click the Use Template button to create a new Quality Volume Object and use the object data from the selected template; or click the Use No Template button to create, it will use the default values rather than the object data in the template.

2023-02-01_160927

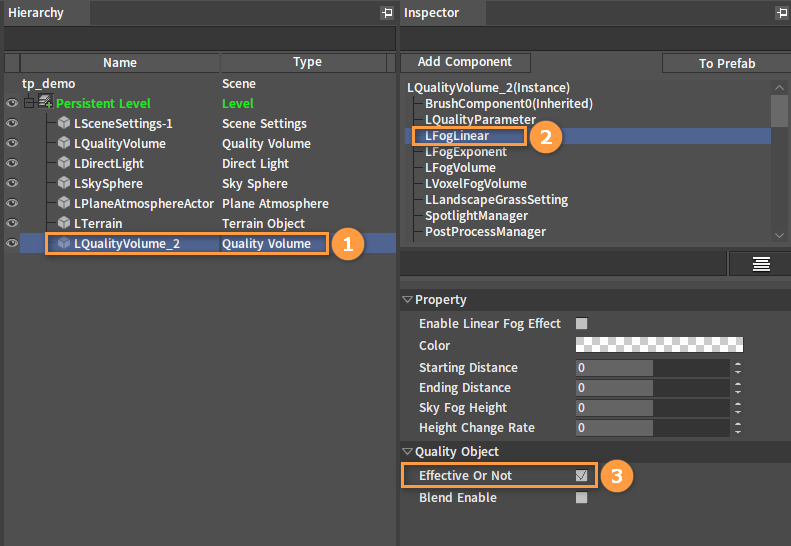

Click the created Quality Volume Object in the Hierarchy panel, and select LFogLinear in the Inspector panel. You can see that the effect checked during creation is currently enabled. If unchecked, it is disabled by default. Other properties can also be edited under Property.

2023-02-01_164459

Note: The processing order of Effect Quality Editing is that the preset config replaces the global config, and the Effect Quality Volume Objects take precedence over the global config.
