Overview

Picture control is to save images. Assign the image's path to the control and it will show the corresponding image.

Properties

Property	Description
Image	Display the corresponding image after filling its path.
Auto Size	Display the image in its original resolution without scaling.
Hint Text	Display the hint text when the mouse is hovering over the control.

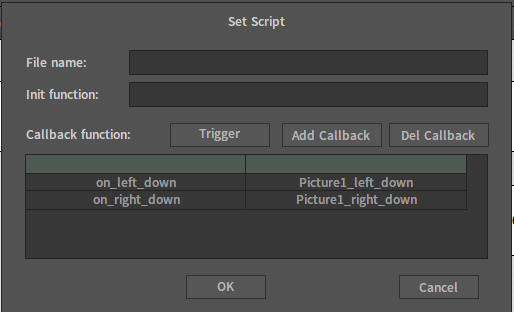

Events

Callback Name	Callback Function
on_left_down	The callback when the left mouse button is pressed.
on_left_up	The callback when the left mouse button is released.
on_double_click	The callback when the left mouse button is double-clicked.

Lua Script Example

self.Text = "Edit"
self.Image = nx_widestr(".\\picture.png")

function on_double_click(self)
    local str=nx_string(self.Image)
    nx_msgbox(str)
end
