Grid

Overview

Grid control allows users to add columns, rows and texts to a table.

• Gird

Properties

Property	Description
Col Count/Row Count	Set the column count and row count of the current control.
Row Header Visible/Col Header Visible	Whether the row header or column header is visible.
Set Grid Text (int row, int col, wstring text)	Set the texts within the grid.

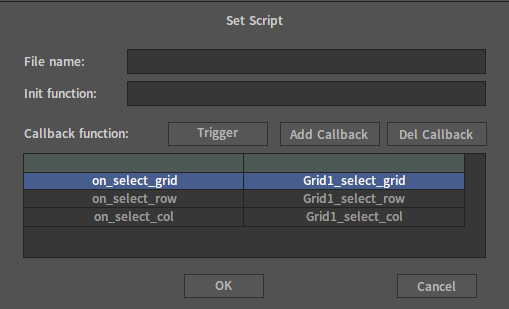

Events

Callback Name	Callback Function
on_select_grid	The callback after left-clicking a cell.
on_select_row	The callback after selecting a row.
on_select_col	The callback after selecting a column.

Lua Script Example

self.RowHeaderVisible = true
self.ColHeaderVisible = true
self.ColCount = 6
self.RowCount = 6
self:SetRowTitle(0, nx_widestr("1"))
self:SetRowTitle(1, nx_widestr("2"))
self:SetColTitle(0, nx_widestr("1"))
self:SetColTitle(1, nx_widestr("2"))
self:SetGridText(0, 0, nx_widestr("Text"))

--  When a cell is left-clicked, the callback function Grid_select_grid will be executed.
function Grid_select_grid(self)
    nx_msgbox("Grid_select_grid")
end
