The Animation Control

Overview

The Animation control can be used to implement the 2D UI animation. To specify the animation played by the control, fill in the animation path in the properties of the control.

Configuring an Animation

To use an animation in the UI Editor, you need to configure the needed animation in the Sequence Frame Animation Editor in advance. Refer to Sequence Frame Animation Editor for the detailed method of configuring an animation.

Creating an Animation Control

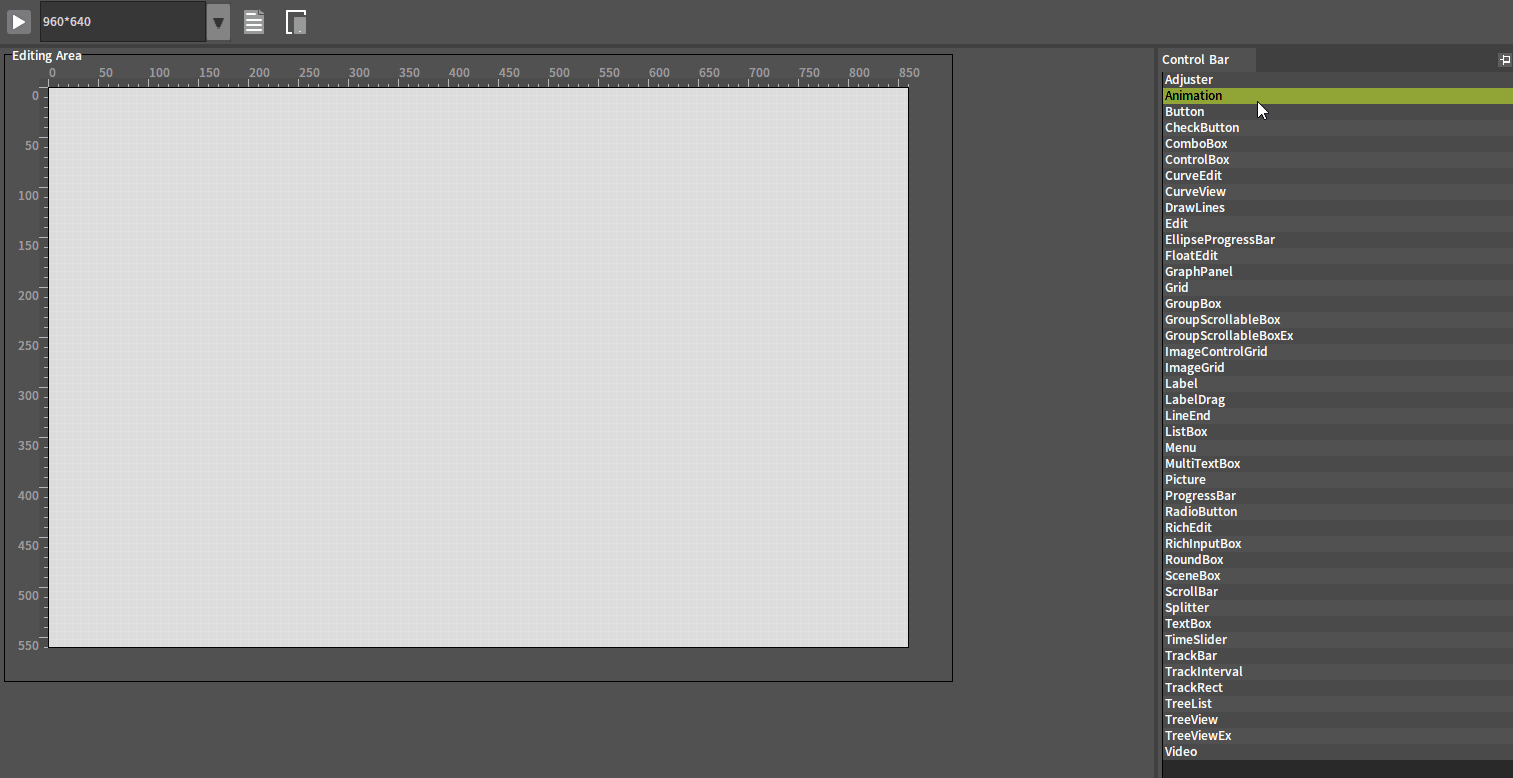

Open the UI file that needs creating an animation in the Editor. Select Animation in the Control Bar panel, and then click on the blank space in the Editing Area to add an Animation control.

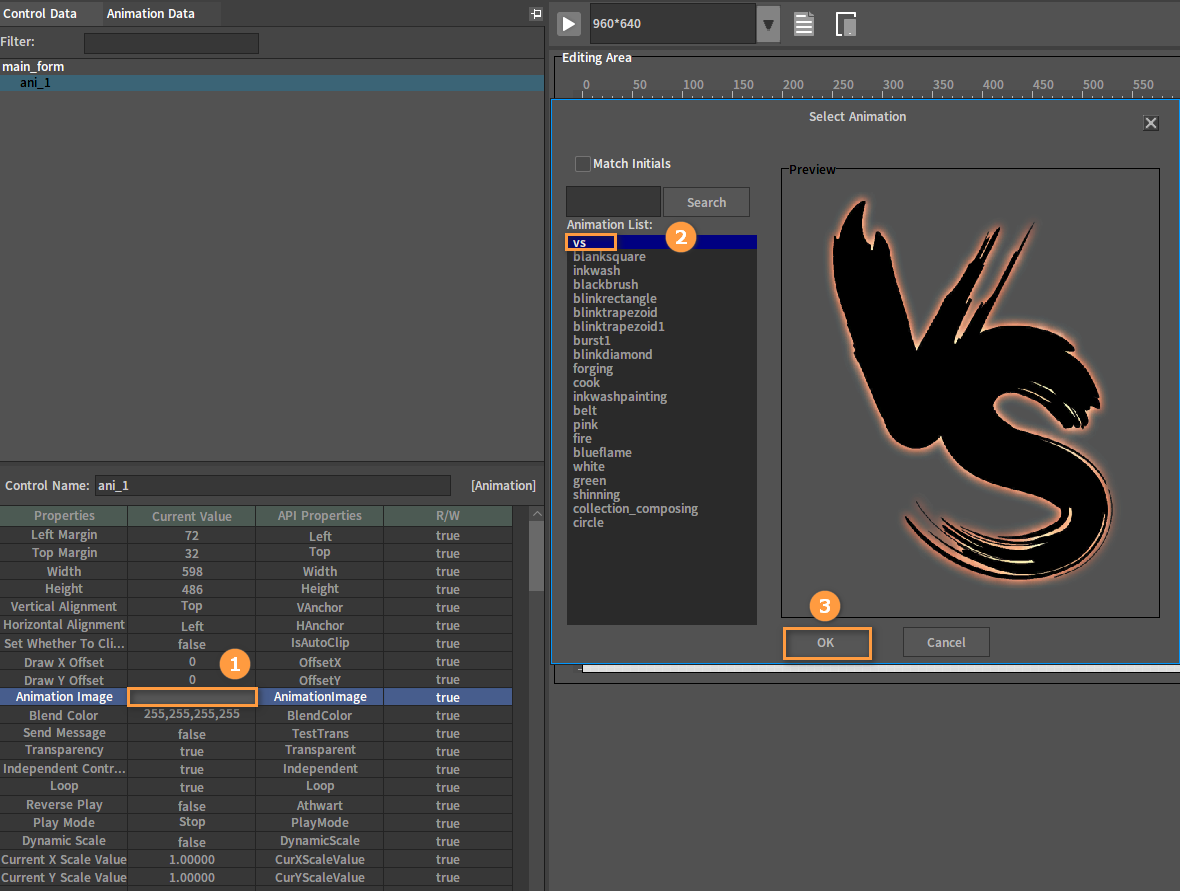

In the bottom left control Properties panel, click Current Value of the Animation Image property, then select an animation in the Animation List of the pop-up Select Animation window, and click the OK button to finish adding.

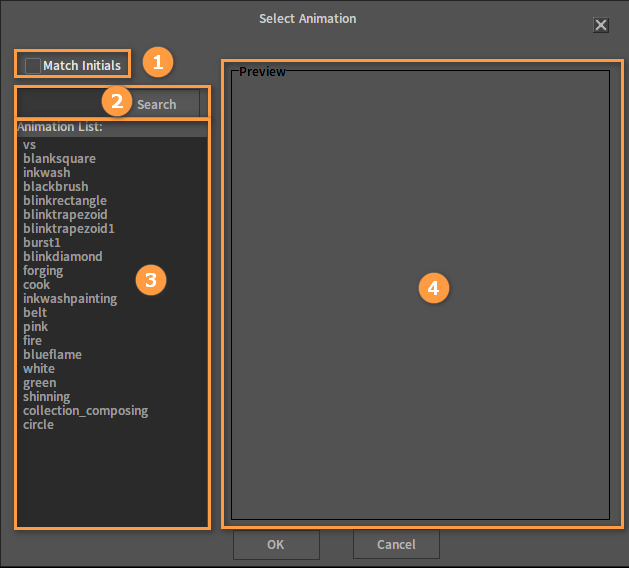

The Select Animation Window

No.	Name	Description
1	Match Initials	When enabled, it will search for animations by name in strict alphabetical order. If not enabled, all animations whose names contain the input content will be retrieved.
2	Search Bar	Quickly find the corresponding animation by name in the Animation List.
3	Animation List	The configured animations in the Editor.
4	Preview	The animation preview interface, which allows you to preview the animation selected in the Animation List.

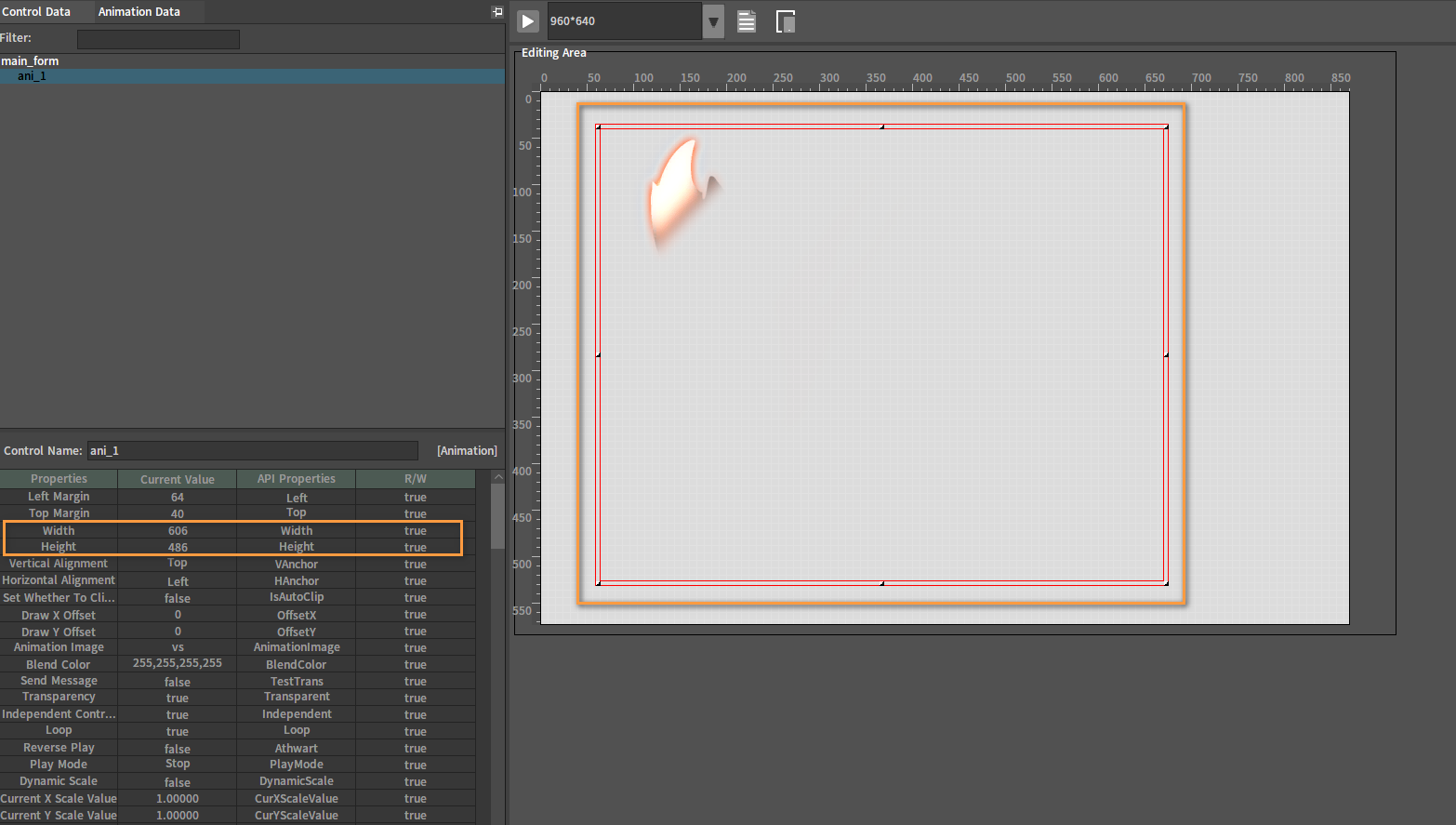

After adding the animation, you can adjust the size of the Animation control in the Editing Area or modify it in the Width and Height of the Properties panel.

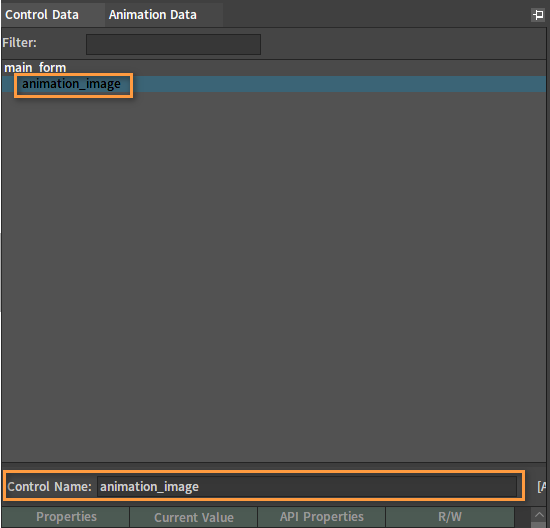

The name of the control can be modified in Control Name.

Properties

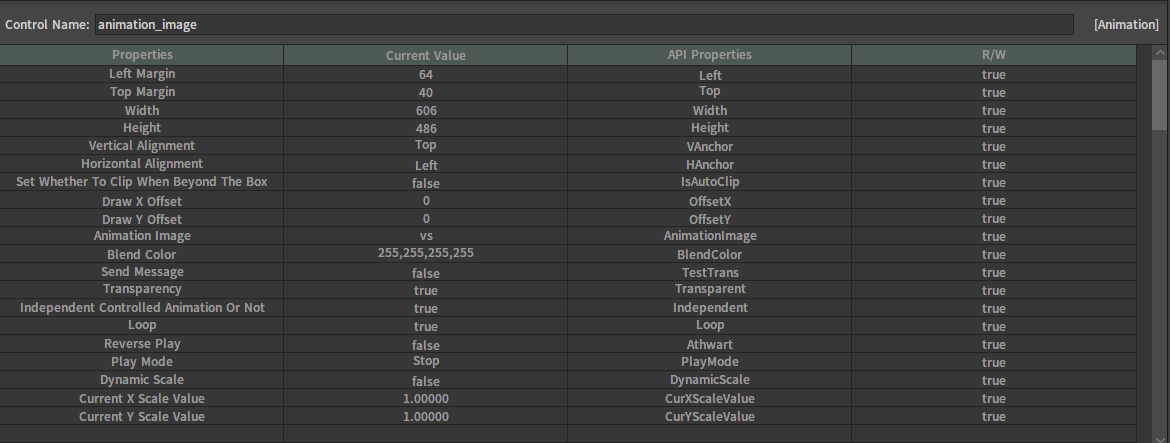

The following are properties of the Animation control:

Property	Description
Left Margin	Distance from the left of the control to the parent control.
Top Margin	Distance from the top of the control to the parent control.
Width	Width of the control.
Height	Height of the control.
Vertical Alignment	The way in which the Top Margin of the control is calculated in the vertical direction. Top: The current Top Margin is the distance from the top of the parent control to that of the control. Center: The current Top Margin is the distance from the center of the parent control to the top of the control. Bottom: The current Top Margin is the distance from the bottom of the parent control to the top of the control. Stretch: The distance from the top of the control to that of the parent control is always kept as the currently set Top Margin. And when the parent control is scaled vertically, the control will be scaled vertically accordingly. Custom: No effect on the Animation control. Auto: The distance to the Top Margin of the parent control depends on the parent control, and the ratio of the control's height to the parent control's remains unchanged.
Horizontal Alignment	The way in which the Left Margin of the control is calculated in the horizontal direction. Left: The current Left Margin is the distance from the left of the parent control to that of the control. Center: The current Left Margin is the distance from the center of the parent control to the left of the control. Right: The current Left Margin is the distance from the right of the parent control to the left of the control. Stretch: The distance from the left of the control to that of the parent control is always kept as the currently set Left Margin. And when the parent control is scaled horizontally, the control will be scaled horizontally accordingly. Custom: No effect on the Animation control. Auto: The distance to the Left Margin of the parent control depends on the parent control, and the ratio of the control's width to the parent control's remains unchanged.
Set Whether To Clip When Beyond The Box	Used to control whether to clip the excess part of the animation when its size exceeds that of the current window (note that it is not the size of the Animation control).
Draw X Offset	The horizontal offset of the animation drawn by the Animation control.
Draw Y Offset	The vertical offset of the animation drawn by the Animation control.
Animation Image	Used to select the animation to be played by the current Animation control.
Blend Color	Used to control the color of the animation in the control (only Transparency is valid for now)
Send Message	Used to control whether an event (such as click) can penetrate the current control and pass to the control below when multiple controls overlap.
Transparency	Same as above, as long as one of these two properties is valid, the penetration can happen.
Independent Controlled Animation Or Not	Used to control whether the animation in the control is an independently controlled animation. If false, the playback will be controlled by the Animation Editor and some of the properties will be invalid.
Loop	Used to control whether the animation loops.
Reverse Play	Used to control whether the animation is played in reverse order.
Play Mode	Used to control the Play/Pause/Stop of the animation
Dynamic Scale	Used to control whether the animation is auto-scaled according to the control's size. If true, the animation will be auto-scaled according to the Animation control's size, and the animation's size will not exceed the control's.
Current X Scale Value	Scaling of the current animation in the horizontal direction (read-only).
Current Y Scale Value	Scaling of the current animation in the vertical direction (read-only).

Playing an Animation

A configured Animation control does not play the animation automatically by default. There are two ways to play a configured animation in the level:

Playing Automatically

The effect of playing the animation automatically can be achieved by modifying the Play Mode property.

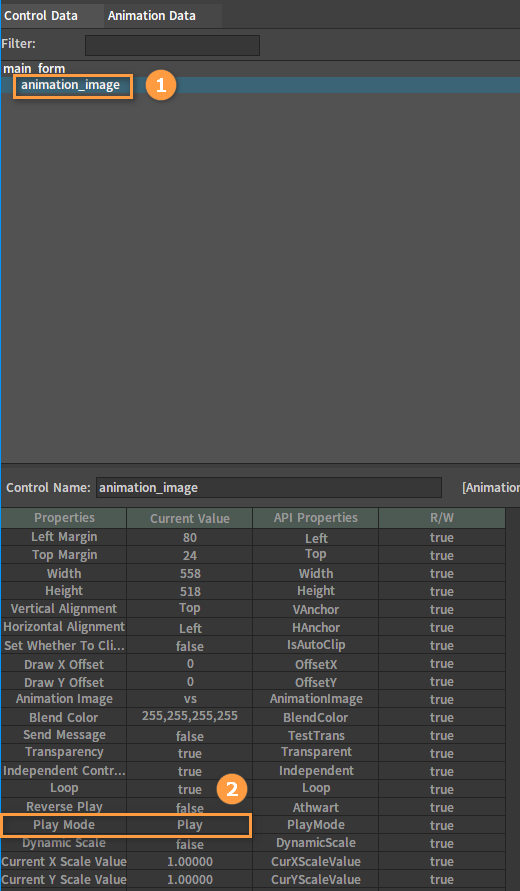

Select the Animation control, modify the Current Value of the Play Mode property to Play, and the animation will play automatically in the UI Editor as well as when you enter the level.

Playing Manually

Control the animation playback by script to achieve the effect of playing the animation manually.

The Play Mode property can only play the animation once or loop it when you enter the level, but if you want to custom play the animation at any point or timeline, you need the script to control the playback of the animation.

Here is the demo below:

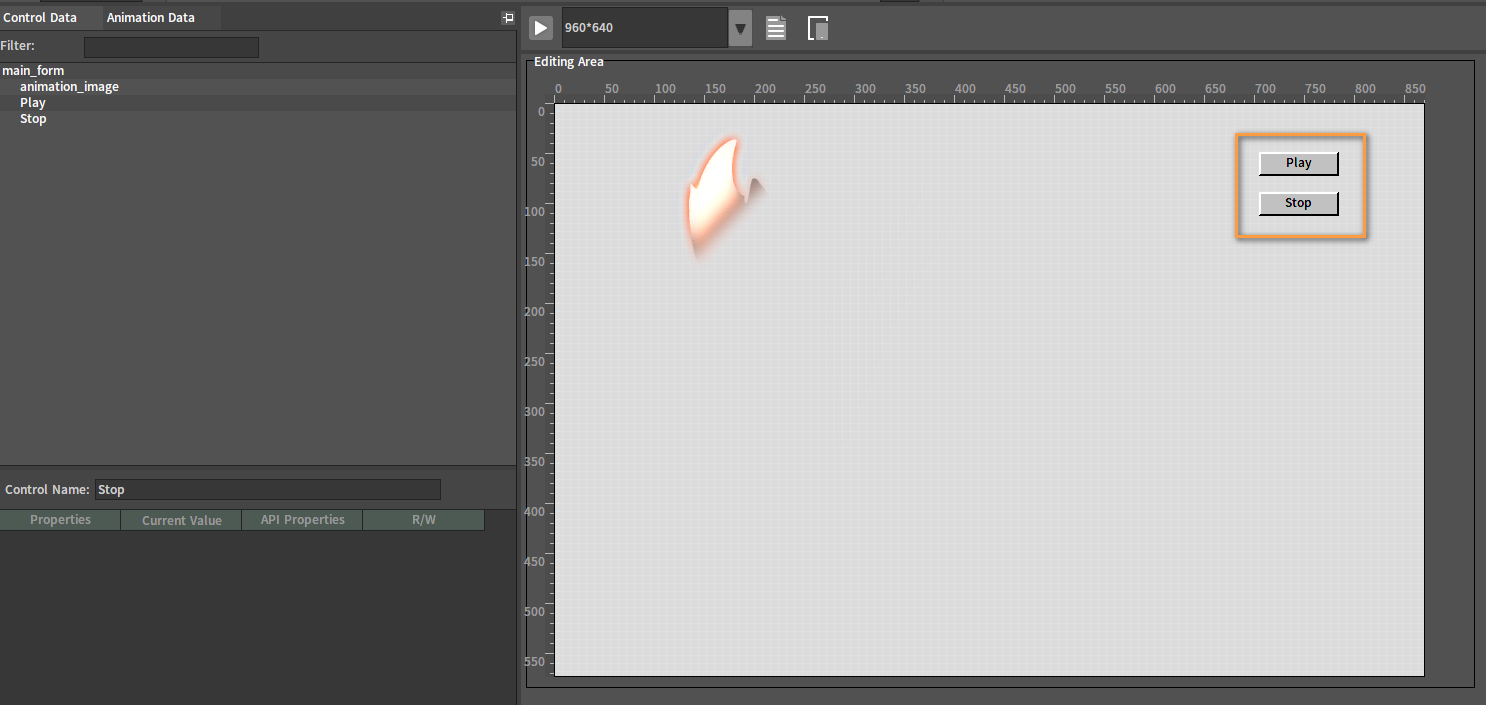

Add two Button controls to the Editing Area to control the Play and Stop of the animation.

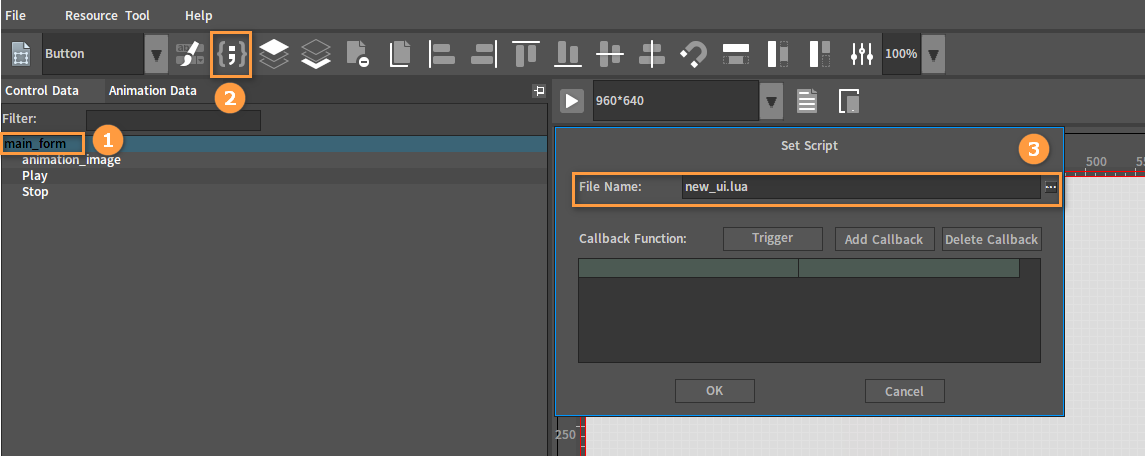

Select main_form, click the button, and select a [script](#The Script File) in the File Name to bind.

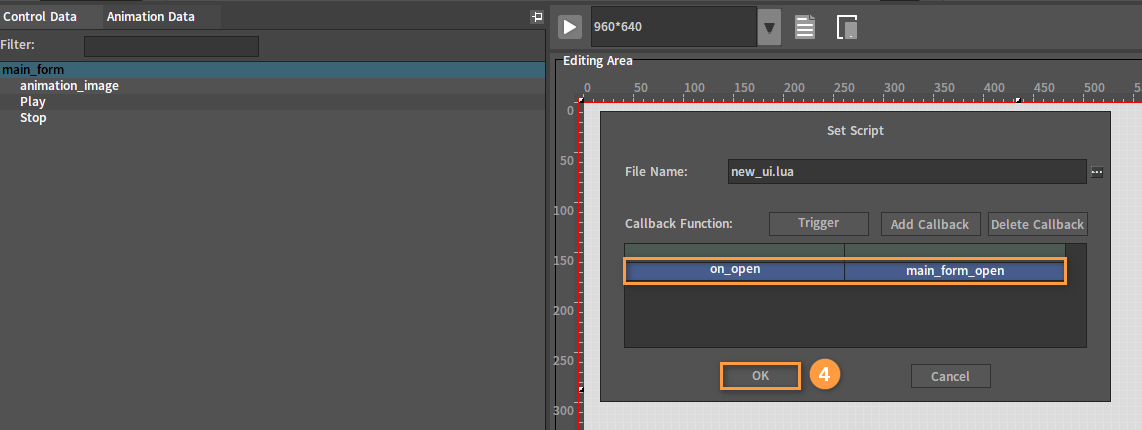

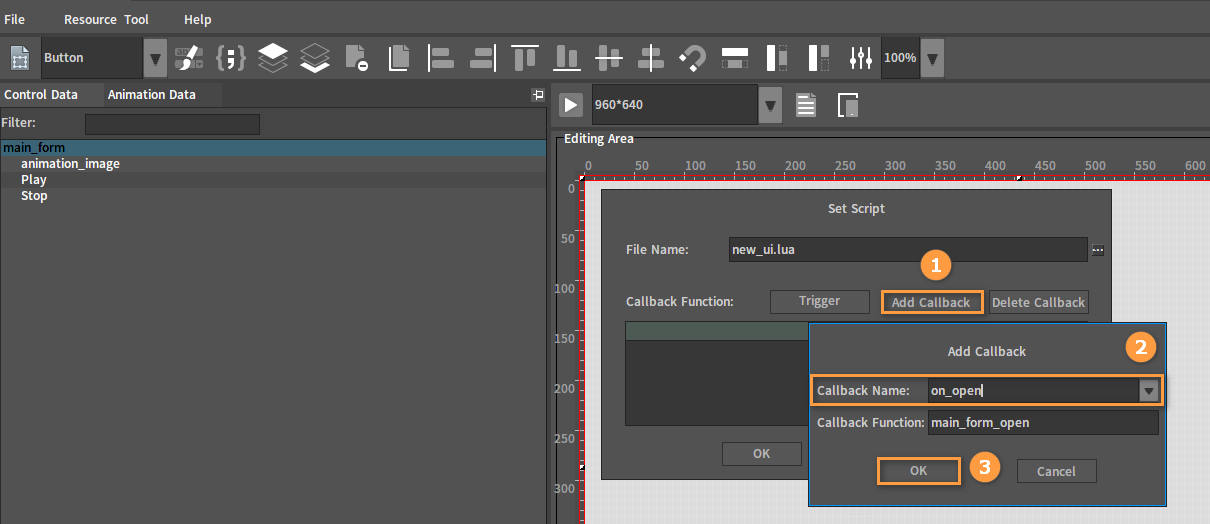

Continue to add a callback to main_form. Click the Add Callback button in the Set Script window, select on_open in the Callback Name drop-down box, click the OK button to finish adding, and then click the OK button in the Set Script window to finish setting.

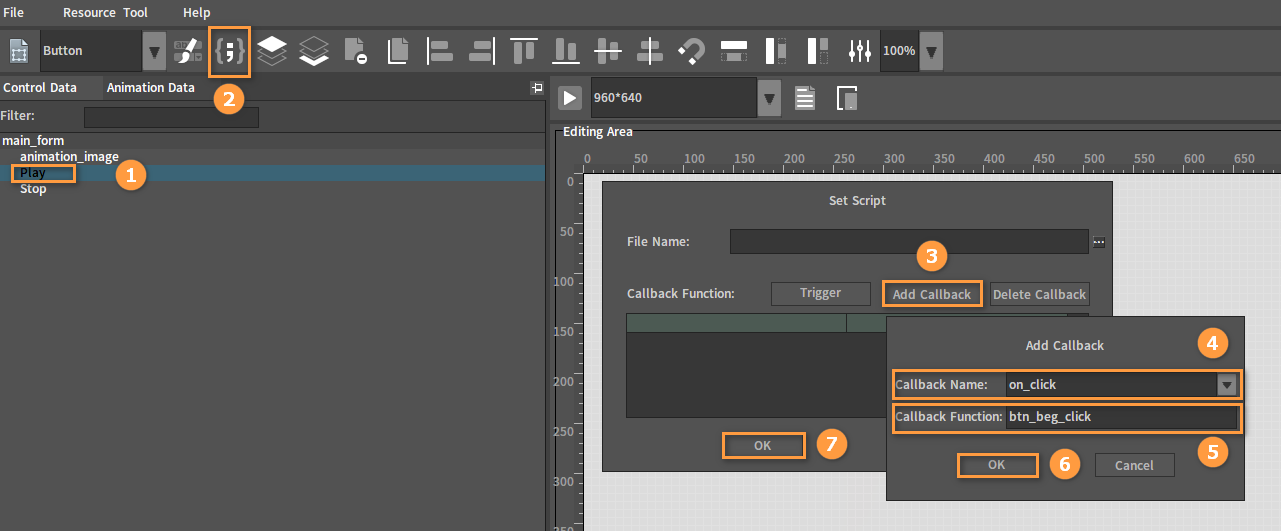

Select the Play Button control and add an on_click callback to it in the way described above. The event name can be modified to btn_beg_click (can be customized) in Callback Function.

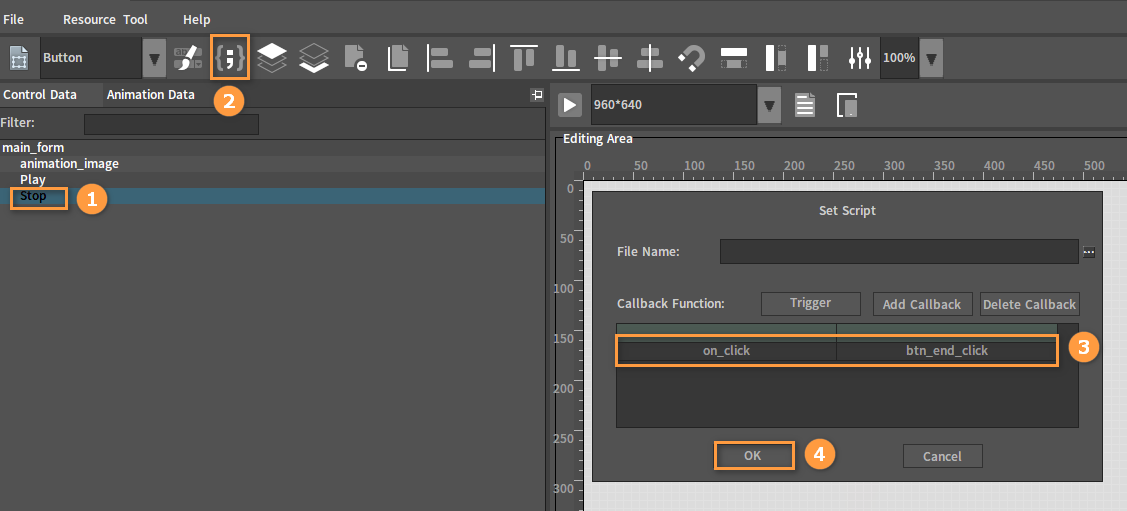

Similarly, add an on_click callback for the Button control Stop. You can modify the event name to btn_end_click (can be set by yourself) in Callback Function .

The Script File

The script file new_ui.lua that is bound to main_form:

function main_form_open(self)
    -- Bind an animation named vs to the Animation control.
    self.animation_image.AnimationImage = "vs"

    --Loop the animation, and it will only play once when the value is false.
    self.animation_image.Loop = true

    --Scale the animation dynamically.
    self.animation_image.DynamicScale = true

    --Reverse play the animation.
    self.animation_image.Athwart = true
end

function btn_beg_click(self)
    -- Play the animation.
    local form = self.ParentForm
    form.animation_image:Play()
end

function btn_end_click(self)
    --Stop the animation.
    local form = self.ParentForm
    form.animation_image:Stop()
end

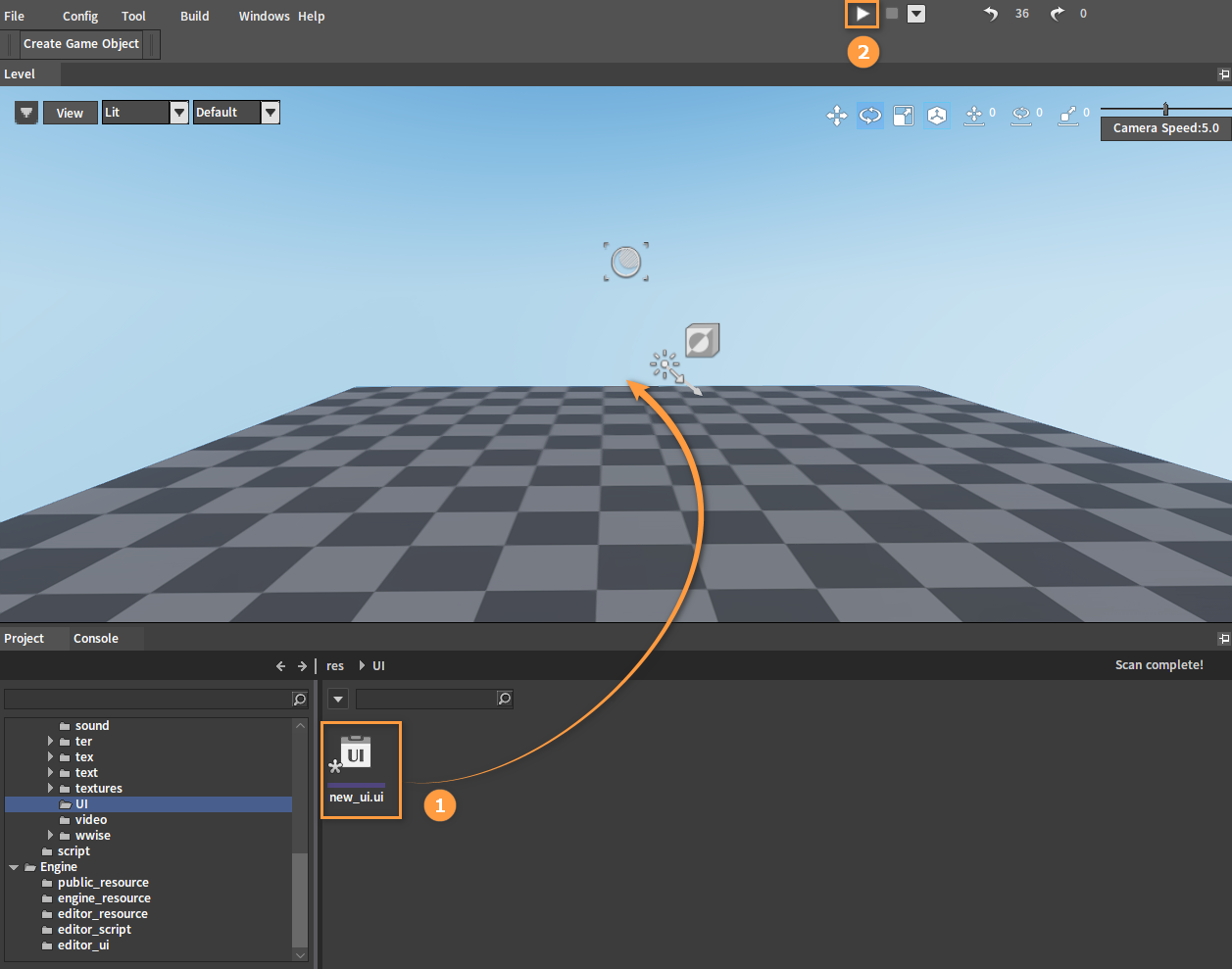

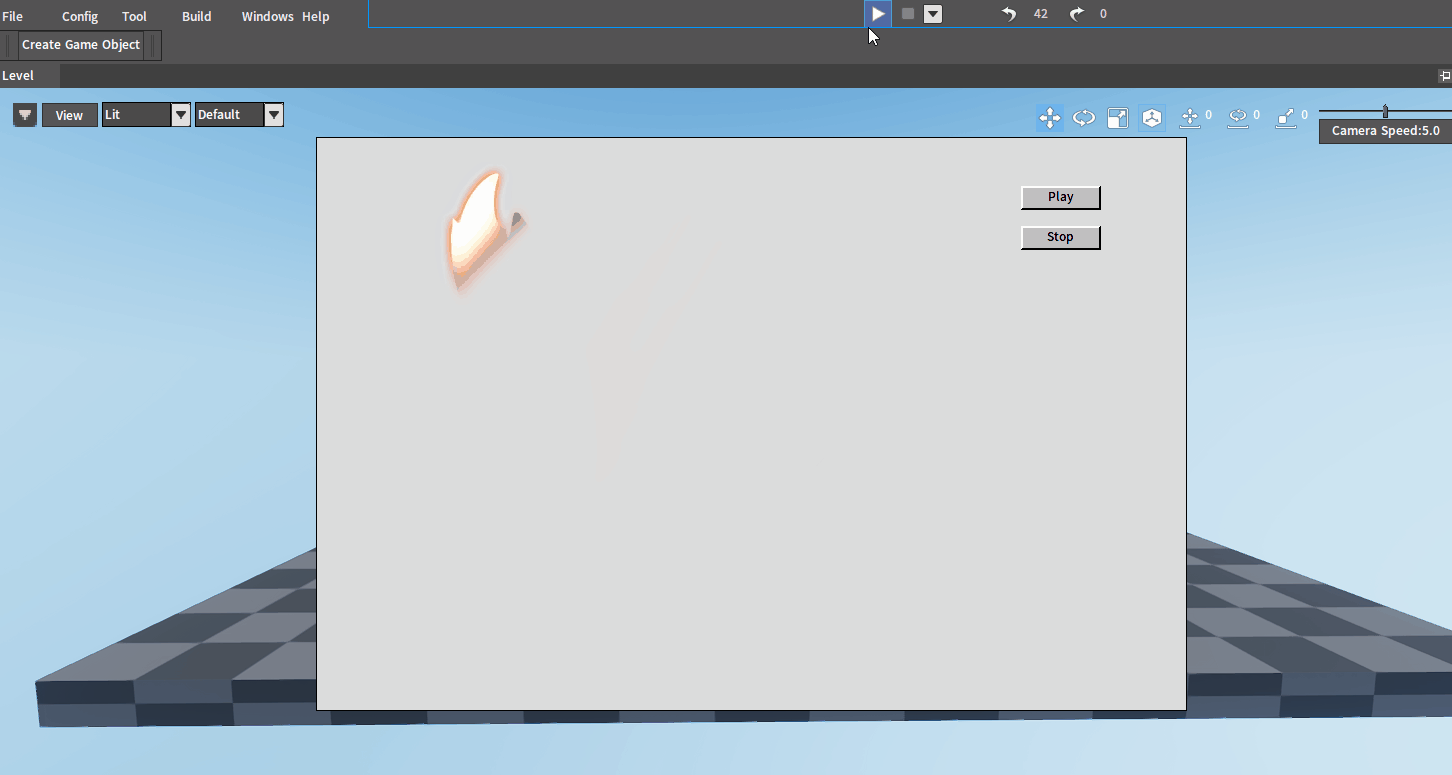

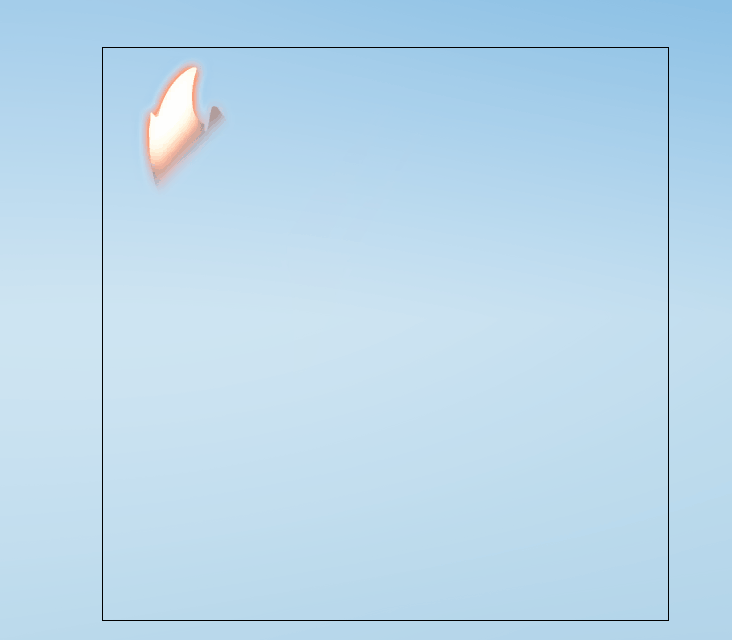

Drag the UI file into the level and click the Play In Editor button to see the effect.
