Check Button

Check Button allows users to select any number of options from the same set of buttons.

When the user selects a Check Button, all the rest Check Buttons in the same set can be selected at the same time.

• Check Button

Properties

Property	Description
Checked	Whether the current control is checked.
Click Event	Whether the current control triggers a click event.
Hint Text	Display the hint text while mouse hovering over the control.

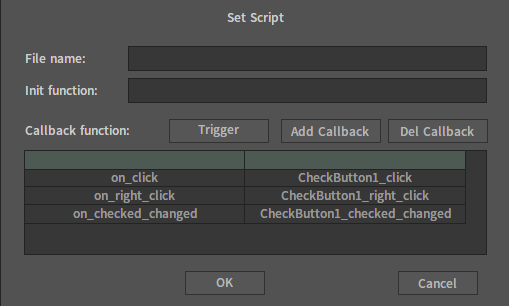

Events

Callback Name	Callback Function
on_click	The callback of left-click.
on_right_click	The callback of right-click.
on_checked_changed	The callback of the changed checked state of the control.

Lua Script Example

self.Checked = true
self.ClickEvent = true
self.HintText = nx_widestr("CheckButton")

--  When the button state changed after left-clicking, the callback function of the on_checked_changed will be executed
function CheckButton_checked_changed(self)
    nx_msgbox("CheckButton_checked_changed")
end
