Project Settings

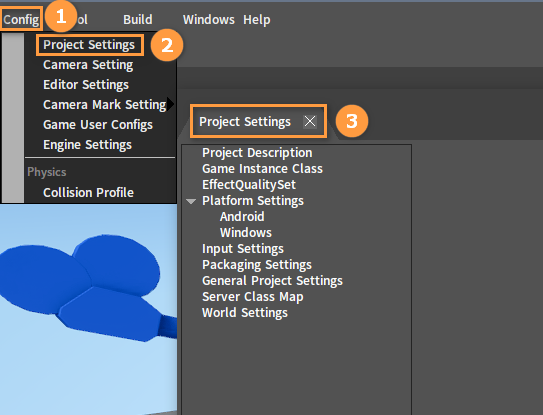

Click Config -> Project Settings to open the Project Settings window.

All types inherited from LProjectSettingsBase are listed here.

C++ Loading Method: LWorld::GetProjectSettings

Lua Loading Method: LWorld::GetProjectSetting

The relevant config will be stored in the [project_path]/res/content/config/[module_name]/[class_name].setting file after closing the editing window. Config classes marked with the "Preload" meta will be preloaded when starting the Editor or game.

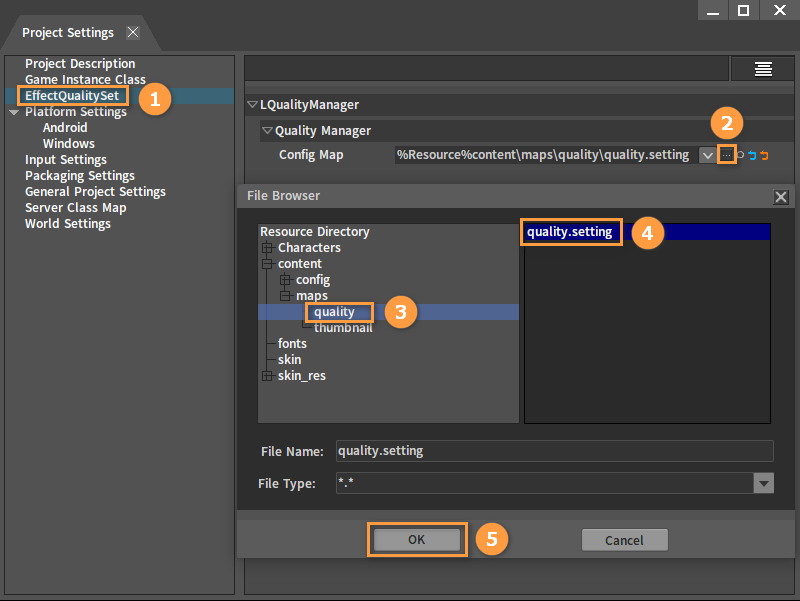

Effect Quality Config Files

①Click EffectQualitySet tab

②Select the button next to the select box of the Config Map

③Select the folder as needed in the File Browser window

④⑤Select the target config file

⑥Click OK to complete

Multi-Effect Config Presets

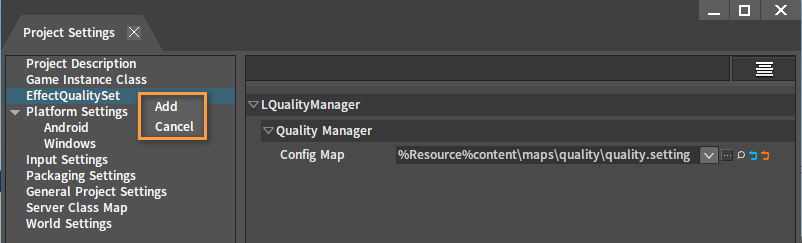

Right-click on the EffectQualitySet tab to add a new config or cancel the currently selected preset effect.

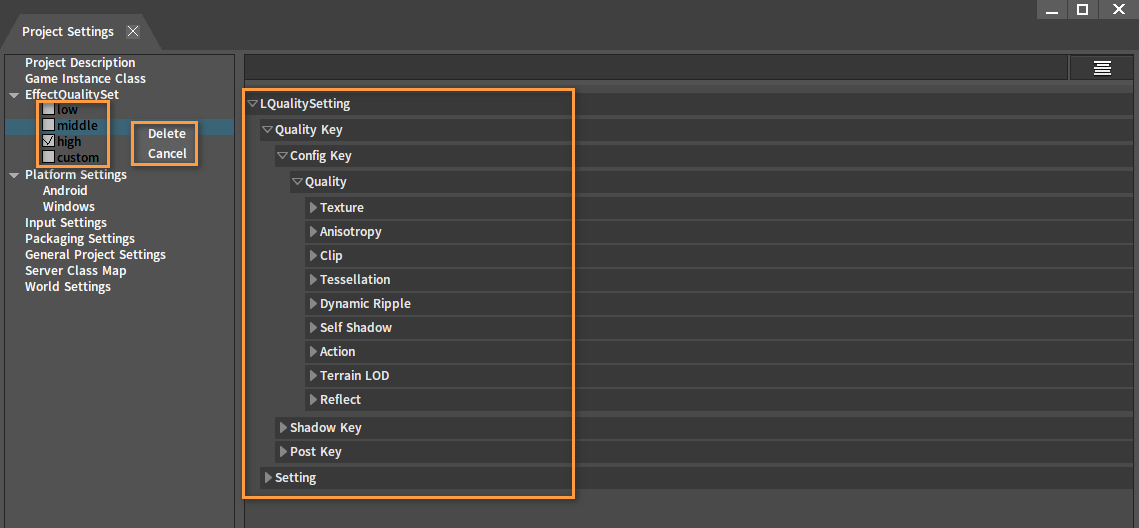

Right-click on the config name to delete it or cancel the currently selected preset effect.

Click to select different config names to view the corresponding config details.

Double-click to select different config names to apply the corresponding preset effects.

World Settings

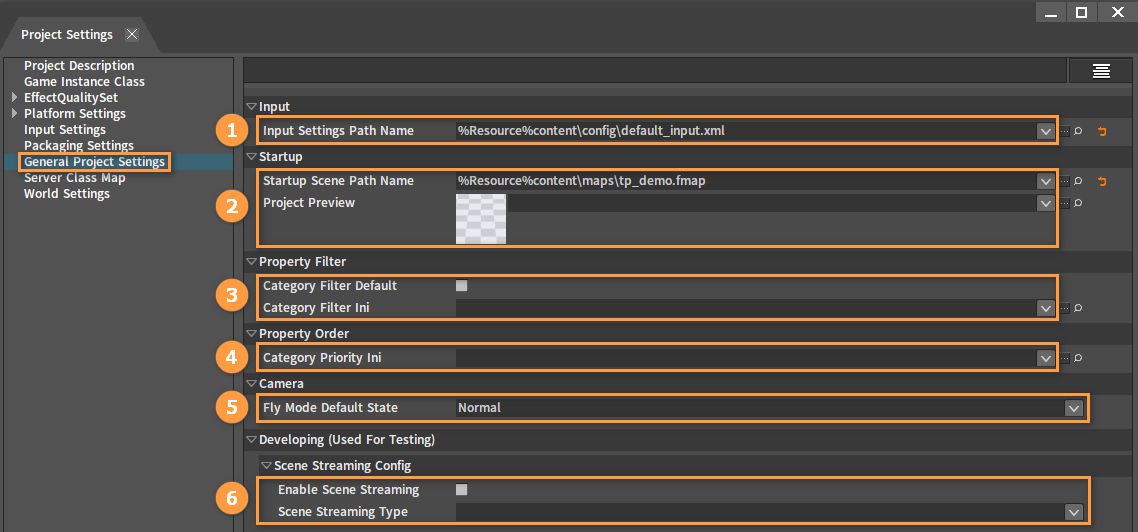

General Project Settings

①User input config file

②Default startup level config

③Property category hidden config file

④Property order config file

⑤Default camera mode (default state of fly mode)

⑥Scene streaming type config

Inputing Configs

1. Enable mouse smoothing switch: Control mouse smoothing
2. Enable Field of View (FOV) Scale Switch: If enabled, mouse input can be scaled by using the Camera Manager FOV
3. Whether to capture the mouse at startup
4. FOV Scale Value: FOV scaling coefficient
5. Double-click Time: It is considered to be a double-click when the interval between two key inputs is less than this value
6. Default mouse capture mode
7. Default mouse lock mode
8. Axis Property Mapping List: The mapping table of axis logical name and property (e.g. the scaling coefficient of the axis, whether to reverse)
9. Combination Key Mapping List: The mapping table of combination logic name and key combination (e.g. "jump"-"SpaceBar")
10. Axis Mapping List: The mapping table of the axis logical name and the key (e.g. "move forward"-"W")

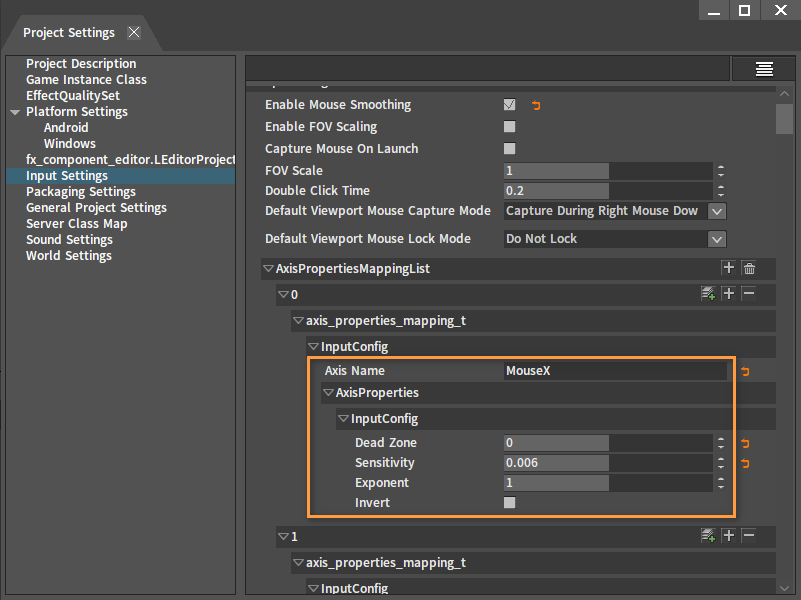

Adding/Deleting/Editing the Axis Properties

Adding/Deleting/Editing the Combination Key Mappings

Adding/Deleting/Editing the Axis Mappings

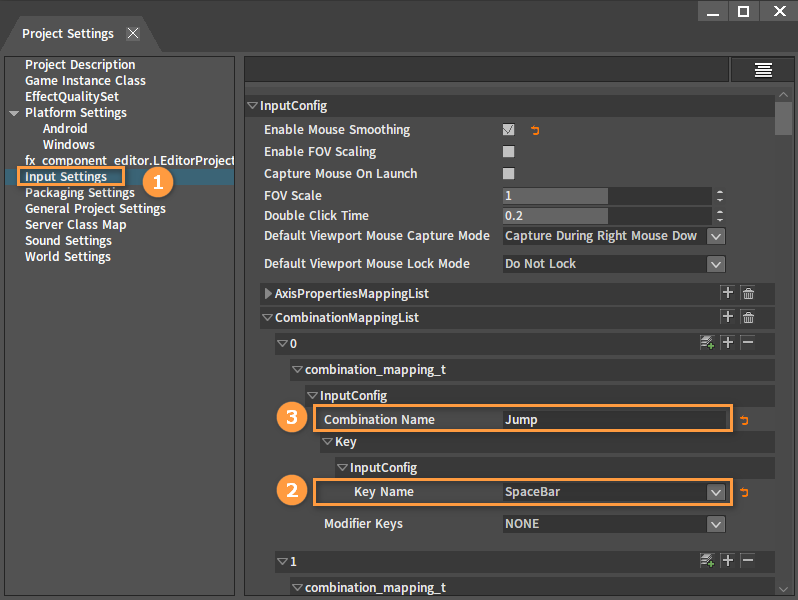

Jumping Example

1. Players input: Select SpaceBar for the Key Name

2. Input config: Combination mapping the SpaceBar key to "Jump"



3. Input Component: Blinding combination mapping callback

   C++:

   input_character_demo.cpp

   void LInputCharacterDemo::SetupPlayerInputComponent(LInputComponent* pIC)
   {
       Assert(pIC);

        { ... }

       {
           // Add combination callback
           CCombinationCallback& cJumpPressedCC = pIC->TAddCombinationCallback(
               "Jump", INPUT_EVENT_ENUM::Pressed,
               this, &LInputCharacterDemo::OnJumpPressed);
           cJumpPressedCC.bConsumeInput = true;

           CCombinationCallback& cJumpReleasedCC = pIC->TAddCombinationCallback(
               "Jump", INPUT_EVENT_ENUM::Released,
               this, &LInputCharacterDemo::OnJumpReleased);
           cJumpReleasedCC.bConsumeInput = true;
       }
   }

   Lua:

   script_input_character.lua

   --use this for initialization
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --Bind axis mapping callback
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --Bind combination mapping callback
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --Axis mapping callback
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --Combination mapping callback
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

               --Open helper doc when left click up
               input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true,
               "InputActionEvent_LeftClick_Pressed")
               input_comp:AddCombinationBinding("LeftClick", IE_Released, true, false, true,
               "InputActionEvent_LeftClick_Released")

               nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick")
               nx_callback(owner, "InputActionEvent_LeftClick_Released", "on_leftclick_up")
           end
       end

       nx_callback(component, "on_tick", "tick")
   end

4. Game Logic: Processing of the bound callback function

   C++:

   input_character_demo.cpp

   void LInputCharacterDemo::OnJumpPressed()
   {
       Jump();
   }

   void LInputCharacterDemo::OnJumpReleased()
   {
       StopJumping();
   }

   Lua:

   script_input_character.lua

   --use this for initialization
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --Bind axis mapping callback
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --Bind combination mapping callback
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --Axis mapping callback
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --Combination mapping callback
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

               --Open helper doc when left click up
               input_comp:AddCombinationBinding("LeftClick", IE_Pressed, true, false, true,
               "InputActionEvent_LeftClick_Pressed")
               input_comp:AddCombinationBinding("LeftClick", IE_Released, true, false, true,
               "InputActionEvent_LeftClick_Released")

               nx_callback(owner, "InputActionEvent_LeftClick_Pressed", "on_leftclick")
               nx_callback(owner, "InputActionEvent_LeftClick_Released", "on_leftclick_up")
           end
       end

       nx_callback(component, "on_tick", "tick")
   end

   --Jump key pressed callback
   function on_jump_pressed(owner)
       if nx_find_custom(owner, "JumpAgainLock") and owner.JumpAgainLock then
           return 1
       end

       --Character jumping
       owner:Jump()

       return 1
   end

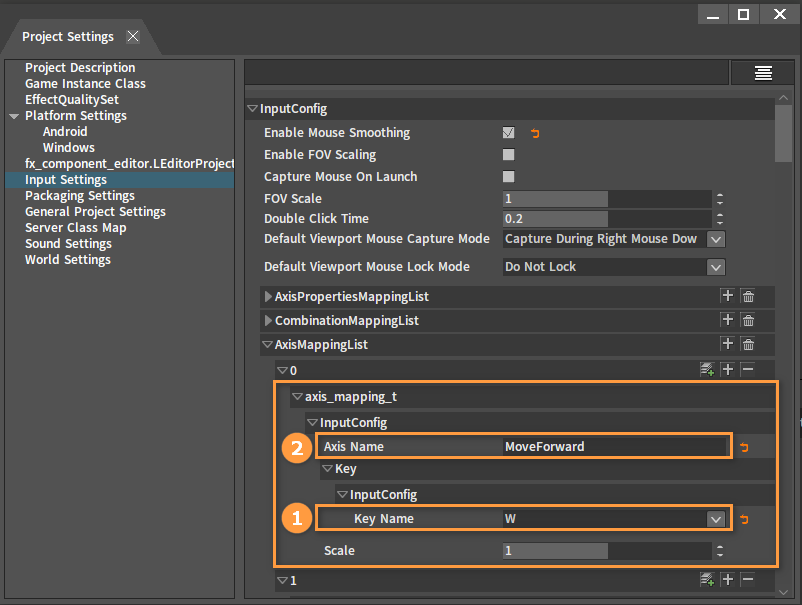

Moving Forward Example

1. Players input: Select W key for the Key Name

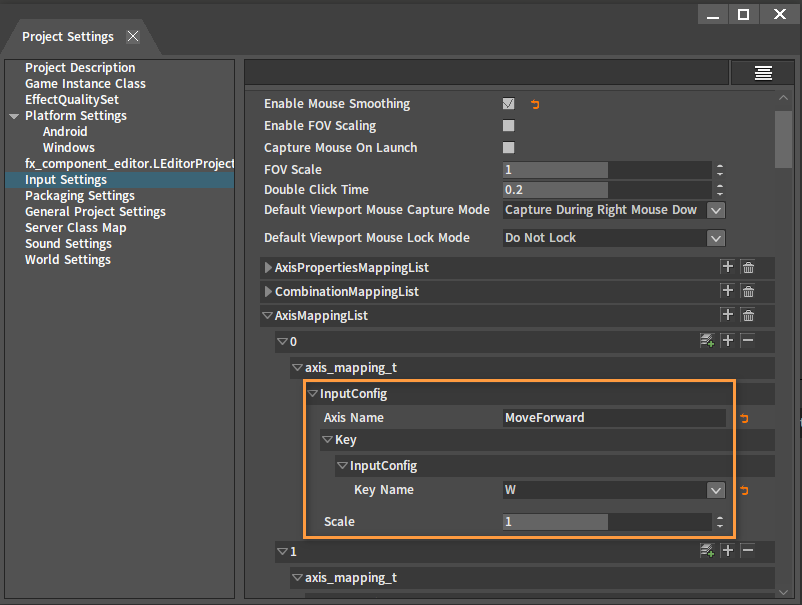

2. Input Config: Axis mapping W key to MoveForward



3. Input Component: Binding axis mapping callback

   C++:

   input_character_demo.cpp

   void LInputCharacterDemo::SetupPlayerInputComponent(LInputComponent* pIC)
   {
       Assert(pIC);

       {
           // Add axis callback
           CAxisCallback& cMoveForwardAC = pIC->TAddAxisCallback("MoveForward",
               this, &LInputCharacterDemo::OnMoveForward);
           cMoveForwardAC.bConsumeInput = true;

           CAxisCallback& cMoveRightAC = pIC->TAddAxisCallback("MoveRight",
               this, &LInputCharacterDemo::OnMoveRight);
           cMoveRightAC.bConsumeInput = true;

           CAxisCallback& cTurnAC = pIC->TAddAxisCallback("Turn",
               this, &LInputCharacterDemo::OnTurn);
           cTurnAC.bConsumeInput = true;

           CAxisCallback& cLookUpAC = pIC->TAddAxisCallback("LookUp",
               this, &LInputCharacterDemo::OnLookUp);
           cLookUpAC.bConsumeInput = true;
       }

        { ... }
   }

   Lua:

   script_input_character.lua

   local IE_MAX            = 5

   ---------------------
   --default callbacks--
   ---------------------

   --use this for initialization
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --Bind axis mapping callback
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --Bind combination mapping callback
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --Axis mapping callback
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --Combination mapping callback
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

4. Game Logic: Processing of the bound callback function

   C++:

   input_character_demo.cpp

   void LInputCharacterDemo::OnMoveForward(float val)
   {
       LController* pController = GetController();

       if (pController != NULL)
       {
           CXMVECTOR vAngle = pController->GetAngle();

           AddMovementInput(FXMath::AngleGetForward(vAngle), val);
       }
   }

   Lua:

   script_input_character.lua

   --use this for initialization
   function on_begin_play(component)
       local owner = component.GameObjectOwner


       if nx_is_valid(owner) then
           local input_comp = owner.InputComponent

           if nx_is_valid(input_comp) then
               nx_bind_script(owner, nx_current())

               --Bind axis mapping callback
               input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
               input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
               input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
               input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")

               --Bind combination mapping callback
               input_comp:AddCombinationBinding("Jump", IE_Pressed, true, false, true,
               "InputActionEvent_Jump_Pressed")
               input_comp:AddCombinationBinding("Jump", IE_Released, true, false, true,
               "InputActionEvent_Jump_Released")

               --Axis mapping callback
               nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
               nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
               nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
               nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")

               --Combination mapping callback
               nx_callback(owner, "InputActionEvent_Jump_Pressed", "on_jump_pressed")
               nx_callback(owner, "InputActionEvent_Jump_Released", "on_jump_released")

               nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

   --Move forward callback
   function on_moveforward(owner, axis_value)
       if not nx_is_valid(owner) then
           return 0
       end

       --Get controller Y-axis angle
       local controller = owner.Controller

       if nx_is_valid(controller) then
           local yaw = controller.AngleY
           --Get forward direction
           local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

           --Add movement

           owner:AddMovementInput(x, y, z, axis_value)
       end

       return 1
   end
