Character Quick Start

Overview

This documentation will introduce how to create Anim Trees and State Machines, transit the state of State Machines, bind inputs, and finally write scripts to control the character's actions in the Level.

Creating a New Project

Create a new empty project, please see Project for details

Importing Art Assets

Import skeleton meshes and animations. Please see Model Resources in the Resources Workflow for details.

Assembling Actors

Please see Assembling Actors for details.

Adding State Machine

Create an Anim Tree tp_tree in the Animation Editor.

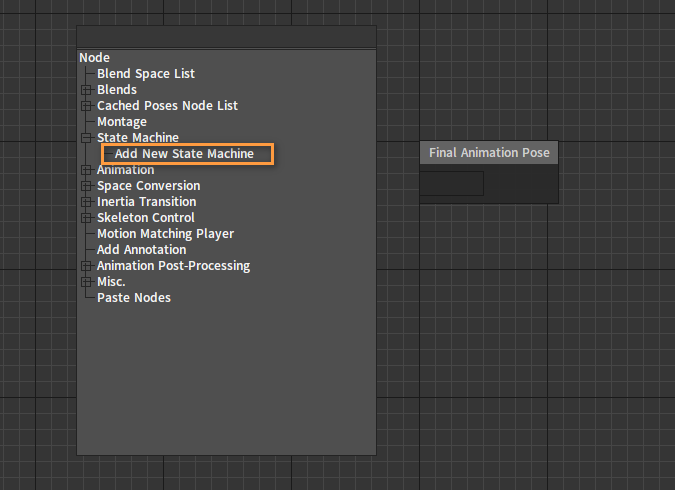

Add a State Machine Node to the Anim Tree and connect it to Final Animation Pose.

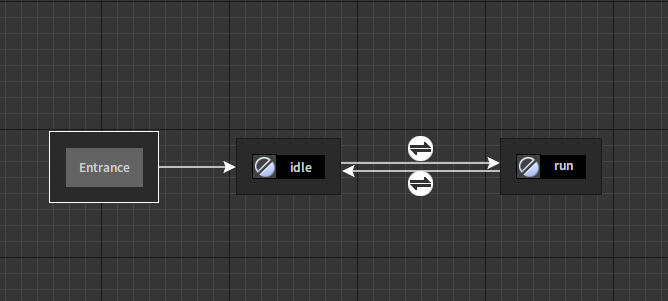

Double-click the State Machine Node to enter its editing interface. Add two state nodes, idle and run, and connect them to form a cycle.

Double-click the idle state node and add a stand pose to it. And then add a Sequence Playback Node and connect it to Final Animation Pose.

Similarly, add a run action to the run state.

Add a Speed Parameter of the Float type.

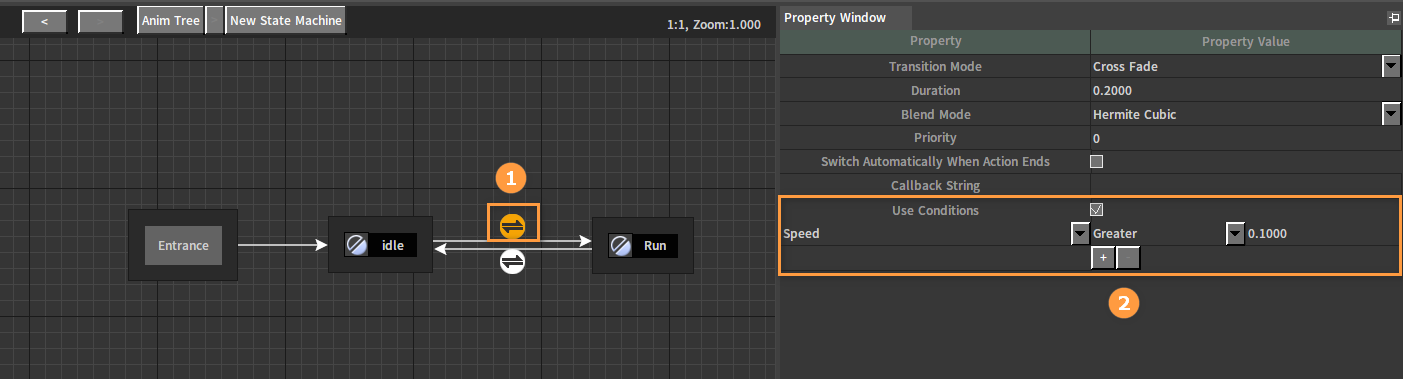

Set the state transition condition of idle → run as Speed is greater than 0.1.

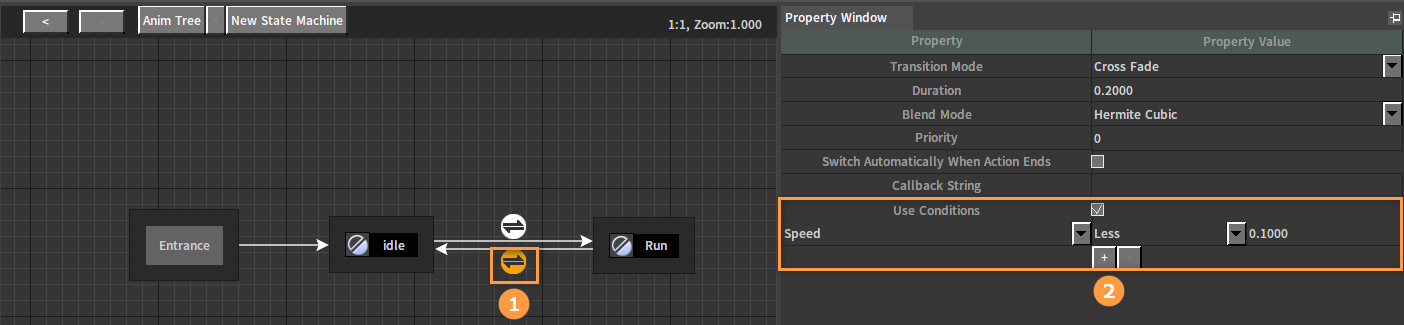

Set the state transition condition of run → idle as Speed is less than 0.1.

Click Save.

Editing Input Settings

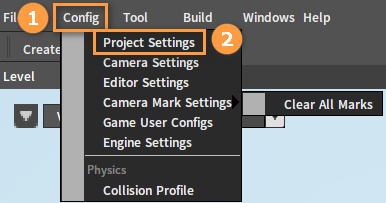

Click Config (Menu Bar) -> Project Settings to open the Project Settings window in the Component Editor.

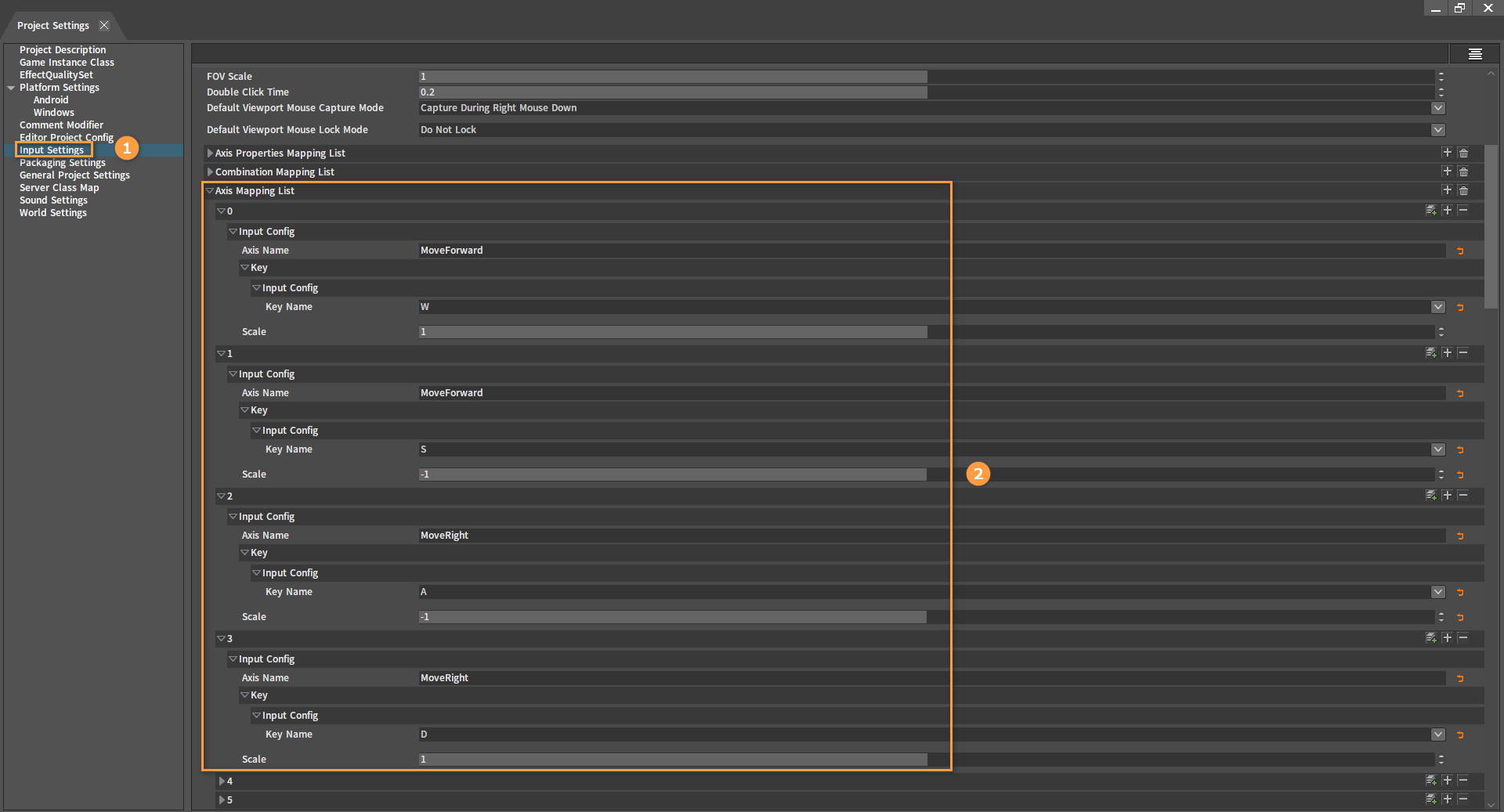

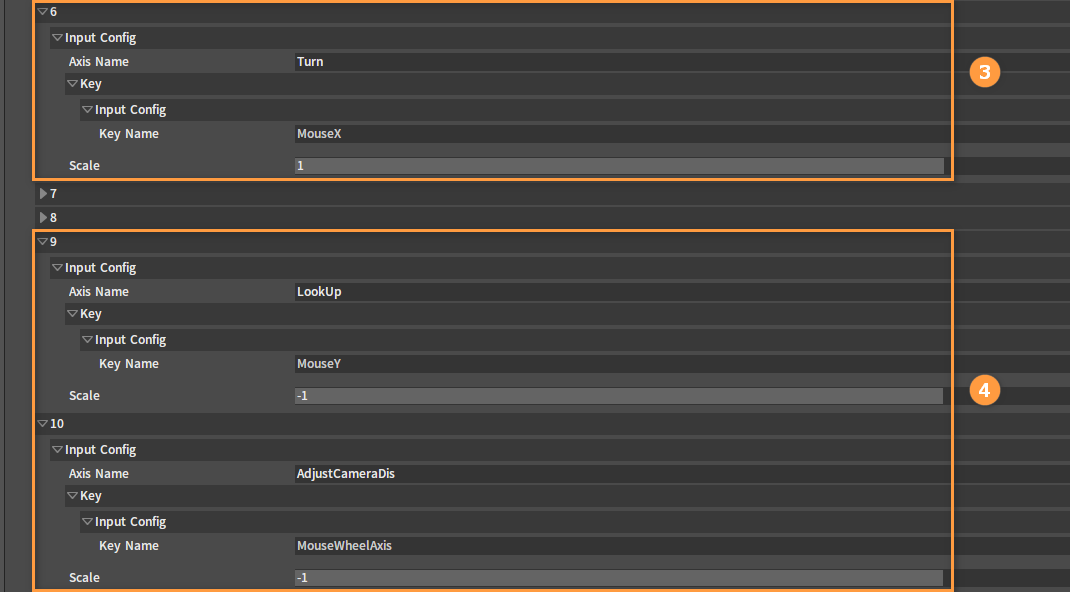

In the Axis Mapping List of Input Settings, add 7 keys similar to the ones in the picture below.

Character Settings

Creating a Character

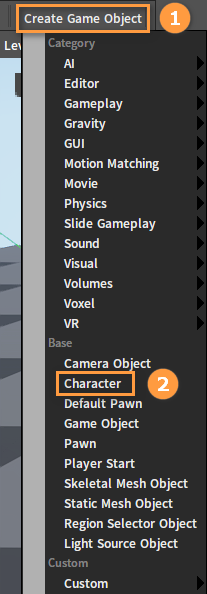

Click Create Game Object -> Character to create a player character in the new level.

Property Settings

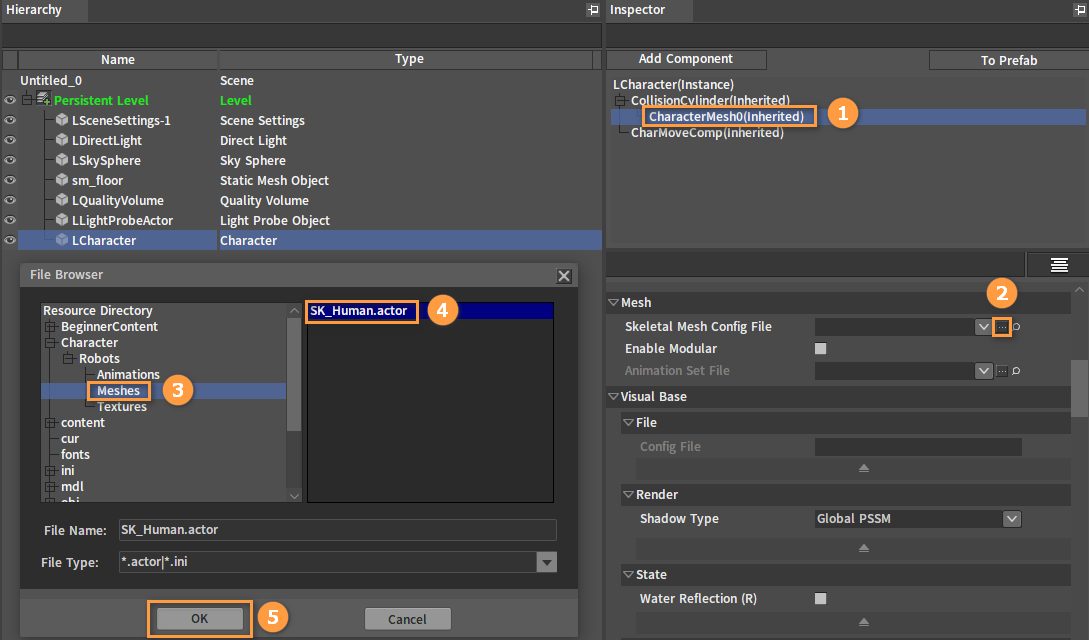

Modify the property Skeletal Mesh Config File of the CharacterMesh0(Inherited) Component to the previously created .actor file.

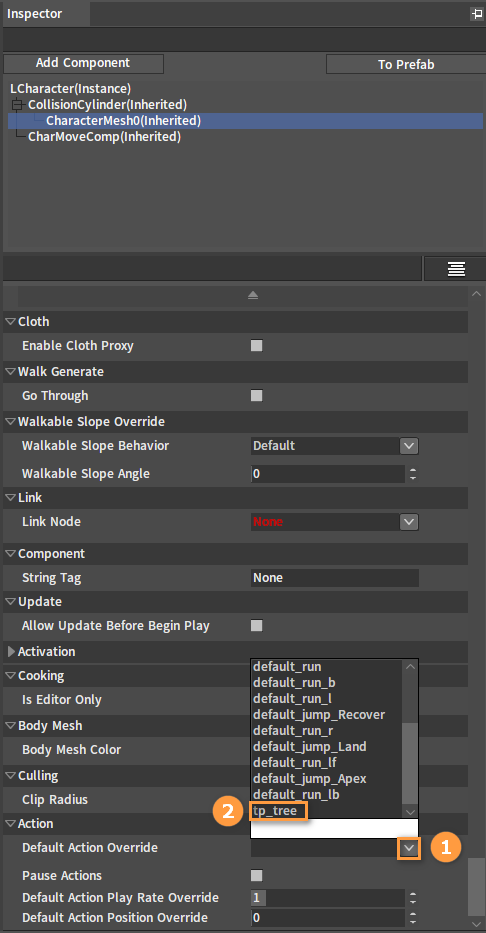

Then modify the property Default Action Override to the previously created tp_tree as well.

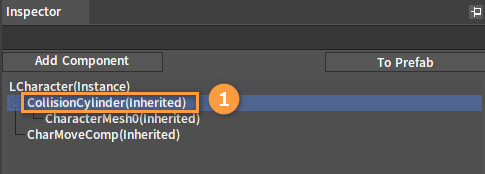

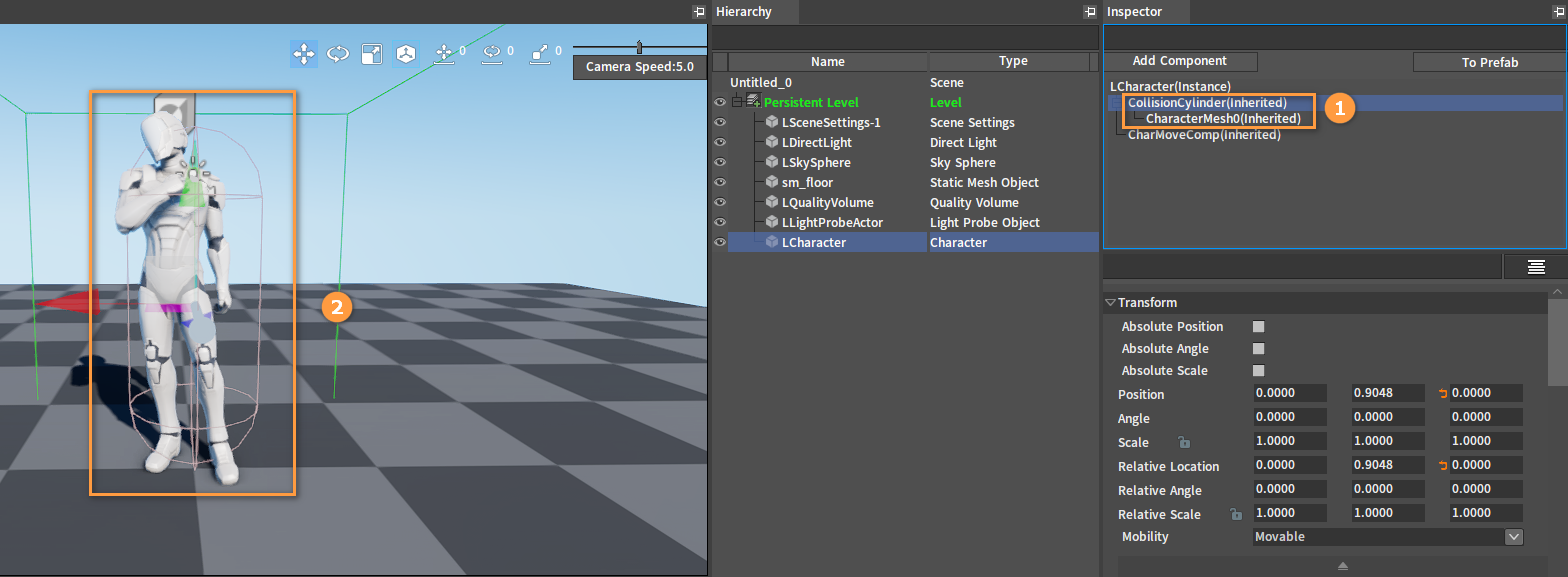

In the Hierarchy panel, select CollisionCylinder(Inherited) and adjust the position of the capsule. Then select CharacterMesh0(Inherited) and adjust the position of the character mesh, so that the feet of the character skin is close to the ground in the premise that the capsule wraps the character as much as possible.

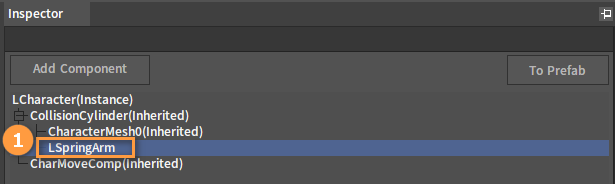

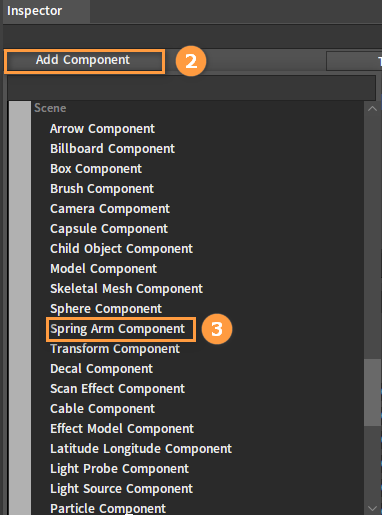

Add a Spring Arm Component under the CollisionCylinder(Inherited) Component.

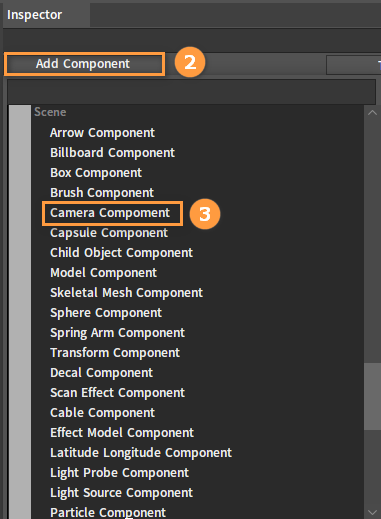

Then add a Camera Component under the Spring Arm Component.

Adjust the Camera Component to the appropriate position.

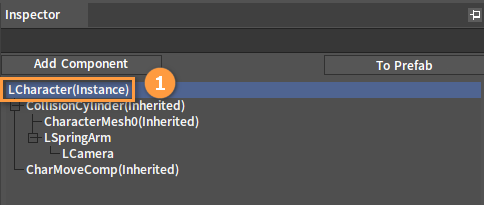

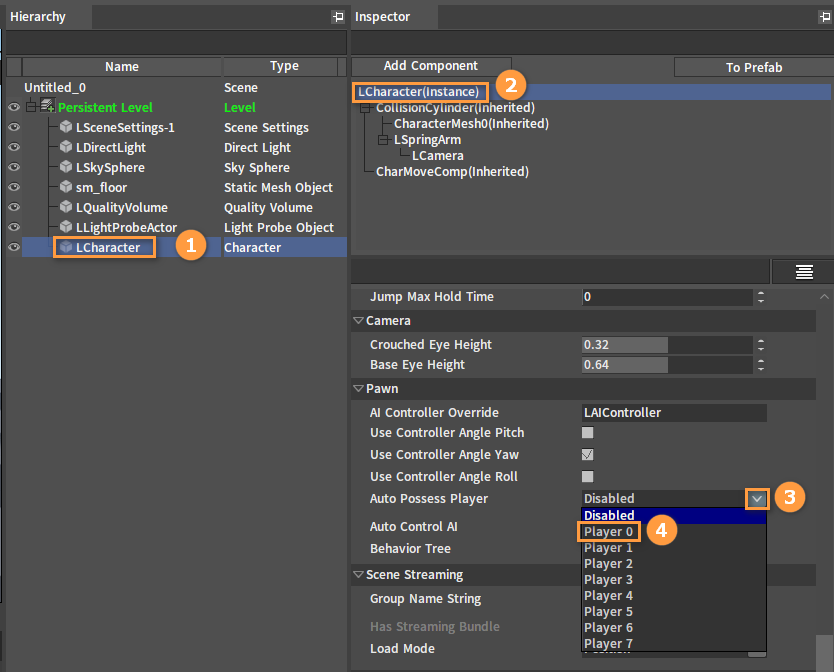

Select the LCharacter and set its property Auto Possess Player to Player0. At this time, PIE will automatically use the camera of the character.

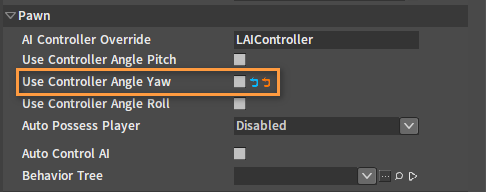

Set (Uncheck) the property Use Controller Angle Yaw of the character object to false.

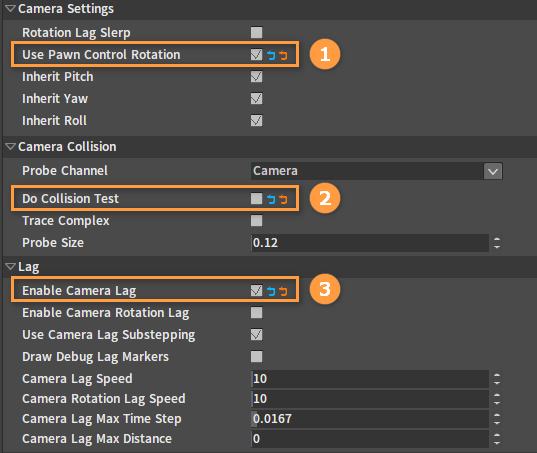

Set (Check) the properties of the Spring Arm Component including Use Pawn Control Rotation to true, Do Collision Test to false (Uncheck), and Enable Camera Lag to true respectively.

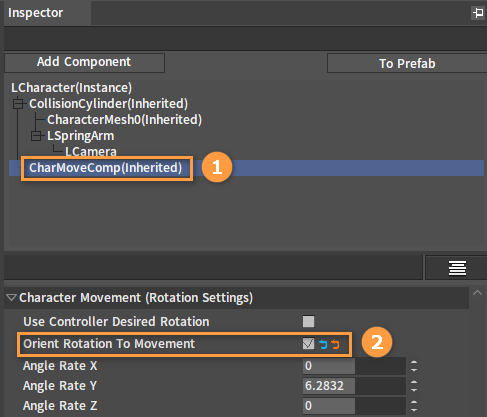

Set (Check) the property Orient Rotation To Movement of the CharMoveComp(Inherited) to true.

Scripting Character Control

Add a controller.lua file in the script folder of the project, and scripting as follows.

--Animation Resource Type
AT_UNKNOWN = 0
AT_SKELETON = 1
AT_SKELETON_AS_ANIMSEQUENCE = 2
AT_ANIMSEQUENCE = 3
AT_MONTAGE = 4
AT_BLENDSPACE = 5
AT_BLENDSPACE1D = 6
AT_AIMOFFSETBLENDSPACE = 7
AT_ANIMTREE = 8

local IE_Pressed        = 0     --Press the Key
local IE_Released       = 1     --Release the Key
local IE_Repeat         = 2
local IE_DoubleClick    = 3
local IE_Axis           = 4
local IE_MAX            = 5

local CAMERA_DISTANCE_CHANGE_SPEED = 0.5
local CAMERA_DISTANCE_MIN = -1
local CAMERA_DISTANCE_MAX = 50


--use this for initialization
function on_begin_play(component)
    local owner = component.ActorOwner

    if nx_is_valid(owner) then
        local input_comp = owner.InputComponent

        if nx_is_valid(input_comp) then
            nx_bind_script(owner, nx_current())

            --The first parameter corresponds to the Axis Name in the input settings
            --The last parameter is the custom Event Name
            input_comp:AddAxisBinding("MoveForward", true, false, true, "InputAxisEvent_MoveForward")
            input_comp:AddAxisBinding("MoveRight", true, false, true, "InputAxisEvent_MoveRight")
            input_comp:AddAxisBinding("Turn", true, false, true, "InputAxisEvent_Turn")
            input_comp:AddAxisBinding("LookUp", true, false, true, "InputAxisEvent_LookUp")
            input_comp:AddAxisBinding("AdjustCameraDis", true, false, true, "InputAxisEvent_AdjustCameraDis")

            --The second parameter is the last parameter in AddAxisBinding, which represents the function name in the script
            nx_callback(owner, "InputAxisEvent_MoveForward", "on_moveforward")
            nx_callback(owner, "InputAxisEvent_MoveRight", "on_moveright")
            nx_callback(owner, "InputAxisEvent_Turn", "on_turn")
            nx_callback(owner, "InputAxisEvent_LookUp", "on_lookup")
            nx_callback(owner, "InputAxisEvent_AdjustCameraDis", "on_adjust_camera_dis")

            nx_callback(owner, "on_velocity_changed", "on_velocity_changed")

        end
    end

    nx_callback(component, "on_tick", "tick")
end

--use this for release
function on_end_play(component)
end

--Get actor
function character_get_actor(character)
    if nx_is_valid(character) then
        local mesh_component = character.MeshComponent

        if nx_is_valid(mesh_component) then
            local vis_base = mesh_component.VisBase

            if nx_is_valid(vis_base) and nx_is_kind(vis_base, "Actor") then
                return vis_base
            end
        end
    end

    return nx_null()
end

--Get spring_arm
function character_get_spring_arm(character)
    if nx_is_valid(character) then
        local spring_arm_component = character:FindComponentByClassName("LSpringArmComponent")

        return spring_arm_component
    end

    return nx_null()
end

--Move forward callback
function on_moveforward(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller Y-axis angle
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get forward direction
        local x, y, z = nx_function("ext_angle_get_forward_vector", 0.0, yaw, 0.0)

        --Add Movement value

        owner:AddMovementInput(x, y, z, axis_value)
    end

    return 1
end

--Move right callback
function on_moveright(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    --Get controller Y-axis angle
    local controller = owner.Controller

    if nx_is_valid(controller) then
        local yaw = controller.AngleY
        --Get right direction
        local x, y, z = nx_function("ext_angle_get_right_vector", 0.0, yaw, 0.0)

        --Add Movement value
        owner:AddMovementInput(x, y, z, axis_value)
    end
    return 1
end

--Rotate left and right (along Y-axis) callback
function on_turn(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerYawInput(axis_value)

    return 1
end

--Rotate up and down (along X-axis) callback
function on_lookup(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    owner:AddControllerPitchInput(-axis_value)

    return 1
end

--Mouse wheel callback
function on_adjust_camera_dis(owner, axis_value)
    if not nx_is_valid(owner) then
        return 0
    end

    local spring_arm_component = character_get_spring_arm(owner)

    if nx_is_valid(spring_arm_component) then
        local delta = axis_value * CAMERA_DISTANCE_CHANGE_SPEED

        local cur_value = spring_arm_component.TargetArmLength
        local new_value =  cur_value + delta

        if delta > 0 then
            if new_value > CAMERA_DISTANCE_MAX then
                new_value = CAMERA_DISTANCE_MAX
            end

            spring_arm_component.TargetArmLength = new_value
        else
            if new_value < CAMERA_DISTANCE_MIN then
                new_value = CAMERA_DISTANCE_MIN
            end
            spring_arm_component.TargetArmLength = new_value
        end
    end

    return 1
end


--Velocity change callback
function on_velocity_changed(owner, component_id, new_x, new_y, new_z, old_x, old_y, old_z)
    local actor = character_get_actor(owner)

    if nx_is_valid(actor) then
        if actor:GetBlendActionCount() > 0 then
            local action_name = actor:GetBlendActionName(0)
            local action_type = actor:GetActionType(action_name)
            local action_index = actor:GetActionIndex(action_name)

            if action_type == AT_ANIMTREE then
                local speed = math.sqrt(new_x * new_x + new_y * new_y + new_z * new_z)
                actor:SetAnimTreeValue(action_index, "Speed", speed)

                nx_set_custom(actor,"CurSpeed",speed);
            end
        end
    end

    return 1
end

Binding Character Control Script

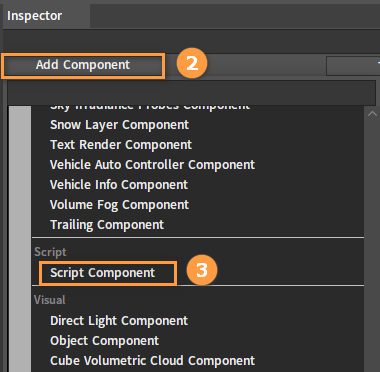

Add a Script Component to the character object.

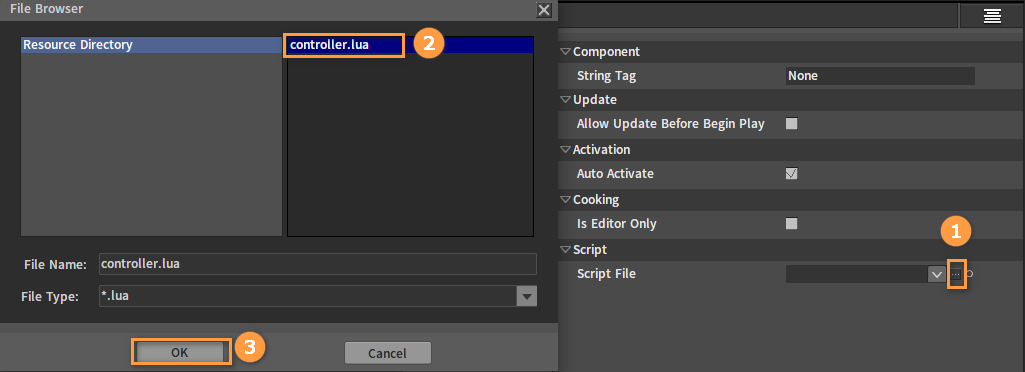

Set the property Script File of the Script Component to the controller.lua as written previously.

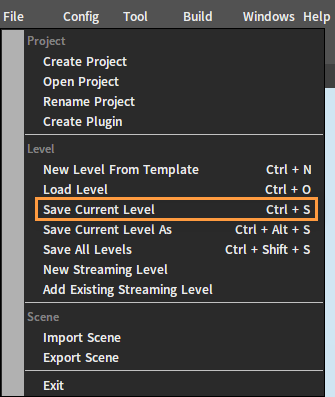

Click Save Current Level (Ctrl+S).

PIE

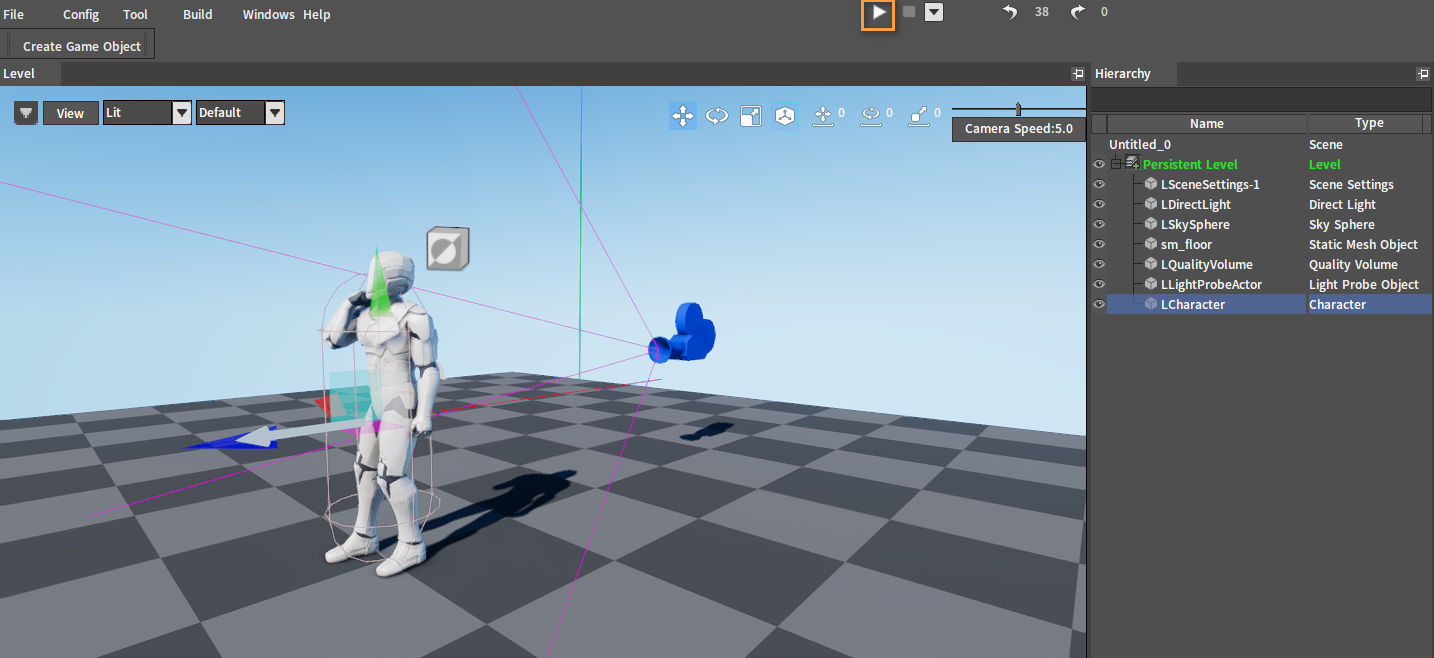

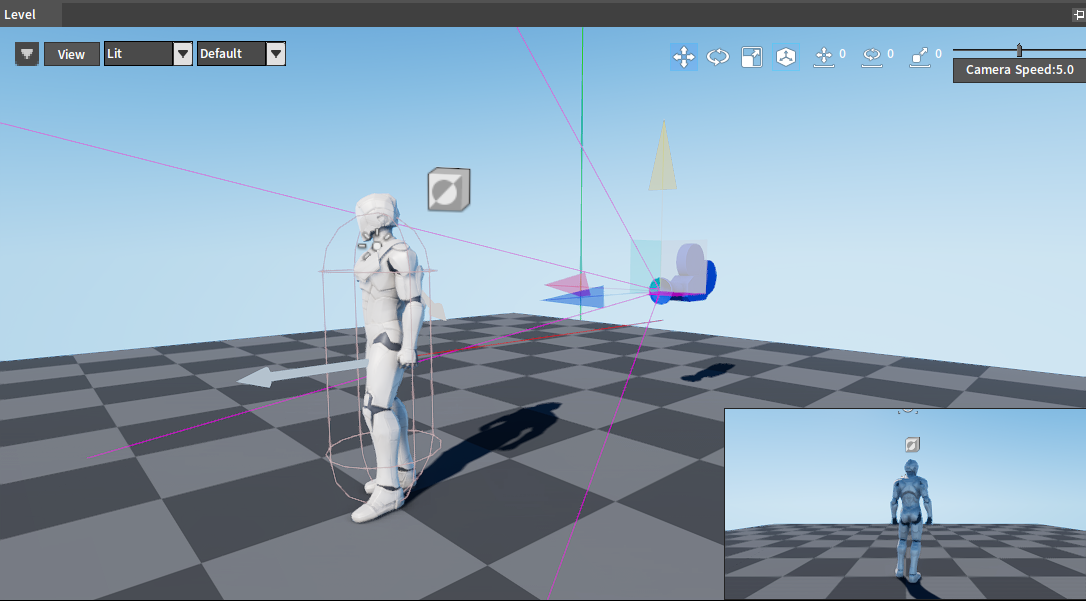

Playing in the Editor as shown below.
